FCC ID VG5WIN7025
Base Station Transceiver
by Siemens Canada Limited
Grantee Code: VG5 Product Code: WIN7025
Latest application date: 2016-01-12
Device Images
FCC ID Device Details
| FCC ID | VG5WIN7025 |
|---|---|
| Mirrors | fcc.id | gov | fccid.ai |
| Grantee Code | VG5 |
| Product Code | WIN7025 |
| Applicant Business | Siemens Canada Limited 🇨🇦 |
| Related Domains |  siemens.com |
| Equipment Class | Base Station Transceiver |
| Test Firm | Hermon Laboratories Ltd. |
Operating Frequencies
| Frequency Range | Application Purpose | Final Action Date |
|---|---|---|
| 2498.5-2687.5 MHz | Original Equipment | 2016-01-12 |
Exhibits
| Document | Type | Available | File |
|---|---|---|---|

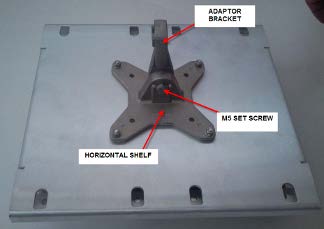

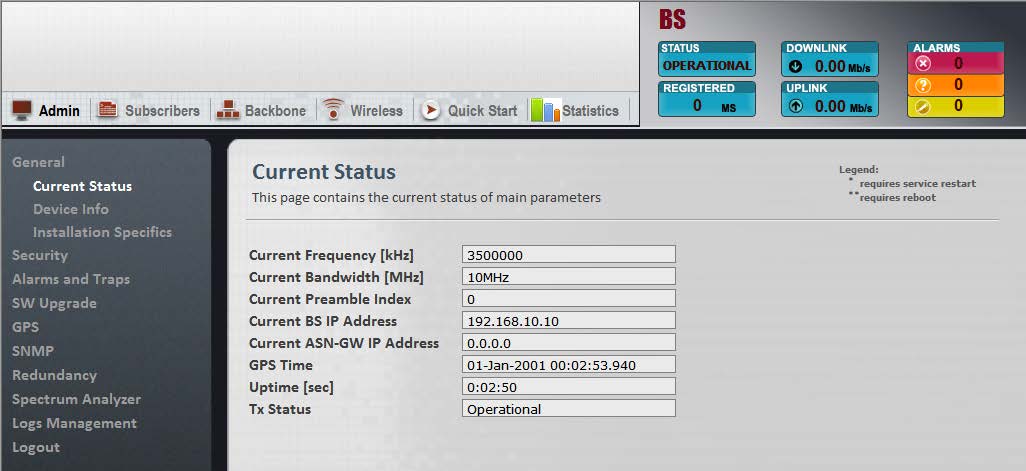

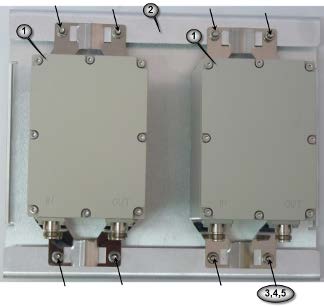

| Users Manual | Users Manual | 2016-01-12 | PDF 1.6 MB |

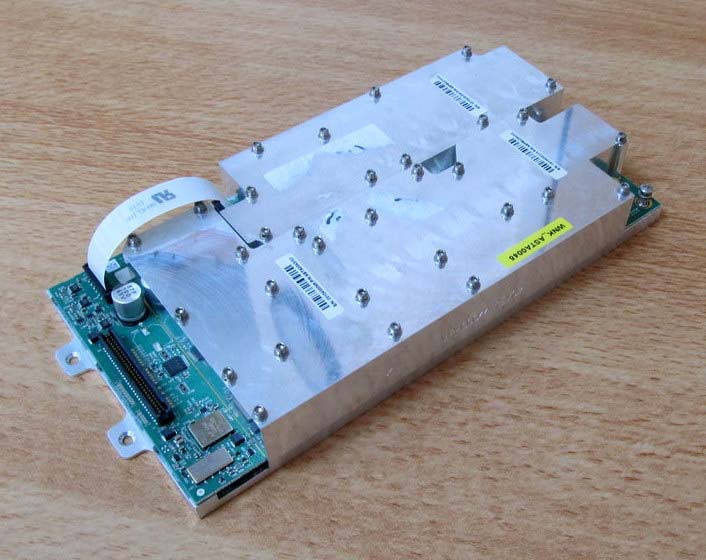

| Internal Photos | Internal Photos | 2016-01-12 | PDF 857.7 KB |
| External Photos | External Photos | 2016-01-12 | PDF 70.1 KB |
| ID Label/Location Info | ID Label/Location Info | 2016-01-12 | PDF 72.2 KB |
| Test Setup Photos | Test Setup Photos | 2016-01-12 | PDF 355 KB |
| Test Report | Test Report | 2016-01-12 | PDF 1.1 MB |
| Authorization Letter | Cover Letter(s) | 2016-01-12 | PDF 34.8 KB |
| Declaration of authorization | Cover Letter(s) | 2016-01-12 | PDF 17.4 KB |
| confidentiality | Cover Letter(s) | 2016-01-12 | PDF 17.2 KB |
| RF Exposure Info | RF Exposure Info | 2016-01-12 | PDF 12.5 KB |
| Schematics-CPU Metadata only | Schematics | PDF 234.3 KB | |
| Schematics-GPS module Metadata only | Schematics | PDF 40.7 KB | |
| Schematics-Motherboard Metadata only | Schematics | PDF 234.3 KB | |
| Schematics-PS Metadata only | Schematics | PDF 65.7 KB | |
| Schematics-PowerRF Metadata only | Schematics | PDF 17 KB | |
| Schematics-RF Module Metadata only | Schematics | PDF 335.8 KB | |
| Operational Description Metadata only | Operational Description | PDF 78.3 KB | |
| Part List-Board Metadata only | Parts List/Tune Up Info | PDF 9.1 KB | |
| Part List-PS Metadata only | Parts List/Tune Up Info | PDF 17.3 KB | |
| Part List-RF module Metadata only | Parts List/Tune Up Info | PDF 11.8 KB | |
| Tune Up Info Metadata only | Parts List/Tune Up Info | PDF 178.1 KB |
Application Information
| Application ID | D+C0YzFF26dw9GTZSPpEZA== |
|---|---|
| Final Action Date | 2016-01-12 |
| Application Purpose | Original Equipment |
| Applicant FRN | 0016678849 |
| Model | WIN7025 |
| Frequency Range | 2498.5-2687.5 MHz |
| Equipment Class | TNB - Licensed Non-Broadcast Station Transmitter |
| Device Description | Base Station Transceiver |
| Responsible Party | Norman Lew, Senior Certification Engineer, norman.lew@siemens.com , 905-482-7217 |
| Technical Contact | Michael Nikishin, Hermon Laboratories Ltd., nikishin@hermonlabs.com  , 972 4626 8440 |
| Non-Technical Contact | Israel Aminov, Siemens Canada Limited, israel.aminov@siemens.com , 9054824558 |
| Test Firm | Alexander Usoskin, Hermon Laboratories Ltd., mail@hermonlabs.com , 972-4628-8001 |
| TCB Email | certification@telefication.com  |
| TCB Scope | B1: Commercial mobile radio services equipment in the following 47 CFR Parts 20, 22 (cellular), 24,25 (below 3 GHz) & 27 |
| Short-Term Confidentiality | No |
| Long-Term Confidentiality | Yes |
| Grant Deferral | No |
| Modular Equipment | Does not apply |
| Composite Device | No |
| Composite Part | No |
| Cognitive Radio | No |
| Authorization Waiver | No |
| Authorization Waiver Approved | No |
| Section 5301 Certification | Yes |
| Related OET Knowledge DataBase Inquiry | No |
| Grant Comments | Power listed is conducted total peak power at antenna terminals. The antennas used for this transmitter must be fixed-mounted on outdoor permanent structures. Professional installation is required. Users and installers must be provided with antenna installation instructions and transmitter operating conditions for satisfying RF exposure compliance. RF exposure compliance is addressed at the time of licensing, as required by the responsible FCC Bureau(s), including antenna co-location requirements of 1.1307(b)(3). This device contains functions that are not operational in U.S. Territories. This filing is only applicable for U.S. operations. |
Applications
| Application ID | Date | Purpose |
|---|---|---|
| D+C0YzFF26dw9GTZSPpEZA== | 2016-01-12 | Original Equipment |
Equipment Authorization
Grants
TCB Grant - Application D+C0YzFF26dw9GTZSPpEZA==
| TCB | GRANT OF EQUIPMENT AUTHORIZATION |
TCB |
| Certification | ||
| Issued Under the Authority of the | ||
| Federal Communications Commission | ||
| By: |
|
Telefication B.V. Wilmersdorf 50 Apeldoorn, NL-7300 AC Netherlands |
Date of Grant: 01/12/2016 Application Dated: 01/12/2016 |
| Siemens Canada Limited |
| 300 Applewood Crescent |
| Concord, L4K 5C7 Canada |
| Attention: Norman Lew , Senior Certification Engineer |
| NOT TRANSFERABLE |
| EQUIPMENT AUTHORIZATION is hereby issued to the named GRANTEE, and is VALID ONLY for the equipment identified hereon for use under the Commission's Rules and Regulations listed below. |
| FCC IDENTIFIER: | VG5WIN7025 |
| Name of Grantee: | Siemens Canada Limited |
| Equipment Class: | Licensed Non-Broadcast Station Transmitter |
| Notes: | Base Station Transceiver |
| Grant Notes | FCC Rule Parts | Frequency Range (MHZ) | Output Watts | Frequency Tolerance | Emission Designator |
| 27 | 2498.5 - 2687.5 | 6.55 | 494.0 Hz | 4M96W7D | |
| 27 | 2501.0 - 2685.0 | 6.17 | 494.0 Hz | 9M67W7D |
| Power listed is conducted total peak power at antenna terminals. The antennas used for this transmitter must be fixed-mounted on outdoor permanent structures. Professional installation is required. Users and installers must be provided with antenna installation instructions and transmitter operating conditions for satisfying RF exposure compliance. RF exposure compliance is addressed at the time of licensing, as required by the responsible FCC Bureau(s), including antenna co-location requirements of 1.1307(b)(3). This device contains functions that are not operational in U.S. Territories. This filing is only applicable for U.S. operations. |
