FCC ID VGYAP902
VigorAP 902 Dual Band 11ac AP
by Draytek Corporation
Grantee Code: VGY Product Code: AP902
Latest application date: 2015-12-02
Device Images
FCC ID Device Details
| FCC ID | VGYAP902 |
|---|---|
| Mirrors | fcc.id | gov | fccid.ai |
| Grantee Code | VGY |
| Product Code | AP902 |
| Applicant Business | Draytek Corporation 🇹🇼 |
| Related Domains |  draytek.com |
| Equipment Class | VigorAP 902 Dual Band 11ac AP |
| Test Firm | Compliance Certification Services Inc. |
Operating Frequencies
| Frequency Range | Application Purpose | Final Action Date |
|---|---|---|
| 5180-5240 MHz | Original Equipment | 2015-12-02 |
| 2412-2462 MHz | Original Equipment | 2015-12-02 |
Exhibits
| Document | Type | Available | File |
|---|---|---|---|

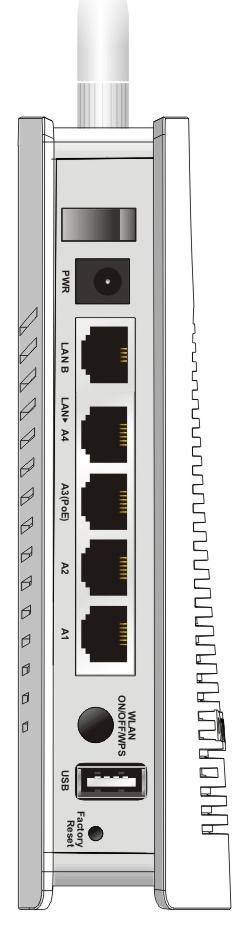

| Users Manual | Users Manual | 2015-12-02 | PDF 689 KB |

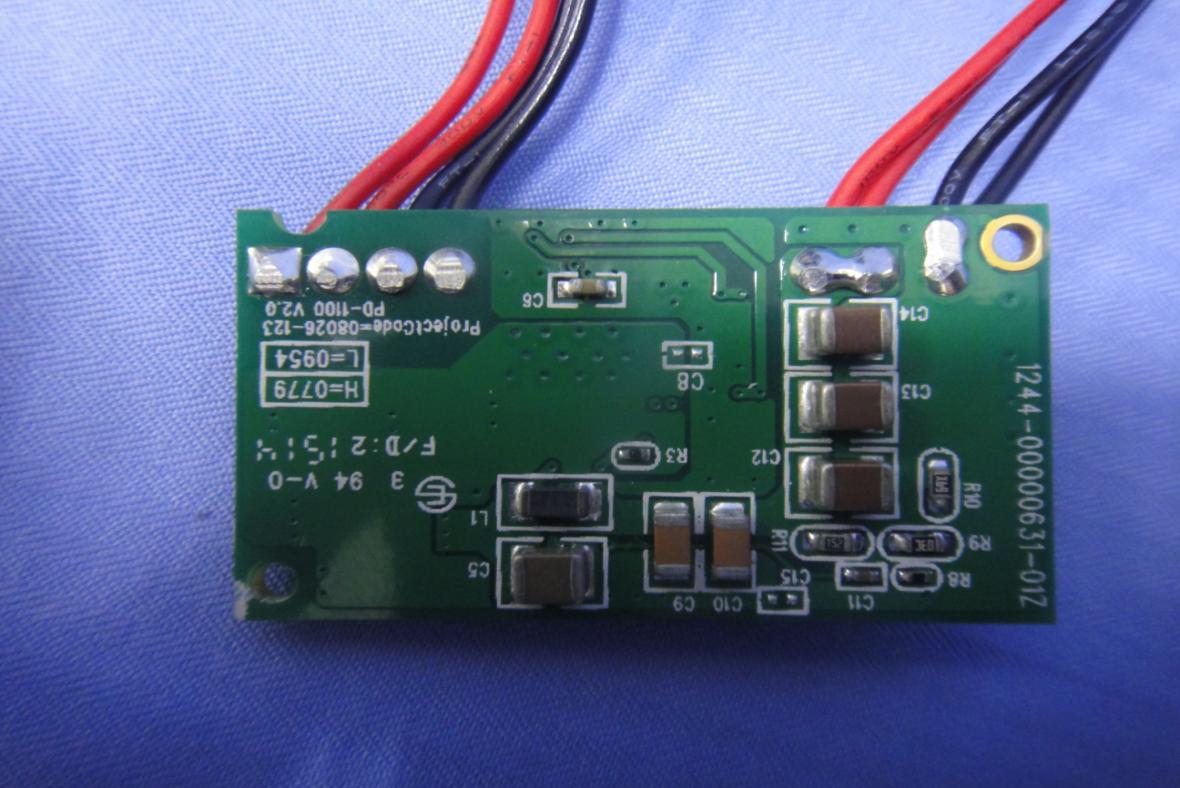

| Internal Photos | Internal Photos | 2015-12-02 | PDF 1.1 MB |

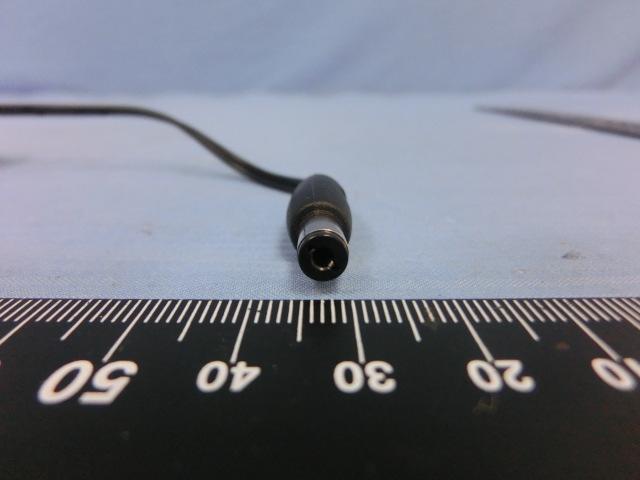

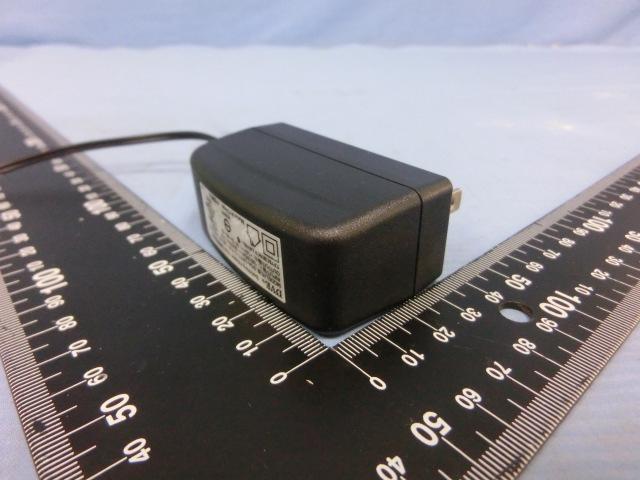

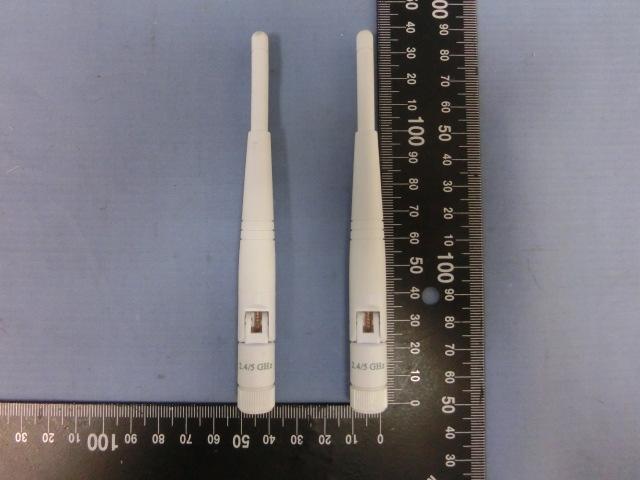

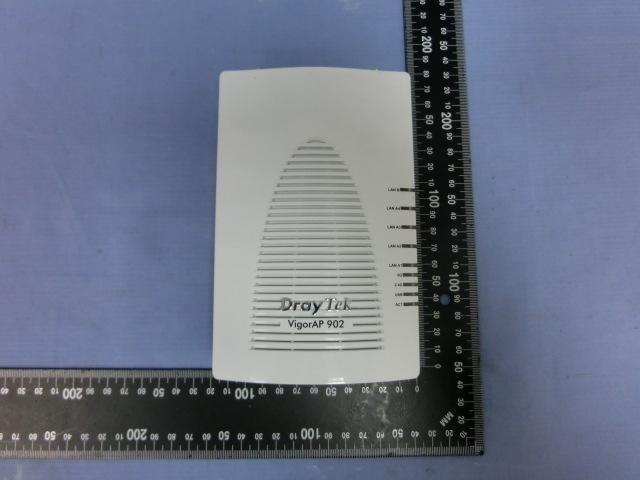

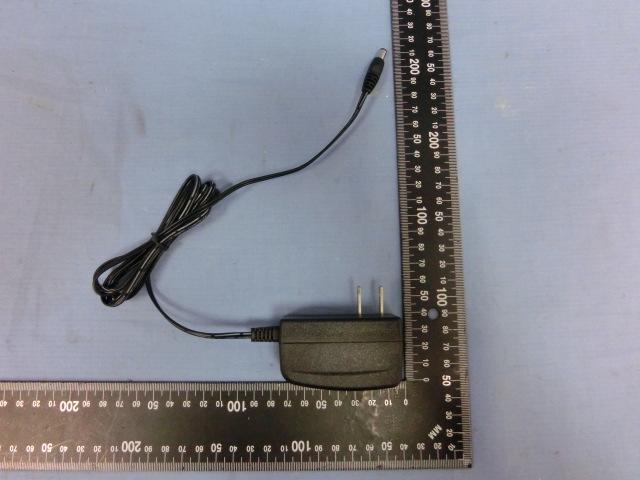

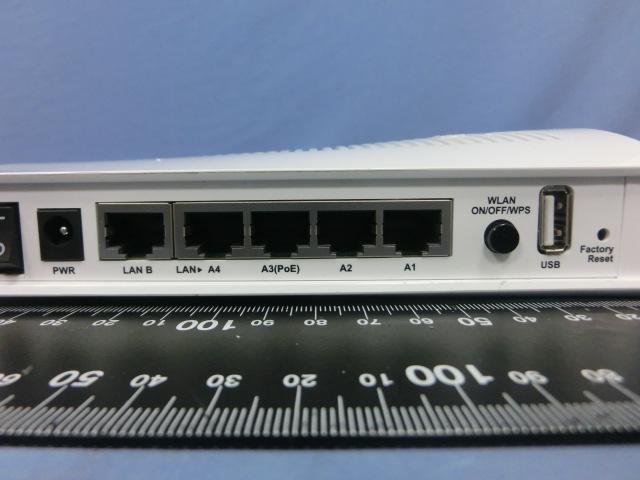

| External Photos | External Photos | 2015-12-02 | PDF 737.1 KB |
| Label & Label Location | ID Label/Location Info | 2015-12-02 | PDF 305.4 KB |
| Label and Label Location | ID Label/Location Info | 2015-12-02 | PDF 305.4 KB |
| Test Setup Photos | Test Setup Photos | 2015-12-02 | PDF 550.2 KB |
| Test Setup Photos | Test Setup Photos | 2015-12-02 | PDF 550.6 KB |
| Test Report NII | Test Report | 2015-12-02 | PDF 3.6 MB |
| Test Report for MPE | RF Exposure Info | 2015-12-02 | PDF 166.7 KB |
| Test Report for WLAN | Test Report | 2015-12-02 | PDF 4.8 MB |
| Confidentiality Request Letter | Cover Letter(s) | 2015-12-02 | PDF 33.3 KB |
| Cover Letter | Cover Letter(s) | 2015-12-02 | PDF 25.7 KB |
| DOC Letter | Cover Letter(s) | 2015-12-02 | PDF 23.7 KB |
| DOC Letter | Cover Letter(s) | 2015-12-02 | PDF 21.3 KB |
| POA | Cover Letter(s) | 2015-12-02 | PDF 25.7 KB |
| Block Diagram Metadata only | Block Diagram | PDF 45.4 KB | |
| Schematics Metadata only | Schematics | PDF 427.8 KB | |
| Operation Description Antenna Specification Metadata only | Operational Description | PDF 2.6 MB | |
| Operational Description Metadata only | Operational Description | PDF 64 KB | |
| Operational Description Antenna Specification Metadata only | Operational Description | PDF 2.6 MB | |
| Operational Description Software Secuirty Metadata only | Operational Description | PDF 75.4 KB | |
| Tune Up Procedure Metadata only | Parts List/Tune Up Info | PDF 300.9 KB | |
| Tune Up Procedures Metadata only | Parts List/Tune Up Info | PDF 300.9 KB |
Application Information
| Application ID | quTAMv9dUc/oEKHCHEIG+w== |
|---|---|
| Final Action Date | 2015-12-02 |
| Application Purpose | Original Equipment |
| Applicant FRN | 0016678385 |
| Model | AP902 |
| Frequency Range | 5180-5240 MHz |
| Equipment Class | NII - Unlicensed National Information Infrastructure TX |
| Device Description | VigorAP 902 Dual Band 11ac AP |
| Responsible Party | Abbott Yu, HW manager, ayu@draytek.com , +886-35972727 |
| Test Firm | Hank Lee, Compliance Certification Services Inc., hank.lee@sgs.com  , 886-2-22999720 |
| TCB Email | TEI@TIMCOENGR.COM  |
| TCB Scope | A4: UNII devices & low power transmitters using spread spectrum techniques |
| Short-Term Confidentiality | No |
| Long-Term Confidentiality | Yes |
| Grant Deferral | No |
| Modular Equipment | Does not apply |
| Composite Device | Yes |
| Composite Part | No |
| Cognitive Radio | No |
| Authorization Waiver | No |
| Authorization Waiver Approved | No |
| Section 5301 Certification | Yes |
| Related OET Knowledge DataBase Inquiry | No |
| Grant Comments | Power listed is maximum combined conducted. Device operates with specific antennas in MIMO configurations as described in this filing. The antenna(s) used for this transmitter must be installed to provide a separation distance of at least 20 cm from all persons and must not transmit simultaneously with any other antenna or transmitter, except in accordance with FCC multi-transmitter product procedures. Users and installers must be provided with antenna installation instructions and transmitter operating conditions for satisfying RF exposure compliance. This device has 20, 40, and 80 MHz bandwidth modes. |
Applications
| Application ID | Date | Purpose |
|---|---|---|
| quTAMv9dUc/oEKHCHEIG+w== | 2015-12-02 | Original Equipment |
| j99DmcPObr0/5iBiKaqNRA== | 2015-12-02 | Original Equipment |
Equipment Authorization
Grants
TCB Grant - Application quTAMv9dUc/oEKHCHEIG+w==
| TCB | GRANT OF EQUIPMENT AUTHORIZATION |
TCB |
| Certification | ||
| Issued Under the Authority of the | ||
| Federal Communications Commission | ||
| By: |
|
Timco Engineering, Inc. 849 NW State Road 45 Newberry, FL 32669 |
Date of Grant: 12/02/2015 Application Dated: 12/02/2015 |
| Draytek Corporation |
| No.26, Fu Shing Rd., HuKou County, |
| Hsinchu Industrial Park |
| Hsinchu, 303 Taiwan |
| Attention: Abbott Yu , HW manager |
| NOT TRANSFERABLE |
| EQUIPMENT AUTHORIZATION is hereby issued to the named GRANTEE, and is VALID ONLY for the equipment identified hereon for use under the Commission's Rules and Regulations listed below. |
| FCC IDENTIFIER: | VGYAP902 |
| Name of Grantee: | Draytek Corporation |
| Equipment Class: | Unlicensed National Information Infrastructure TX |
| Notes: | VigorAP 902 Dual Band 11ac AP |
| Grant Notes | FCC Rule Parts | Frequency Range (MHZ) | Output Watts | Frequency Tolerance | Emission Designator |
| 38 CC MO | 15E | 5180.0 - 5240.0 | 0.1932 | ||
| 38 CC MO | 15E | 5745.0 - 5825.0 | 0.2213 |
| Power listed is maximum combined conducted. Device operates with specific antennas in MIMO configurations as described in this filing. The antenna(s) used for this transmitter must be installed to provide a separation distance of at least 20 cm from all persons and must not transmit simultaneously with any other antenna or transmitter, except in accordance with FCC multi-transmitter product procedures. Users and installers must be provided with antenna installation instructions and transmitter operating conditions for satisfying RF exposure compliance. This device has 20, 40, and 80 MHz bandwidth modes. |
| 38: | This device has shown compliance, in all grant-listed U-NII sub-bands, with the new rules for U-NII devices adopted under Docket No. 13-49 and may be marketed, manufactured or imported after the June 1, 2016 transition deadline. |
| CC: | This device is certified pursuant to two different Part 15 rules sections. |
| MO: | This Multiple Input Multiple Output (MIMO) device was evaluated for multiple transmitted signals as indicated in the filing. |
