80016699167 433mhz remote temperature... - FCC ID VHM80016699167

FCC ID VHM80016699167

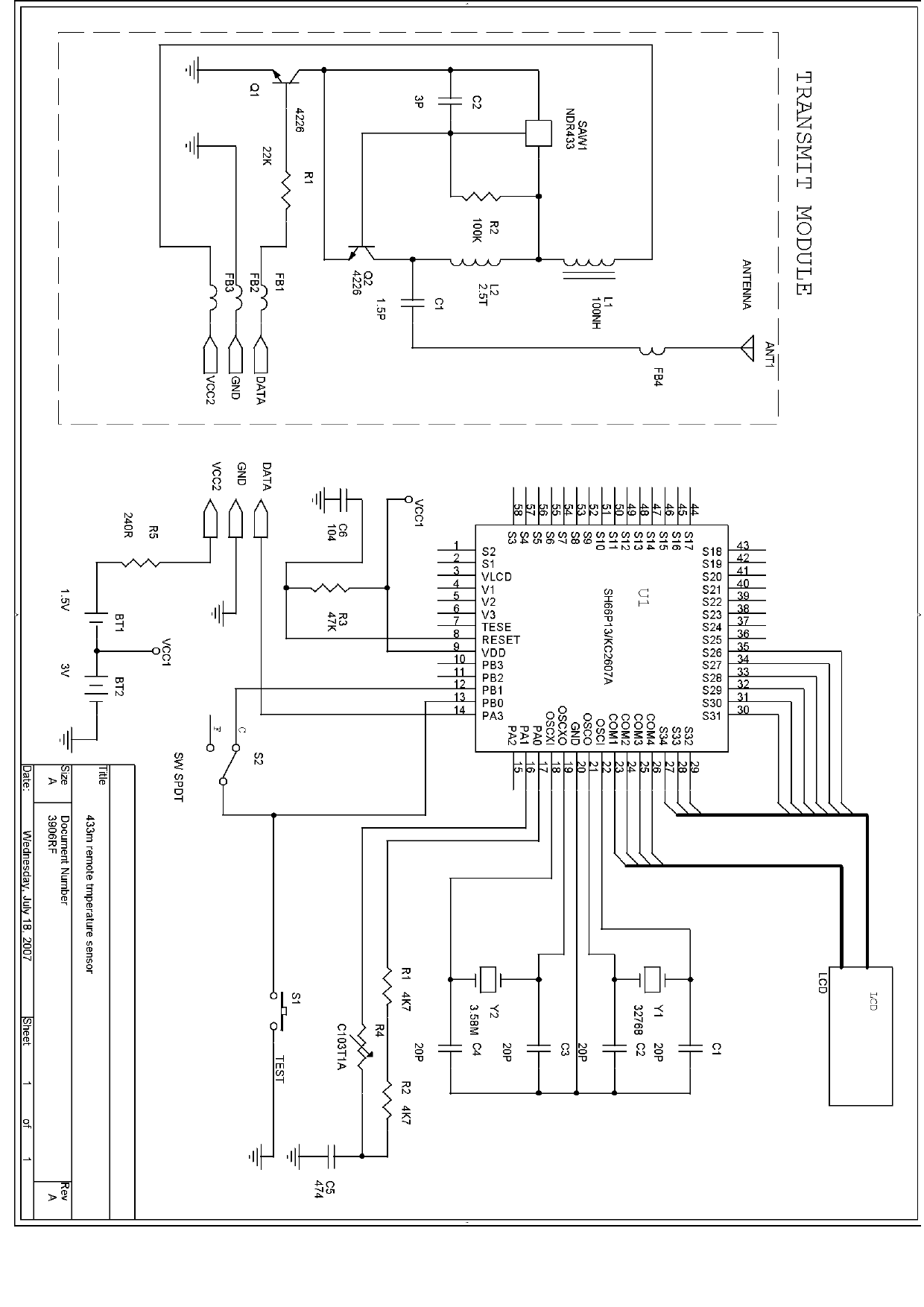

Circuit Diagram

433mhz remote temperature sensor

by Bedford Electronics Ltd.

Document preview loads when visible.

Document Details

FCC IDVHM80016699167
Document ID820052
Document TypeSchematics
DescriptionCircuit Diagram
ApplicantBedford Electronics Ltd.
Equipment Class433mhz remote temperature sensor
Product Code80016699167
Application IDvtJBPzUGd9P5gOmy8YAhBA==
Application PurposeOriginal Equipment
Application Date2007-07-24
Frequency Range433.9 MHz
FRN0016699167
Test FirmHong Kong Standards and Testing Center
Certified BySamantha Sharbonda TCB Administrator
Short-Term ConfidentialityNo
Long-Term ConfidentialityNo
Grant DeferralNo
Modular EquipmentDoes not apply
Composite DeviceNo
Composite PartNo
Submitted2007-07-24
Available2007-07-24
Created2007-07-24
Modified2007-07-24
Pages1
File TypeAdobe Acrobat PDF
File Size19918
File SHA-2566bb886ec9afa48bb8f1e7ec9e369b970e2642d84ff839201592cd7fee082d92a
PDF Metadata CreatorPaperPort http://www.scansoft.com
PDF Metadata Producersspdflib 1.0 http://www.scansoft.com
FCC.gov SourcesFCC.gov 820052
