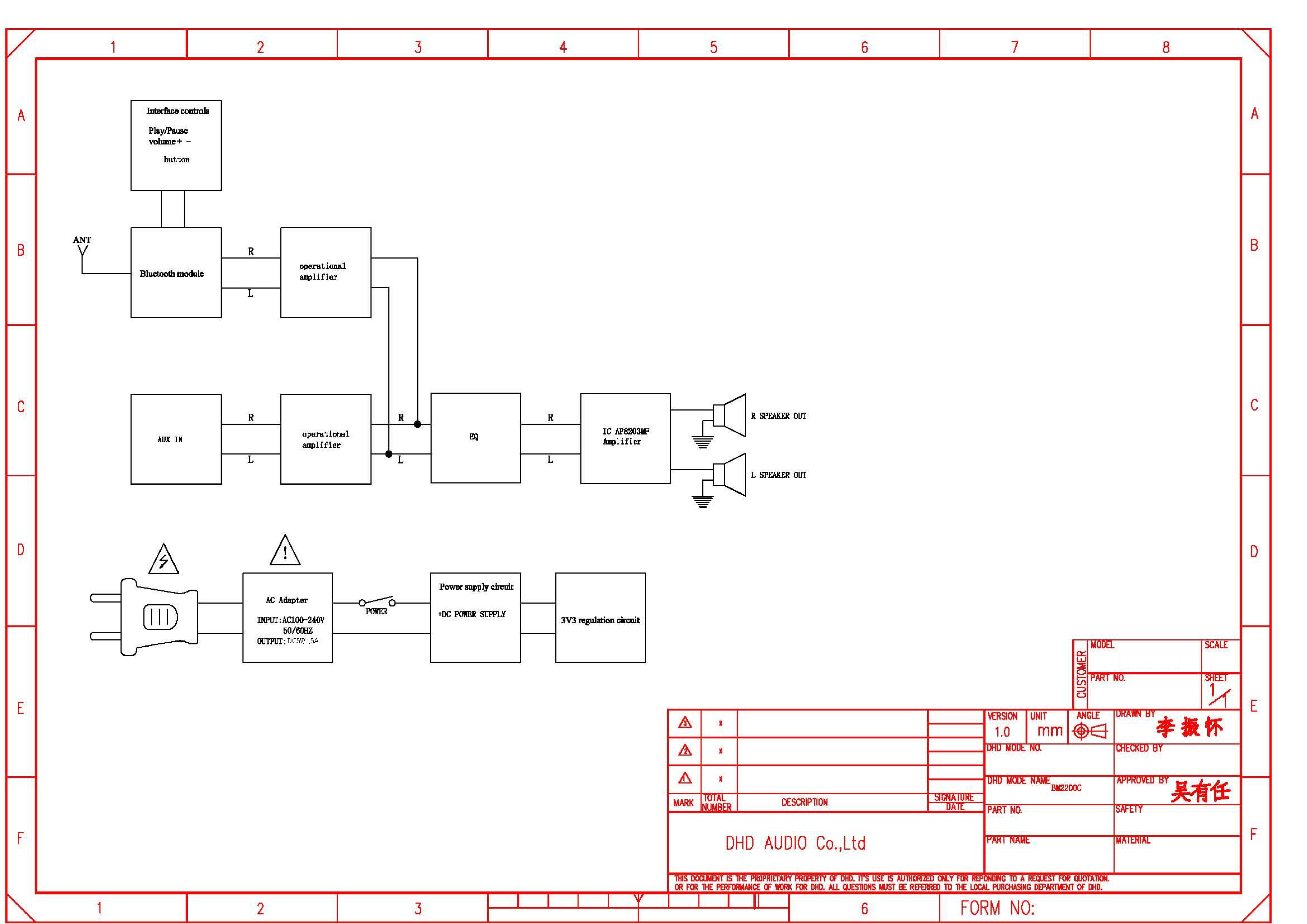

ARS50A AUDIO SYSTEM WITH BLUETOOTH Block Diagram - FCC ID VIX-ARS50A

FCC ID VIX-ARS50A

Block Diagram

AUDIO SYSTEM WITH BLUETOOTH

by Voxx Accessories Corp.

Document preview loads when visible.

Document Details

FCC IDVIX-ARS50A
Document ID1745115
Document TypeBlock Diagram
DescriptionBlock Diagram
Document Title<D0C5BAC5C1F7B3CC204D6F64656C20283129>
ApplicantVoxx Accessories Corp.
Equipment ClassAUDIO SYSTEM WITH BLUETOOTH
Product CodeARS50A
Application ID7DHU3wxjrkXe5bXQyZd+xA==
Application PurposeClass II Permissive Change
Application Date2012-07-17
Frequency Range2402-2480 MHz
FRN0016753550
Test FirmWaltek Services(Shenzhen) Co., Ltd.
Certified ByPhilo Zhong General Manager
Short-Term ConfidentialityNo
Long-Term ConfidentialityNo
Grant DeferralNo
Modular EquipmentDoes not apply
Composite DeviceNo
Composite PartNo
Submitted2012-07-17
Available2012-07-17
Created2012-03-07
Modified2012-06-13
Pages2
File TypeAdobe Acrobat PDF
File Size903528
File SHA-25642e93482b87f7585fb44f7b0b2d029fb1ea7d666974c1f9b3e935ca6bf5b35d3
PDF Metadata Authoryf-11
PDF Metadata CreatorPScript5.dll Version 5.2.2
PDF Metadata ProducerAcrobat Distiller 7.0.5 (Windows)
FCC.gov SourcesFCC.gov 1745115, FCC.gov 1725140
