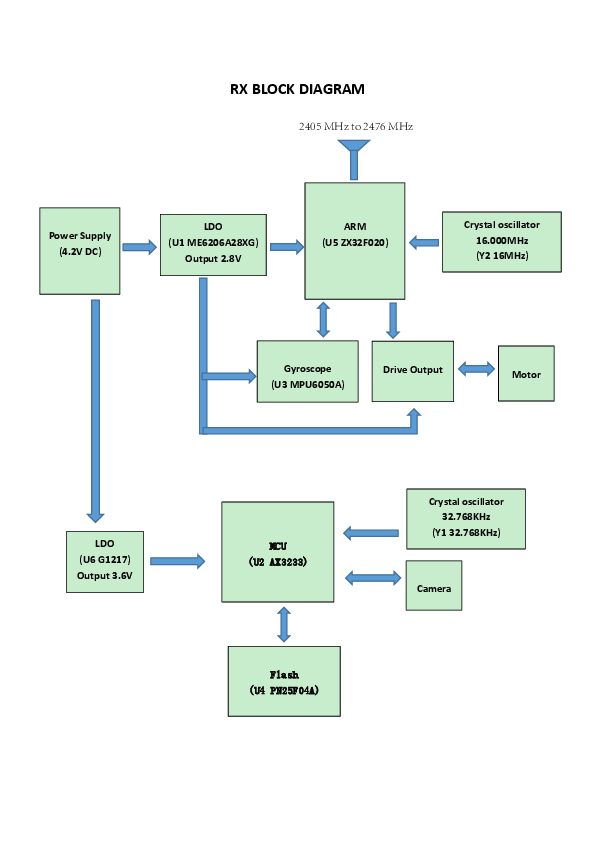

ST003R Micro Video Drone Block Diagram - FCC ID VLEST003R

FCC ID VLEST003R

12_BKST003 (R) BlkDia

Micro Video Drone

by Asian Express Holdings Limited

Document preview loads when visible.

Document Details

FCC IDVLEST003R
Document ID3361045
Document TypeBlock Diagram
Description12_BKST003 (R) BlkDia
ApplicantAsian Express Holdings Limited
Equipment ClassMicro Video Drone
Product CodeST003R
Application ID5o0MkfIkXh3MtVOOdcLh6g==
Application PurposeOriginal Equipment
Application Date2017-04-18
Frequency Range2405-2476 MHz
FRN0016837353
Test FirmCompliance Certification Services (Shenzhen) Inc.
Certified ByJoerg Kusig Head of Certification
Short-Term ConfidentialityNo
Long-Term ConfidentialityNo
Grant DeferralNo
Modular EquipmentDoes not apply
Composite DeviceNo
Composite PartNo
Submitted2017-04-18
Available2017-04-18
Created2017-03-23
Modified2017-04-13
Pages1
File TypeAdobe Acrobat PDF
File Size68816
File SHA-2565a8c1973b26986fe5b0b264edccb78dcfb0528da52cc42bb06ccb3efb20c25f2
PDF Metadata AuthorAdministrator
PDF Metadata ProducerAdministrator
FCC.gov SourcesFCC.gov 3361045
