AT77UR200B USB Fingerprint Scanner Block... - FCC ID VP6-AT77UR200B

FCC ID VP6-AT77UR200B

Block Diagram

USB Fingerprint Scanner

by ATMEL FRANCE

Document preview loads when visible.

Document Details

FCC IDVP6-AT77UR200B
Document ID864697
Document TypeBlock Diagram
DescriptionBlock Diagram

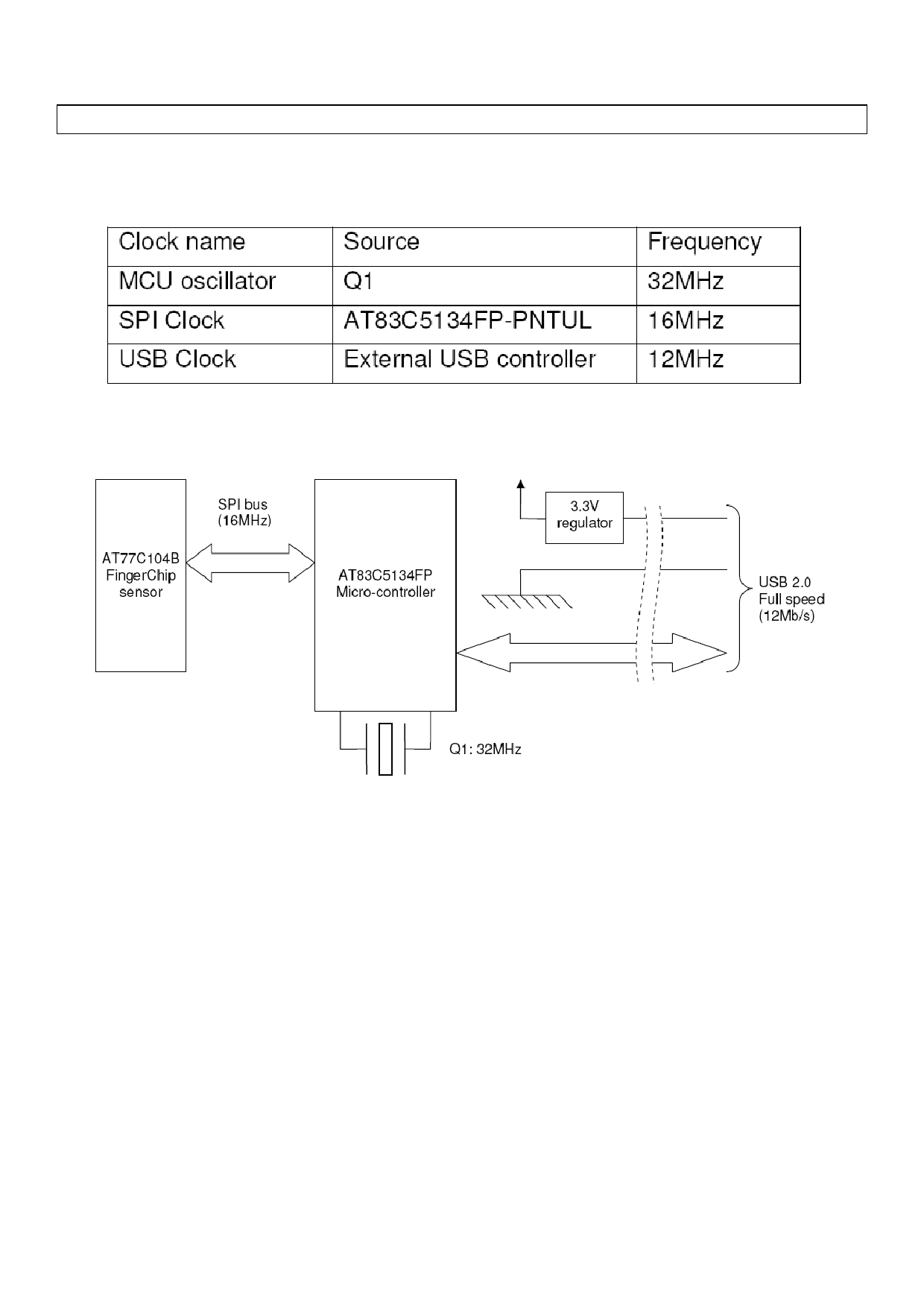

Document TitleBlock diagram-VP6AT77UR200
ApplicantATMEL FRANCE
Equipment ClassUSB Fingerprint Scanner
Product CodeAT77UR200B
Application IDy+946CowR/wa85R2Zyn4+Q==
Application PurposeOriginal Equipment
Application Date2007-11-06
FRN0016989741
Test FirmLCIE Sud-Est
Certified ByPierre Guimet
Short-Term ConfidentialityNo
Long-Term ConfidentialityNo
Grant DeferralNo
Modular EquipmentDoes not apply
Composite DeviceNo
Composite PartNo
Submitted2007-11-06
Available2007-11-06
Created2007-10-30
Modified2007-10-30
Pages1
File TypeAdobe Acrobat PDF
File Size38846
File SHA-2564cff901eea126d21e57ed475648ca64ef57ba56198610186b3c603e4e7735cc2
PDF Metadata Authorlchapus
PDF Metadata CreatorPDFCreator Version 0.9.0
PDF Metadata ProducerGPL Ghostscript 8.50
FCC.gov SourcesFCC.gov 864697
