LXRF026 HF RFID Reader/Writer Teardown... - FCC ID VPYLXRF026
FCC ID VPYLXRF026

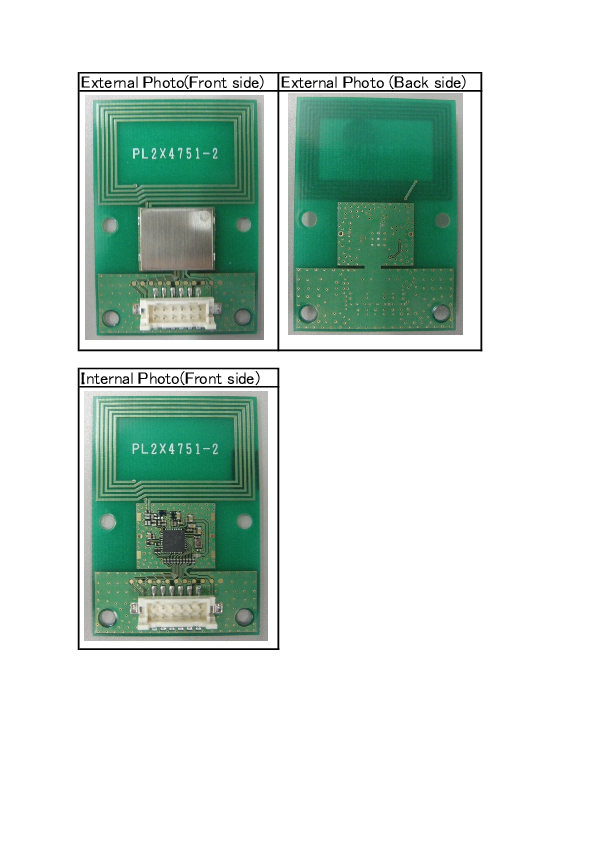

Internal Photo
HF RFID Reader/Writer
Document preview loads when visible.
Document Details
| FCC ID | VPYLXRF026 |
|---|---|
| Document ID | 2898983 |
| Document Type | Internal Photos |
| Description | Internal Photo |
| Document Title | 151223_FCC_IC_必要書類.xlsx |
| Applicant | Murata Manufacturing Co., Ltd. |
| Equipment Class | HF RFID Reader/Writer |
| Product Code | LXRF026 |
| Application ID | QUSVd6m5rmGHF/XzLboBhQ== |
| Application Purpose | Original Equipment |
| Application Date | 2016-02-08 |
| Frequency Range | 13.56 MHz |
| FRN | 0017033432 |
| Test Firm | UL Japan, Inc. Head office EMC Lab. |
| Certified By | Yoshihisa Maeda Project Engineer |
| Short-Term Confidentiality | No |
| Long-Term Confidentiality | No |
| Grant Deferral | No |
| Modular Equipment | Single Modular Approval |
| Composite Device | No |
| Composite Part | No |
| Submitted | 2016-02-08 |
| Available | 2016-02-08 |
| Created | 2016-01-08 |
| Modified | 2016-01-08 |
| Pages | 1 |
| File Type | Adobe Acrobat PDF |
| File Size | 218955 |
| File SHA-256 | 2356520de5cfaeda5f5d458b78c04a4e216f66d41a9dbd7165feef808c78a9a2 |
| PDF Metadata Author | 37366 |
| PDF Metadata Producer | Acrobat Distiller 10.1.2 (Windows) 37366 |
| FCC.gov Sources | FCC.gov 2898983 |
