FCC ID VPYLXRF032
UHF RFID Reader/Writer Device
by Murata Manufacturing Co., Ltd.
Grantee Code: VPY Product Code: LXRF032
Latest application date: 2017-02-23
Device Images
FCC ID Device Details
| FCC ID | VPYLXRF032 |
|---|---|
| Mirrors | fcc.id | gov | fccid.ai |
| Grantee Code | VPY |
| Product Code | LXRF032 |
| Applicant Business | Murata Manufacturing Co., Ltd. 🇯🇵 |
| Related Domains |  murata.com |
| Equipment Class | UHF RFID Reader/Writer Device |
| Test Firm | UL Japan, Inc. Head office EMC Lab. |
Operating Frequencies
| Frequency Range | Application Purpose | Final Action Date |
|---|---|---|
| 902.75-927.25 MHz | Original Equipment | 2017-02-23 |
Exhibits
| Document | Type | Available | File |
|---|---|---|---|
| 05 User Manual | Users Manual | 2017-02-23 | PDF 81.4 KB |
| 04 Internal Photo | Internal Photos | 2017-02-23 | PDF 150.1 KB |

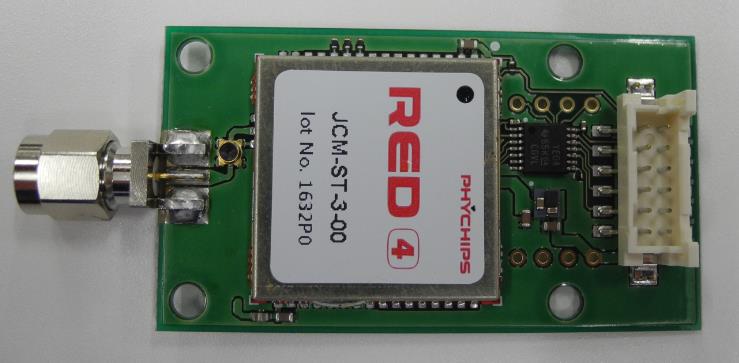

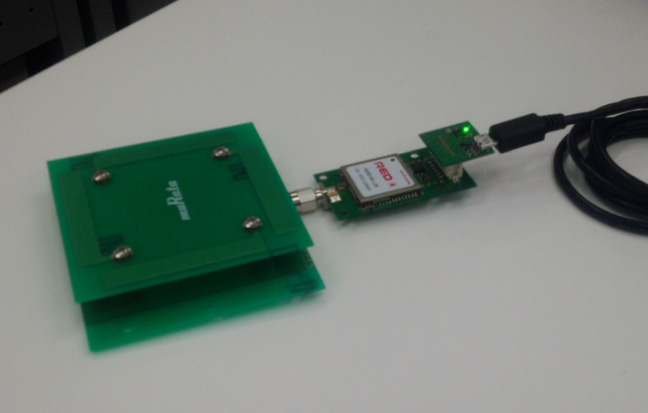

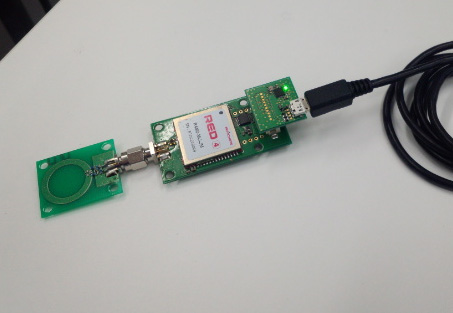

| 04 External Photo | External Photos | 2017-02-23 | PDF 498.1 KB |
| 06 Label and Location | ID Label/Location Info | 2017-02-23 | PDF 128 KB |

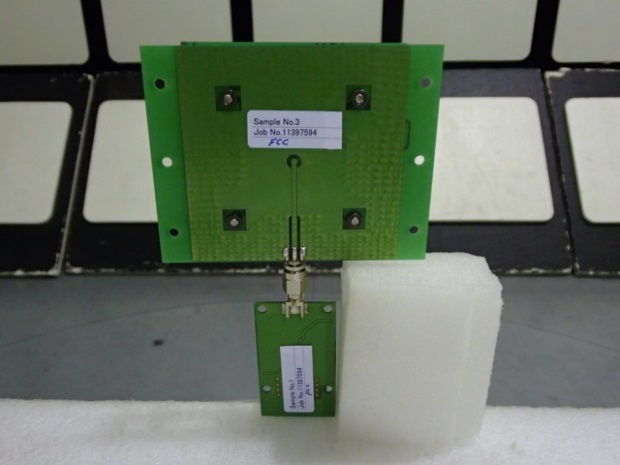

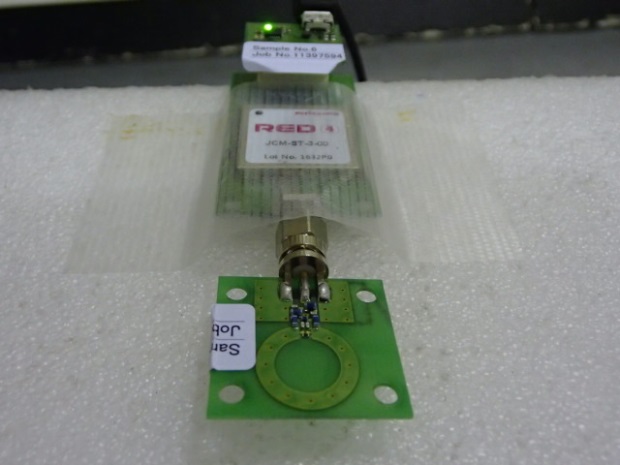

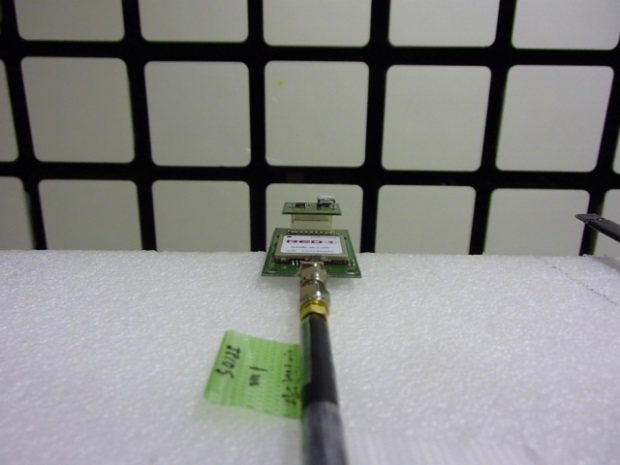

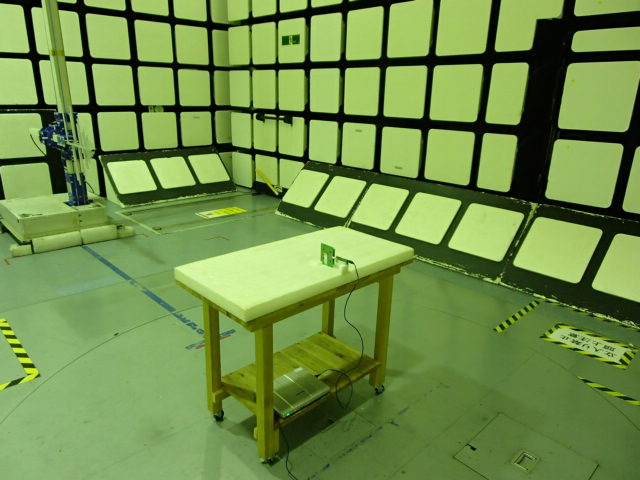

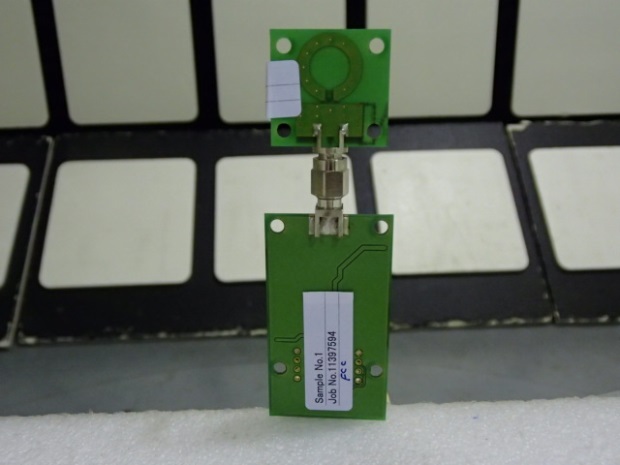

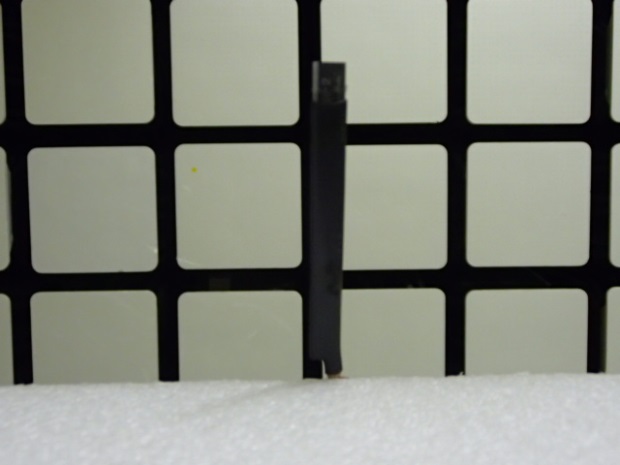

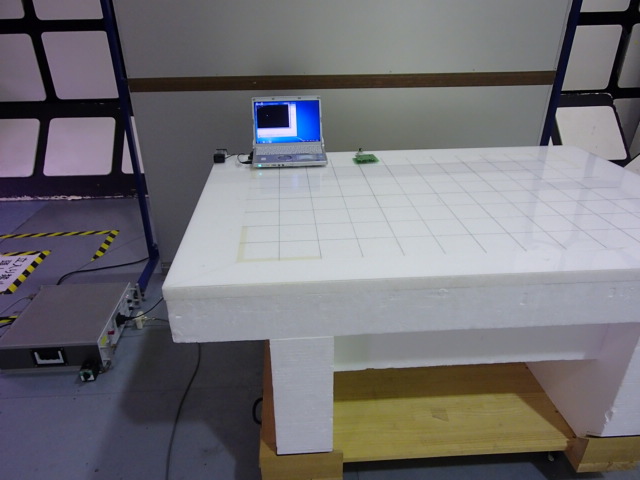

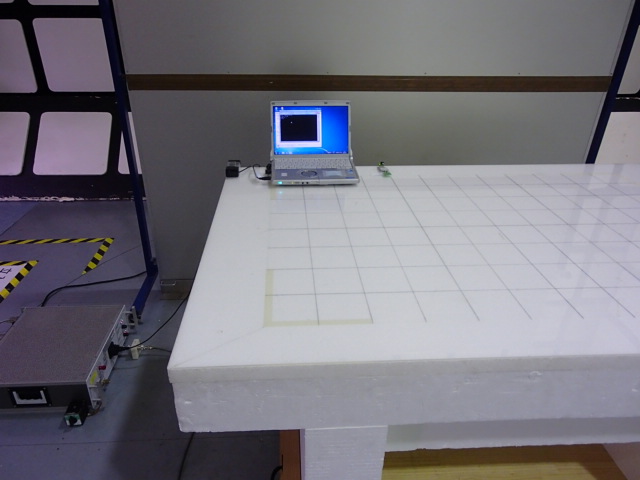

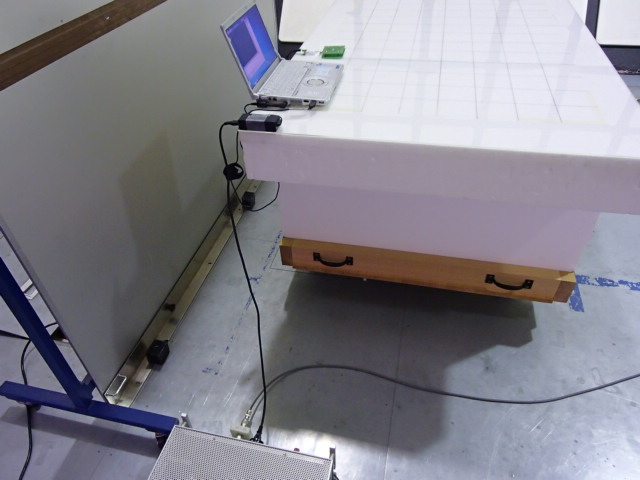

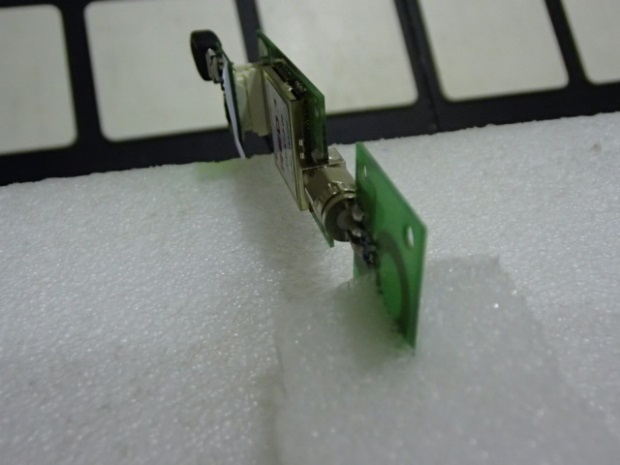

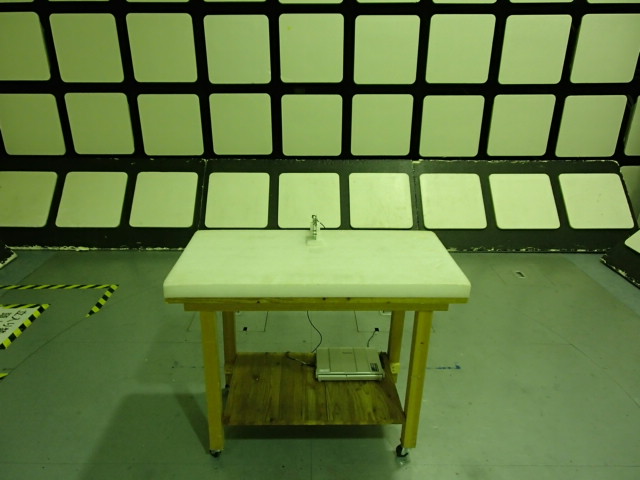

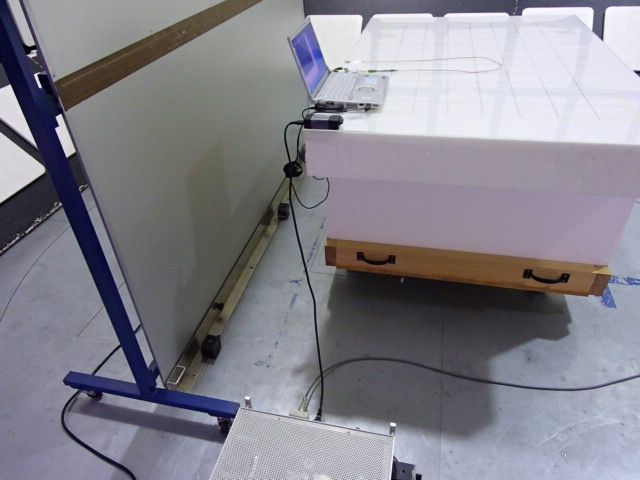

| 03 FCC Test Setup Photo_DSS | Test Setup Photos | 2017-02-23 | PDF 1.8 MB |
| 03 FCC Test Report_DSS | Test Report | 2017-02-23 | PDF 2.1 MB |
| 02 FCC Authority to Act as Agent | Cover Letter(s) | 2017-02-23 | PDF 172.1 KB |
| 02 FCC Confidentiality request | Cover Letter(s) | 2017-02-23 | PDF 314.6 KB |
| 02 FCC MA Letter | Cover Letter(s) | 2017-02-23 | PDF 254.2 KB |
| 03 FCC RF Exposure_DSS | RF Exposure Info | 2017-02-23 | PDF 21.8 KB |
| Confidential_07 (Confidential) Block Diagram Metadata only | Block Diagram | PDF 156.4 KB | |
| Schematics Metadata only | Schematics | PDF 41.6 KB | |
| Theory of Operation-Antenna List Metadata only | Operational Description | PDF 30.2 KB | |
| Theory of Operation-Antenna Specification_LXRFZZUCCA-034 Metadata only | Operational Description | PDF 335.3 KB | |
| Theory of Operation-Antenna Specification_LXRFZZUCCA-036 Metadata only | Operational Description | PDF 266.3 KB | |
| Theory of Operation-Antenna Specification_LXRFZZUCCA-038, LXRFZZUCCA-040 Metadata only | Operational Description | PDF 311.1 KB | |
| Theory of Operation-Chip Specification_R1 Metadata only | Operational Description | PDF 592.6 KB | |
| Theory of Operation-Hopping Metadata only | Operational Description | PDF 3.8 KB | |
| Theory of Operation-Interface Specification Metadata only | Operational Description | PDF 58.7 KB | |
| Theory of Operation-Modular approval requirement Metadata only | Operational Description | PDF 19.8 KB | |
| Theory of Operation-Specification_R1 Metadata only | Operational Description | PDF 434.7 KB | |
| Parts List Metadata only | Parts List/Tune Up Info | PDF 119.5 KB |
Application Information
| Application ID | OUnIkQQ3+siREvmK8MxFdA== |
|---|---|
| Final Action Date | 2017-02-23 |
| Application Purpose | Original Equipment |
| Applicant FRN | 0017033432 |
| Model | LXRF032 |
| Frequency Range | 902.75-927.25 MHz |
| Equipment Class | DSS - Part 15 Spread Spectrum Transmitter |
| Device Description | UHF RFID Reader/Writer Device |
| Responsible Party | MOTOO HAYASHI, GENERAL MANAGER, mhayashi@murata.com , 81-75-955-6736 |
| Technical Contact | Takahiro Hatakeda, UL Japan, Inc., Takahiro.Hatakeda@ul.com  |
| Test Firm | Tetsuya Hashimoto, UL Japan, Inc. Head office EMC Lab., Tetsuya.Hashimoto@jp.ul.com  , +81-596-24-8116 |
| TCB Email | hotline@acbcert.com  |
| TCB Scope | A4: UNII devices & low power transmitters using spread spectrum techniques |
| Short-Term Confidentiality | No |
| Long-Term Confidentiality | Yes |
| Grant Deferral | No |
| Modular Equipment | Single Modular Approval |
| Composite Device | No |
| Composite Part | No |
| Cognitive Radio | No |
| Authorization Waiver | No |
| Authorization Waiver Approved | No |
| Section 5301 Certification | Yes |
| Related OET Knowledge DataBase Inquiry | No |
| Grant Comments | Power output is conducted. Single Modular Approval. The device has been certified for mobile use and any co-location must be done through the use of FCC multi-transmitter product procedures. End-users and installers must be provided with antenna installation instructions and transmitter operating conditions for satisfying RF exposure compliance. |
