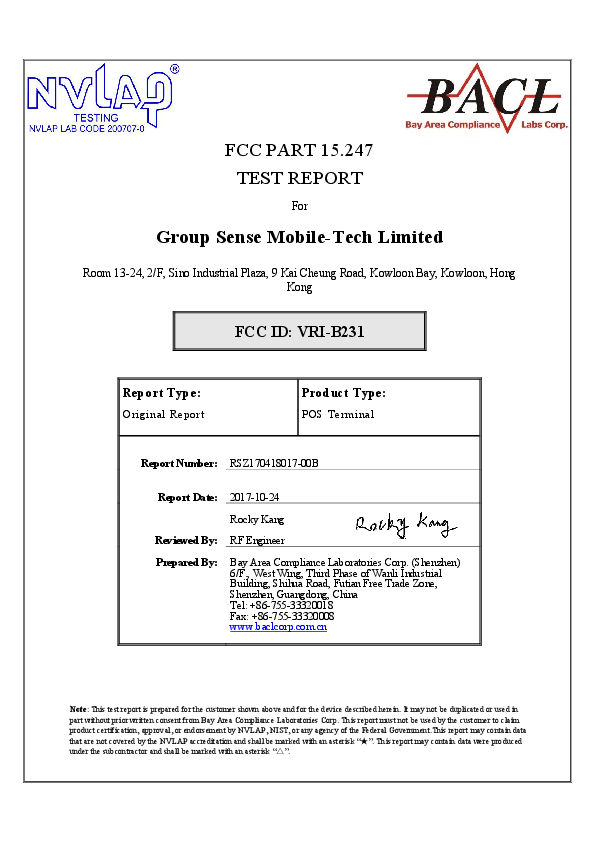

FCC PART 15.247
TEST REPORT
For
Group Sense Mobile-Tech Limited
Room 13-24, 2/F, Sino Industrial Plaza, 9 Kai Cheung Road, Kowloon Bay, Kowloon, Hong
Kong
FCC ID: VRI-B231
Report Type:
Product Type:
Original Report
POS Terminal
Report Number:
Report Date:
RSZ170418017-00B
2017-10-24
Rocky Kang
Reviewed By:
RF Engineer
Prepared By:
Bay Area Compliance Laboratories Corp. (Shenzhen)
6/F., West Wing, Third Phase of Wanli Industrial
Building, Shihua Road, Futian Free Trade Zone,
Shenzhen, Guangdong, China
Tel: +86-755-33320018
Fax: +86-755-33320008
www.baclcorp.com.cn
Note: This test report is prepared for the customer shown above and for the device described herein. It may not be duplicated or used in
part without prior written consent from Bay Area Compliance Laboratories Corp. This report must not be used by the customer to claim
product certification, approval, or endorsement by NVLAP, NIST, or any agency of the Federal Government.This report may contain data
that are not covered by the NVLAP accreditation and shall be marked with an asterisk “★”. This report may contain data were produced
under the subcontractor and shall be marked with an asterisk “△”.
Bay Area Compliance Laboratories Corp. (Shenzhen)
Report No.: RSZ170418017-00B
TABLE OF CONTENTS
GENERAL INFORMATION .......................................................................................................................................4
PRODUCT DESCRIPTION FOR EQUIPMENT UNDER TEST (EUT) .....................................................................................4
OBJECTIVE ...................................................................................................................................................................4
RELATED SUBMITTAL(S)/GRANT(S) .............................................................................................................................4
TEST METHODOLOGY ..................................................................................................................................................4
MEASUREMENT UNCERTAINTY ....................................................................................................................................5
TEST FACILITY .............................................................................................................................................................5
SYSTEM TEST CONFIGURATION ..........................................................................................................................6
DESCRIPTION OF TEST CONFIGURATION ......................................................................................................................6
EUT EXERCISE SOFTWARE ..........................................................................................................................................6
SPECIAL ACCESSORIES .................................................................................................................................................6
EQUIPMENT MODIFICATIONS .......................................................................................................................................6
SUPPORT EQUIPMENT LIST AND DETAILS ....................................................................................................................6
EXTERNAL I/O CABLE..................................................................................................................................................6
BLOCK DIAGRAM OF TEST SETUP ................................................................................................................................7
SUMMARY OF TEST RESULTS ...............................................................................................................................8
TEST EQUIPMENT LIST ...........................................................................................................................................9
FCC§15.247 (i), §1.1307 (b) (1) &§2.1093 – RF EXPOSURE ......................................................................................10
APPLICABLE STANDARD ............................................................................................................................................10
FCC §15.203 – ANTENNA REQUIREMENT ..........................................................................................................11
APPLICABLE STANDARD ............................................................................................................................................11
ANTENNA CONNECTOR CONSTRUCTION ....................................................................................................................11
FCC §15.207 (a) – AC LINE CONDUCTED EMISSIONS .....................................................................................12
APPLICABLE STANDARD ............................................................................................................................................12
EUT SETUP ................................................................................................................................................................12
EMI TEST RECEIVER SETUP .......................................................................................................................................12
TEST PROCEDURE ......................................................................................................................................................12
CORRECTED FACTOR & MARGIN CALCULATION .......................................................................................................13
TEST RESULTS SUMMARY ..........................................................................................................................................13
TEST DATA ................................................................................................................................................................13
FCC §15.205, §15.209 & §15.247(d) – RADIATED EMISSIONS ...........................................................................16
APPLICABLE STANDARD ............................................................................................................................................16
EUT SETUP ................................................................................................................................................................16
EMI TEST RECEIVER & SPECTRUM ANALYZER SETUP ..............................................................................................17
TEST PROCEDURE ......................................................................................................................................................17
CORRECTED AMPLITUDE & MARGIN CALCULATION .................................................................................................17
TEST RESULTS SUMMARY ..........................................................................................................................................18
TEST DATA ................................................................................................................................................................18
FCC §15.247(a) (1)-CHANNEL SEPARATION TEST ...........................................................................................20
APPLICABLE STANDARD ............................................................................................................................................20
TEST PROCEDURE ......................................................................................................................................................20
TEST DATA ................................................................................................................................................................20
FCC §15.247(a) (1) – 20 dB EMISSION BANDWIDTH ..........................................................................................27
APPLICABLE STANDARD ............................................................................................................................................27
FCC Part 15.247
Page 2 of 57
Bay Area Compliance Laboratories Corp. (Shenzhen)
Report No.: RSZ170418017-00B
TEST PROCEDURE ......................................................................................................................................................27
TEST DATA ................................................................................................................................................................27
FCC §15.247(a) (1) (iii)-QUANTITY OF HOPPING CHANNEL TEST ...............................................................33
APPLICABLE STANDARD ............................................................................................................................................33
TEST PROCEDURE ......................................................................................................................................................33
TEST DATA ................................................................................................................................................................33
FCC §15.247(a) (1) (iii) - TIME OF OCCUPANCY (DWELL TIME) ...................................................................36
APPLICABLE STANDARD ............................................................................................................................................36
TEST PROCEDURE ......................................................................................................................................................36
TEST DATA ................................................................................................................................................................36
FCC §15.247(b) (1) - PEAK OUTPUT POWER MEASUREMENT ......................................................................52
APPLICABLE STANDARD ............................................................................................................................................52
TEST PROCEDURE ......................................................................................................................................................52
TEST DATA ................................................................................................................................................................52
FCC §15.247(d) - BAND EDGES TESTING ............................................................................................................54
APPLICABLE STANDARD ............................................................................................................................................54
TEST PROCEDURE ......................................................................................................................................................54
TEST DATA ................................................................................................................................................................54
FCC Part 15.247
Page 3 of 57
Bay Area Compliance Laboratories Corp. (Shenzhen)
Report No.: RSZ170418017-00B
GENERAL INFORMATION
Product Description for Equipment under Test (EUT)
The Group Sense Mobile-Tech Limited’s product, model number: DT-10 (FCC ID: VRI-B231) or the
"EUT" in this report was a POS Terminal, which was measured approximately: 28.4 cm (L) × 19.3 cm (W)
× 1.9 cm (H), rated with input voltage: DC 3.8 V battery or DC 5V from adapter.
Adapter Information:
Model: JK050300-S04US
Input: AC 100-240V, 50/60Hz, 0.5A
Output: DC 5V, 3000 mA
*All measurement and test data in this report was gathered from production sample serial number: 1700742
(Assigned by BACL, Shenzhen).The EUT supplied by the applicant was received on 2017-07-20.
Objective
This test report is prepared on behalf of Group Sense Mobile-Tech Limited in accordance with Part 2Subpart J, Part 15-Subparts A and C of the Federal Communication Commissions rules.
The tests were performed in order to determine compliance with FCC Part 15, Subpart C, section 15.203,
15.205, 15.207, 15.209 and 15.247 rules.
Related Submittal(s)/Grant(s)
FCC Part 22H & 24E PCB, Part 15.247 DTS, Part 15.407 NII, Part 15.225 DXX and Part 15B JBC
submissions with FCC ID: VRI-B231.
Test Methodology
All measurements contained in this report were conducted with ANSI C63.10-2013, American National
Standard of Procedures for Compliance Testing of Unlicensed Wireless Devices.
All emissions measurement was performed at Bay Area Compliance Laboratories Corp. (Shenzhen). The
radiated testing was performed at an antenna-to-EUT distance of 3 meters.
FCC Part 15.247
Page 4 of 57
Bay Area Compliance Laboratories Corp. (Shenzhen)
Report No.: RSZ170418017-00B
Measurement Uncertainty
Parameter
uncertainty
Occupied Channel Bandwidth
±5%
RF Output Power with Power meter
±0.5dB
RF conducted test with spectrum
±1.5dB
AC Power Lines Conducted Emissions
±1.95dB
All emissions, radiated
±4.95dB
Temperature
±3℃
Humidity
±6%
Supply voltages
±0.4%
Test Facility
The test site used by Bay Area Compliance Laboratories Corp. (Shenzhen) to collect test data is located on
the 6/F., West Wing, Third Phase of Wanli Industrial Building, Shihua Road, Futian Free Trade Zone,
Shenzhen, Guangdong, China.
Bay Area Compliance Laboratories Corp. (Shenzhen) has been accredited to ISO/IEC 17025 by CNAS
(Lab code: L2408). And accredited to ISO/IEC 17025 by NVLAP (Lab code: 200707-0), the FCC
Designation No. CN5001 under the KDB 974614 D01.
The Federal Communications Commission has the reports on file and is listed under FCC Registration No.:
382179. The test site has been approved by the FCC for public use and is listed in the FCC Public Access
Link (PAL) database.
Bay Area Compliance Laboratories Corp. (Shenzhen) was registered with ISED Canada under ISED
Canada Registration Number 3062B.
FCC Part 15.247
Page 5 of 57
Bay Area Compliance Laboratories Corp. (Shenzhen)
Report No.: RSZ170418017-00B
SYSTEM TEST CONFIGURATION
Description of Test Configuration
The system was configured for testing in an engineering mode.
EUT Exercise Software
Exercise software “Win8DutApp_x86_1.0.016” was used for Bluetooth test, which can chose the hopping
or single channel transmitting, or you can used it to set the mode of Bluetooth such GFSK, π/4-DQPSK,
8-DPSK, but you can’t set the power level.
Special Accessories
No special accessory.
Equipment Modifications
No modification was made to the EUT tested.
Support Equipment List and Details
Manufacturer
Description
Model
Serial Number
N/A
N/A
N/A
N/A
External I/O Cable
Cable Description
Length (m)
From Port
To
Un-shielding Detachable USB Cable
1.0
EUT
Adapter
FCC Part 15.247
Page 6 of 57
Bay Area Compliance Laboratories Corp. (Shenzhen)
Report No.: RSZ170418017-00B
Block Diagram of Test Setup
For conducted emission:
Adapter
LISN
10cm
Receptacle
1.0 Meter
Earphone
EUT
Non-Conductive Table
80 cm above Ground Plane
1.5 Meters
FCC Part 15.247
Page 7 of 57
Bay Area Compliance Laboratories Corp. (Shenzhen)
Report No.: RSZ170418017-00B
SUMMARY OF TEST RESULTS
FCC Rules
Description of Test
Result
§15.247 (i), §2.1093
RF Exposure
Compliance
§15.203
Antenna Requirement
Compliance
§15.207(a)
AC Line Conducted Emissions
Compliance
§15.205, §15.209 &
§15.247(d)
Radiated Emissions
Compliance
§15.247(a)(1)
20 dB Emission Bandwidth
Compliance
§15.247(a)(1)
Channel Separation Test
Compliance
§15.247(a)(1)(iii)
Time of Occupancy (Dwell Time)
Compliance
§15.247(a)(1)(iii)
Quantity of hopping channel Test
Compliance
§15.247(b)(1)
Peak Output Power Measurement
Compliance
§15.247(d)
Band edges
Compliance
FCC Part 15.247
Page 8 of 57
Bay Area Compliance Laboratories Corp. (Shenzhen)
Report No.: RSZ170418017-00B
TEST EQUIPMENT LIST
Manufacturer
Description
Serial
Number
Model
Calibration
Date
Calibration
Due Date
Conducted Emissions Test
Rohde & Schwarz
EMI Test Receiver
ESCS30
2016-10-19
2017-10-19
2016-12-07
2017-12-07
ESH3Z2
100176
3560.6650.12101613-Yb
DE25985
Rohde & Schwarz
LISN
ENV216
Rohde & Schwarz
Transient Limiter
2017-02-14
2017-08-15
Rohde & Schwarz
CE Test software
EMC 32
V8.53.0
NCR
NCR
N/A
Conducted Emission
Cable
N/A
UF A210B-10720-504504
2017-05-12
2017-11-12
Radiated Emission Test
Sunol Sciences
Horn Antenna
DRH-118
A052604
2014-12-29
2017-12-28
Rohde & Schwarz
Signal Analyzer
FSIQ26
8386001028
2017-04-24
2018-04-24
Mini
Pre-amplifier
ZVA-183-S+
5969001149
2017-05-21
2018-05-21
HP
Amplifier
HP8447E
1937A01046
2017-05-21
2017-11-19
Sunol Sciences
Broadband Antenna
JB1
A040904-2
2014-12-17
2017-12-16
Rohde & Schwarz
Ducommun
technologies
Ducommun
technologies
Ducommun
technologies
Ducommun
technologies
Ducommun
Technologies
Ducommun
Technologies
EMI Test Receiver
ESCI
UFA210A-14724-30050U
101120
MFR64369
223410-001
2016-12-07
2017-12-07
2017-05-21
2017-11-19
RF Cable
104PEA
218124002
2017-05-21
2017-11-19
RF Cable
RG-214
2017-05-21
2017-11-19
RF Cable
RG-214
2017-05-22
2017-11-22
Horn Antenna
ARH-4223-02
1007726-04
2014-12-29
2017-12-28
Pre-amplifier
ALN-2209353001
991373-01
2017-08-03
2018-08-03
N1912A
MY5000448
2016-12-05
2017-12-05
N1921A
MY54210016
2016-12-05
2017-12-05
RF Cable
RF Conducted Test
Agilent
Agilent
P-Series Power
Meter
Wideband Power
Sensor
WEINSCHEL
Ducommun
technologies
10dB Attenuator
5324
AU 3842
2017-05-23
2017-11-22
RF Cable
RG-214
2017-05-22
2017-11-22
Rohde & Schwarz
EMI Test Receiver
ESR
1316.3003K03
-101746-zn
2017-08-17
2018-08-17
* Statement of Traceability: Bay Area Compliance Laboratories Corp. (Shenzhen) attests that all calibrations have
been performed in accordance to requirements that traceable to National Primary Standards and International System
of Units (SI).
FCC Part 15.247
Page 9 of 57
Bay Area Compliance Laboratories Corp. (Shenzhen)
Report No.: RSZ170418017-00B
FCC§15.247 (i), §1.1307 (b) (1) &§2.1093 – RF EXPOSURE
Applicable Standard
According to FCC §2.1093 and §1.1307(b) (1), systems operating under the provisions of this section shall
be operated in a manner that ensure that the public is not exposed to radio frequency energy level in excess
of the Commission’s guideline.
According to KDB 447498 D01 General RF Exposure Guidance
The 1-g and 10-g SAR test exclusion thresholds for 100 MHz to 6 GHz at test separation distances
≤ 50 mm are determined by:
[(max. power of channel, including tune-up tolerance, mW)/(min. test separation distance, mm)] ·
[√f(GHz)] ≤ 3.0 for 1-g SAR and ≤ 7.5 for 10-g extremity SAR, where
1. f(GHz) is the RF channel transmit frequency in GHz.
2. Power and distance are rounded to the nearest mW and mm before calculation.
3. The result is rounded to one decimal place for comparison.
4. When the minimum test separation distance is < 5 mm, a distance of 5 mm is applied to determine SAR
test Exclusion.
For worst case:
Frequency
(MHz)
2480
Maximum Tune-up
power
(dBm)
(mW)
6.0
3.98
Calculated
Distance
(mm)
Calculated
value
Threshold
(1-g SAR)
SAR Test
Exclusion
5.0
1.25
3.0
Yes
Result: No Standalone SAR test is required
FCC Part 15.247
Page 10 of 57
Bay Area Compliance Laboratories Corp. (Shenzhen)
Report No.: RSZ170418017-00B
FCC §15.203 – ANTENNA REQUIREMENT
Applicable Standard
According to FCC § 15.203, an intentional radiator shall be designed to ensure that no antenna other than
that furnished by the responsible party shall be used with the device. The use of a permanently attached
antenna or of an antenna that uses a unique coupling to the intentional radiator shall be considered
sufficient to comply with the provisions of this Section. The manufacturer may design the unit so that a
broken antenna can be replaced by the user, but the use of a standard antenna jack or electrical connector is
prohibited.
Antenna Connector Construction
The EUT has one internal antenna arrangement, which was permanently attached and the antenna gain is
2 dBi, fulfill the requirement of this section. Please refer to the EUT photos.
Result: Compliance.
FCC Part 15.247
Page 11 of 57
Bay Area Compliance Laboratories Corp. (Shenzhen)
Report No.: RSZ170418017-00B
FCC §15.207 (a) – AC LINE CONDUCTED EMISSIONS
Applicable Standard
FCC §15.207(a)
EUT Setup
The measurement procedure of EUT setup is according with ANSI C63.10-2013. The related limit was
specified in FCC Part 15.207.
The spacing between the peripherals was 10 cm.
EMI Test Receiver Setup
The EMI test receiver was set to investigate the spectrum from 150 kHz to 30 MHz.
During the conducted emission test, the EMI test receiver was set with the following configurations:
Frequency Range
IF B/W
150 kHz – 30 MHz
9 kHz
Test Procedure
During the conducted emission test, the adapter was connected to the outlet of the LISN.
Maximizing procedure was performed on the six (6) highest emissions of the EUT.
All final data was recorded in the Quasi-peak and average detection mode.
FCC Part 15.247
Page 12 of 57
Bay Area Compliance Laboratories Corp. (Shenzhen)
Report No.: RSZ170418017-00B
Corrected Factor & Margin Calculation
The Corrected factor is calculated by adding LISN VDF (Voltage Division Factor), Cable Loss and
Transient Limiter Attenuation. The basic equation is as follows:
Correction Factor = LISN VDF + Cable Loss + Transient Limiter Attenuation
The “Margin” column of the following data tables indicates the degree of compliance with the applicable
limit. For example, a margin of 7 dB means the emission is 7 dB below the limit. The equation for margin
calculation is as follows:
Margin = Limit – Corrected Amplitude
Test Results Summary
According to the recorded data in following table, the EUT complied with the FCC Part 15.207,
Refer to CISPR16-4-2:2011 and CISPR 16-4-1:2009, the measured level complies with the limit if
Lm + U(Lm) ≤ Llim + Ucispr
In BACL, U(Lm) is less than Ucispr, if Lm is less than Llim, it implies that the EUT complies with the limit.
Test Data
Environmental Conditions
Temperature:
26 ℃
Relative Humidity:
56 %
ATM Pressure:
101.0 kPa
The testing was performed by Haiguo Li on 2017-08-11.
EUT operation mode: Transmitting
FCC Part 15.247
Page 13 of 57
Bay Area Compliance Laboratories Corp. (Shenzhen)
Report No.: RSZ170418017-00B
AC 120V/60 Hz, Line
EMI Auto Test L
90
Level in dBμ
80
QP
60
AV
40
20
150k
300 400 500
800 1M
2M
3M 4M 5M 6
8 10M
20M
30M
Frequency in Hz
Frequency
(MHz)
Corrected
Amplitude
(dBμV)
Correction
Factor
(dB)
Limit
(dBμV)
Margin
(dB)
Detector
(PK/Ave./QP)
0.237500
45.1
20.2
62.2
17.1
QP
0.249500
45.9
20.2
61.8
15.9
QP
0.459010
45.1
20.2
56.7
11.6
QP
0.581210
43.2
20.1
56.0
12.8
QP
0.644190
39.5
20.1
56.0
16.5
QP
0.687590
40.2
20.0
56.0
15.8
QP
0.237500
30.7
20.2
52.2
21.5
Ave.
0.249500
30.4
20.2
51.8
21.4
Ave.
0.459010
29.1
20.2
46.7
17.6
Ave.
0.581210
24.3
20.1
46.0
21.7
Ave.
0.644190
21.5
20.1
46.0
24.5
Ave.
0.687590
21.8
20.0
46.0
24.2
Ave.
FCC Part 15.247
Page 14 of 57
Bay Area Compliance Laboratories Corp. (Shenzhen)
Report No.: RSZ170418017-00B
AC 120V/60 Hz, Neutral
EMI Auto Test N
90
Level in dBμ
80
QP
60
AV
40
20
150k
300 400 500
800 1M
2M
3M 4M 5M 6
8 10M
20M
30M
Frequency in Hz
Frequency
(MHz)
Corrected
Amplitude
(dBμV)
Correction
Factor
(dB)
Limit
(dBμV)
Margin
(dB)
Detector
(PK/Ave./QP)
0.317170
45.0
20.2
59.8
14.8
QP
0.395850
43.9
20.2
57.9
14.0
QP
0.518170
44.6
20.2
56.0
11.4
QP
0.541750
44.3
20.2
56.0
11.7
QP
0.600970
42.6
20.1
56.0
13.4
QP
0.794150
41.0
20.0
56.0
15.0
QP
0.317170
30.7
20.2
49.8
19.1
Ave.
0.395850
30.1
20.2
47.9
17.8
Ave.
0.518170
26.8
20.2
46.0
19.2
Ave.
0.541750
26.5
20.2
46.0
19.5
Ave.
0.600970
25.2
20.1
46.0
20.8
Ave.
0.794150
24.1
20.0
46.0
21.9
Ave.
Note:
1) Correction Factor =LISN VDF (Voltage Division Factor) + Cable Loss + Transient Limiter Attenuation
2) Corrected Amplitude = Reading + Correction Factor
3) Margin = Limit – Corrected Amplitude
FCC Part 15.247
Page 15 of 57
Bay Area Compliance Laboratories Corp. (Shenzhen)
Report No.: RSZ170418017-00B
FCC §15.205, §15.209 & §15.247(d) – RADIATED EMISSIONS
Applicable Standard
FCC §15.205; §15.209; §15.247(d)
EUT Setup
Below 1 GHz:
Above 1GHz:
The radiated emission tests were performed in the 3 meters, using the setup accordance with the ANSI
C63.10-2013. The specification used was the FCC 15.209 and FCC 15.247 limits.
FCC Part 15.247
Page 16 of 57
Bay Area Compliance Laboratories Corp. (Shenzhen)
Report No.: RSZ170418017-00B
EMI Test Receiver & Spectrum Analyzer Setup
The system was investigated from 30 MHz to 25 GHz.
During the radiated emission test, the EMI test receiver & Spectrum Analyzer Setup were set with the
following configurations:
Frequency Range
RBW
Video B/W
IF B/W
Detector
30 MHz – 1000 MHz
100 kHz
1 MHz
1 MHz
300 kHz
3 MHz
10 Hz
120 kHz
QP
PK
PK
Above 1 GHz
Test Procedure
Maximizing procedure was performed on the highest emissions to ensure that the EUT complied with all
installation combinations.
All final data was recorded in Quasi-peak detection mode for frequency range of 30 MHz -1 GHz and peak
and Average detection modes for frequencies above 1 GHz.
Corrected Amplitude & Margin Calculation
The Corrected Amplitude is calculated by adding the Antenna Factor and Cable Loss, and subtracting the
Amplifier Gain from the Meter Reading. The basic equation is as follows:
Corrected Amplitude = Meter Reading + Antenna Factor + Cable Loss - Amplifier Gain
The “Margin” column of the following data tables indicates the degree of compliance with the applicable
limit. For example, a margin of 7dB means the emission is 7dB below the limit. The equation for margin
calculation is as follows:
Margin = Limit – Corrected Amplitude
FCC Part 15.247
Page 17 of 57
Bay Area Compliance Laboratories Corp. (Shenzhen)
Report No.: RSZ170418017-00B
Test Results Summary
According to the recorded data in following table, the EUT complied with the FCC Title 47, Part 15,
Subpart C, section 15.205, 15.209 and 15.247.
Refer to CISPR16-4-2:2011 and CISPR 16-4-1:2009, the measured level complies with the limit if
Lm + U(Lm ) ≤ Llim + Ucispr
In BACL, U(Lm ) is less than Ucispr, if Lm is less than Llim, it implies that the EUT complies with the limit.
Test Data
Environmental Conditions
Temperature:
26 ℃
Relative Humidity:
56 %
101.0 kPa
ATM Pressure:
The testing was performed by Haiguo Li on 2017-08-14.
EUT operation mode: Transmitting
30 MHz - 25 GHz: (Scan with GFSK, π/4-DQPSK, 8-DPSK mode, the worst case was GFSK mode)
Frequency
(MHz)
187.47
2402.00
2402.00
2402.00
2402.00
2328.43
2328.43
2379.25
2379.25
2489.28
2489.28
4804.00
4804.00
7206.00
7206.00
FCC Part 15.247
FCC Part
Rx Antenna Corrected Corrected
15.247/205/209
Turntable
Factor Amplitude
Degree Height Polar
Reading
Margin
(dB)
(dBμV/m) Limit
PK/QP/Ave.
(dBμV)
(m) (H/V)
(dBμV/m)
(dB)
Receiver
47.27
65.92
55.16
59.04
49.49
28.09
13.78
27.52
13.75
26.6
13.26
43.2
28.98
35.74
25.75
QP
PK
Ave.
PK
Ave.
PK
Ave.
PK
Ave.
PK
Ave.
PK
Ave.
PK
Ave.
Low Channel (2402 MHz)
115
1.7
-14.9
77
2.1
33.92
77
2.1
33.92
1.9
33.92
1.9
33.92
269
2.3
33.83
269
2.3
33.83
313
1.3
33.92
313
1.3
33.92
233
1.0
34.08
233
1.0
34.08
138
1.9
5.84
138
1.9
5.84
61
2.2
14.00
61
2.2
14.00
32.37
99.84
89.08
92.96
83.41
61.92
47.61
61.44
47.67
60.68
47.34
49.04
34.82
49.74
39.75
43.5
74
54
74
54
74
54
74
54
74
54
11.13
12.08
6.39
12.56
6.33
13.32
6.66
24.96
19.18
24.26
14.25
Page 18 of 57
Bay Area Compliance Laboratories Corp. (Shenzhen)
Frequency
(MHz)
Report No.: RSZ170418017-00B
FCC Part
Rx Antenna Corrected Corrected
15.247/205/209
Turntable
Factor Amplitude
Degree Height Polar
Reading
Margin
(dB)
(dBμV/m) Limit
PK/QP/Ave.
(dBμV)
(m) (H/V)
(dBμV/m)
(dB)
Receiver
187.47
2441.00
2441.00
2441.00
2441.00
2335.01
2335.01
2344.62
2344.62
2491.93
2491.93
4882.00
4882.00
7323.00
7323.00
47.65
66.39
56.83
62.60
52.49
27.48
13.75
27.38
13.76
26.55
13.24
43.6
29.45
34.12
24.16
QP
PK
Ave.
PK
Ave.
PK
Ave.
PK
Ave.
PK
Ave.
PK
Ave.
PK
Ave.
187.47
2480.00
2480.00
2480.00
2480.00
2388.55
2388.55
2490.17
2490.17
2492.61
2492.61
4960.00
4960.00
7440.00
7440.00
45.73
66.39
56.83
62.60
52.49
27.48
13.75
27.38
13.76
26.55
13.24
43.6
29.45
33.57
23.24
QP
PK
Ave.
PK
Ave.
PK
Ave.
PK
Ave.
PK
Ave.
PK
Ave.
PK
Ave.
Middle Channel (2441 MHz)
102
1.8
-14.9
227
1.7
33.92
227
1.7
33.92
220
1.5
33.92
220
1.5
33.92
130
1.4
33.83
130
1.4
33.83
160
2.1
33.83
160
2.1
33.83
28
1.4
34.08
28
1.4
34.08
87
2.5
6.21
87
2.5
6.21
86
1.9
13.60
86
1.9
13.60
High Channel (2480 MHz)
52
1.7
-14.9
102
2.0
34.08
102
2.0
34.08
281
1.1
34.08
281
1.1
34.08
157
1.5
33.92
157
1.5
33.92
23
1.8
34.08
23
1.8
34.08
178
2.5
34.08
178
2.5
34.08
304
1.5
7.82
304
1.5
7.82
91
2.2
13.02
91
2.2
13.02
32.75
100.31
90.75
96.52
86.41
61.31
47.58
61.21
47.59
60.63
47.32
49.81
35.66
47.72
37.76
43.5
74
54
74
54
74
54
74
54
74
54
10.75
12.69
6.42
12.79
6.41
13.37
6.68
24.19
18.34
26.28
16.24
30.83
100.47
90.91
96.68
86.57
61.40
47.67
61.46
47.84
60.63
47.32
51.42
37.27
46.59
36.26
43.5
74
54
74
54
74
54
74
54
74
54
12.67
12.60
6.33
12.54
6.16
13.37
6.68
22.58
16.73
27.41
17.74
Note:
Corrected Factor = Antenna factor (RX) + Cable Loss – Amplifier Factor
Corrected Amplitude = Corrected Factor + Reading
Margin = Limit - Corrected. Amplitude
FCC Part 15.247
Page 19 of 57
Bay Area Compliance Laboratories Corp. (Shenzhen)
Report No.: RSZ170418017-00B
FCC §15.247(a) (1)-CHANNEL SEPARATION TEST
Applicable Standard
Frequency hopping systems shall have hoping channel carrier frequencies separated by a minimum of 25
kHz or the 20 dB bandwidth of the hopping channel, whichever is greater. Alternatively, frequency
hopping systems operating in the 2400-2483.5 MHz band may have hopping channel carrier frequencies
that are separated by 25 kHz or two-thirds of the 20 dB bandwidth of the hopping channel, whichever is
greater provided the systems operate with an output power no greater than 125 mW.
Test Procedure
1. Set the EUT in transmitting mode, maxhold the channel.
2. Set the adjacent channel of the EUT and maxhold another trace.
3. Measure the channel separation.
Test Data
Environmental Conditions
Temperature:
24 ℃
Relative Humidity:
54 %
ATM Pressure:
101.0 kPa
The testing was performed by Haiguo Li on 2017-10-24.
EUT operation mode: Transmitting
Test Result: Compliance. Please refer to following table and plots
FCC Part 15.247
Page 20 of 57
Bay Area Compliance Laboratories Corp. (Shenzhen)
Mode
BDR
(GFSK)
EDR
(π/4-DQPSK)
EDR
(8DPSK)
Report No.: RSZ170418017-00B
Channel
Frequency
(MHz)
Low
2402
Adjacent
2403
Middle
2441
Adjacent
2442
High
2480
Adjacent
2479
Low
2402
Adjacent
2403
Middle
2441
Adjacent
2442
High
2480
Adjacent
Low
Adjacent
2479
2402
2403
Middle
2441
Adjacent
2442
High
2480
Adjacent
2479
Channel
Separation
(MHz)
≥Limit
(MHz)
Result
1.003
0.631
Pass
1.003
0.631
Pass
1.003
0.628
Pass
1.003
0.833
Pass
1.003
0.833
Pass
1.003
0.833
Pass
1.003
0.839
Pass
1.003
0.839
Pass
1.003
0.837
Pass
Note: Limit = 20 dB bandwidth *2/3
FCC Part 15.247
Page 21 of 57
Bay Area Compliance Laboratories Corp. (Shenzhen)
Report No.: RSZ170418017-00B
BDR (GFSK): Low Channel
BDR (GFSK): Middle Channel
FCC Part 15.247
Page 22 of 57
Bay Area Compliance Laboratories Corp. (Shenzhen)
Report No.: RSZ170418017-00B
BDR (GFSK): High Channel
EDR (π/4-DQPSK): Low Channel
FCC Part 15.247
Page 23 of 57
Bay Area Compliance Laboratories Corp. (Shenzhen)
Report No.: RSZ170418017-00B
EDR (π/4-DQPSK): Middle Channel
EDR (π/4-DQPSK): High Channel
FCC Part 15.247
Page 24 of 57
Bay Area Compliance Laboratories Corp. (Shenzhen)
Report No.: RSZ170418017-00B
EDR (8DPSK): Low Channel
EDR (8DPSK): Middle Channel
FCC Part 15.247
Page 25 of 57
Bay Area Compliance Laboratories Corp. (Shenzhen)
Report No.: RSZ170418017-00B
EDR (8DPSK): High Channel
FCC Part 15.247
Page 26 of 57
Bay Area Compliance Laboratories Corp. (Shenzhen)
Report No.: RSZ170418017-00B
FCC §15.247(a) (1) – 20 dB EMISSION BANDWIDTH
Applicable Standard
Alternatively, frequency hopping systems operating in the 2400–2483.5 MHz band may have hopping
channel carrier frequencies that are separated by 25 kHz or two-thirds of the 20 dB bandwidth of the
hopping channel, whichever is greater, provided the systems operate with an output power no greater than
125 mW.
Test Procedure
1. Check the calibration of the measuring instrument using either an internal calibrator or a known signal
from an external generator.
2. Position the EUT without connection to measurement instrument. Turn on the EUT and connect it to
measurement instrument. Then set it to any one convenient frequency within its operating range. Set a
reference level on the measuring instrument equal to the highest peak value.
3. Measure the frequency difference of two frequencies that were attenuated 20 dB from the reference
level. Record the frequency difference as the emission bandwidth.
4. Repeat above procedures until all frequencies measured were complete.
Test Data
Environmental Conditions
Temperature:
24 ℃
Relative Humidity:
54 %
ATM Pressure:
101.0 kPa
The testing was performed by Haiguo Li on 2017-10-24.
EUT operation mode: Transmitting
Test Result: Compliance. Please refer to following table and plots
FCC Part 15.247
Page 27 of 57
Bay Area Compliance Laboratories Corp. (Shenzhen)
Mode
BDR
(GFSK)
EDR
(π/4-DQPSK)
EDR
(8DPSK)
Report No.: RSZ170418017-00B
Channel
Frequency
(MHz)
20 dB Emission
Bandwidth
(MHz)
Low
2402
0.947
Middle
2441
0.947
High
2480
0.942
Low
2402
1.250
Middle
2441
1.250
High
2480
1.250
Low
2402
1.259
Middle
2441
1.259
High
2480
1.255
BDR (GFSK): Low Channel
FCC Part 15.247
Page 28 of 57
Bay Area Compliance Laboratories Corp. (Shenzhen)
Report No.: RSZ170418017-00B
BDR (GFSK): Middle Channel
BDR (GFSK): High Channel
FCC Part 15.247
Page 29 of 57
Bay Area Compliance Laboratories Corp. (Shenzhen)
Report No.: RSZ170418017-00B
EDR (π/4-DQPSK): Low Channel
EDR (π/4-DQPSK): Middle Channel
FCC Part 15.247
Page 30 of 57
Bay Area Compliance Laboratories Corp. (Shenzhen)
Report No.: RSZ170418017-00B
EDR (π/4-DQPSK): High Channel
EDR (8DPSK): Low Channel
FCC Part 15.247
Page 31 of 57
Bay Area Compliance Laboratories Corp. (Shenzhen)
Report No.: RSZ170418017-00B
EDR (8DPSK): Middle Channel
EDR (8DPSK): High Channel
FCC Part 15.247
Page 32 of 57
Bay Area Compliance Laboratories Corp. (Shenzhen)
Report No.: RSZ170418017-00B
FCC §15.247(a) (1) (iii)-QUANTITY OF HOPPING CHANNEL TEST
Applicable Standard
Frequency hopping systems in the 2400–2483.5 MHz band shall use at least 15 channels. The average time
of occupancy on any channel shall not be greater than 0.4 seconds within a period of 0.4 seconds
multiplied by the number of hopping channels employed. Frequency hopping systems may avoid or
suppress transmissions on a particular hopping frequency provided that a minimum of 15 channels are
used.
Test Procedure
1. Check the calibration of the measuring instrument (SA) using either an internal calibrator or a known
signal from an external generator.
2. Set the EUT in hopping mode from first channel to last.
3. By using the max-hold function record the quantity of the channel.
Test Data
Environmental Conditions
Temperature:
24 ℃
Relative Humidity:
54 %
ATM Pressure:
101.0 kPa
The testing was performed by Haiguo Li on 2017-10-24.
EUT operation mode: Transmitting
Test Result: Compliance. Please refer to following table and plots
FCC Part 15.247
Page 33 of 57
Bay Area Compliance Laboratories Corp. (Shenzhen)
Mode
BDR
(GFSK)
EDR
(π/4-DQPSK)
EDR
(8DPSK)
Report No.: RSZ170418017-00B
Frequency Range
(MHz)
Number of Hopping
Channel
(CH)
Limit
(CH)
2400-2483.5
79
≥15
2400-2483.5
79
≥15
2400-2483.5
79
≥15
BDR (GFSK): Number of Hopping Channels
FCC Part 15.247
Page 34 of 57
Bay Area Compliance Laboratories Corp. (Shenzhen)
Report No.: RSZ170418017-00B
EDR (π/4-DQPSK): Number of Hopping Channels
EDR (8DPSK): Number of Hopping Channels
FCC Part 15.247
Page 35 of 57
Bay Area Compliance Laboratories Corp. (Shenzhen)
Report No.: RSZ170418017-00B
FCC §15.247(a) (1) (iii) - TIME OF OCCUPANCY (DWELL TIME)
Applicable Standard
Frequency hopping systems in the 2400-2483.5 MHz shall use at least 15 channels. The average time of
occupancy on any channel shall not be greater than 0.4 seconds within a period of 0.4 seconds multiplied
by the number of hopping channels employed. Frequency hopping systems may avoid or suppress
transmissions on a particular hopping frequency provided that a minimum of 15 channels are used.
Test Procedure
The EUT was worked in channel hopping; Spectrum SPAN was set as 0. The quantity of pulse was get
from single sweep. In addition, the time of single pulses was tested.
Test Data
Environmental Conditions
Temperature:
24 ℃
Relative Humidity:
54 %
ATM Pressure:
101.0 kPa
The testing was performed by Haiguo Li on 2017-10-24.
EUT operation mode: Transmitting
Test Result: Compliance. Please refer to following table and plots
FCC Part 15.247
Page 36 of 57
Bay Area Compliance Laboratories Corp. (Shenzhen)
Mode
Channel
DH 1
BDR
(GFSK)
DH 3
DH 5
2DH 1
EDR
(π/4-DQPSK)
2DH 3
2DH 5
3DH 1
EDR
(8DPSK)
3DH 3
3DH 5
FCC Part 15.247
Report No.: RSZ170418017-00B
Pulse Width
(ms)
Dwell Time
(S)
Limit
(S)
Result
Low
0.380
0.122
0.4
Middle
0.380
0.122
0.4
High
0.380
0.122
0.4
Note: DH1:Dwell time = Pulse time*(1600/2/79)*31.6S
Low
1.652
0.264
0.4
Middle
1.652
0.264
0.4
High
1.652
0.264
0.4
Note: DH3:Dwell time = Pulse time*(1600/4/79)*31.6S
Low
2.891
0.308
0.4
Middle
2.928
0.312
0.4
High
2.899
0.309
0.4
Note: DH5:Dwell time = Pulse time*(1600/6/79)*31.6S
Pass
Pass
Pass
Low
0.387
0.124
0.4
Middle
0.396
0.127
0.4
High
0.393
0.126
0.4
Note: 2DH1:Dwell time = Pulse time*(1600/2/79)*31.6S
Low
1.657
0.265
0.4
Middle
1.648
0.264
0.4
High
1.648
0.264
0.4
Note: 2DH3:Dwell time = Pulse time*(1600/4/79)*31.6S
Low
2.906
0.310
0.4
Middle
2.906
0.310
0.4
High
2.906
0.310
0.4
Note:2DH5:Dwell time = Pulse time*(1600/6/79)*31.6S
Pass
Pass
Pass
Low
0.388
0.124
0.4
Middle
0.394
0.126
0.4
High
0.388
0.124
0.4
Note: 3DH1:Dwell time = Pulse time*(1600/2/79)*31.6S
Low
1.652
0.264
0.4
Middle
1.652
0.264
0.4
High
1.652
0.264
0.4
Note: 3DH3:Dwell time = Pulse time*(1600/4/79)*31.6S
Low
2.906
0.310
0.4
Middle
2.906
0.310
0.4
High
2.906
0.310
0.4
Note: 3DH5:Dwell time = Pulse time*(1600/6/79)*31.6S
Pass
Pass
Pass
Pass
Pass
Pass
Pass
Pass
Pass
Pass
Pass
Pass
Pass
Pass
Pass
Pass
Pass
Pass
Pass
Pass
Pass
Page 37 of 57
Bay Area Compliance Laboratories Corp. (Shenzhen)
Report No.: RSZ170418017-00B
BDR (GFSK):
Pulse time, Low Channel, DH1
Pulse time, Middle Channel, DH1
FCC Part 15.247
Page 38 of 57
Bay Area Compliance Laboratories Corp. (Shenzhen)
Report No.: RSZ170418017-00B
Pulse time, High Channel, DH1
Pulse time, Low Channel, DH3
FCC Part 15.247
Page 39 of 57
Bay Area Compliance Laboratories Corp. (Shenzhen)
Report No.: RSZ170418017-00B
Pulse time, Middle Channel, DH3
Pulse time, High Channel, DH3
FCC Part 15.247
Page 40 of 57
Bay Area Compliance Laboratories Corp. (Shenzhen)
Report No.: RSZ170418017-00B
Pulse time, Low Channel, DH5
Pulse time, Middle Channel, DH5
FCC Part 15.247
Page 41 of 57
Bay Area Compliance Laboratories Corp. (Shenzhen)
Report No.: RSZ170418017-00B
Pulse time, High Channel, DH5
EDR (π/4-DQPSK):
Pulse time, Low Channel, 2DH1
FCC Part 15.247
Page 42 of 57
Bay Area Compliance Laboratories Corp. (Shenzhen)
Report No.: RSZ170418017-00B
Pulse time, Middle Channel, 2DH1
Pulse time, High Channel, 2DH1
FCC Part 15.247
Page 43 of 57
Bay Area Compliance Laboratories Corp. (Shenzhen)
Report No.: RSZ170418017-00B
Pulse time, Low Channel, 2DH3
Pulse time, Middle Channel, 2DH3
FCC Part 15.247
Page 44 of 57
Bay Area Compliance Laboratories Corp. (Shenzhen)
Report No.: RSZ170418017-00B
Pulse time, High Channel, 2DH3
Pulse time, Low Channel, 2DH5
FCC Part 15.247
Page 45 of 57
Bay Area Compliance Laboratories Corp. (Shenzhen)
Report No.: RSZ170418017-00B
Pulse time, Middle Channel, 2DH5
Pulse time, High Channel, 2DH5
FCC Part 15.247
Page 46 of 57
Bay Area Compliance Laboratories Corp. (Shenzhen)
Report No.: RSZ170418017-00B
EDR (8DPSK):
Pulse time, Low Channel, 3DH1
Pulse time, Middle Channel, 3DH1
FCC Part 15.247
Page 47 of 57
Bay Area Compliance Laboratories Corp. (Shenzhen)
Report No.: RSZ170418017-00B
Pulse time, High Channel, 3DH1
Pulse time, Low Channel, 3DH3
FCC Part 15.247
Page 48 of 57
Bay Area Compliance Laboratories Corp. (Shenzhen)
Report No.: RSZ170418017-00B
Pulse time, Middle Channel, 3DH3
Pulse time, High Channel, 3DH3
FCC Part 15.247
Page 49 of 57
Bay Area Compliance Laboratories Corp. (Shenzhen)
Report No.: RSZ170418017-00B
Pulse time, Low Channel, 3DH5
Pulse time, Middle Channel, 3DH5
FCC Part 15.247
Page 50 of 57
Bay Area Compliance Laboratories Corp. (Shenzhen)
Report No.: RSZ170418017-00B
Pulse time, High Channel, 3DH5
FCC Part 15.247
Page 51 of 57
Bay Area Compliance Laboratories Corp. (Shenzhen)
Report No.: RSZ170418017-00B
FCC §15.247(b) (1) - PEAK OUTPUT POWER MEASUREMENT
Applicable Standard
According to §15.247(b) (1), for frequency hopping systems operating in the 2400–2483.5 MHz band
employing at least 75 non-overlapping hopping channels, and all frequency hopping systems in the 57255850 MHz band: 1 watt. And for all other frequency hopping systems in the 2400–2483.5 MHz band:
0.125 watts.
Test Procedure
1. Place the EUT on a bench and set in transmitting mode.
2. Remove the antenna from the EUT and then connect a low loss RF cable from the antenna port to one
test equipment.
3. Add a correction factor to the display.
Test Data
Environmental Conditions
Temperature:
24 ℃
Relative Humidity:
54 %
ATM Pressure:
101.0 kPa
The testing was performed by Haiguo Li on 2017-10-24.
EUT operation mode: Transmitting
Test Result: Compliance. Please refer to following table.
FCC Part 15.247
Page 52 of 57
Bay Area Compliance Laboratories Corp. (Shenzhen)
Mode
BDR
(GFSK)
EDR
(π/4-DQPSK)
EDR
(8DPSK)
FCC Part 15.247
Channel
Frequency
(MHz)
Report No.: RSZ170418017-00B
Peak Output Power
(dBm)
(mW)
Limit
(mW)
Low
2402
5.48
3.53
1000
Middle
2441
5.76
3.77
1000
High
2480
5.77
3.78
1000
Low
2402
2.06
1.61
1000
Middle
2441
2.28
1.69
1000
High
2480
1.94
1.56
1000
Low
2402
2.02
1.59
1000
Middle
2441
2.09
1.62
1000
High
2480
2.12
1.63
1000
Page 53 of 57
Bay Area Compliance Laboratories Corp. (Shenzhen)
Report No.: RSZ170418017-00B
FCC §15.247(d) - BAND EDGES TESTING
Applicable Standard
In any 100 kHz bandwidth outside the frequency band in which the spread spectrum or digitally modulated
intentional radiator is operating, the radio frequency power that is produced by the intentional radiator
shall be at least 20 dB below that in the 100 kHz bandwidth within the band that contains the highest level
of the desired power, based on either an RF conducted or a radiated measurement, provided the transmitter
demonstrates compliance with the peak conducted power limits. If the transmitter complies with the
conducted power limits based on the use of RMS averaging over a time interval, as permitted under
paragraph (b)(3) of this section, the attenuation required under this paragraph shall be 30 dB instead of 20
dB. Attenuation below the general limits specified in §15.209(a) is not required. In addition, radiated
emissions which fall in the restricted bands, as defined in §15.205(a), must also comply with the radiated
emission limits specified in §15.209(a) (see §15.205(c)).
Test Procedure
1. Check the calibration of the measuring instrument using either an internal calibrator or a known signal
from an external generator.
2. Remove the antenna from the EUT and then connect to a low loss RF cable from the antenna port to a
EMI test receiver, then turn on the EUT and make it operate in transmitting mode. Then set it to Low
Channel and High Channel within its operating range, and make sure the instrument is operated in its
linear range.
3. Set RBW of spectrum analyzer to 100 kHz with a convenient frequency span including 100 kHz
bandwidth from band edge.
4. Measure the highest amplitude appearing on spectral display and set it as a reference level. Plot the
graph with marking the highest point and edge frequency.
5. Repeat above procedures until all measured frequencies were complete.
Test Data
Environmental Conditions
Temperature:
24 ℃
Relative Humidity:
54 %
ATM Pressure:
101.0 kPa
The testing was performed by Haiguo Li on 2017-10-24.
EUT operation mode: Transmitting
Test Result: Compliance. Please refer to following plots.
FCC Part 15.247
Page 54 of 57
Bay Area Compliance Laboratories Corp. (Shenzhen)
Report No.: RSZ170418017-00B
BDR (GFSK): Band Edge-Left Side
BDR (GFSK): Band Edge-Right Side
FCC Part 15.247
Page 55 of 57
Bay Area Compliance Laboratories Corp. (Shenzhen)
Report No.: RSZ170418017-00B
EDR (π/4-DQPSK): Band Edge-Left Side
EDR (π/4-DQPSK): Band Edge-Right Side
FCC Part 15.247
Page 56 of 57
Bay Area Compliance Laboratories Corp. (Shenzhen)
Report No.: RSZ170418017-00B
EDR (8DPSK): Band Edge-Left Side
EDR (8DPSK): Band Edge-Right Side
***** END OF REPORT *****
FCC Part 15.247
Page 57 of 57
Download: B231 POS Terminal Test Report  Group Sense Mobile-Tech Limited
Mirror Download [FCC.gov]B231 POS Terminal Test Report  Group Sense Mobile-Tech Limited
Document ID3635907
Application IDEQTXeilFC/bLM7AsAz3Kjg==
Document DescriptionTest Report
Short Term ConfidentialNo
Permanent ConfidentialNo
SupercedeNo
Document TypeTest Report
Display FormatAdobe Acrobat PDF - pdf
Filesize204.33kB (2554170 bits)
Date Submitted2017-11-10 00:00:00
Date Available2017-11-10 00:00:00
Creation Date2017-12-30 09:03:11
Producing SoftwareGPL Ghostscript 9.18
Document Lastmod2017-12-30 09:03:11
Document TitleTest Report
Document CreatorPScript5.dll Version 5.2.2
Document Author: SZ076

Source Exif Data [exif.tools]:
File Type                       : PDF
File Type Extension             : pdf
MIME Type                       : application/pdf
PDF Version                     : 1.5
Linearized                      : No
Warning                         : Invalid xref table
