FCC ID VUIDPC3829A
Wireless cable modem
by PEGATRON CORPORATION
Grantee Code: VUI Product Code: DPC3829A
Latest application date: 2016-05-02
Device Images
FCC ID Device Details
| FCC ID | VUIDPC3829A |
|---|---|
| Mirrors | fcc.id | gov | fccid.ai |
| Grantee Code | VUI |
| Product Code | DPC3829A |
| Applicant Business | PEGATRON CORPORATION 🇹🇼 |
| Related Domains |  pegatroncorp.com |
| Equipment Class | Wireless cable modem |
| Test Firm | SPORTON International Inc. |
Operating Frequencies
| Frequency Range | Application Purpose | Final Action Date |
|---|---|---|
| 5180-5240 MHz | Class II permissive change or modification of presently authorized equipment | 2016-05-02 |
| 2412-2462 MHz | Original Equipment | 2014-04-24 |
| 5180-5240 MHz | Original Equipment | 2014-04-24 |
Exhibits
| Document | Type | Available | File |
|---|---|---|---|
| User Manual | Users Manual | 2014-04-24 | PDF 622.7 KB |
| Internal Photo | Internal Photos | 2014-04-24 | PDF 1.1 MB |
| External Photo | External Photos | 2014-04-24 | PDF 416.4 KB |
| ID Label | ID Label/Location Info | 2014-04-24 | PDF 473.8 KB |

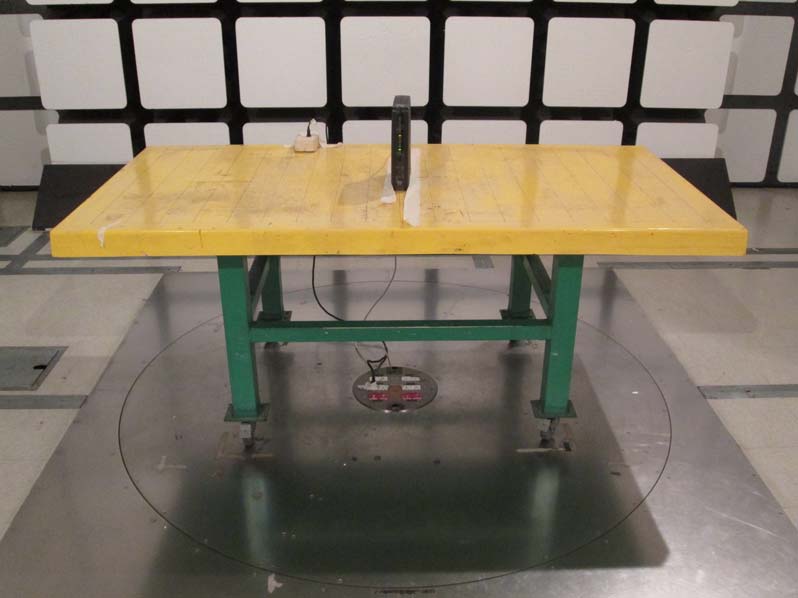

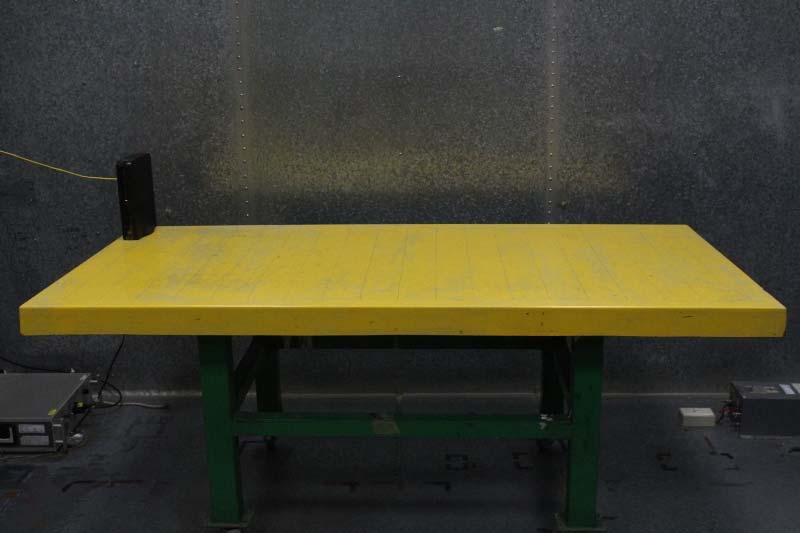

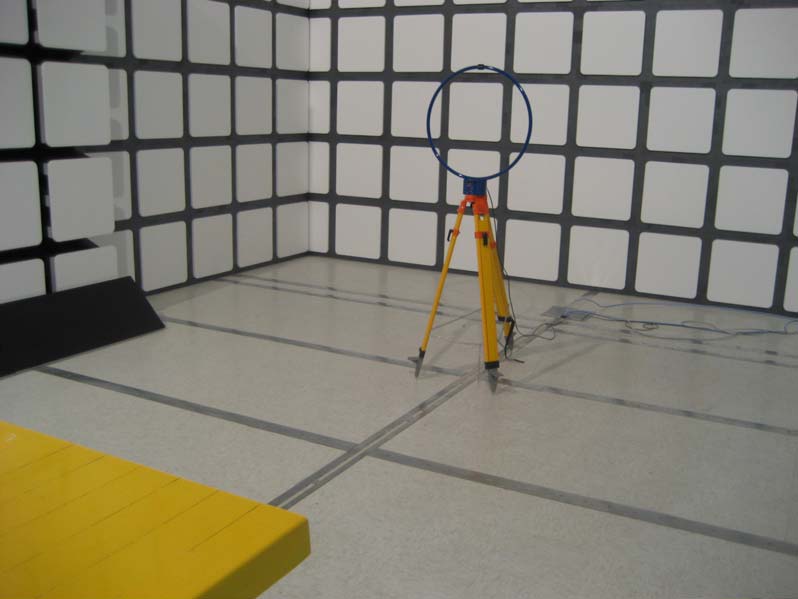

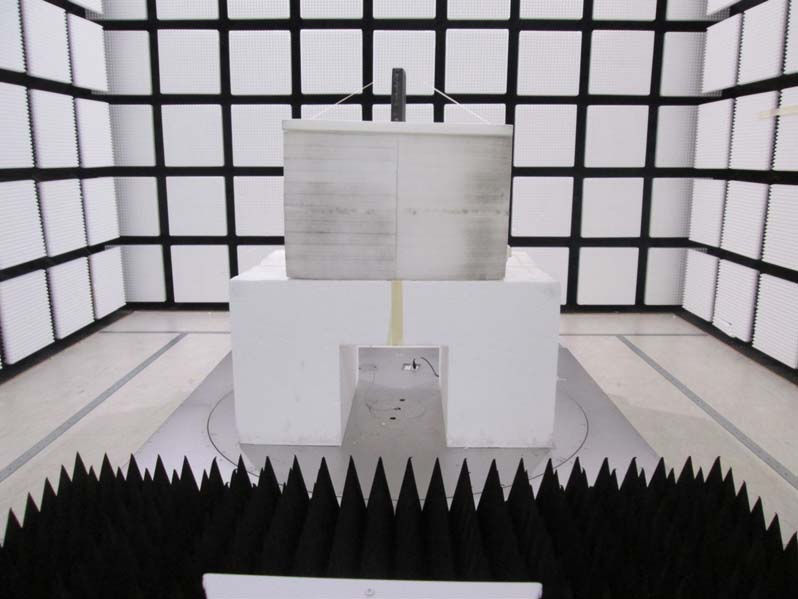

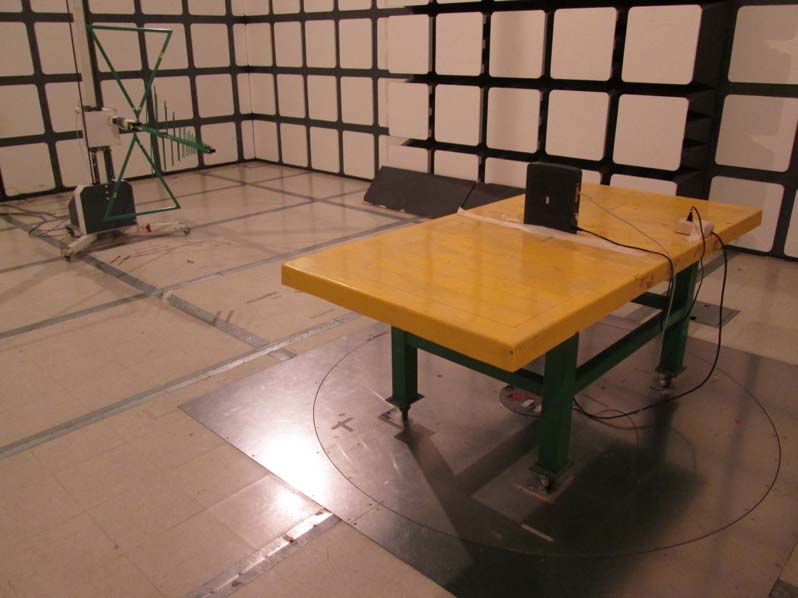

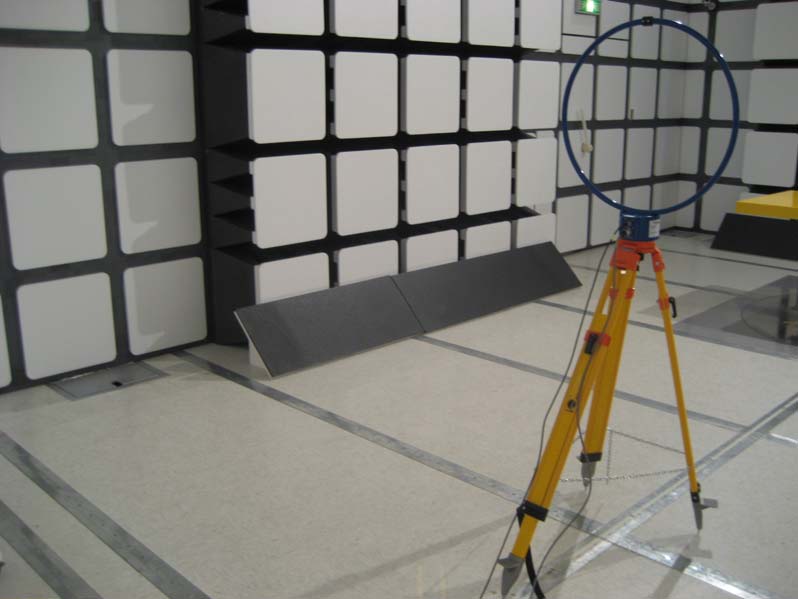

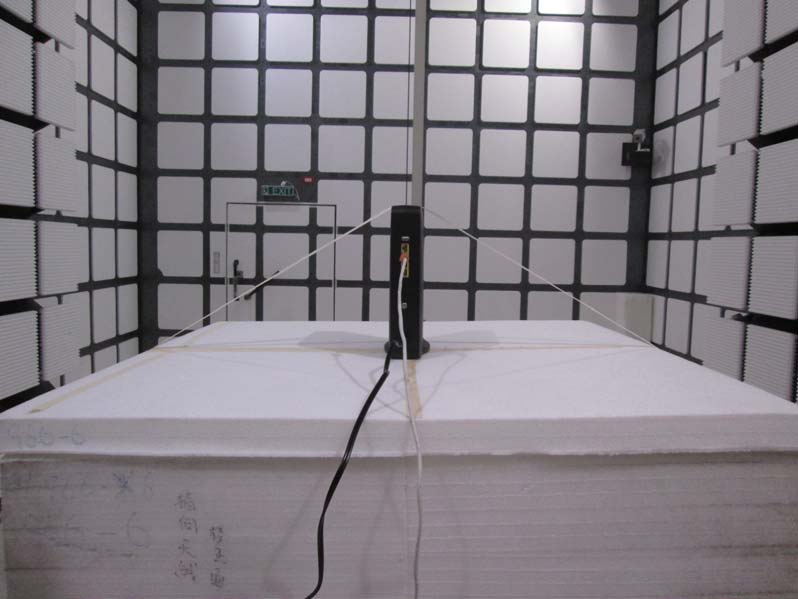

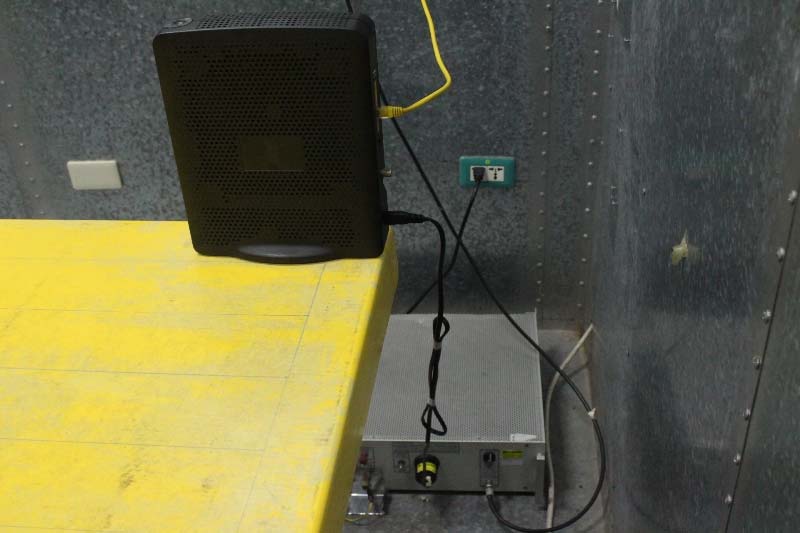

| Test Setup Photos | Test Setup Photos | 2016-05-02 | PDF 352.5 KB |
| Test Setup Photo_DTS | Test Setup Photos | 2014-04-24 | PDF 346.2 KB |
| Test Setup Photo_NII | Test Setup Photos | 2014-04-24 | PDF 346.1 KB |
| MPE Test Report | RF Exposure Info | 2016-05-02 | PDF 283.2 KB |
| Test Report Band 1 - Band 4 | Test Report | 2016-05-02 | PDF 3.1 MB |
| Test Report_DTS | Test Report | 2014-04-24 | PDF 4.3 MB |
| Test Report_NII | Test Report | 2014-04-24 | PDF 1.5 MB |
| co-located report | Test Report | 2014-04-24 | PDF 110.4 KB |
| Authorization Letter | Cover Letter(s) | 2016-05-02 | PDF 20.5 KB |
| Class II Premissive Change Letter | Cover Letter(s) | 2016-05-02 | PDF 154 KB |
| Confidentiality Request Letter | Cover Letter(s) | 2016-05-02 | PDF 158 KB |
| POA | Cover Letter(s) | 2016-05-02 | PDF 129.9 KB |
| Agency Authorization Letter | Cover Letter(s) | 2014-04-24 | PDF 32.2 KB |
| Confidential Request Letter | Cover Letter(s) | 2014-04-24 | PDF 22.9 KB |
| POA | Cover Letter(s) | 2014-04-24 | PDF 20 KB |
| RF Exposure | RF Exposure Info | 2014-04-24 | PDF 402.6 KB |
| Block Diagram Metadata only | Block Diagram | PDF 133.7 KB | |
| Schematics Diagram Metadata only | Schematics | PDF 1.1 MB | |
| Operation description Metadata only | Operational Description | PDF 96.1 KB | |
| Operational Description Software Security Metadata only | Operational Description | PDF 33.4 KB |
Application Information
| Application ID | zgstkDv3XsziSVrMdZi6+w== |
|---|---|
| Final Action Date | 2016-05-02 |
| Application Purpose | Class II permissive change or modification of presently authorized equipment |
| Applicant FRN | 0020241758 |
| Model | DPC3829A |
| Frequency Range | 5180-5240 MHz |
| Equipment Class | NII - Unlicensed National Information Infrastructure TX |
| Device Description | Wireless cable modem |
| Responsible Party | Nancy Yu, Senior Manager, nancy_yu@pegatroncorp.com , 886-2-81439001 |
| Test Firm | Sharon Jiang, SPORTON International Inc., sharonjiang@sporton.com.tw  , 886-3-656-9065 |
| TCB Email | TEI@TIMCOENGR.COM  |
| TCB Scope | A4: UNII devices & low power transmitters using spread spectrum techniques |
| Short-Term Confidentiality | No |
| Long-Term Confidentiality | Yes |
| Grant Deferral | No |
| Modular Equipment | Does not apply |
| Composite Device | Yes |
| Composite Part | No |
| Cognitive Radio | No |
| Authorization Waiver | No |
| Authorization Waiver Approved | No |
| Section 5301 Certification | Yes |
| Related OET Knowledge DataBase Inquiry | No |
| Grant Comments | Output Power listed is the maximum combined conducted output power as indicated in the filing. This device must be installed and operated to provide a separation distance of at least 20 cm from all persons and must not be co-located or operating in conjunction with any other antenna or transmitter. End-users must be provided transmitter operating conditions for satisfying RF exposure compliance. Device is operating in a 3T3R Spatial Multiplexing MIMO configuration as described in this filing. This device supports 802.11n, 20 MHz, 40 MHz mode; and 802.11ac 20 MHz, 40 MHz, and 80 MHz mode. (Date of Grant: 04/24/2014) Class II Permissive Change: This Class II Permissive Change is to update to the new U-NII Rules. |
Applications
| Application ID | Date | Purpose |
|---|---|---|
| zgstkDv3XsziSVrMdZi6+w== | 2016-05-02 | Class II permissive change or modification of presently authorized equipment |
| CfCt6bFrVTBkEb9ejqY8PQ== | 2014-04-24 | Original Equipment |
| 87wxYYe1N6UN8nNIeelkqg== | 2014-04-24 | Original Equipment |
Equipment Authorization
| Frequency | Output | Rules | Grant Notes |
|---|---|---|---|
| 2412-2462 MHz | 0.5998 | 15C | CC, MO |
| 2422-2452 MHz | 0.2506 | 15C | CC, MO |
| 5180-5240 MHz | 0.0497 | 15E | CC, MO |
| 5180-5240 MHz | 0.167 | 15E | 38, CC, MO |
| 5190-5230 MHz | 0.0491 | 15E | CC, MO |
| 5210 MHz | 0.0498 | 15E | CC, MO |
| 5745-5825 MHz | 0.422 | 15E | 38, CC, MO |
| 5745-5825 MHz | 0.4831 | 15C | CC, MO |
| 5755-5795 MHz | 0.6561 | 15C | CC, MO |
| 5775 MHz | 0.2692 | 15C | CC, MO |
Grants
TCB Grant - Application zgstkDv3XsziSVrMdZi6+w==
| TCB | GRANT OF EQUIPMENT AUTHORIZATION |
TCB |
| Certification | ||
| Issued Under the Authority of the | ||
| Federal Communications Commission | ||
| By: |
|
Timco Engineering, Inc. 849 NW State Road 45 Newberry, FL 32669 |
Date of Grant: 05/02/2016 Application Dated: 04/29/2016 |
| PEGATRON CORPORATION |
| 5F., NO. 76, LIGONG ST., BEITOU DISTRICT, |
| TAIPEI CITY, 11259 Taiwan |
| Attention: Nancy Yu , Senior Manager |
| NOT TRANSFERABLE |
| EQUIPMENT AUTHORIZATION is hereby issued to the named GRANTEE, and is VALID ONLY for the equipment identified hereon for use under the Commission's Rules and Regulations listed below. |
| FCC IDENTIFIER: | VUIDPC3829A |
| Name of Grantee: | PEGATRON CORPORATION |
| Equipment Class: | Unlicensed National Information Infrastructure TX |
| Notes: | Wireless cable modem |
| Grant Notes | FCC Rule Parts | Frequency Range (MHZ) | Output Watts | Frequency Tolerance | Emission Designator |
| 38 CC MO | 15E | 5180.0 - 5240.0 | 0.167 | ||
| 38 CC MO | 15E | 5745.0 - 5825.0 | 0.422 |
| Output Power listed is the maximum combined conducted output power as indicated in the filing. This device must be installed and operated to provide a separation distance of at least 20 cm from all persons and must not be co-located or operating in conjunction with any other antenna or transmitter. End-users must be provided transmitter operating conditions for satisfying RF exposure compliance. Device is operating in a 3T3R Spatial Multiplexing MIMO configuration as described in this filing. This device supports 802.11n, 20 MHz, 40 MHz mode; and 802.11ac 20 MHz, 40 MHz, and 80 MHz mode. (Date of Grant: 04/24/2014) Class II Permissive Change: This Class II Permissive Change is to update to the new U-NII Rules. |
| 38: | This device has shown compliance, in all grant-listed U-NII sub-bands, with the new rules for U-NII devices adopted under Docket No. 13-49 and may be marketed, manufactured or imported after the June 1, 2016 transition deadline. |
| CC: | This device is certified pursuant to two different Part 15 rules sections. |
| MO: | This Multiple Input Multiple Output (MIMO) device was evaluated for multiple transmitted signals as indicated in the filing. |
EAS Grant - Application zgstkDv3XsziSVrMdZi6+w==
| COPY |
FEDERAL COMMUNICATIONS COMMISSION WASHINGTON, D.C. 20554 GRANT OF EQUIPMENT AUTHORIZATION |
COPY |
| Certification |
|
PEGATRON CORPORATION 5F., NO. 76, LIGONG ST., BEITOU DISTRICT, TAIPEI CITY, 11259 Taiwan |
Date of Grant: 05/02/2016 Application Dated: 04/29/2016 |
| Attention: Nancy Yu , Senior Manager |
| NOT TRANSFERABLE |
| EQUIPMENT AUTHORIZATION is hereby issued to the named GRANTEE, and is VALID ONLY for the equipment identified hereon for use under the Commission's Rules and Regulations listed below. |
| FCC IDENTIFIER: | VUIDPC3829A |
| Name of Grantee: | PEGATRON CORPORATION |
| Equipment Class: | Unlicensed National Information Infrastructure TX |
| Notes: | Wireless cable modem |
| Modular Type: | Does not apply |
| Grant Notes | FCC Rule Parts | Frequency Range (MHZ) | Output Watts | Frequency Tolerance | Emission Designator |
| 38 CC MO | 15E | 5180.0 - 5240.0 | 0.167 | ||
| 38 CC MO | 15E | 5745.0 - 5825.0 | 0.422 |
| Output Power listed is the maximum combined conducted output power as indicated in the filing. This device must be installed and operated to provide a separation distance of at least 20 cm from all persons and must not be co-located or operating in conjunction with any other antenna or transmitter. End-users must be provided transmitter operating conditions for satisfying RF exposure compliance. Device is operating in a 3T3R Spatial Multiplexing MIMO configuration as described in this filing. This device supports 802.11n, 20 MHz, 40 MHz mode; and 802.11ac 20 MHz, 40 MHz, and 80 MHz mode. (Date of Grant: 04/24/2014) Class II Permissive Change: This Class II Permissive Change is to update to the new U-NII Rules. |
| 38: | This device has shown compliance, in all grant-listed U-NII sub-bands, with the new rules for U-NII devices adopted under Docket No. 13-49 and may be marketed, manufactured or imported after the June 1, 2016 transition deadline. |
| CC: | This device is certified pursuant to two different Part 15 rules sections. |
| MO: | This Multiple Input Multiple Output (MIMO) device was evaluated for multiple transmitted signals as indicated in the filing. |
| Mail To: | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| TCB | GRANT OF EQUIPMENT AUTHORIZATION |
TCB |
| Certification | ||
| Issued Under the Authority of the | ||
| Federal Communications Commission | ||
| By: |
|
PHOENIX TESTLAB GmbH Koenigswinkel 10 32825 Blomberg, Germany |
Date of Grant: 04/24/2014 Application Dated: 04/24/2014 |
| PEGATRON CORPORATION |
| 5F., NO. 76, LIGONG ST., BEITOU DISTRICT, |
| TAIPEI CITY, 11259 Taiwan |
| Attention: Nancy Yu , Senior Manager |
| NOT TRANSFERABLE |
| EQUIPMENT AUTHORIZATION is hereby issued to the named GRANTEE, and is VALID ONLY for the equipment identified hereon for use under the Commission's Rules and Regulations listed below. |
| FCC IDENTIFIER: | VUIDPC3829A |
| Name of Grantee: | PEGATRON CORPORATION |
| Equipment Class: | Digital Transmission System |
| Notes: | Wireless cable modem |
| Grant Notes | FCC Rule Parts | Frequency Range (MHZ) | Output Watts | Frequency Tolerance | Emission Designator |
| CC MO | 15C | 2412.0 - 2462.0 | 0.5998 | ||
| CC MO | 15C | 2422.0 - 2452.0 | 0.2506 | ||
| CC MO | 15C | 5745.0 - 5825.0 | 0.4831 | ||
| CC MO | 15C | 5755.0 - 5795.0 | 0.6561 | ||
| CC MO | 15C | 5775.0 - 5775.0 | 0.2692 |
| Output Power listed is the maximum combined conducted output power as indicated in the filing. This device must be installed and operated to provide a separation distance of at least 20 cm from all persons and must not be co-located or operating in conjunction with any other antenna or transmitter. End-users must be provided transmitter operating conditions for satisfying RF exposure compliance. Device is operating in a 3T3R Spatial Multiplexing MIMO configuration as described in this filing. This device supports 802.11n, 20MHz, 40 MHz and 802.11ac 80 MHz mode. |
| CC: | This device is certified pursuant to two different Part 15 rules sections. |
| MO: | This Multiple Input Multiple Output (MIMO) device was evaluated for multiple transmitted signals as indicated in the filing. |
EAS Grant - Application CfCt6bFrVTBkEb9ejqY8PQ==
| COPY |
FEDERAL COMMUNICATIONS COMMISSION WASHINGTON, D.C. 20554 GRANT OF EQUIPMENT AUTHORIZATION |
COPY |
| Certification |
|
PEGATRON CORPORATION 5F., NO. 76, LIGONG ST., BEITOU DISTRICT, TAIPEI CITY, 11259 Taiwan |
Date of Grant: 04/24/2014 Application Dated: 04/24/2014 |
| Attention: Nancy Yu , Senior Manager |
| NOT TRANSFERABLE |
| EQUIPMENT AUTHORIZATION is hereby issued to the named GRANTEE, and is VALID ONLY for the equipment identified hereon for use under the Commission's Rules and Regulations listed below. |
| FCC IDENTIFIER: | VUIDPC3829A |
| Name of Grantee: | PEGATRON CORPORATION |
| Equipment Class: | Digital Transmission System |
| Notes: | Wireless cable modem |
| Modular Type: | Does not apply |
| Grant Notes | FCC Rule Parts | Frequency Range (MHZ) | Output Watts | Frequency Tolerance | Emission Designator |
| CC MO | 15C | 2412.0 - 2462.0 | 0.5998 | ||
| CC MO | 15C | 2422.0 - 2452.0 | 0.2506 | ||
| CC MO | 15C | 5745.0 - 5825.0 | 0.4831 | ||
| CC MO | 15C | 5755.0 - 5795.0 | 0.6561 | ||
| CC MO | 15C | 5775.0 - 5775.0 | 0.2692 |
| Output Power listed is the maximum combined conducted output power as indicated in the filing. This device must be installed and operated to provide a separation distance of at least 20 cm from all persons and must not be co-located or operating in conjunction with any other antenna or transmitter. End-users must be provided transmitter operating conditions for satisfying RF exposure compliance. Device is operating in a 3T3R Spatial Multiplexing MIMO configuration as described in this filing. This device supports 802.11n, 20MHz, 40 MHz and 802.11ac 80 MHz mode. |
| CC: | This device is certified pursuant to two different Part 15 rules sections. |
| MO: | This Multiple Input Multiple Output (MIMO) device was evaluated for multiple transmitted signals as indicated in the filing. |
| Mail To: | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| TCB | GRANT OF EQUIPMENT AUTHORIZATION |
TCB |
| Certification | ||
| Issued Under the Authority of the | ||
| Federal Communications Commission | ||
| By: |
|
PHOENIX TESTLAB GmbH Koenigswinkel 10 32825 Blomberg, Germany |
Date of Grant: 04/24/2014 Application Dated: 04/24/2014 |
| PEGATRON CORPORATION |
| 5F., NO. 76, LIGONG ST., BEITOU DISTRICT, |
| TAIPEI CITY, 11259 Taiwan |
| Attention: Nancy Yu , Senior Manager |
| NOT TRANSFERABLE |
| EQUIPMENT AUTHORIZATION is hereby issued to the named GRANTEE, and is VALID ONLY for the equipment identified hereon for use under the Commission's Rules and Regulations listed below. |
| FCC IDENTIFIER: | VUIDPC3829A |
| Name of Grantee: | PEGATRON CORPORATION |
| Equipment Class: | Unlicensed National Information Infrastructure TX |
| Notes: | Wireless cable modem |
| Grant Notes | FCC Rule Parts | Frequency Range (MHZ) | Output Watts | Frequency Tolerance | Emission Designator |
| CC MO | 15E | 5180.0 - 5240.0 | 0.0497 | ||
| CC MO | 15E | 5190.0 - 5230.0 | 0.0491 | ||
| CC MO | 15E | 5210.0 - 5210.0 | 0.0498 |
| Output Power listed is the maximum combined conducted output power as indicated in the filing. This device must be installed and operated to provide a separation distance of at least 20 cm from all persons and must not be co-located or operating in conjunction with any other antenna or transmitter. End-users must be provided transmitter operating conditions for satisfying RF exposure compliance. Device is operating in a 3T3R Spatial Multiplexing MIMO configuration as described in this filing. This device supports 802.11n, 20MHz, 40 MHz and 802.11ac 80 MHz mode. Operating of this device in the 5150 MHz to 5250 MHz range is restricted to indoor use only. |
| CC: | This device is certified pursuant to two different Part 15 rules sections. |
| MO: | This Multiple Input Multiple Output (MIMO) device was evaluated for multiple transmitted signals as indicated in the filing. |
EAS Grant - Application 87wxYYe1N6UN8nNIeelkqg==
| COPY |
FEDERAL COMMUNICATIONS COMMISSION WASHINGTON, D.C. 20554 GRANT OF EQUIPMENT AUTHORIZATION |
COPY |
| Certification |
|
PEGATRON CORPORATION 5F., NO. 76, LIGONG ST., BEITOU DISTRICT, TAIPEI CITY, 11259 Taiwan |
Date of Grant: 04/24/2014 Application Dated: 04/24/2014 |
| Attention: Nancy Yu , Senior Manager |
| NOT TRANSFERABLE |
| EQUIPMENT AUTHORIZATION is hereby issued to the named GRANTEE, and is VALID ONLY for the equipment identified hereon for use under the Commission's Rules and Regulations listed below. |
| FCC IDENTIFIER: | VUIDPC3829A |
| Name of Grantee: | PEGATRON CORPORATION |
| Equipment Class: | Unlicensed National Information Infrastructure TX |
| Notes: | Wireless cable modem |
| Modular Type: | Does not apply |
| Grant Notes | FCC Rule Parts | Frequency Range (MHZ) | Output Watts | Frequency Tolerance | Emission Designator |
| CC MO | 15E | 5180.0 - 5240.0 | 0.0497 | ||
| CC MO | 15E | 5190.0 - 5230.0 | 0.0491 | ||
| CC MO | 15E | 5210.0 - 5210.0 | 0.0498 |
| Output Power listed is the maximum combined conducted output power as indicated in the filing. This device must be installed and operated to provide a separation distance of at least 20 cm from all persons and must not be co-located or operating in conjunction with any other antenna or transmitter. End-users must be provided transmitter operating conditions for satisfying RF exposure compliance. Device is operating in a 3T3R Spatial Multiplexing MIMO configuration as described in this filing. This device supports 802.11n, 20MHz, 40 MHz and 802.11ac 80 MHz mode. Operating of this device in the 5150 MHz to 5250 MHz range is restricted to indoor use only. |
| CC: | This device is certified pursuant to two different Part 15 rules sections. |
| MO: | This Multiple Input Multiple Output (MIMO) device was evaluated for multiple transmitted signals as indicated in the filing. |
| Mail To: |
