HZJDZY1823 ELECTRONIC SELF-BALLAST LAMP... - FCC ID VVIHZJDZY18-23
FCC ID VVIHZJDZY18-23

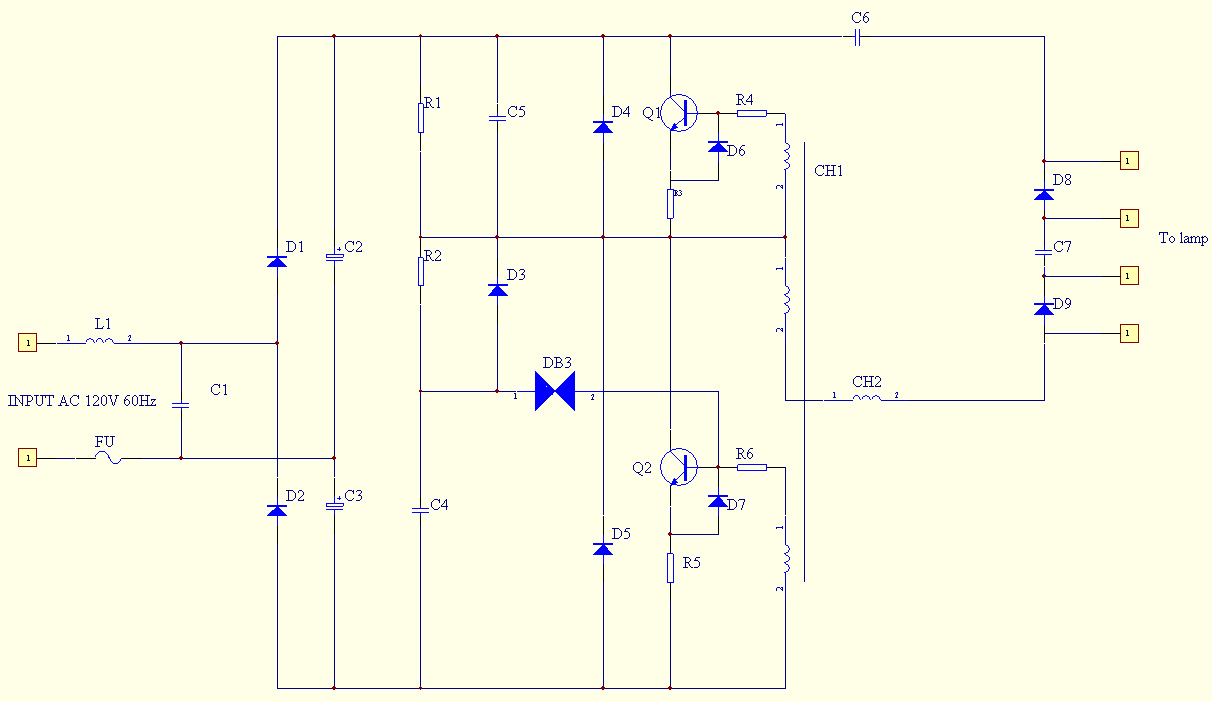

SCHEMATICS
ELECTRONIC SELF-BALLAST LAMP
Document Details
| FCC ID | VVIHZJDZY18-23 |
|---|---|
| Document ID | 877515 |
| Document Type | Schematics |
| Description | SCHEMATICS |
| Document Title | SCHEMATICS |
| Applicant | JIANDE ZHONGYA ELECTRIC APPLIANCE FACTORY |
| Equipment Class | ELECTRONIC SELF-BALLAST LAMP |
| Product Code | HZJDZY1823 |
| Application ID | y84smOEAwdSWc/i2Un733g== |
| Application Purpose | Original Equipment |
| Application Date | 2007-12-10 |
| Frequency Range | 0 MHz |
| FRN | 0017193566 |
| Test Firm | Solid Industrial Co., Ltd. |
| Certified By | WU YU LIANG GENERAL MANAGER |
| Short-Term Confidentiality | No |
| Long-Term Confidentiality | No |
| Grant Deferral | No |
| Modular Equipment | Does not apply |
| Composite Device | No |
| Composite Part | No |
| Submitted | 2007-12-10 |
| Available | 2007-12-10 |
| Created | 2007-10-19 |
| Modified | 2007-10-19 |
| Pages | 0 |
| File Type | JPEG Image |
| File Size | 131328 |
| File SHA-256 | fff6e8fc99cc299385958a4bed062035017dacce9b50308ce1e22fa79e58d7ea |
| PDF Metadata Author | FCC |
| PDF Metadata Producer | Adobe Photoshop 7.0 |
| FCC.gov Sources | FCC.gov 877515 |
