LM400 Bluetooth Module with UART Connection... - FCC ID VVXLM400

FCC ID VVXLM400

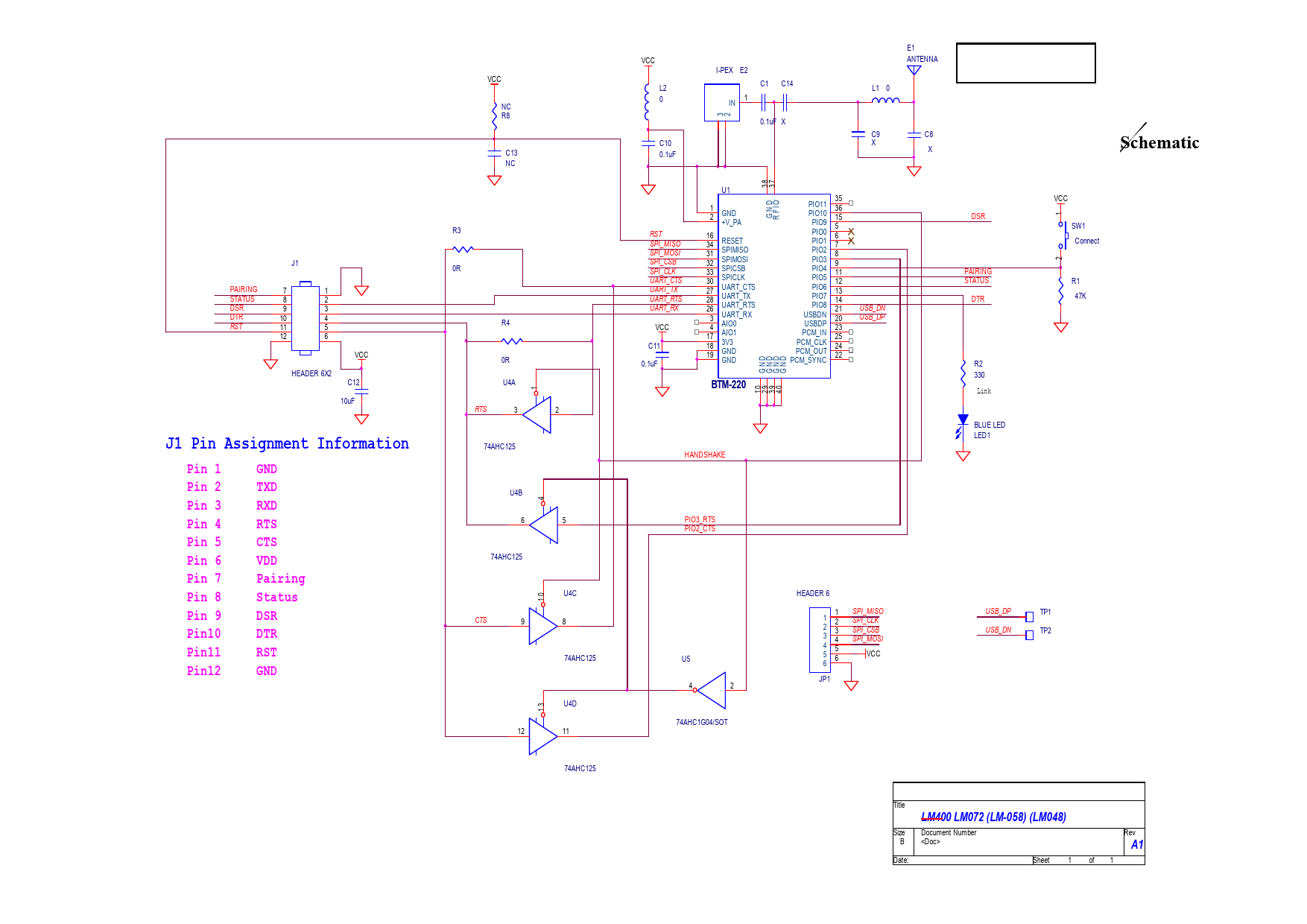

SCHEMATICS

Bluetooth Module with UART Connection

by LM Technologies Ltd.

Document preview loads when visible.

Document Details

FCC IDVVXLM400
Document ID933405
Document TypeSchematics
DescriptionSCHEMATICS
Document TitleBTM-400 Datasheet
ApplicantLM Technologies Ltd.
Equipment ClassBluetooth Module with UART Connection
Product CodeLM400
Application IDczngxXqhl38OtvUIEvZA7A==
Application PurposeOriginal Equipment
Application Date2008-04-25
Frequency Range2402-2480 MHz
FRN0017206053
Test FirmSEM.Test Compliance Service Co., Ltd.
Certified ByMIKE SIMS DIRECTOR
Short-Term ConfidentialityNo
Long-Term ConfidentialityNo
Grant DeferralNo
Modular EquipmentSingle Modular Approval
Composite DeviceNo
Composite PartNo
Submitted2008-04-25
Available2008-04-25
Created2008-01-22
Modified2008-04-11
Pages1
File TypeAdobe Acrobat PDF
File Size356073
File SHA-25678f3d077e930213fb718df2ff1a18d2cf00dea6f97a87d8e403b5360d875a1c7
PDF Metadata AuthorTim
PDF Metadata CreatorAdobe Illustrator CS3
PDF Metadata ProducerAcrobat Distiller 8.1.0 (Windows)
FCC.gov SourcesFCC.gov 933405
