CMR119A Wireless Electricity Monitor... - FCC ID VVZ-CMR119A

FCC ID VVZ-CMR119A

Block Diagram

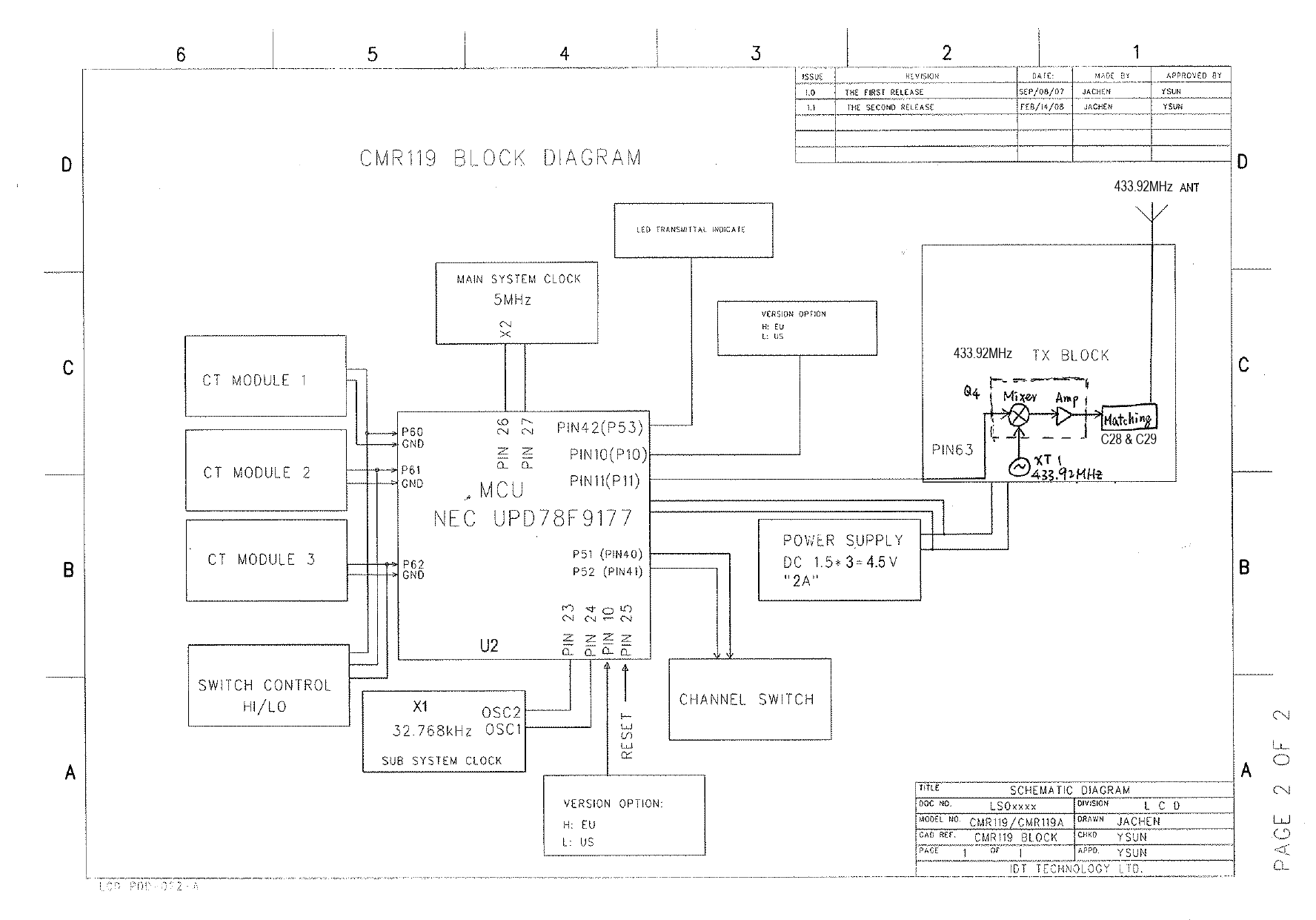

Wireless Electricity Monitor (433.92MHz Tx)

by 2 SAVE ENERGY PLC

Document preview loads when visible.

Document Details

FCC IDVVZ-CMR119A
Document ID923082
Document TypeBlock Diagram
DescriptionBlock Diagram
Document TitleNone
Applicant2 SAVE ENERGY PLC
Equipment ClassWireless Electricity Monitor (433.92MHz Tx)
Product CodeCMR119A
Application IDrA8ef0eRWZOYT7ffHK6N2A==
Application PurposeOriginal Equipment
Application Date2008-04-02
Frequency Range433.92 MHz
FRN0017209289
Test FirmIntertek Testing Services Hong Kong
Certified ByBen Ho Senior Supervisor
Short-Term ConfidentialityNo
Long-Term ConfidentialityNo
Grant DeferralNo
Modular EquipmentDoes not apply
Composite DeviceNo
Composite PartNo
Submitted2008-04-02
Available2008-04-02
Created2008-03-01
Modified2008-03-13
Pages1
File TypeAdobe Acrobat PDF
File Size247520
File SHA-256906e8075bc765b5eba2c3e0fef2ffb30aefd21266f5566dc8e6b48b9b1ed70bd
PDF Metadata AuthorNone
PDF Metadata CreatorNone
PDF Metadata ProducerNone
FCC.gov SourcesFCC.gov 923082
