CMR130A OWL Micro Wireless Electricity... - FCC ID VVZ-CMR130A

FCC ID VVZ-CMR130A

Block Diagram

OWL Micro Wireless Electricity Monitor (433.92MHz Tx)

by 2 SAVE ENERGY PLC

Document preview loads when visible.

Document Details

FCC IDVVZ-CMR130A
Document ID1214668
Document TypeBlock Diagram

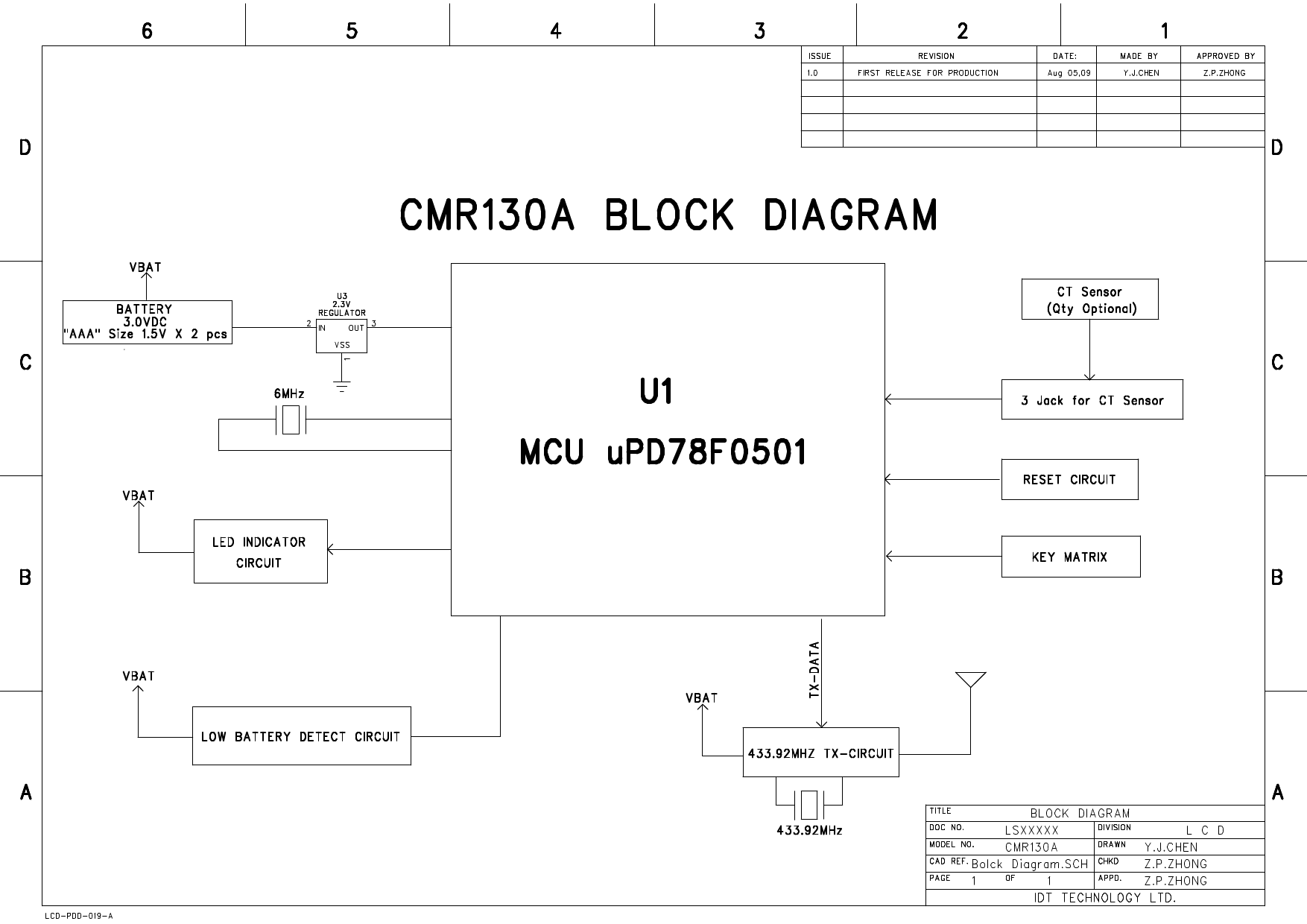

DescriptionBlock Diagram
Applicant2 SAVE ENERGY PLC
Equipment ClassOWL Micro Wireless Electricity Monitor (433.92MHz Tx)
Product CodeCMR130A
Application IDtdypl3NNhlophNtPHo73Cw==
Application PurposeOriginal Equipment
Application Date2009-12-16
Frequency Range433.92 MHz
FRN0017209289
Test FirmIntertek Testing Services Hong Kong Ltd.
Certified ByBen Ho Senior Supervisor
Short-Term ConfidentialityNo
Long-Term ConfidentialityNo
Grant DeferralNo
Modular EquipmentDoes not apply
Composite DeviceNo
Composite PartNo
Submitted2009-12-16
Available2009-12-16
Created2009-09-24
Modified2009-12-07
Pages2
File TypeAdobe Acrobat PDF
File Size47713
File SHA-2565f1bacbb862fcac4aa31cf590168f66c0c648c1fa643153d52cdc78e019c5dfc
PDF Metadata Authoryjchen2
PDF Metadata CreatorPScript5.dll Version 5.2.2
PDF Metadata ProducerBullzip PDF Printer / www.bullzip.com / Freeware Edition
FCC.gov SourcesFCC.gov 1214668
