FCC ID VW3FAST4320HP
Wireless xDSL Bonding Router
by SAGEMCOM BROADBAND SAS
Grantee Code: VW3 Product Code: FAST4320HP
Latest application date: 2015-09-15
Device Images
FCC ID Device Details
Operating Frequencies
| Frequency Range | Application Purpose | Final Action Date |
|---|---|---|
| 2412-2462 MHz | Original Equipment | 2015-09-15 |
Exhibits
| Document | Type | Available | File |
|---|---|---|---|
| Users Manual | Users Manual | 2015-09-15 | PDF 822.2 KB |

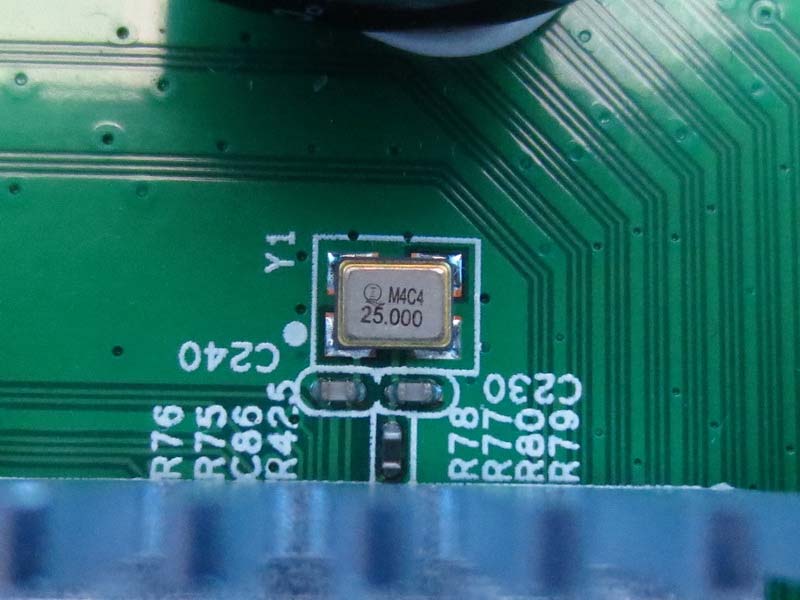

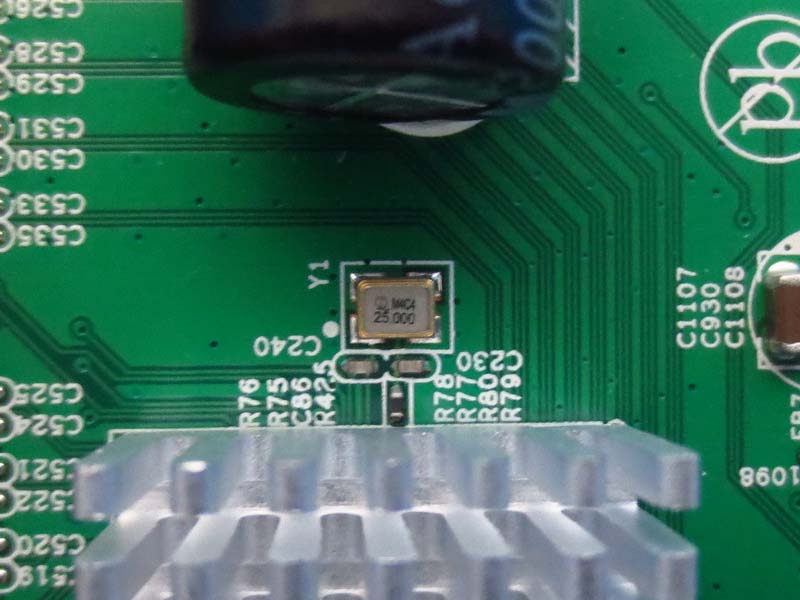

| Internal Photos | Internal Photos | 2015-09-15 | PDF 834.3 KB |
| External Photos | External Photos | 2015-09-15 | PDF 248.6 KB |
| Label and Label Location | ID Label/Location Info | 2015-09-15 | PDF 198.7 KB |
| Test Setup Photos | Test Setup Photos | 2015-09-15 | PDF 1.4 MB |
| Test Report | Test Report | 2015-09-15 | PDF 5.7 MB |
| Confidentiality Request Letter | Cover Letter(s) | 2015-09-15 | PDF 321.2 KB |
| Declaration of Authorization | Cover Letter(s) | 2015-09-15 | PDF 276.4 KB |
| RF Exposure | RF Exposure Info | 2015-09-15 | PDF 68 KB |
| Block Diagram Metadata only | Block Diagram | PDF 204.5 KB | |
| Schematics Metadata only | Schematics | PDF 902.6 KB | |
| Operational Description Metadata only | Operational Description | PDF 619.4 KB |
Application Information
| Application ID | RWgkx3lZQC2hYU0FxZLMhA== |
|---|---|
| Final Action Date | 2015-09-15 |
| Application Purpose | Original Equipment |
| Applicant FRN | 0017082165 |
| Model | FAST4320HP |
| Frequency Range | 2412-2462 MHz |
| Equipment Class | DTS - Digital Transmission System |
| Device Description | Wireless xDSL Bonding Router |
| Responsible Party | Jacques LE ROUX, R&D; General Methods Department Manager, jacques.leroux@sagemcom.com  , +33 1 57 61 25 72 |
| Test Firm | Daisy Dai, BTL Inc., daisy.dai@btl.org.cn  , 008676983183000 |
| TCB Email | TEI@TIMCOENGR.COM  |
| TCB Scope | A4: UNII devices & low power transmitters using spread spectrum techniques |
| Short-Term Confidentiality | No |
| Long-Term Confidentiality | Yes |
| Grant Deferral | No |
| Modular Equipment | Does not apply |
| Composite Device | No |
| Composite Part | No |
| Cognitive Radio | No |
| Authorization Waiver | No |
| Authorization Waiver Approved | No |
| Section 5301 Certification | Yes |
| Related OET Knowledge DataBase Inquiry | No |
| Grant Comments | Power listed is conducted. The antenna(s) used for this transmitter must be installed to provide a separation distance of at least 20 cm from all persons and must not be co-located or operating in conjunction with any other antenna or transmitter. Installers and end-users must be provided with antenna installation instructions and transmitter operating conditions for satisfying RF exposure compliance. This device has 20MHz and 40MHz bandwidth. |
Applications
| Application ID | Date | Purpose |
|---|---|---|
| RWgkx3lZQC2hYU0FxZLMhA== | 2015-09-15 | Original Equipment |
Grants
TCB Grant - Application RWgkx3lZQC2hYU0FxZLMhA==
| TCB | GRANT OF EQUIPMENT AUTHORIZATION |
TCB |
| Certification | ||
| Issued Under the Authority of the | ||
| Federal Communications Commission | ||
| By: |
|
Timco Engineering, Inc. 849 NW State Road 45 Newberry, FL 32669 |
Date of Grant: 09/15/2015 Application Dated: 09/15/2015 |
| SAGEMCOM BROADBAND SAS |
| 250 Route de l'Empereur |
| RUEIL MALMAISON CEDEX, 92848 France |
| Attention: Jacques LE ROUX , R&D General Methods Department Manager |
| NOT TRANSFERABLE |
| EQUIPMENT AUTHORIZATION is hereby issued to the named GRANTEE, and is VALID ONLY for the equipment identified hereon for use under the Commission's Rules and Regulations listed below. |
| FCC IDENTIFIER: | VW3FAST4320HP |
| Name of Grantee: | SAGEMCOM BROADBAND SAS |
| Equipment Class: | Digital Transmission System |
| Notes: | Wireless xDSL Bonding Router |
| Grant Notes | FCC Rule Parts | Frequency Range (MHZ) | Output Watts | Frequency Tolerance | Emission Designator |
| MO | 15C | 2412.0 - 2462.0 | 0.45 |
| Power listed is conducted. The antenna(s) used for this transmitter must be installed to provide a separation distance of at least 20 cm from all persons and must not be co-located or operating in conjunction with any other antenna or transmitter. Installers and end-users must be provided with antenna installation instructions and transmitter operating conditions for satisfying RF exposure compliance. This device has 20MHz and 40MHz bandwidth. |
| MO: | This Multiple Input Multiple Output (MIMO) device was evaluated for multiple transmitted signals as indicated in the filing. |
EAS Grant - Application RWgkx3lZQC2hYU0FxZLMhA==
| COPY |
FEDERAL COMMUNICATIONS COMMISSION WASHINGTON, D.C. 20554 GRANT OF EQUIPMENT AUTHORIZATION |
COPY |
| Certification |
|
SAGEMCOM BROADBAND SAS 250 Route de l'Empereur RUEIL MALMAISON CEDEX, 92848 France |
Date of Grant: 09/15/2015 Application Dated: 09/15/2015 |
| Attention: Jacques LE ROUX , R&D General Methods Department Manager |
| NOT TRANSFERABLE |
| EQUIPMENT AUTHORIZATION is hereby issued to the named GRANTEE, and is VALID ONLY for the equipment identified hereon for use under the Commission's Rules and Regulations listed below. |
| FCC IDENTIFIER: | VW3FAST4320HP |
| Name of Grantee: | SAGEMCOM BROADBAND SAS |
| Equipment Class: | Digital Transmission System |
| Notes: | Wireless xDSL Bonding Router |
| Modular Type: | Does not apply |
| Grant Notes | FCC Rule Parts | Frequency Range (MHZ) | Output Watts | Frequency Tolerance | Emission Designator |
| MO | 15C | 2412.0 - 2462.0 | 0.45 |
| Power listed is conducted. The antenna(s) used for this transmitter must be installed to provide a separation distance of at least 20 cm from all persons and must not be co-located or operating in conjunction with any other antenna or transmitter. Installers and end-users must be provided with antenna installation instructions and transmitter operating conditions for satisfying RF exposure compliance. This device has 20MHz and 40MHz bandwidth. |
| MO: | This Multiple Input Multiple Output (MIMO) device was evaluated for multiple transmitted signals as indicated in the filing. |
