A092201 ATZB-RF-212B-0-U Sub GHz Transceiver... - FCC ID VW4A092201
FCC ID VW4A092201
Label n Location

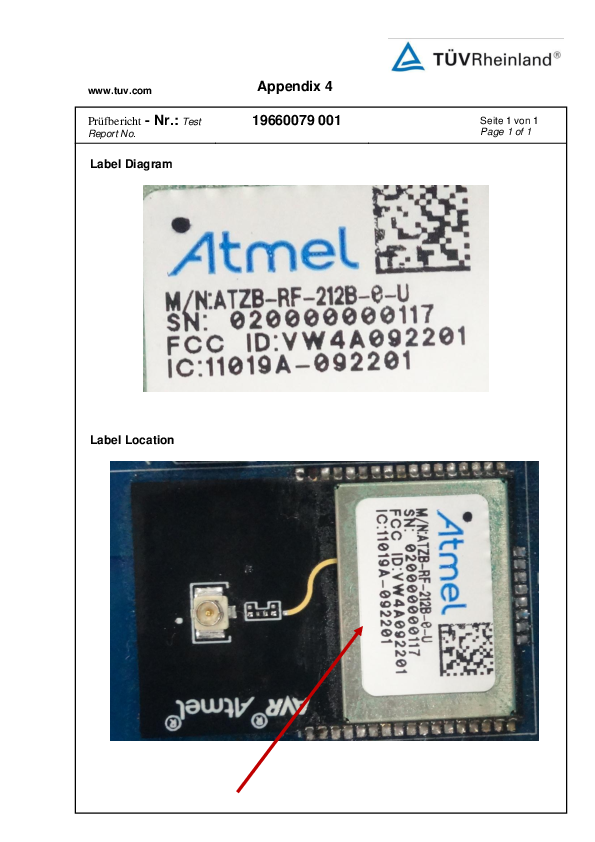

ATZB-RF-212B-0-U Sub GHz Transceiver ZigBit with UFL Connector
Document preview loads when visible.
Document Details
| FCC ID | VW4A092201 |
|---|---|
| Document ID | 2259121 |
| Document Type | ID Label/Location Info |
| Description | Label n Location |
| Applicant | Microchip Technology Inc. |
| Equipment Class | ATZB-RF-212B-0-U Sub GHz Transceiver ZigBit with UFL Connector |
| Product Code | A092201 |
| Application ID | DIMcVmXAfJiPSIjLiiYVBg== |
| Application Purpose | Original Equipment |
| Application Date | 2014-05-16 |
| Frequency Range | 906-924 MHz |
| FRN | 0018576819 |
| Test Firm | TUV Rheinland (India) Pvt. Ltd., |
| Certified By | M. Saravanakumar Manager, Tools HW Development |
| Short-Term Confidentiality | No |
| Long-Term Confidentiality | No |
| Grant Deferral | No |
| Modular Equipment | Single Modular Approval |
| Composite Device | No |
| Composite Part | No |
| Submitted | 2014-05-06 |
| Available | 2014-05-16 |
| Created | 2014-03-27 |
| Modified | 2014-03-27 |
| Pages | 1 |
| File Type | Adobe Acrobat PDF |
| File Size | 184080 |
| File SHA-256 | b10dd68cd2c2c2ff7cba0d14ef471f1e9e02f836f6dccfe7f7c4c7d30b8598ac |
| PDF Metadata Author | Kfo |
| PDF Metadata Producer | Microsoft® Word 2010 Microsoft® Word 2010 |
| FCC.gov Sources | FCC.gov 2259121 |
Related FCC Exhibits
| Document | Type | Available | File |
|---|---|---|---|
| Manual | Users Manual | 2014-05-16 | PDF 494.7 KB |
| Internal Photos | Internal Photos | 2014-05-16 | PDF 245.3 KB |
| External Photos | External Photos | 2014-05-16 | PDF 482.8 KB |
| Label n Location | ID Label/Location Info | 2014-05-16 | PDF 179.8 KB |
| Block Diagram | Block Diagram | 2014-05-16 | PDF 434.4 KB |
| PCB Layout | Schematics | 2014-05-16 | PDF 5.1 MB |
| Parts List of Schematic | Parts List/Tune Up Info | 2014-05-16 | PDF 63.5 KB |
| Schematic | Schematics | 2014-05-16 | PDF 663.5 KB |
| Ant Desc ext | Operational Description | 2014-05-16 | PDF 211.2 KB |
| Ant Desc int | Operational Description | 2014-05-16 | PDF 31 KB |
| OpDesc | Operational Description | 2014-05-16 | PDF 746.3 KB |
| Setup Photo | Test Setup Photos | 2014-05-16 | PDF 722.7 KB |
| Test Report | Test Report | 2014-05-16 | PDF 628.5 KB |
| Mod Req | Cover Letter(s) | 2014-05-16 | PDF 285.7 KB |
| Exposure Info | RF Exposure Info | 2014-05-16 | PDF 87.6 KB |
