FCC ID VW7PL62
POWERLINE WIFI EXTENDER
by ADTRAN, Inc.
Grantee Code: VW7 Product Code: PL62
Latest application date: 2017-04-20
Device Images
FCC ID Device Details
| FCC ID | VW7PL62 |
|---|---|
| Mirrors | fcc.id | gov | fccid.ai |
| Grantee Code | VW7 |
| Product Code | PL62 |
| Applicant Business | ADTRAN, Inc. 🇺🇸 |
| Related Domains |  adtran.com |
| Equipment Class | POWERLINE WIFI EXTENDER |
| Test Firm | Compliance Certification Services (Shenzhen) Inc. |
Operating Frequencies
| Frequency Range | Application Purpose | Final Action Date |
|---|---|---|
| 2412-2462 MHz | Original Equipment | 2017-04-20 |
| 5180-5240 MHz | Original Equipment | 2017-04-20 |
Exhibits
| Document | Type | Available | File |
|---|---|---|---|

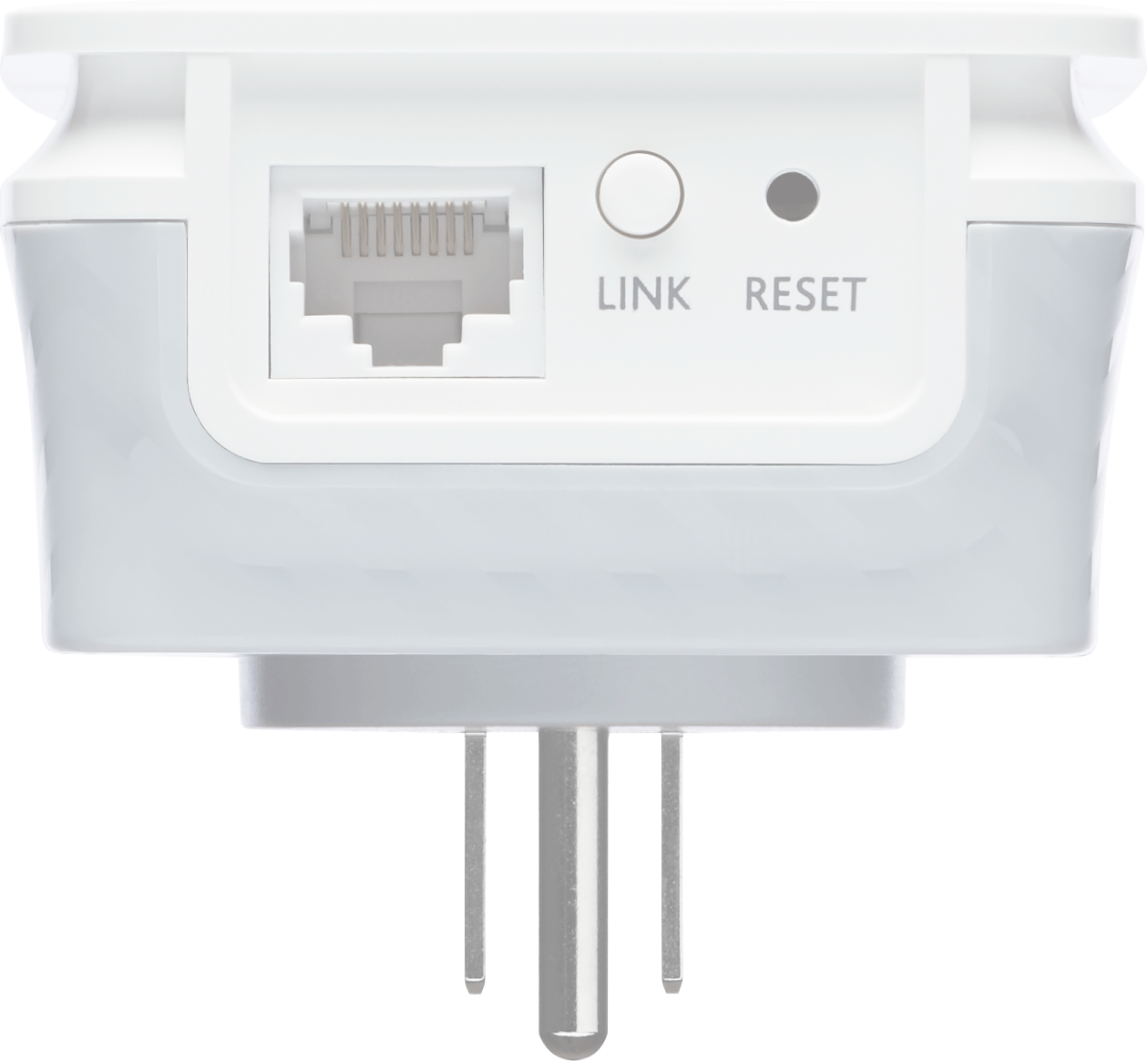

| User Manual | Users Manual | 2017-04-20 | PDF 3 MB |
| Internal Photos | Internal Photos | 2017-04-20 | PDF 1.7 MB |

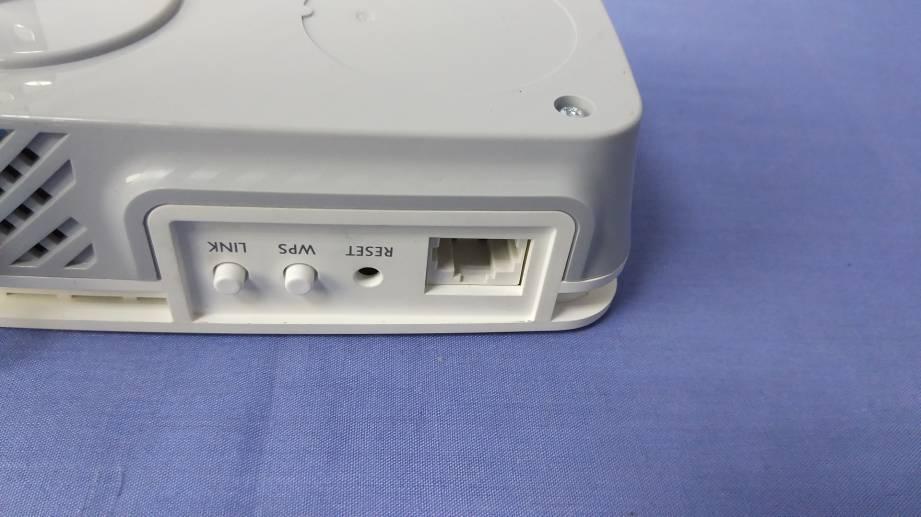

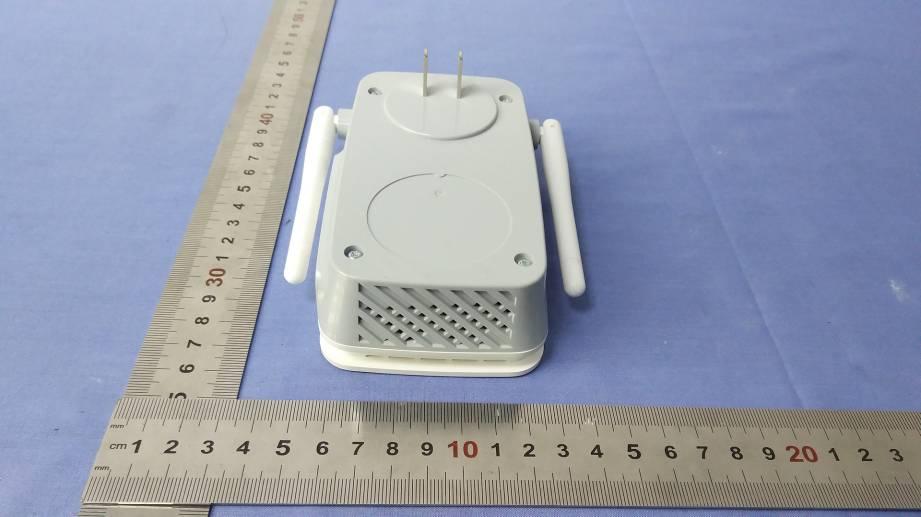

| External Photos | External Photos | 2017-04-20 | PDF 516.8 KB |
| Label ID and Location Info | ID Label/Location Info | 2017-04-20 | PDF 249.6 KB |

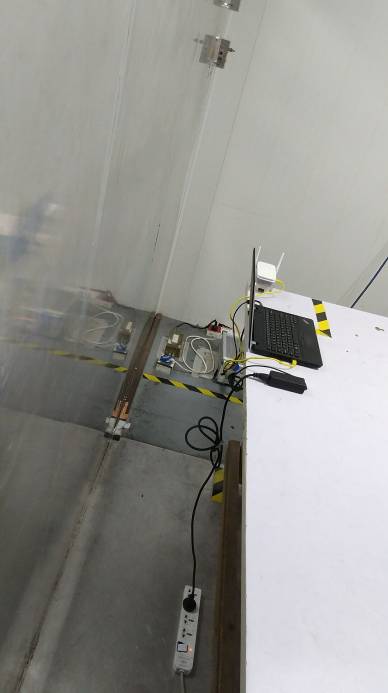

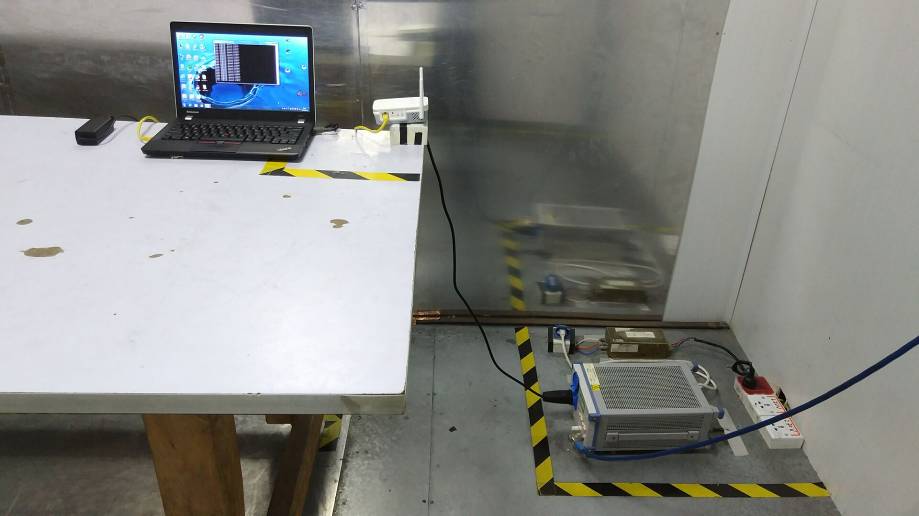

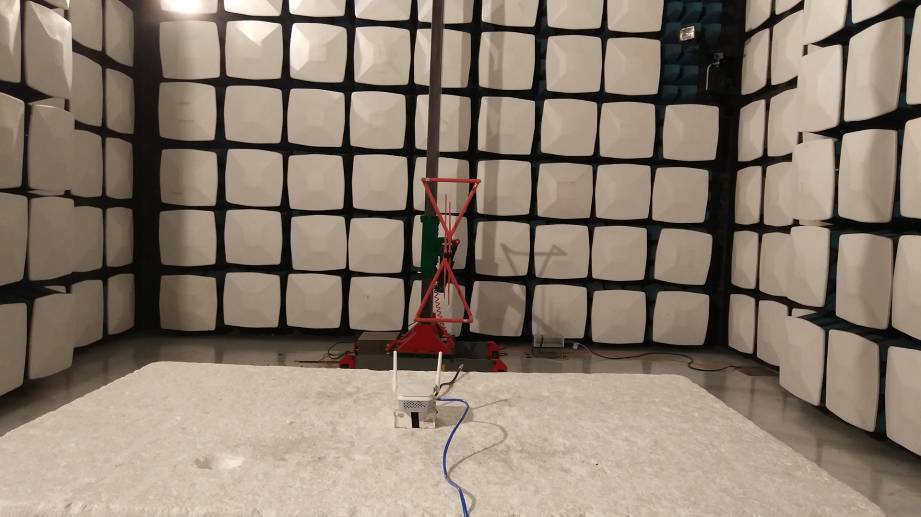

| Test Setup Photos | Test Setup Photos | 2017-04-20 | PDF 212.8 KB |
| Test Report DFS | Test Report | 2017-04-20 | PDF 4.7 MB |
| Test Report DTS Part 1 | Test Report | 2017-04-20 | PDF 4 MB |
| Test Report DTS Part 2 | Test Report | 2017-04-20 | PDF 4.3 MB |
| Test Report UNII Part 1 | Test Report | 2017-04-20 | PDF 5.1 MB |
| Test Report UNII Part 2 | Test Report | 2017-04-20 | PDF 3.5 MB |
| Test Report UNII Part 3 | Test Report | 2017-04-20 | PDF 1.9 MB |
| DoC Attestation Letter | Cover Letter(s) | 2017-04-20 | PDF 46 KB |
| Confidentiality Request Letter | Cover Letter(s) | 2017-04-20 | PDF 48.9 KB |
| WiFi Channel 12 and 13 declaration | Cover Letter(s) | 2017-04-20 | PDF 51.9 KB |
| MPE Report | RF Exposure Info | 2017-04-20 | PDF 124 KB |
| Block Diagram Metadata only | Block Diagram | PDF 49.1 KB | |
| Schematics Metadata only | Schematics | PDF 509.9 KB | |
| Operational Description Metadata only | Operational Description | PDF 232.8 KB | |
| Operational Descriptions Metadata only | Operational Description | PDF 232.8 KB | |
| Software Security Letter Metadata only | Operational Description | PDF 104.8 KB | |
| UNII Declaration Letter Metadata only | Operational Description | PDF 19.2 KB |
Application Information
| Application ID | i5fCtS35DfyMDWew4eNSAQ== |
|---|---|
| Final Action Date | 2017-04-20 |
| Application Purpose | Original Equipment |
| Applicant FRN | 0024150468 |
| Model | PL62 |
| Frequency Range | 2412-2462 MHz |
| Equipment Class | DTS - Digital Transmission System |
| Device Description | POWERLINE WIFI EXTENDER |
| Responsible Party | Dan Cassidy, Compliance Engineering Manager, dan.cassidy@adtran.com , 256-963-8000 |
| Test Firm | Harry Li, Compliance Certification Services (Shenzhen) Inc., service@ccssz.com  , 0755280550008601 |
| TCB Email | Karsten.Koller@cetecom.com  |
| TCB Scope | A4: UNII devices & low power transmitters using spread spectrum techniques |
| Short-Term Confidentiality | No |
| Long-Term Confidentiality | Yes |
| Grant Deferral | No |
| Modular Equipment | Does not apply |
| Composite Device | Yes |
| Composite Part | No |
| Cognitive Radio | No |
| Authorization Waiver | No |
| Authorization Waiver Approved | No |
| Section 5301 Certification | Yes |
| Related OET Knowledge DataBase Inquiry | Yes |
| Grant Comments | Output power listed is peak conducted. This device supports 802.11b, 802.11g and 802.11n with a 20 MHz and 40 MHz bandwidth mode. RF exposure compliance is addressed for 1.1310 and 2.1091 MPE limits. End Users must be provided with transmitter operation conditions for satisfying RF exposure compliance. |
Applications
| Application ID | Date | Purpose |
|---|---|---|
| i5fCtS35DfyMDWew4eNSAQ== | 2017-04-20 | Original Equipment |
| BOtt96cuw2b6dhnZancbfQ== | 2017-04-20 | Original Equipment |
Equipment Authorization
Grants
TCB Grant - Application i5fCtS35DfyMDWew4eNSAQ==
| TCB | GRANT OF EQUIPMENT AUTHORIZATION |
TCB |
| Certification | ||
| Issued Under the Authority of the | ||
| Federal Communications Commission | ||
| By: |
|
CETECOM GmbH Im Teelbruch 116 45219 Essen, Germany |
Date of Grant: 04/20/2017 Application Dated: 02/26/2017 |
| ADTRAN, Inc. |
| 901 Explorer Blvd |
| Huntsville, AL 35806 |
| Attention: Dan Cassidy , Compliance Engineering Manager |
| NOT TRANSFERABLE |
| EQUIPMENT AUTHORIZATION is hereby issued to the named GRANTEE, and is VALID ONLY for the equipment identified hereon for use under the Commission's Rules and Regulations listed below. |
| FCC IDENTIFIER: | VW7PL62 |
| Name of Grantee: | ADTRAN, Inc. |
| Equipment Class: | Digital Transmission System |
| Notes: | POWERLINE WIFI EXTENDER |
| Grant Notes | FCC Rule Parts | Frequency Range (MHZ) | Output Watts | Frequency Tolerance | Emission Designator |
| CC | 15C | 2412.0 - 2462.0 | 0.36644 |
| Output power listed is peak conducted. This device supports 802.11b, 802.11g and 802.11n with a 20 MHz and 40 MHz bandwidth mode. RF exposure compliance is addressed for 1.1310 and 2.1091 MPE limits. End Users must be provided with transmitter operation conditions for satisfying RF exposure compliance. |
| CC: | This device is certified pursuant to two different Part 15 rules sections. |
EAS Grant - Application i5fCtS35DfyMDWew4eNSAQ==
| COPY |
FEDERAL COMMUNICATIONS COMMISSION WASHINGTON, D.C. 20554 GRANT OF EQUIPMENT AUTHORIZATION |
COPY |
| Certification |
|
ADTRAN, Inc. 901 Explorer Blvd Huntsville, AL 35806 United States |
Date of Grant: 04/20/2017 Application Dated: 02/26/2017 |
| Attention: Dan Cassidy , Compliance Engineering Manager |
| NOT TRANSFERABLE |
| EQUIPMENT AUTHORIZATION is hereby issued to the named GRANTEE, and is VALID ONLY for the equipment identified hereon for use under the Commission's Rules and Regulations listed below. |
| FCC IDENTIFIER: | VW7PL62 |
| Name of Grantee: | ADTRAN, Inc. |
| Equipment Class: | Digital Transmission System |
| Notes: | POWERLINE WIFI EXTENDER |
| Modular Type: | Does not apply |
| Grant Notes | FCC Rule Parts | Frequency Range (MHZ) | Output Watts | Frequency Tolerance | Emission Designator |
| CC | 15C | 2412.0 - 2462.0 | 0.36644 |
| Output power listed is peak conducted. This device supports 802.11b, 802.11g and 802.11n with a 20 MHz and 40 MHz bandwidth mode. RF exposure compliance is addressed for 1.1310 and 2.1091 MPE limits. End Users must be provided with transmitter operation conditions for satisfying RF exposure compliance. |
| CC: | This device is certified pursuant to two different Part 15 rules sections. |
| Mail To: | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| TCB | GRANT OF EQUIPMENT AUTHORIZATION |
TCB |
| Certification | ||
| Issued Under the Authority of the | ||
| Federal Communications Commission | ||
| By: |
|
CETECOM GmbH Im Teelbruch 116 45219 Essen, Germany |
Date of Grant: 04/20/2017 Application Dated: 02/26/2017 |
| ADTRAN, Inc. |
| 901 Explorer Blvd |
| Huntsville, AL 35806 |
| Attention: Dan Cassidy , Compliance Engineering Manager |
| NOT TRANSFERABLE |
| EQUIPMENT AUTHORIZATION is hereby issued to the named GRANTEE, and is VALID ONLY for the equipment identified hereon for use under the Commission's Rules and Regulations listed below. |
| FCC IDENTIFIER: | VW7PL62 |
| Name of Grantee: | ADTRAN, Inc. |
| Equipment Class: | Unlicensed National Information Infrastructure TX |
| Notes: | POWERLINE WIFI EXTENDER |
| Grant Notes | FCC Rule Parts | Frequency Range (MHZ) | Output Watts | Frequency Tolerance | Emission Designator |
| 38 CC | 15E | 5180.0 - 5240.0 | 0.02897 | ||
| 38 CC | 15E | 5260.0 - 5320.0 | 0.03972 | ||
| 38 CC | 15E | 5500.0 - 5700.0 | 0.04276 | ||
| 38 CC | 15E | 5745.0 - 5825.0 | 0.04529 |
| Output power listed is average conducted. This device supports 802.11a, 802.11n and 802.11ac with a 20 MHz, 40 MHz and 80 MHz bandwidth mode. RF exposure compliance is addressed for 1.1310 and 2.1091 MPE limits. End Users must be provided with transmitter operation conditions for satisfying RF exposure compliance. |
| 38: | This device has shown compliance, in all grant-listed U-NII sub-bands, with the new rules for U-NII devices adopted under Docket No. 13-49 and may be marketed, manufactured or imported after the June 1, 2016 transition deadline. |
| CC: | This device is certified pursuant to two different Part 15 rules sections. |
EAS Grant - Application BOtt96cuw2b6dhnZancbfQ==
| COPY |
FEDERAL COMMUNICATIONS COMMISSION WASHINGTON, D.C. 20554 GRANT OF EQUIPMENT AUTHORIZATION |
COPY |
| Certification |
|
ADTRAN, Inc. 901 Explorer Blvd Huntsville, AL 35806 United States |
Date of Grant: 04/20/2017 Application Dated: 02/26/2017 |
| Attention: Dan Cassidy , Compliance Engineering Manager |
| NOT TRANSFERABLE |
| EQUIPMENT AUTHORIZATION is hereby issued to the named GRANTEE, and is VALID ONLY for the equipment identified hereon for use under the Commission's Rules and Regulations listed below. |
| FCC IDENTIFIER: | VW7PL62 |
| Name of Grantee: | ADTRAN, Inc. |
| Equipment Class: | Unlicensed National Information Infrastructure TX |
| Notes: | POWERLINE WIFI EXTENDER |
| Modular Type: | Does not apply |
| Grant Notes | FCC Rule Parts | Frequency Range (MHZ) | Output Watts | Frequency Tolerance | Emission Designator |
| 38 CC | 15E | 5180.0 - 5240.0 | 0.02897 | ||
| 38 CC | 15E | 5260.0 - 5320.0 | 0.03972 | ||
| 38 CC | 15E | 5500.0 - 5700.0 | 0.04276 | ||
| 38 CC | 15E | 5745.0 - 5825.0 | 0.04529 |
| Output power listed is average conducted. This device supports 802.11a, 802.11n and 802.11ac with a 20 MHz, 40 MHz and 80 MHz bandwidth mode. RF exposure compliance is addressed for 1.1310 and 2.1091 MPE limits. End Users must be provided with transmitter operation conditions for satisfying RF exposure compliance. |
| 38: | This device has shown compliance, in all grant-listed U-NII sub-bands, with the new rules for U-NII devices adopted under Docket No. 13-49 and may be marketed, manufactured or imported after the June 1, 2016 transition deadline. |
| CC: | This device is certified pursuant to two different Part 15 rules sections. |
| Mail To: |
