Marine Direction Finding X-Band Radar
by Guidance Marine Ltd.
Grantee Code: VYM Product Code: VALIDATOR
Latest application date: 2017-03-22
Device Images
FCC ID Device Details
| FCC ID | VYMVALIDATOR |
|---|---|
| Mirrors | fcc.id | gov | fccid.ai |
| Grantee Code | VYM |
| Product Code | VALIDATOR |
| Applicant Business | Guidance Marine Ltd. 🇬🇧 |
| Related Domains |  guidance.eu.com |
| Equipment Class | Marine Direction Finding X-Band Radar |
| Test Firm | Timco Engineering, Inc. |
Operating Frequencies
| Frequency Range | Application Purpose | Final Action Date |
|---|---|---|
| 9200-9300 MHz | Original Equipment | 2017-03-22 |
Exhibits
| Document | Type | Available | File |
|---|---|---|---|

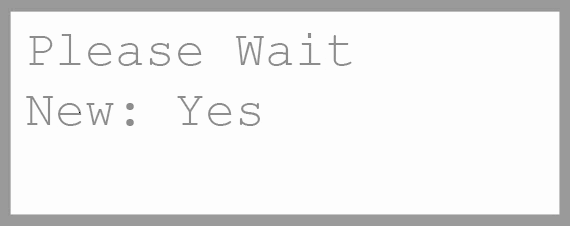

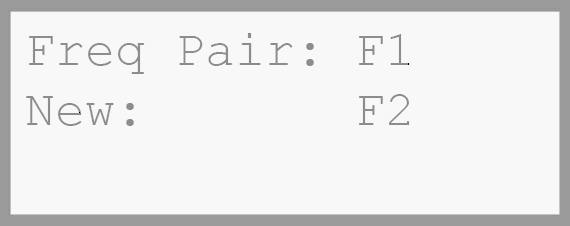

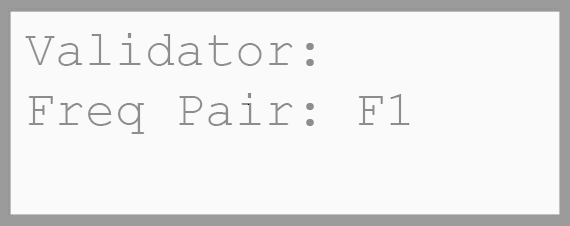

| Operators Guide | Users Manual | 2017-03-22 | PDF 1.9 MB |

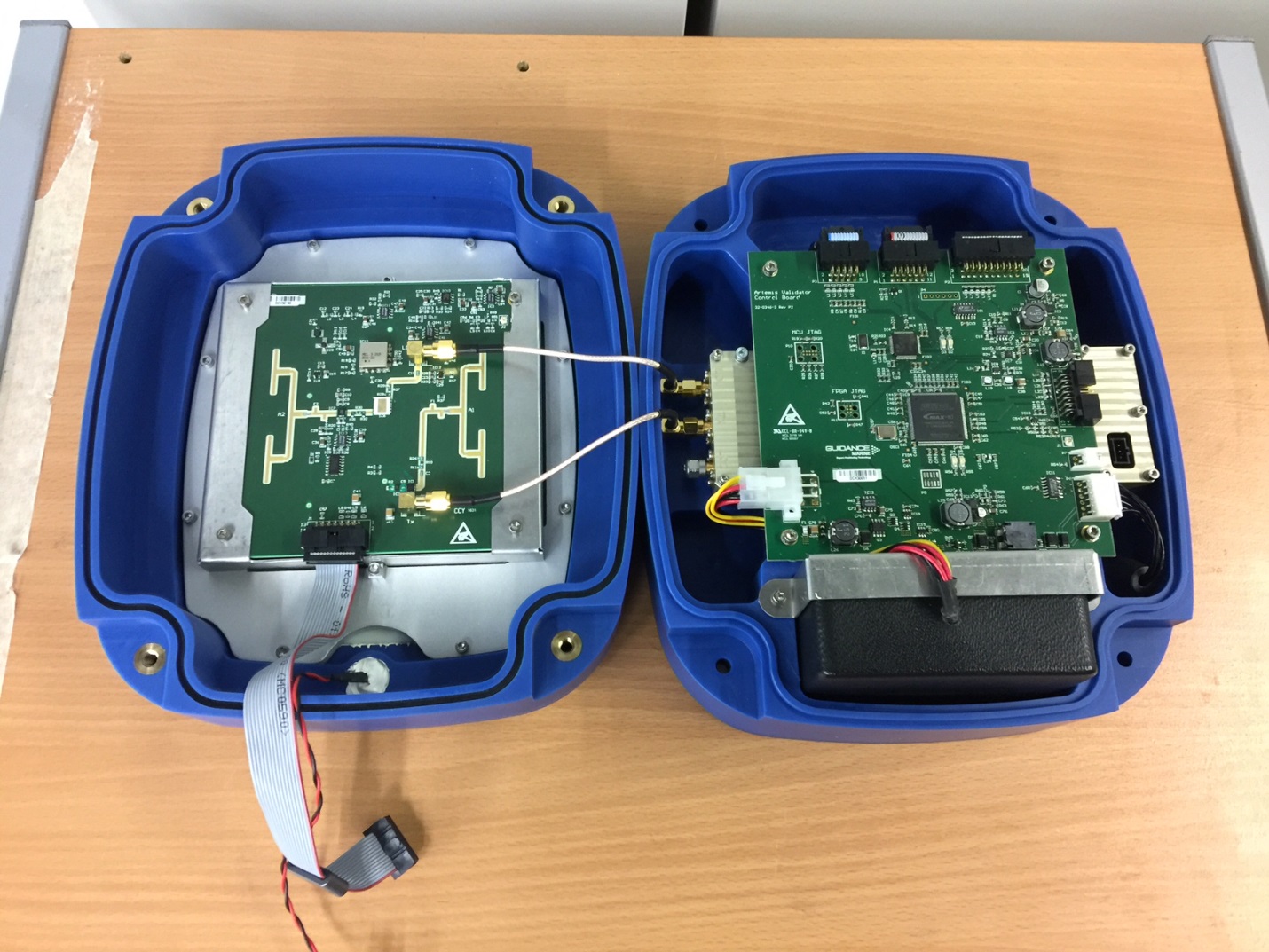

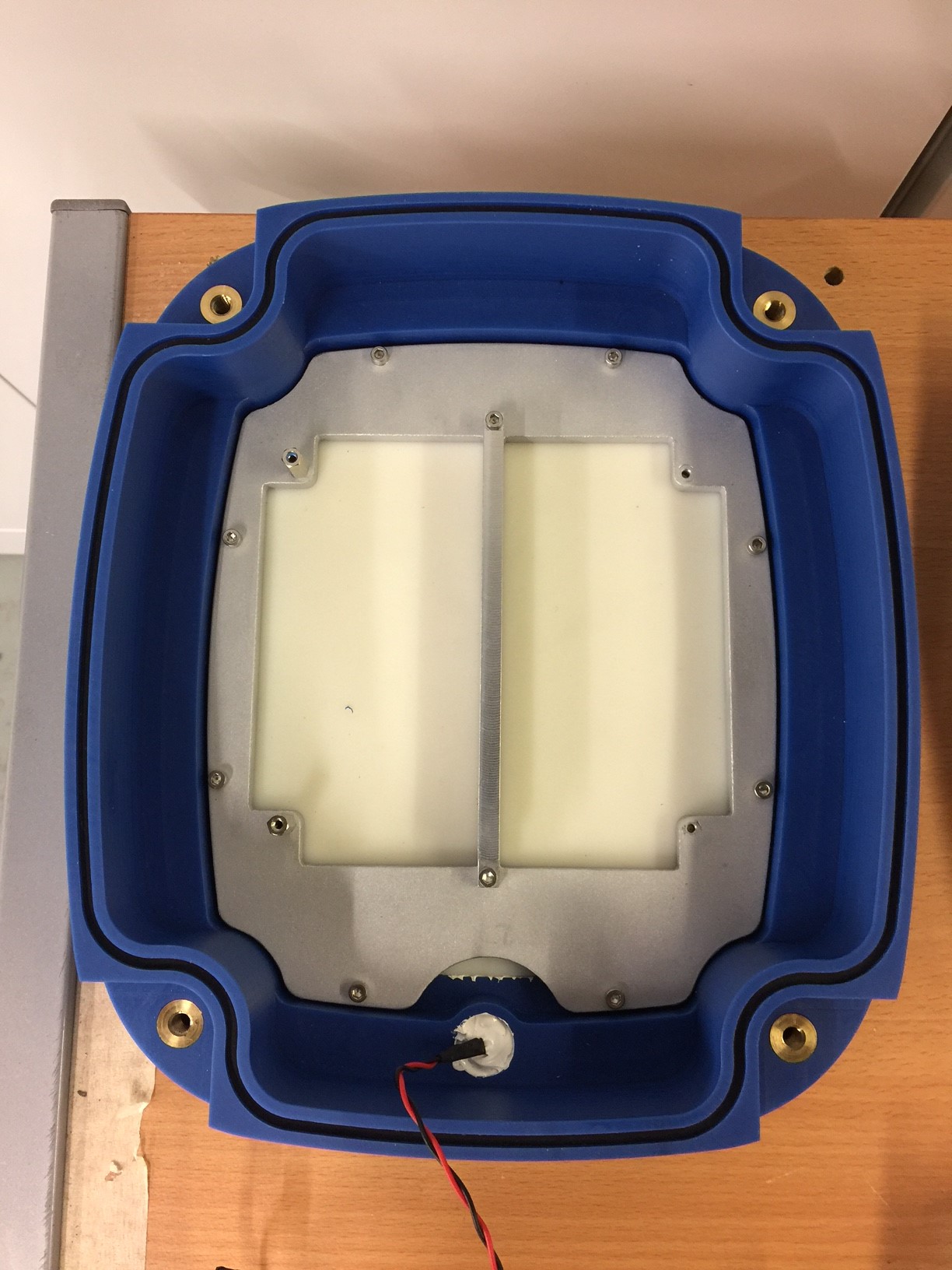

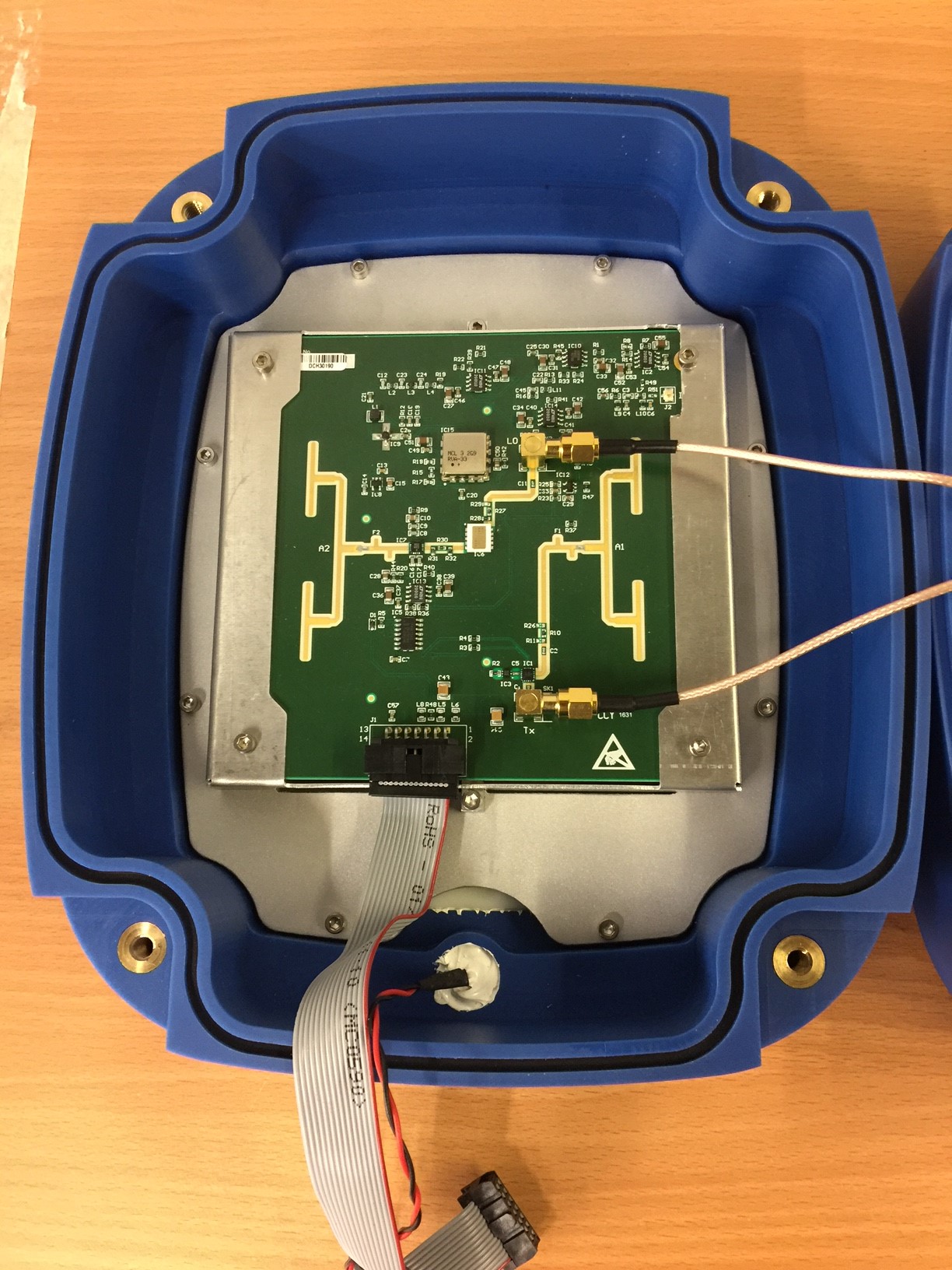

| Internal Photo | Internal Photos | 2017-03-22 | PDF 2.8 MB |
| External Photo | External Photos | 2017-03-22 | PDF 1.2 MB |
| Label Location | ID Label/Location Info | 2017-03-22 | PDF 153.9 KB |
| Label Location Justification Letter | Cover Letter(s) | 2017-03-22 | PDF 310.2 KB |
| Label Sample | ID Label/Location Info | 2017-03-22 | PDF 455.4 KB |
| Test Setup Photo | Test Setup Photos | 2017-03-22 | PDF 1.9 MB |
| Test Report | Test Report | 2017-03-22 | PDF 1 MB |
| Authorization Letter | Cover Letter(s) | 2017-03-22 | PDF 1.5 MB |
| Confidentiality Request Letter | Cover Letter(s) | 2017-03-22 | PDF 1.4 MB |
| MPE Report | RF Exposure Info | 2017-03-22 | PDF 185.6 KB |
| Block Diagram Metadata only | Block Diagram | PDF 428.2 KB | |
| Schematics Metadata only | Schematics | PDF 214.7 KB | |
| Schematics Control Board Metadata only | Schematics | PDF 512 KB | |
| Schematics Target Simulator Metadata only | Schematics | PDF 259.3 KB | |
| Operational Description Metadata only | Operational Description | PDF 83.6 KB | |
| BOM Control Board Metadata only | Parts List/Tune Up Info | PDF 301.4 KB | |
| BOM Target Simulator Metadata only | Parts List/Tune Up Info | PDF 285.2 KB | |
| Parts List Metadata only | Parts List/Tune Up Info | PDF 349.7 KB | |
| Tune Up Procedure Metadata only | Parts List/Tune Up Info | PDF 3.4 MB |
Application Information
| Application ID | YceVqEiuRs3/QIqQ4MP8eA== |
|---|---|
| Final Action Date | 2017-03-22 |
| Application Purpose | Original Equipment |
| Applicant FRN | 0017333220 |
| Model | VALIDATOR |
| Frequency Range | 9200-9300 MHz |
| Equipment Class | MRD - Marine Radar |
| Device Description | Marine Direction Finding X-Band Radar |
| Responsible Party | Tom Coggins, Microwave Technologies Group Manager, tom.coggins@guidance.eu.com , +44 116 229 2600 |
| Test Firm | Bruno Clavier, Timco Engineering, Inc., bruno@timcoengr.com  , 352-472-5500 |
| TCB Email | tei@timcoengr.com |
| TCB Scope | B3: Maritime & Aviation Radio Services equipment in 47 CFR parts 80 & 87 |
| Short-Term Confidentiality | No |
| Long-Term Confidentiality | Yes |
| Grant Deferral | No |
| Modular Equipment | Does not apply |
| Composite Device | No |
| Composite Part | No |
| Cognitive Radio | No |
| Authorization Waiver | No |
| Authorization Waiver Approved | No |
| Section 5301 Certification | Yes |
| Related OET Knowledge DataBase Inquiry | No |
| Grant Comments | The antenna(s) used for this transmitter must be installed to provide a separation distance of at least 20 cm from all persons and must not be co-located or operated in conjunction with any other antenna or transmitter. Users and installers must be provided with antenna installation instructions and transmitter operating conditions for satisfying RF exposure compliance. |
