FCC ID VZFSWN80MA6
802.11b/g/n (1T1R) STA Wi-Fi Module
by Suga Electronics Limited
Grantee Code: VZF Product Code: SWN80MA6
Latest application date: 2017-04-27
Device Images
FCC ID Device Details
| FCC ID | VZFSWN80MA6 |
|---|---|
| Mirrors | fcc.id | gov | fccid.ai |
| Grantee Code | VZF |
| Product Code | SWN80MA6 |
| Applicant Business | Suga Electronics Limited |
| Related Domains |  suga-electronics.com |
| Equipment Class | 802.11b/g/n (1T1R) STA Wi-Fi Module |
| Test Firm | Bay Area Compliance Laboratories Corp.(kunshan) |
Operating Frequencies
| Frequency Range | Application Purpose | Final Action Date |
|---|---|---|
| 2412-2462 MHz | Original Equipment | 2017-04-27 |
Exhibits
| Document | Type | Available | File |
|---|---|---|---|
| Users Manual | Users Manual | 2017-04-27 | PDF 144.7 KB |
| Int Photos | Internal Photos | 2017-04-27 | PDF 178.9 KB |

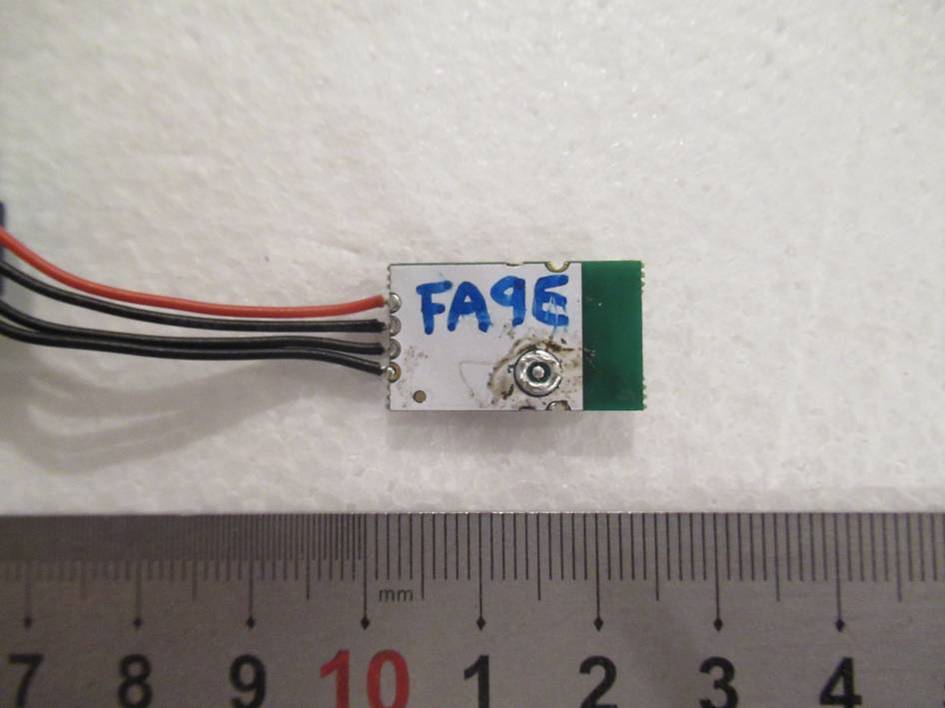

| Ext Photos | External Photos | 2017-04-27 | PDF 121.5 KB |
| FCC ID Label | ID Label/Location Info | 2017-04-27 | PDF 117.5 KB |
| FCC ID Label Rev | ID Label/Location Info | 2017-04-27 | PDF 102.7 KB |

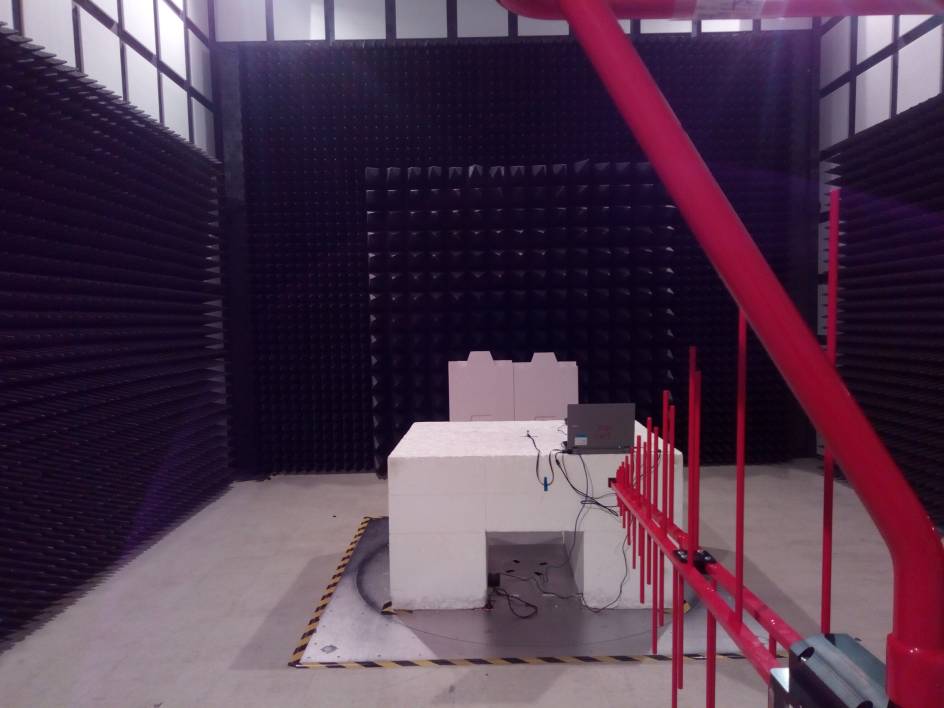

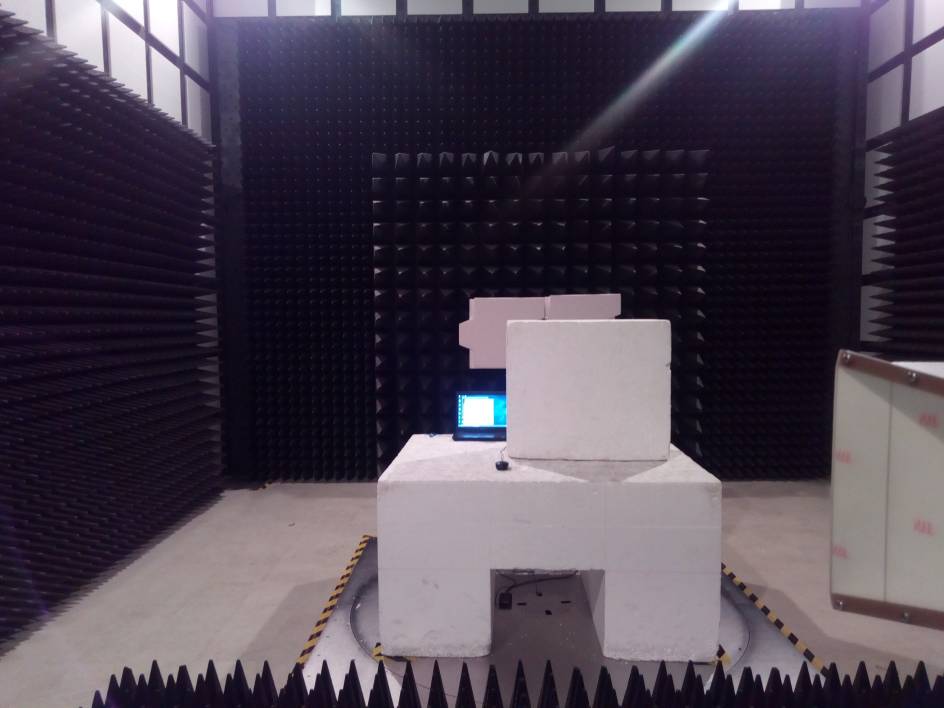

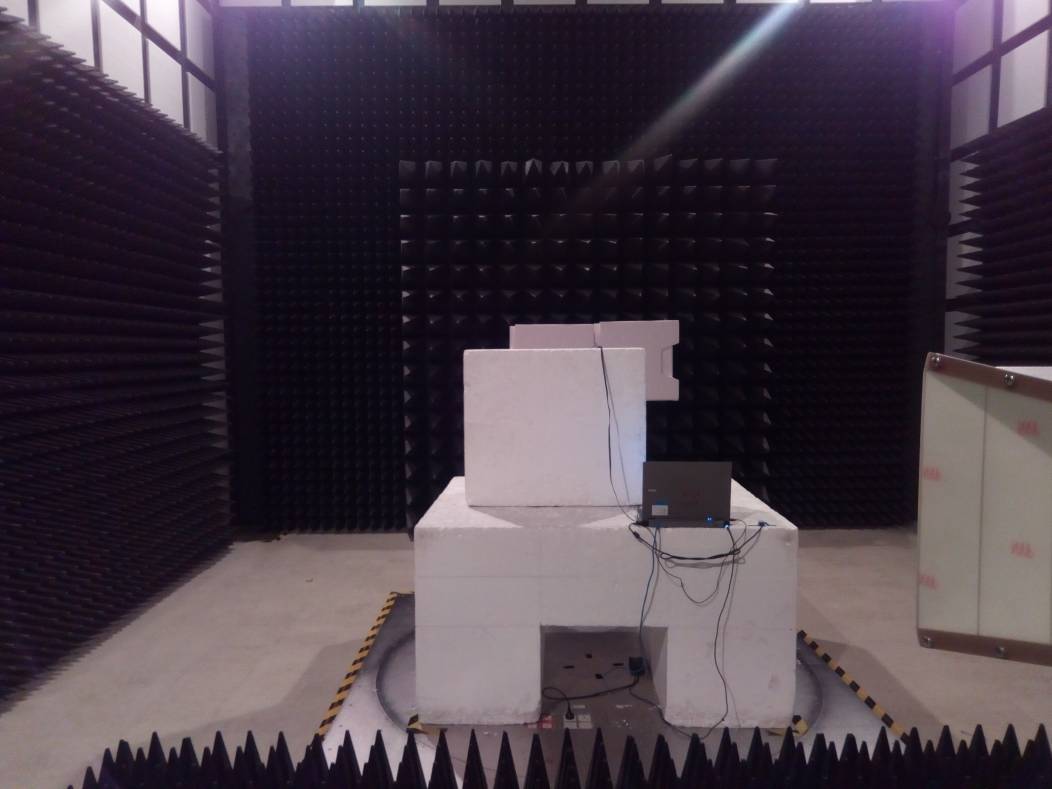

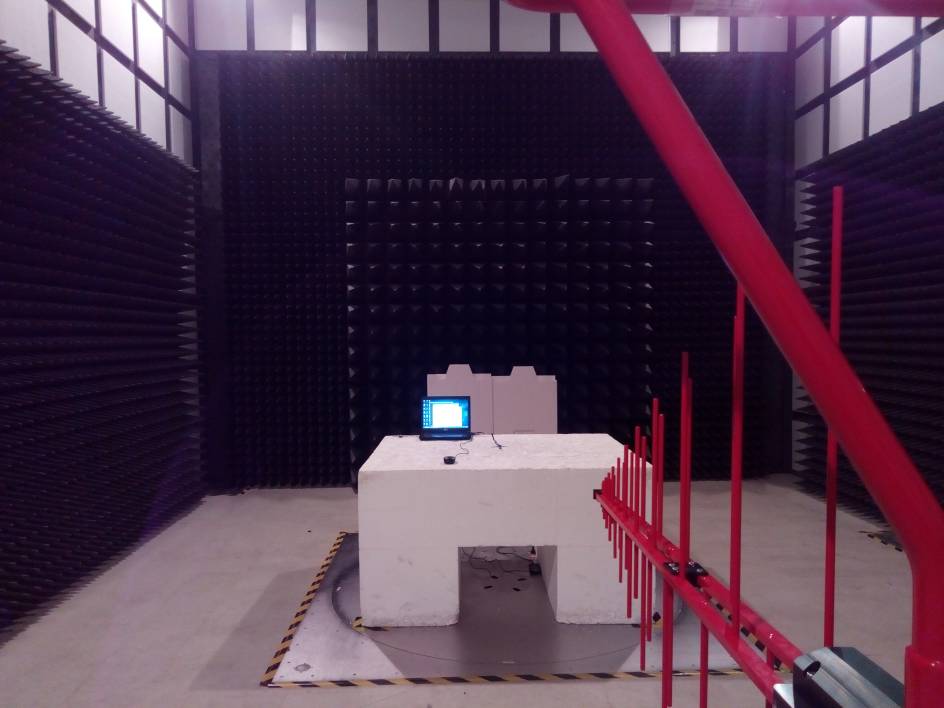

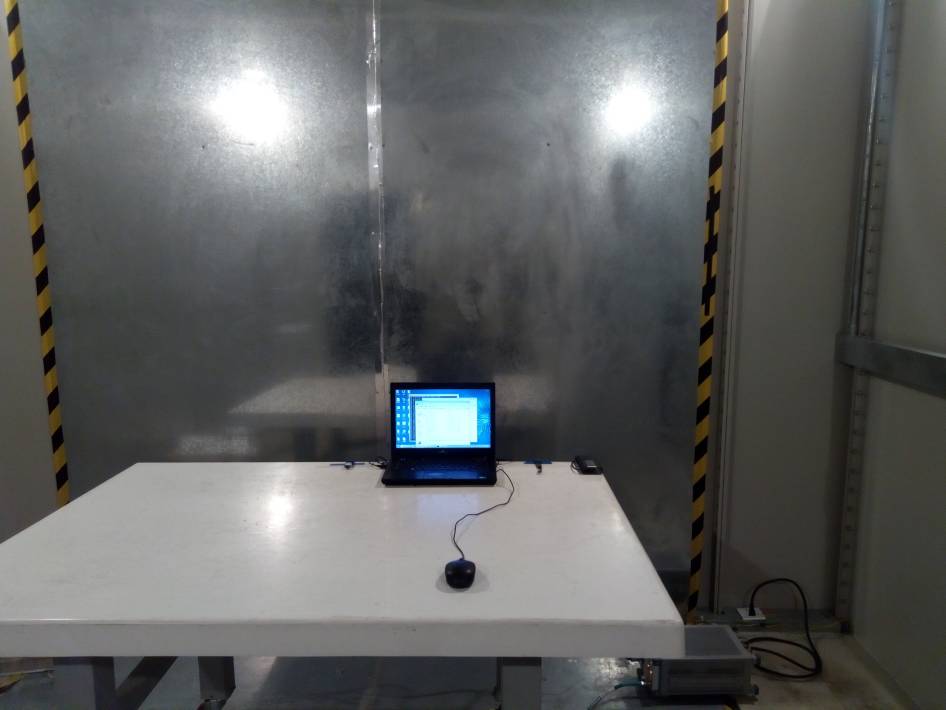

| Setup Photos | Test Setup Photos | 2017-04-27 | PDF 315.9 KB |
| Test Report | Test Report | 2017-04-27 | PDF 918.8 KB |
| Confidentiality Letter | Cover Letter(s) | 2017-04-27 | PDF 76.4 KB |
| Module Approval Letter | Cover Letter(s) | 2017-04-27 | PDF 96.3 KB |
| POA | Cover Letter(s) | 2017-04-27 | PDF 72.4 KB |
| Block Diagram Metadata only | Block Diagram | PDF 84.6 KB | |
| Schematics Metadata only | Schematics | PDF 54.1 KB | |
| Operation Description Metadata only | Operational Description | PDF 69.6 KB |
Application Information
| Application ID | GwUk1ElZgBfmbRNrnYQEZA== |
|---|---|
| Final Action Date | 2017-04-27 |
| Application Purpose | Original Equipment |
| Applicant FRN | 0017358326 |
| Model | SWN80MA6 |
| Frequency Range | 2412-2462 MHz |
| Equipment Class | DTS - Digital Transmission System |
| Device Description | 802.11b/g/n (1T1R) STA Wi-Fi Module |
| Responsible Party | Tony Tsang, Asst. Electronic Engineering Manager, tony.tsang@suga-electronics.com , 852-29530383 |
| Test Firm | john chan, Bay Area Compliance Laboratories Corp.(kunshan), john.chan@baclcorp.com  , 86051286175000 |
| TCB Email | bacl.regulatory@baclcorp.com |
| TCB Scope | A4: UNII devices & low power transmitters using spread spectrum techniques |
| Short-Term Confidentiality | No |
| Long-Term Confidentiality | Yes |
| Grant Deferral | No |
| Modular Equipment | Single Modular Approval |
| Composite Device | No |
| Composite Part | No |
| Cognitive Radio | No |
| Authorization Waiver | No |
| Authorization Waiver Approved | No |
| Section 5301 Certification | Yes |
| Related OET Knowledge DataBase Inquiry | No |
| Grant Comments | Output power listed is conducted. This grant is valid only when the module is sold to OEM or OEM integrators. Modular approval for use as a module in mobile-only RF exposure condition. The antenna(s) used for this device must be installed to provide a separation distance of at least 20 cm from all persons and must not be co-located with any other transmitters, except in accordance with FCC multi-transmitter product procedures. Compliance of this device in all final host configurations is the responsibility of the Grantee. End-users must be provided with specific information required to satisfy RF exposure compliance for the final host device. Installation of this device into portable RF Exposure category host devices requires the submission of a Class II permissive change or new application. This device supports 20 MHz and 40 MHz bandwidth modes. |
