FCC ID VZI01228
Licensed Non-Broadcast Aeronautical Transmitter
by Trig Avionics Limited
Grantee Code: VZI Product Code: 01228
Latest application date: 2016-06-07
Device Images
FCC ID Device Details
| FCC ID | VZI01228 |
|---|---|
| Mirrors | fcc.id | gov | fccid.ai |
| Grantee Code | VZI |
| Product Code | 01228 |
| Applicant Business | Trig Avionics Limited 🇬🇧 |
| Related Domains |  trig-avionics.com |
| Equipment Class | Licensed Non-Broadcast Aeronautical Transmitter |
| Test Firm | Rogers Labs, Inc. |
Operating Frequencies
| Frequency Range | Application Purpose | Final Action Date |
|---|---|---|
| 118-136.975 MHz | Original Equipment | 2016-06-07 |
Exhibits
| Document | Type | Available | File |
|---|---|---|---|
| Users Manual | Users Manual | 2016-06-07 | PDF 311.4 KB |
| Internal Photos | Internal Photos | 2016-06-07 | PDF 634.7 KB |
| External Photos | External Photos | 2016-06-07 | PDF 582.9 KB |
| Label Sample | ID Label/Location Info | 2016-06-07 | PDF 147.8 KB |

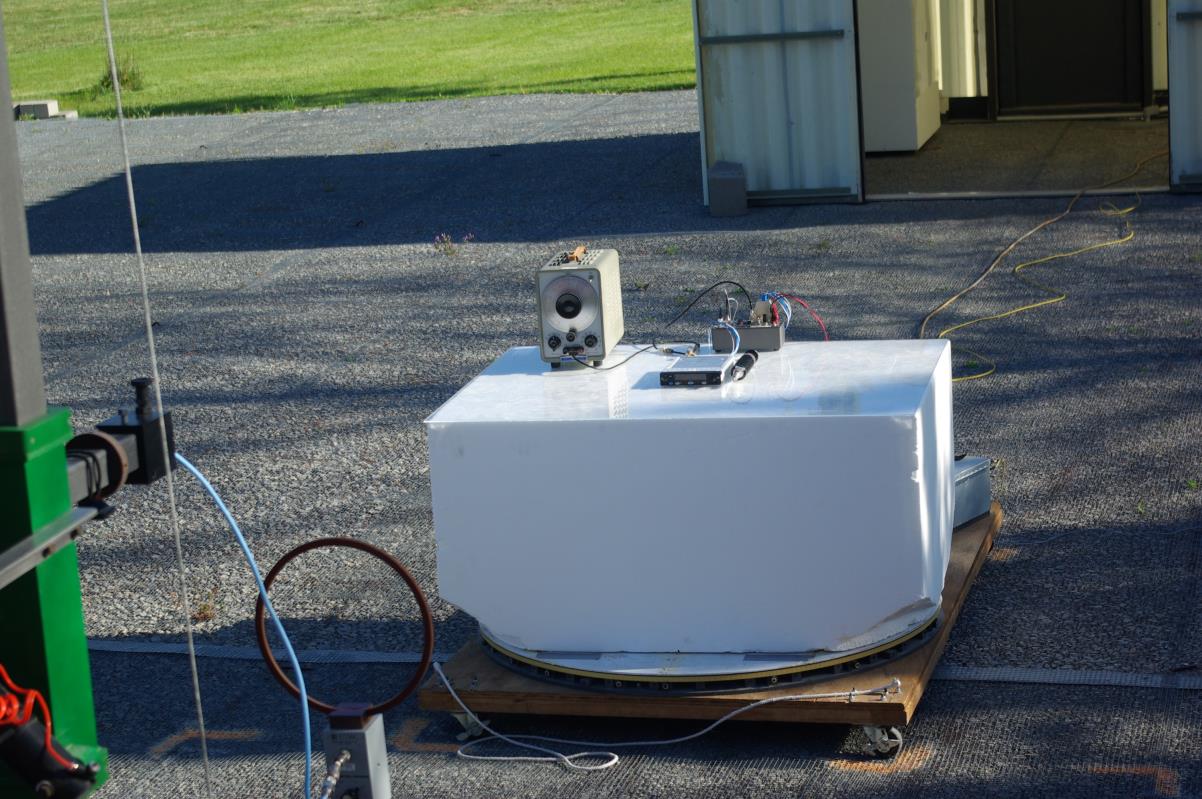

| Test Setup Photos | Test Setup Photos | 2016-06-07 | PDF 884.9 KB |
| Test Report | Test Report | 2016-06-07 | PDF 824.8 KB |
| Agent Authorization | Cover Letter(s) | 2016-06-07 | PDF 17.2 KB |
| Confidentiality Request Letter | Cover Letter(s) | 2016-06-07 | PDF 277.5 KB |
| FAA Concurrance Letter | Cover Letter(s) | 2016-06-07 | PDF 62.1 KB |
| RF Exposure | RF Exposure Info | 2016-06-07 | PDF 127.8 KB |
| Tune Up Procedure | Parts List/Tune Up Info | 2016-06-07 | PDF 14.5 KB |
| Block Diagram Metadata only | Block Diagram | PDF 16 KB | |
| Schematics Metadata only | Schematics | PDF 86.1 KB | |
| Operational Description Metadata only | Operational Description | PDF 19.7 KB | |
| Parts List Metadata only | Parts List/Tune Up Info | PDF 30.1 KB |
Application Information
| Application ID | MHOP1ebVu8Rewb17lWuP3w== |
|---|---|
| Final Action Date | 2016-06-07 |
| Application Purpose | Original Equipment |
| Applicant FRN | 0017359084 |
| Model | 01228 |
| Frequency Range | 118-136.975 MHz |
| Equipment Class | TNB - Licensed Non-Broadcast Station Transmitter |
| Device Description | Licensed Non-Broadcast Aeronautical Transmitter |
| Responsible Party | Andy Davis, CEO, andy.davis@trig-avionics.com , 011441314498810 |
| Test Firm | Scot Rogers, Rogers Labs, Inc., rogers@pixius.net  , 913-837-3214 |
| TCB Email | TEI@TIMCOENGR.COM  |
| TCB Scope | B3: Maritime & Aviation Radio Services equipment in 47 CFR parts 80 & 87 |
| Short-Term Confidentiality | No |
| Long-Term Confidentiality | Yes |
| Grant Deferral | No |
| Modular Equipment | Does not apply |
| Composite Device | No |
| Composite Part | No |
| Cognitive Radio | No |
| Authorization Waiver | No |
| Authorization Waiver Approved | No |
| Section 5301 Certification | Yes |
| Related OET Knowledge DataBase Inquiry | No |
| Grant Comments | Power listed is conducted and measured at the antenna terminal. The antenna(s) used for this transmitter must be fixed-mounted on outdoor permanent structures. RF exposure compliance is addressed at the time of licensing, as required by the responsible FCC Bureau(s), including antenna co-location requirements of §1.1307(b)(3). |
Applications
| Application ID | Date | Purpose |
|---|---|---|
| MHOP1ebVu8Rewb17lWuP3w== | 2016-06-07 | Original Equipment |
Equipment Authorization
Grants
TCB Grant - Application MHOP1ebVu8Rewb17lWuP3w==
| TCB | GRANT OF EQUIPMENT AUTHORIZATION |
TCB |
| Certification | ||
| Issued Under the Authority of the | ||
| Federal Communications Commission | ||
| By: |
|
Timco Engineering, Inc. 849 NW State Road 45 Newberry, FL 32669 |
Date of Grant: 06/07/2016 Application Dated: 06/07/2016 |
| Trig Avionics Limited |
| Heriot Watt Research Park |
| Riccarton, EH14 4AP United Kingdom |
| Attention: Andy Davis , CEO |
| NOT TRANSFERABLE |
| EQUIPMENT AUTHORIZATION is hereby issued to the named GRANTEE, and is VALID ONLY for the equipment identified hereon for use under the Commission's Rules and Regulations listed below. |
| FCC IDENTIFIER: | VZI01228 |
| Name of Grantee: | Trig Avionics Limited |
| Equipment Class: | Licensed Non-Broadcast Station Transmitter |
| Notes: | Licensed Non-Broadcast Aeronautical Transmitter |
| Grant Notes | FCC Rule Parts | Frequency Range (MHZ) | Output Watts | Frequency Tolerance | Emission Designator |
| 87 | 118.0 - 136.975 | 16.0 | 1.0 PM | 5K60A3E | |
| 87 | 118.0 - 136.992 | 16.0 | 1.0 PM | 5K56A3E | |
| 87 | 118.0 - 136.975 | 10.0 | 1.0 PM | 5K60A3E | |
| 87 | 118.0 - 136.992 | 10.0 | 1.0 PM | 5K56A3E |
| Power listed is conducted and measured at the antenna terminal. The antenna(s) used for this transmitter must be fixed-mounted on outdoor permanent structures. RF exposure compliance is addressed at the time of licensing, as required by the responsible FCC Bureau(s), including antenna co-location requirements of §1.1307(b)(3). |
