FCC ID W59XWOBAP1
High Power AC1200 Dual-Band Outdoor Bridging AP
by Luxul Wireless
Grantee Code: W59 Product Code: XWOBAP1
Latest application date: 2016-07-29
Device Images
FCC ID Device Details
| FCC ID | W59XWOBAP1 |
|---|---|
| Mirrors | fcc.id | gov | fccid.ai |
| Grantee Code | W59 |
| Product Code | XWOBAP1 |
| Applicant Business | Luxul Wireless 🇺🇸 |
| Related Domains |  legrand.com |
| Equipment Class | High Power AC1200 Dual-Band Outdoor Bridging AP |
| Test Firm | Bureau Veritas CPS (H.K.) Ltd., Taoyuan Branch |
Operating Frequencies
| Frequency Range | Application Purpose | Final Action Date |
|---|---|---|
| 2412-2462 MHz | Original Equipment | 2016-07-29 |
| 5180-5240 MHz | Original Equipment | 2016-07-29 |
Exhibits
| Document | Type | Available | File |
|---|---|---|---|
| User Manual (Professional Installation Statements).pdf | Users Manual | 2016-07-29 | PDF 65.9 KB |
| User Manual (Statements).pdf | Users Manual | 2016-07-29 | PDF 76.7 KB |
| User Manual.pdf | Users Manual | 2016-07-29 | PDF 319.4 KB |
| Internal Photos.pdf | Internal Photos | 2016-07-29 | PDF 1.9 MB |
| External Photos.pdf | External Photos | 2016-07-29 | PDF 967.9 KB |

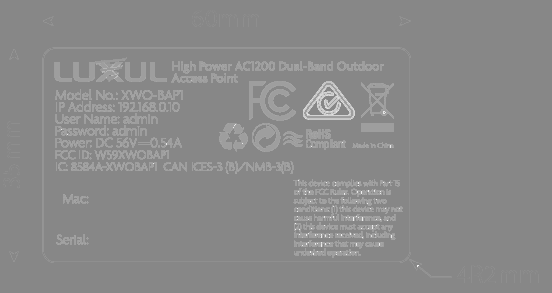

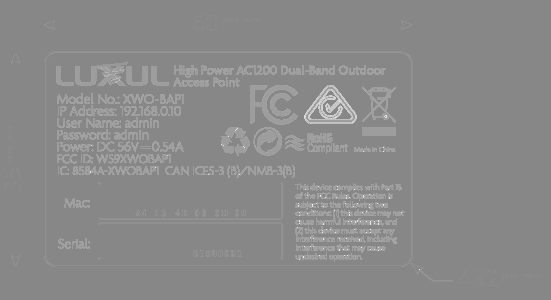

| ID Label Location Information.pdf | ID Label/Location Info | 2016-07-29 | PDF 636 KB |
| Test Setup Photo.pdf | Test Setup Photos | 2016-07-29 | PDF 382 KB |
| Test Report (DTS).pdf | Test Report | 2016-07-29 | PDF 1.2 MB |
| Test Report (NII).pdf | Test Report | 2016-07-29 | PDF 1.5 MB |
| Attestation - Channel and Mode Declaration.pdf | Attestation Statements | 2016-07-29 | PDF 688.1 KB |
| Attestation - Professional Installation Declaration.pdf | Attestation Statements | 2016-07-29 | PDF 39.1 KB |
| Cover Letter - Agent Authorization.pdf | Cover Letter(s) | 2016-07-29 | PDF 111.4 KB |
| Cover Letter - Confidentiality Request - Long Term rev.pdf | Cover Letter(s) | 2016-07-29 | PDF 46.1 KB |
| RF Exposure Information (MPE).pdf | RF Exposure Info | 2016-07-29 | PDF 237.5 KB |
| Block Diagram.pdf Metadata only | Block Diagram | PDF 304.1 KB | |
| Schematics.pdf Metadata only | Schematics | PDF 765 KB | |
| Operational Description-Antenna Spec rev.pdf Metadata only | Operational Description | PDF 128.7 KB | |
| Operational Description.pdf Metadata only | Operational Description | PDF 21.6 KB | |
| Software Operating Description rev.pdf Metadata only | Operational Description | PDF 115.6 KB |
Application Information
| Application ID | b5UX19CwC1dB+e9U2iUL9w== |
|---|---|
| Final Action Date | 2016-07-29 |
| Application Purpose | Original Equipment |
| Applicant FRN | 0018526590 |
| Model | XWOBAP1 |
| Frequency Range | 2412-2462 MHz |
| Equipment Class | DTS - Digital Transmission System |
| Device Description | High Power AC1200 Dual-Band Outdoor Bridging AP |
| Responsible Party | Vaughn Staheli, VP Engineering, vaughn.staheli@legrand.com , 801-822-5465 |
| Agent | Amanda Amanda Amanda, Bureau Veritas Consumer Products Services (H.K.) L, amanda.wu@tw.bureauveritas.com  |
| Test Firm | Richard Chen, Bureau Veritas CPS (H.K.) Ltd., Taoyuan Branch, richard.chen@bureauveritas.com  , +886-3-2600884 |
| TCB Email | certification@curtis-straus.com  |
| TCB Scope | A4: UNII devices & low power transmitters using spread spectrum techniques |
| Short-Term Confidentiality | No |
| Long-Term Confidentiality | Yes |
| Grant Deferral | No |
| Modular Equipment | Does not apply |
| Composite Device | Yes |
| Composite Part | No |
| Cognitive Radio | No |
| Authorization Waiver | No |
| Authorization Waiver Approved | No |
| Section 5301 Certification | Yes |
| Related OET Knowledge DataBase Inquiry | No |
| Grant Comments | Power listed is the maximum combined conducted output power. This device must be professionally installed. Marketing to the General Public is prohibited. Only those antenna(s) tested with the device or similar antenna(s) with equal or lesser gain may be used with this transmitter. The use of other antenna requires a Class II Permissive Change filing. The antennas used for this transmitter must be installed to provide a separation distance of at least 40 cm from all persons and must not be co-located or operating in conjunction with any other antenna or transmitter, except the collocation as described in this filing or in accordance with FCC multi-transmitter product guidelines. End -users and installers must be provided with antenna installation instructions and transmitter operating conditions for satisfying RF exposure compliance. This device has 20 MHz and 40 MHz bandwidth mode. |
Applications
| Application ID | Date | Purpose |
|---|---|---|
| b5UX19CwC1dB+e9U2iUL9w== | 2016-07-29 | Original Equipment |
| KEN1OCwuIqXQPPoIYYei2w== | 2016-07-29 | Original Equipment |
Equipment Authorization
Grants
TCB Grant - Application KEN1OCwuIqXQPPoIYYei2w==
| TCB | GRANT OF EQUIPMENT AUTHORIZATION |
TCB |
| Certification | ||
| Issued Under the Authority of the | ||
| Federal Communications Commission | ||
| By: |
|
Bureau Veritas Consumer Products Services, Inc. One Distribution Center Circle Suite #1 Littleton, MA 01460 |
Date of Grant: 07/29/2016 Application Dated: 07/29/2016 |
| Luxul Wireless |
| 12884 S Frontrunner Blvd |
| Suite 201 |
| Draper, UT 84020 |
| Attention: Vaughn Staheli , VP Engineering |
| NOT TRANSFERABLE |
| EQUIPMENT AUTHORIZATION is hereby issued to the named GRANTEE, and is VALID ONLY for the equipment identified hereon for use under the Commission's Rules and Regulations listed below. |
| FCC IDENTIFIER: | W59XWOBAP1 |
| Name of Grantee: | Luxul Wireless |
| Equipment Class: | Unlicensed National Information Infrastructure TX |
| Notes: | High Power AC1200 Dual-Band Outdoor Bridging AP |
| Grant Notes | FCC Rule Parts | Frequency Range (MHZ) | Output Watts | Frequency Tolerance | Emission Designator |
| 38 CC MO | 15E | 5180.0 - 5240.0 | 0.097 | ||
| 38 CC MO | 15E | 5745.0 - 5825.0 | 0.396 |
| Power listed is the maximum combined conducted output power. This device must be professionally installed. Marketing to the General Public is prohibited. Only those antenna(s) tested with the device or similar antenna(s) with equal or lesser gain may be used with this transmitter. The use of other antenna requires a Class II Permissive Change filing. The antennas used for this transmitter must be installed to provide a separation distance of at least 40 cm from all persons and must not be co-located or operating in conjunction with any other antenna or transmitter, except the collocation as described in this filing or in accordance with FCC multi-transmitter product guidelines. End -users and installers must be provided with antenna installation instructions and transmitter operating conditions for satisfying RF exposure compliance. This device has 20 MHz, 40MHz and 80 MHz bandwidth mode. |
| 38: | This device has shown compliance, in all grant-listed U-NII sub-bands, with the new rules for U-NII devices adopted under Docket No. 13-49 and may be marketed, manufactured or imported after the June 1, 2016 transition deadline. |
| CC: | This device is certified pursuant to two different Part 15 rules sections. |
| MO: | This Multiple Input Multiple Output (MIMO) device was evaluated for multiple transmitted signals as indicated in the filing. |
EAS Grant - Application KEN1OCwuIqXQPPoIYYei2w==
| COPY |
FEDERAL COMMUNICATIONS COMMISSION WASHINGTON, D.C. 20554 GRANT OF EQUIPMENT AUTHORIZATION |
COPY |
| Certification |
|
Luxul Wireless 12884 S Frontrunner Blvd Suite 201 Draper, UT 84020 United States |
Date of Grant: 07/29/2016 Application Dated: 07/29/2016 |
| Attention: Vaughn Staheli , VP Engineering |
| NOT TRANSFERABLE |
| EQUIPMENT AUTHORIZATION is hereby issued to the named GRANTEE, and is VALID ONLY for the equipment identified hereon for use under the Commission's Rules and Regulations listed below. |
| FCC IDENTIFIER: | W59XWOBAP1 |
| Name of Grantee: | Luxul Wireless |
| Equipment Class: | Unlicensed National Information Infrastructure TX |
| Notes: | High Power AC1200 Dual-Band Outdoor Bridging AP |
| Modular Type: | Does not apply |
| Grant Notes | FCC Rule Parts | Frequency Range (MHZ) | Output Watts | Frequency Tolerance | Emission Designator |
| 38 CC MO | 15E | 5180.0 - 5240.0 | 0.097 | ||
| 38 CC MO | 15E | 5745.0 - 5825.0 | 0.396 |
| Power listed is the maximum combined conducted output power. This device must be professionally installed. Marketing to the General Public is prohibited. Only those antenna(s) tested with the device or similar antenna(s) with equal or lesser gain may be used with this transmitter. The use of other antenna requires a Class II Permissive Change filing. The antennas used for this transmitter must be installed to provide a separation distance of at least 40 cm from all persons and must not be co-located or operating in conjunction with any other antenna or transmitter, except the collocation as described in this filing or in accordance with FCC multi-transmitter product guidelines. End -users and installers must be provided with antenna installation instructions and transmitter operating conditions for satisfying RF exposure compliance. This device has 20 MHz, 40MHz and 80 MHz bandwidth mode. |
| 38: | This device has shown compliance, in all grant-listed U-NII sub-bands, with the new rules for U-NII devices adopted under Docket No. 13-49 and may be marketed, manufactured or imported after the June 1, 2016 transition deadline. |
| CC: | This device is certified pursuant to two different Part 15 rules sections. |
| MO: | This Multiple Input Multiple Output (MIMO) device was evaluated for multiple transmitted signals as indicated in the filing. |
| Mail To: | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| TCB | GRANT OF EQUIPMENT AUTHORIZATION |
TCB |
| Certification | ||
| Issued Under the Authority of the | ||
| Federal Communications Commission | ||
| By: |
|
Bureau Veritas Consumer Products Services, Inc. One Distribution Center Circle Suite #1 Littleton, MA 01460 |
Date of Grant: 07/29/2016 Application Dated: 07/29/2016 |
| Luxul Wireless |
| 12884 S Frontrunner Blvd |
| Suite 201 |
| Draper, UT 84020 |
| Attention: Vaughn Staheli , VP Engineering |
| NOT TRANSFERABLE |
| EQUIPMENT AUTHORIZATION is hereby issued to the named GRANTEE, and is VALID ONLY for the equipment identified hereon for use under the Commission's Rules and Regulations listed below. |
| FCC IDENTIFIER: | W59XWOBAP1 |
| Name of Grantee: | Luxul Wireless |
| Equipment Class: | Digital Transmission System |
| Notes: | High Power AC1200 Dual-Band Outdoor Bridging AP |
| Grant Notes | FCC Rule Parts | Frequency Range (MHZ) | Output Watts | Frequency Tolerance | Emission Designator |
| CC MO | 15C | 2412.0 - 2462.0 | 0.748 |
| Power listed is the maximum combined conducted output power. This device must be professionally installed. Marketing to the General Public is prohibited. Only those antenna(s) tested with the device or similar antenna(s) with equal or lesser gain may be used with this transmitter. The use of other antenna requires a Class II Permissive Change filing. The antennas used for this transmitter must be installed to provide a separation distance of at least 40 cm from all persons and must not be co-located or operating in conjunction with any other antenna or transmitter, except the collocation as described in this filing or in accordance with FCC multi-transmitter product guidelines. End -users and installers must be provided with antenna installation instructions and transmitter operating conditions for satisfying RF exposure compliance. This device has 20 MHz and 40 MHz bandwidth mode. |
| CC: | This device is certified pursuant to two different Part 15 rules sections. |
| MO: | This Multiple Input Multiple Output (MIMO) device was evaluated for multiple transmitted signals as indicated in the filing. |
EAS Grant - Application b5UX19CwC1dB+e9U2iUL9w==
| COPY |
FEDERAL COMMUNICATIONS COMMISSION WASHINGTON, D.C. 20554 GRANT OF EQUIPMENT AUTHORIZATION |
COPY |
| Certification |
|
Luxul Wireless 12884 S Frontrunner Blvd Suite 201 Draper, UT 84020 United States |
Date of Grant: 07/29/2016 Application Dated: 07/29/2016 |
| Attention: Vaughn Staheli , VP Engineering |
| NOT TRANSFERABLE |
| EQUIPMENT AUTHORIZATION is hereby issued to the named GRANTEE, and is VALID ONLY for the equipment identified hereon for use under the Commission's Rules and Regulations listed below. |
| FCC IDENTIFIER: | W59XWOBAP1 |
| Name of Grantee: | Luxul Wireless |
| Equipment Class: | Digital Transmission System |
| Notes: | High Power AC1200 Dual-Band Outdoor Bridging AP |
| Modular Type: | Does not apply |
| Grant Notes | FCC Rule Parts | Frequency Range (MHZ) | Output Watts | Frequency Tolerance | Emission Designator |
| CC MO | 15C | 2412.0 - 2462.0 | 0.748 |
| Power listed is the maximum combined conducted output power. This device must be professionally installed. Marketing to the General Public is prohibited. Only those antenna(s) tested with the device or similar antenna(s) with equal or lesser gain may be used with this transmitter. The use of other antenna requires a Class II Permissive Change filing. The antennas used for this transmitter must be installed to provide a separation distance of at least 40 cm from all persons and must not be co-located or operating in conjunction with any other antenna or transmitter, except the collocation as described in this filing or in accordance with FCC multi-transmitter product guidelines. End -users and installers must be provided with antenna installation instructions and transmitter operating conditions for satisfying RF exposure compliance. This device has 20 MHz and 40 MHz bandwidth mode. |
| CC: | This device is certified pursuant to two different Part 15 rules sections. |
| MO: | This Multiple Input Multiple Output (MIMO) device was evaluated for multiple transmitted signals as indicated in the filing. |
