FCC ID W7Z-WD6102
Zigbee Gateway
by California Eastern Laboratories
Grantee Code: W7Z Product Code: WD6102
Latest application date: 2016-07-05
Device Images
FCC ID Device Details
Operating Frequencies
| Frequency Range | Application Purpose | Final Action Date |
|---|---|---|
| 2405-2480 MHz | Original Equipment | 2016-07-05 |
Exhibits
| Document | Type | Available | File |
|---|---|---|---|

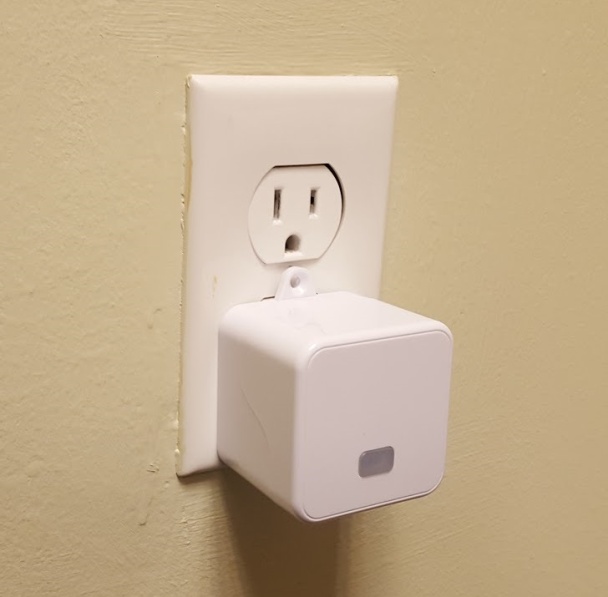

| Exhibit D Users Manual per 2 1033 b3 | Users Manual | 2016-07-05 | PDF 382.1 KB |
| Exhibit C Internal Photographs per 2 1033 b7 | Internal Photos | 2016-07-05 | PDF 120.7 KB |
| Exhibit C External Photographs per 2 1033 b7 | External Photos | 2016-07-05 | PDF 98.5 KB |
| Exhibit A ID Label and location per 2 1033 b7 | ID Label/Location Info | 2016-07-05 | PDF 141.4 KB |
| Exhibit B Block Diagram per 2 1033 b5 | Block Diagram | 2016-07-05 | PDF 105.6 KB |
| Exhibit B Operational Description per 2 1033 b4 | Operational Description | 2016-07-05 | PDF 90.3 KB |
| Exhibit C RE Test Setup photographs | Test Setup Photos | 2016-07-05 | PDF 165.6 KB |
| Exhibit E Test Measurement Report per 2 1033 b6 | Test Report | 2016-07-05 | PDF 1.8 MB |
| Cover Letter Requesting Confidentiality | Cover Letter(s) | 2016-07-05 | PDF 104.5 KB |
| Misc RF Exposure Exhibits | RF Exposure Info | 2016-07-05 | PDF 60.2 KB |
| Exhibit B Schematics per 2 1033 b5 Metadata only | Schematics | PDF 145.9 KB |
Application Information
| Application ID | IDjbVLUGtSud4XlkJhhgNg== |
|---|---|
| Final Action Date | 2016-07-05 |
| Application Purpose | Original Equipment |
| Applicant FRN | 0007032923 |
| Model | WD6102 |
| Frequency Range | 2405-2480 MHz |
| Equipment Class | DTS - Digital Transmission System |
| Device Description | Zigbee Gateway |
| Responsible Party | David Wilde, david.wilde@cel.com  , 4089192500 |
| Technical Contact | California Eastern Laboratories |
| Test Firm | Kevin Halpin, Elite Electronic Engineering Inc., khalpin@elitetest.com  , 630-495-9770 |
| TCB Email | decrowder@elitetest.com |
| TCB Scope | A4: UNII devices & low power transmitters using spread spectrum techniques |
| Short-Term Confidentiality | No |
| Long-Term Confidentiality | Yes |
| Grant Deferral | No |
| Modular Equipment | Does not apply |
| Composite Device | No |
| Composite Part | Yes |
| Cognitive Radio | No |
| Authorization Waiver | No |
| Authorization Waiver Approved | No |
| Section 5301 Certification | Yes |
| Related OET Knowledge DataBase Inquiry | No |
| Grant Comments | Power listed is conducted. The antenna(s) used for this transmitter must not transmit simultaneously with any other antenna or transmitter, except in accordance with FCC multi-transmitter product procedures. Users and installers must be provided with antenna installation instructions and transmitter operating conditions for satisfying RF exposure compliance. Approved for used with antenna(s) as listed in this filing. Power out of the device at the upper channels are reduced for compliance reasons. |
