FCC ID W8V-GWDIN
DIN Mount Gateway
by SignalFire Telemetry, Inc.
Grantee Code: W8V Product Code: GWDIN
Latest application date: 2016-05-04
Device Images
FCC ID Device Details
| FCC ID | W8V-GWDIN |
|---|---|
| Mirrors | fcc.id | gov | fccid.ai |
| Grantee Code | W8V |
| Product Code | GWDIN |
| Applicant Business | SignalFire Telemetry, Inc. 🇺🇸 |
| Related Domains |  signal-fire.com |
| Equipment Class | DIN Mount Gateway |
| Test Firm | BUREAU VERITAS CONSUMER PRODUCTS SERVICES, INC. |
Operating Frequencies
| Frequency Range | Application Purpose | Final Action Date |
|---|---|---|
| 905-924.8 MHz | Original Equipment | 2016-05-04 |
Exhibits
| Document | Type | Available | File |
|---|---|---|---|
| User Manual.pdf | Users Manual | 2016-05-04 | PDF 887.4 KB |
| Internal Photos.pdf | Internal Photos | 2016-05-04 | PDF 411.5 KB |
| External Photos.pdf | External Photos | 2016-05-04 | PDF 551.2 KB |
| Label Location.pdf | ID Label/Location Info | 2016-05-04 | PDF 210.9 KB |
| Label.pdf | ID Label/Location Info | 2016-05-04 | PDF 143.5 KB |

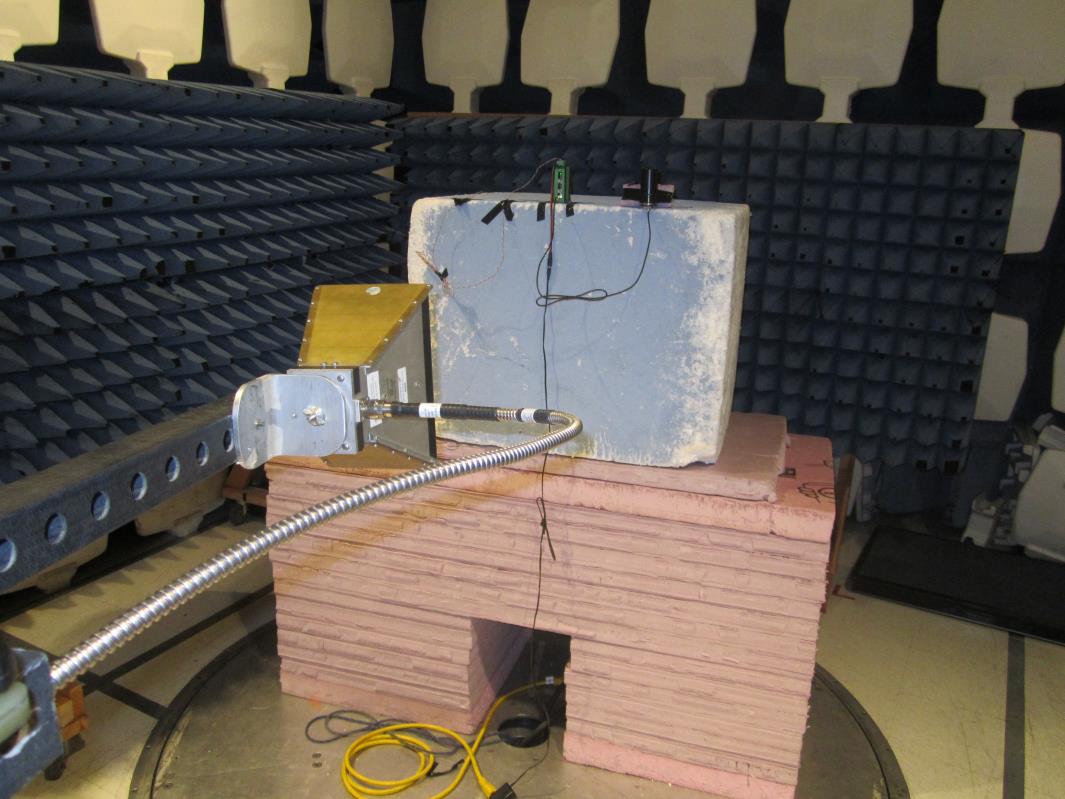

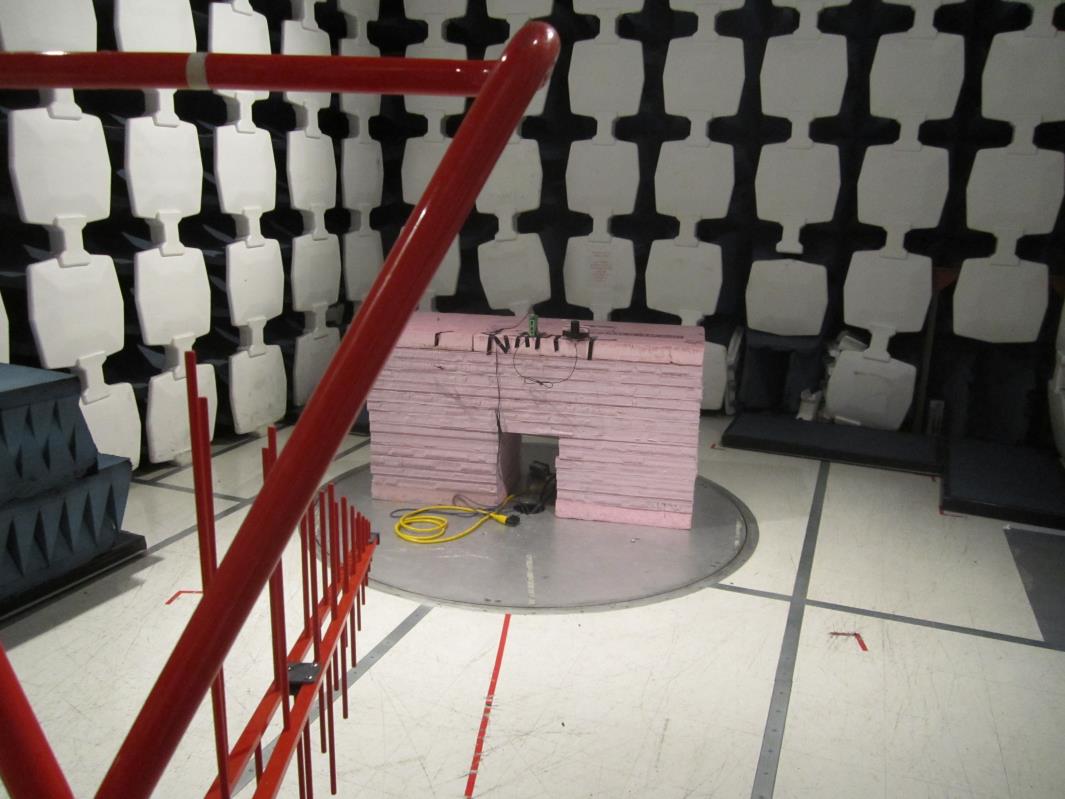

| Test Set Up Photos.pdf | Test Setup Photos | 2016-05-04 | PDF 1 MB |
| Test report.pdf | Test Report | 2016-05-04 | PDF 809.2 KB |
| Confidentiality Request Letter.pdf | Cover Letter(s) | 2016-05-04 | PDF 16.2 KB |
| Cover letter - Agent Authorization Letter.pdf | Cover Letter(s) | 2016-05-04 | PDF 17.1 KB |
| RF exposure calculation - MPE prediction calculation.pdf | RF Exposure Info | 2016-05-04 | PDF 82.7 KB |
| Block Diagram.pdf Metadata only | Block Diagram | PDF 22.6 KB | |
| Schematics.pdf Metadata only | Schematics | PDF 749.3 KB | |
| Operational Description.pdf Metadata only | Operational Description | PDF 75.5 KB | |
| Operational description - EEH-915_Datasheet - Antenna Spec.pdf Metadata only | Operational Description | PDF 2.6 MB | |
| Operational description - List of Antennas use in the DIN Mount Gateway.pdf Metadata only | Operational Description | PDF 172.5 KB | |
| Operational description - S467XX-915S - Antenna Spec.pdf Metadata only | Operational Description | PDF 714.5 KB |
Application Information
| Application ID | 4pXaDtKTr0Udkf2t1vWd0A== |
|---|---|
| Final Action Date | 2016-05-04 |
| Application Purpose | Original Equipment |
| Applicant FRN | 0018614347 |
| Model | GWDIN |
| Frequency Range | 905-924.8 MHz |
| Equipment Class | DSS - Part 15 Spread Spectrum Transmitter |
| Device Description | DIN Mount Gateway |
| Responsible Party | Joshua Schadel, Director of Engineering, josh.schadel@signal-fire.com , 978-212-2868 |
| Test Firm | Dori Robertson, BUREAU VERITAS CONSUMER PRODUCTS SERVICES, INC., dolores.robertson@us.bureauveritas.com  , 978 486 8880 |
| TCB Email | certification@curtis-straus.com  |
| TCB Scope | A4: UNII devices & low power transmitters using spread spectrum techniques |
| Short-Term Confidentiality | No |
| Long-Term Confidentiality | Yes |
| Grant Deferral | No |
| Modular Equipment | Does not apply |
| Composite Device | No |
| Composite Part | No |
| Cognitive Radio | No |
| Authorization Waiver | No |
| Authorization Waiver Approved | No |
| Section 5301 Certification | Yes |
| Related OET Knowledge DataBase Inquiry | No |
| Grant Comments | Output power listed is conducted. This device must be installed to provide a separation distance of at least 20 cm from all persons and must not be co-located or operating in conjunction with any other antenna or transmitter. End-users and installers must be provided with installation and operating instructions for satisfying RF exposure compliance requirements. |
Applications
| Application ID | Date | Purpose |
|---|---|---|
| 4pXaDtKTr0Udkf2t1vWd0A== | 2016-05-04 | Original Equipment |
Equipment Authorization
| Frequency | Output | Rules |
|---|---|---|
| 905-924.8 MHz | 0.3054920 | 15C |
Grants
TCB Grant - Application 4pXaDtKTr0Udkf2t1vWd0A==
| TCB | GRANT OF EQUIPMENT AUTHORIZATION |
TCB |
| Certification | ||
| Issued Under the Authority of the | ||
| Federal Communications Commission | ||
| By: |
|
Bureau Veritas Consumer Products Services, Inc. One Distribution Center Circle Suite #1 Littleton, MA 01460 |
Date of Grant: 05/04/2016 Application Dated: 05/04/2016 |
| SignalFire Telemetry, Inc. |
| 140 Locke Drive |
| Suite B |
| Marlborough, MA 01752 |
| Attention: Joshua Schadel , Director of Engineering |
| NOT TRANSFERABLE |
| EQUIPMENT AUTHORIZATION is hereby issued to the named GRANTEE, and is VALID ONLY for the equipment identified hereon for use under the Commission's Rules and Regulations listed below. |
| FCC IDENTIFIER: | W8V-GWDIN |
| Name of Grantee: | SignalFire Telemetry, Inc. |
| Equipment Class: | Part 15 Spread Spectrum Transmitter |
| Notes: | DIN Mount Gateway |
| Grant Notes | FCC Rule Parts | Frequency Range (MHZ) | Output Watts | Frequency Tolerance | Emission Designator |
| 15C | 905.0 - 924.8 | 0.305492 |
| Output power listed is conducted. This device must be installed to provide a separation distance of at least 20 cm from all persons and must not be co-located or operating in conjunction with any other antenna or transmitter. End-users and installers must be provided with installation and operating instructions for satisfying RF exposure compliance requirements. |
EAS Grant - Application 4pXaDtKTr0Udkf2t1vWd0A==
| COPY |
FEDERAL COMMUNICATIONS COMMISSION WASHINGTON, D.C. 20554 GRANT OF EQUIPMENT AUTHORIZATION |
COPY |
| Certification |
|
SignalFire Telemetry, Inc. 140 Locke Drive Suite B Marlborough, MA 01752 United States |
Date of Grant: 05/04/2016 Application Dated: 05/04/2016 |
| Attention: Joshua Schadel , Director of Engineering |
| NOT TRANSFERABLE |
| EQUIPMENT AUTHORIZATION is hereby issued to the named GRANTEE, and is VALID ONLY for the equipment identified hereon for use under the Commission's Rules and Regulations listed below. |
| FCC IDENTIFIER: | W8V-GWDIN |
| Name of Grantee: | SignalFire Telemetry, Inc. |
| Equipment Class: | Part 15 Spread Spectrum Transmitter |
| Notes: | DIN Mount Gateway |
| Modular Type: | Does not apply |
| Grant Notes | FCC Rule Parts | Frequency Range (MHZ) | Output Watts | Frequency Tolerance | Emission Designator |
| 15C | 905.0 - 924.8 | 0.305492 |
| Output power listed is conducted. This device must be installed to provide a separation distance of at least 20 cm from all persons and must not be co-located or operating in conjunction with any other antenna or transmitter. End-users and installers must be provided with installation and operating instructions for satisfying RF exposure compliance requirements. |
| Mail To: |
