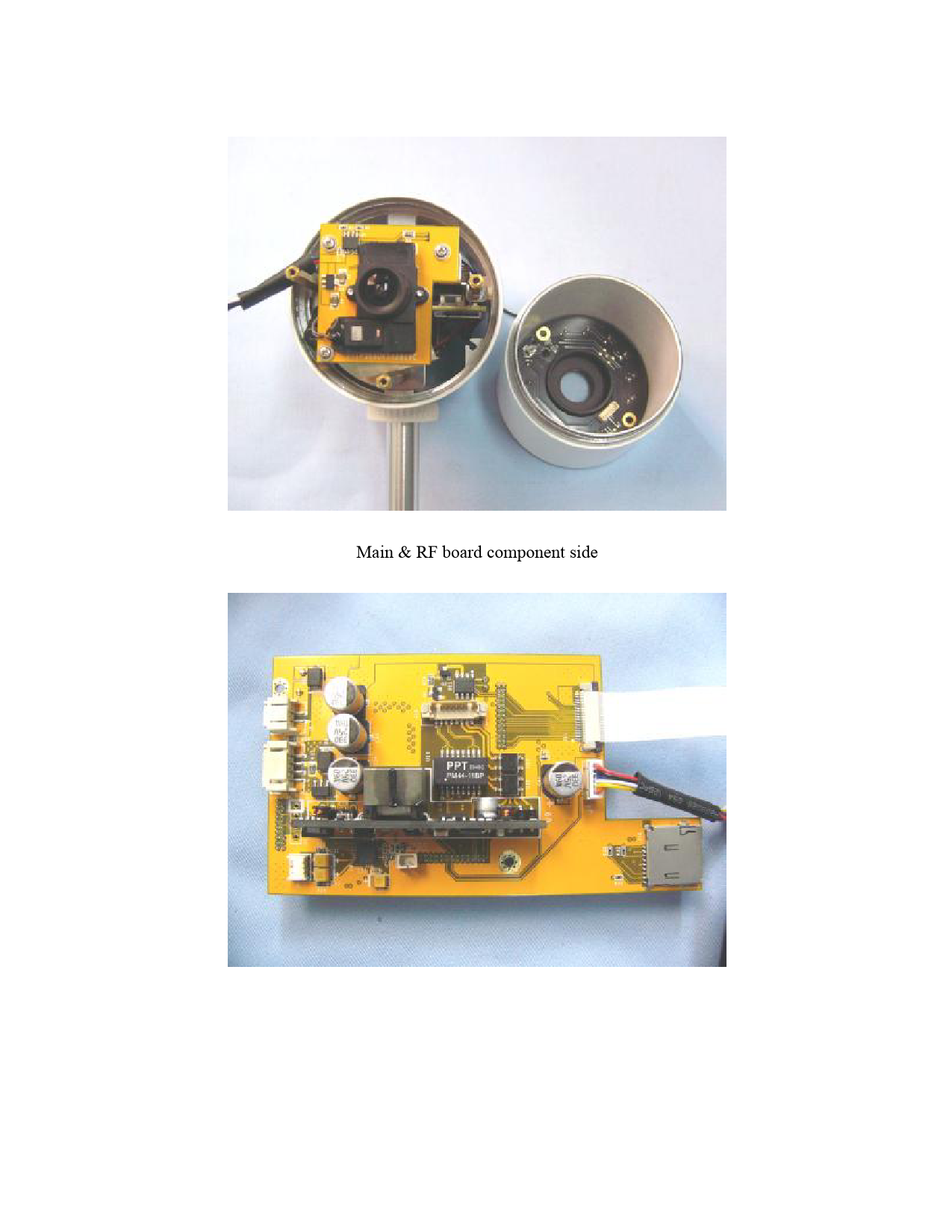

IP306 Network Camera Teardown Internal Photos - FCC ID WHLIP306

FCC ID WHLIP306

Internal Photo

Network Camera

by Orantek Distribution Limited

Document preview loads when visible.

Document Details

FCC IDWHLIP306
Document ID1286711
Document TypeInternal Photos
DescriptionInternal Photo
Document TitleInternal Photos
ApplicantOrantek Distribution Limited
Equipment ClassNetwork Camera
Product CodeIP306
Application IDc90uNzhVmWC0dWyJCMYuug==
Application PurposeOriginal Equipment
Application Date2010-05-26
Frequency Range2412-2462 MHz
FRN0017925157
Test FirmSinTek Laboratory Co., Ltd.
Certified BySalon Ouyang
Short-Term ConfidentialityNo
Long-Term ConfidentialityNo
Grant DeferralNo
Modular EquipmentDoes not apply
Composite DeviceNo
Composite PartNo
Submitted2010-05-26
Available2010-05-26
Created2010-05-21
Modified2010-05-26
Pages7
File TypeAdobe Acrobat PDF
File Size407014
File SHA-25681436bfe7c5ea67bb5e80838fdcc3f643083dec4f76e9649ee2756ac78067a1b
PDF Metadata AuthorApollo.Liu
PDF Metadata CreatorpdfFactory Pro www.pdffactory.com
PDF Metadata ProducerpdfFactory Pro 3.51 (Windows XP Professional Chinese)
FCC.gov SourcesFCC.gov 1286711
