FCC ID WHZ-DM50
911 SOUNDBAR (Soundbar Speaker)
by Canton Elektronik GmbH & Co. KG
Grantee Code: WHZ Product Code: DM50
Latest application date: 2016-02-24
Device Images
FCC ID Device Details
Operating Frequencies
| Frequency Range | Application Purpose | Final Action Date |
|---|---|---|
| 2402-2480 MHz | Class II permissive change or modification of presently authorized equipment | 2016-02-24 |
| 2402-2480 MHz | Original Equipment | 2013-11-15 |
Exhibits
| Document | Type | Available | File |
|---|---|---|---|
| User manual | Users Manual | 2016-02-24 | PDF 3.2 MB |
| Manual | Users Manual | 2013-11-15 | PDF 1 MB |

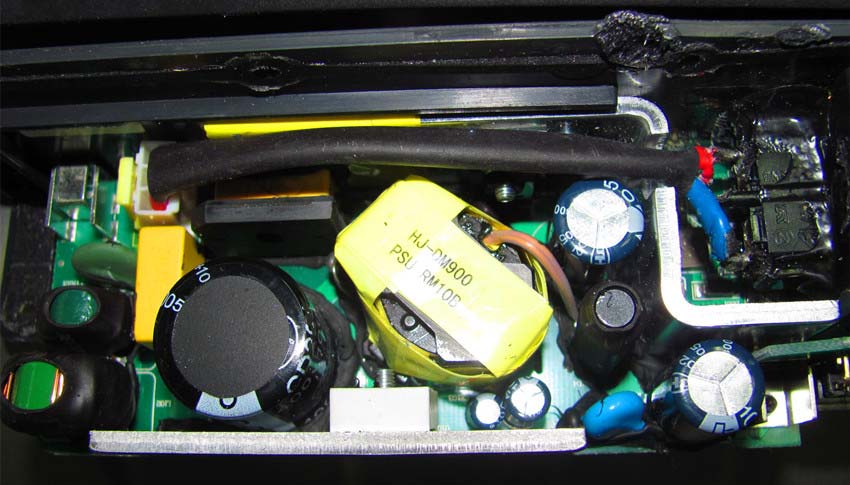

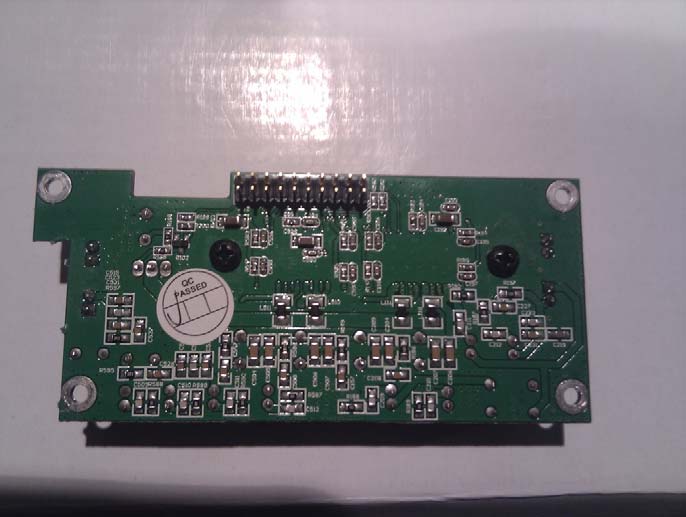

| Internal picture | Internal Photos | 2016-02-24 | PDF 671.7 KB |
| Internal photo | Internal Photos | 2013-11-15 | PDF 793.5 KB |

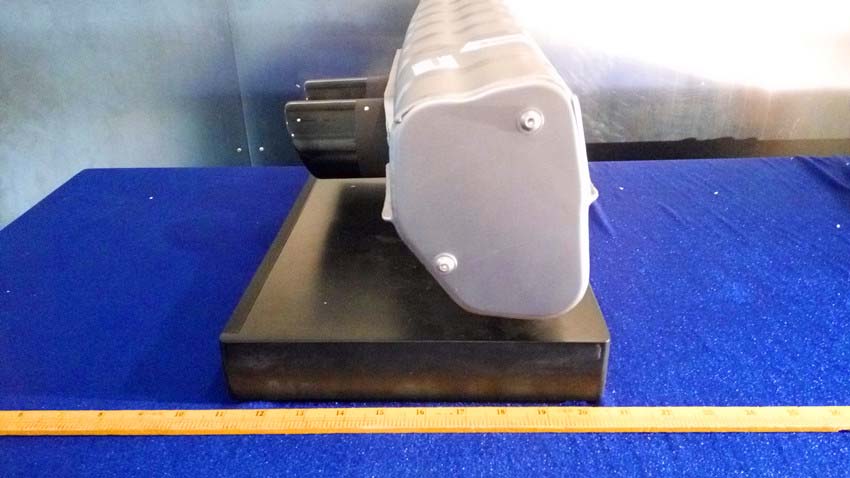

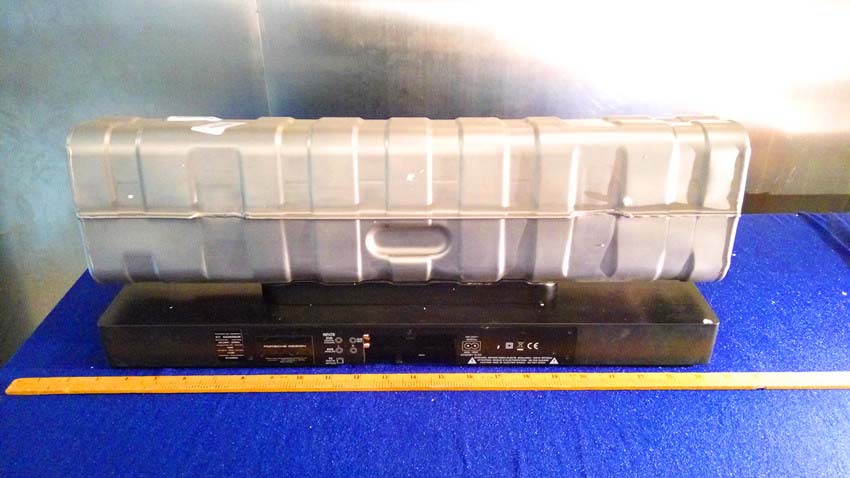

| External picture | External Photos | 2016-02-24 | PDF 200.6 KB |
| External photo | External Photos | 2013-11-15 | PDF 187.6 KB |
| Label | ID Label/Location Info | 2016-02-24 | PDF 350.5 KB |
| Label | ID Label/Location Info | 2013-11-15 | PDF 56.8 KB |

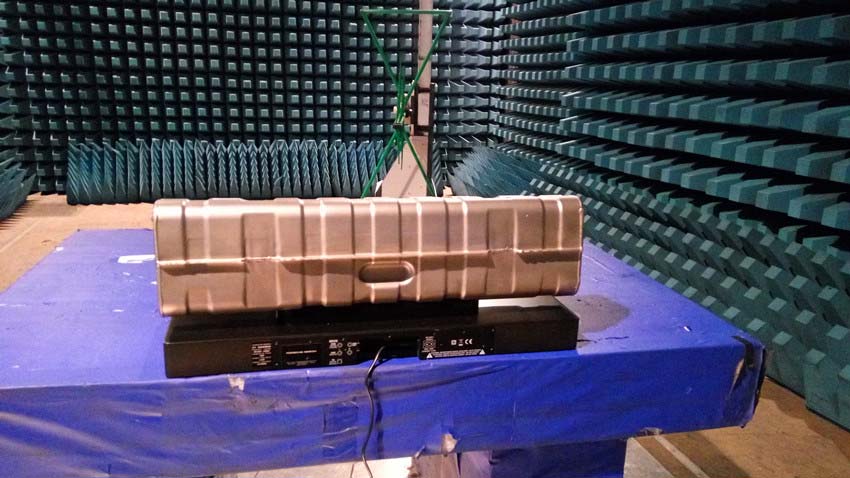

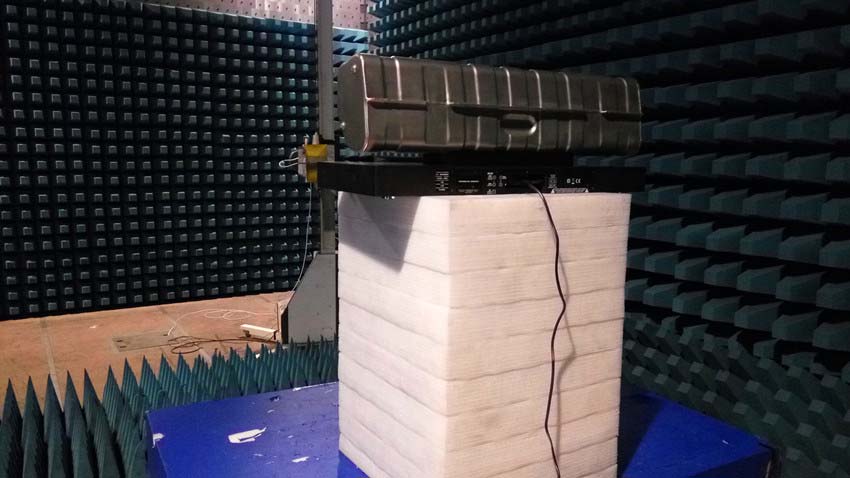

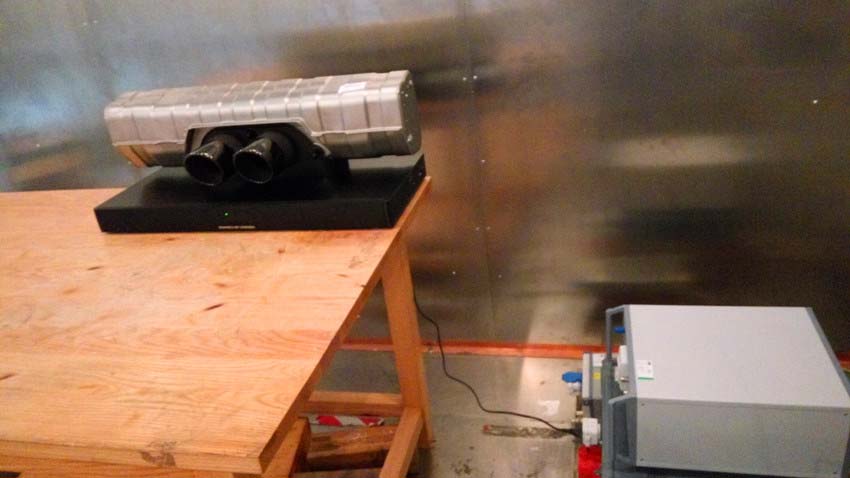

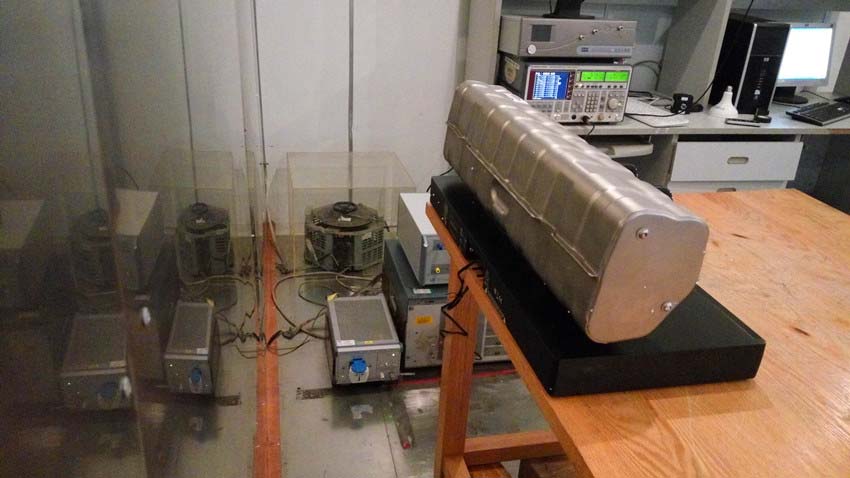

| Test Setup | Test Setup Photos | 2016-02-24 | PDF 217.1 KB |
| Test setup photo | Test Setup Photos | 2013-11-15 | PDF 104 KB |
| Report_1 | Test Report | 2016-02-24 | PDF 332.2 KB |
| Test report | Test Report | 2013-11-15 | PDF 2.6 MB |
| Declaration-911SB | Cover Letter(s) | 2016-02-24 | PDF 56.7 KB |
| Declaration-DM 55 | Cover Letter(s) | 2016-02-24 | PDF 55.3 KB |
| FCC agent | Cover Letter(s) | 2016-02-24 | PDF 461 KB |
| FCC-Confidentiality | Cover Letter(s) | 2016-02-24 | PDF 712.1 KB |
| Agency Letter | Cover Letter(s) | 2013-11-15 | PDF 19.5 KB |
| Confidentiality request | Cover Letter(s) | 2013-11-15 | PDF 23 KB |
| RF exposure info | RF Exposure Info | 2013-11-15 | PDF 104.3 KB |
| Confidential_Block Diagram Metadata only | Block Diagram | PDF 284.4 KB | |
| Confidential_Schematics Metadata only | Schematics | PDF 685.5 KB | |
| Confidential_Operational description Metadata only | Operational Description | PDF 134.3 KB |
Application Information
| Application ID | SIaVlns++3QJatifQsTI9Q== |
|---|---|
| Final Action Date | 2016-02-24 |
| Application Purpose | Class II permissive change or modification of presently authorized equipment |
| Applicant FRN | 0017935578 |
| Model | DM50 |
| Frequency Range | 2402-2480 MHz |
| Equipment Class | DSS - Part 15 Spread Spectrum Transmitter |
| Device Description | 911 SOUNDBAR (Soundbar Speaker) |
| Responsible Party | Markus Brueckner, entwicklung@canton.de  , +49 608328 |
| Agent | wakeyou wakeyou wakeyou, Intertek Testing Services Limited Shanghai, wakeyou.wang@intertek.com  , 86-21-61278448 |
| Technical Contact | Daniel Zhao, Intertek Testing Services Limited Shanghai, daniel.zhao@intertek.com , 86-21-61278269 |
| Test Firm | Jonny Jing, Intertek Testing Services Limited Shanghai, jonny.jing@intertek.com , 86-21-61278271 |
| TCB Email | hotline@acbcert.com  |
| TCB Scope | A4: UNII devices & low power transmitters using spread spectrum techniques |
| Short-Term Confidentiality | No |
| Long-Term Confidentiality | Yes |
| Grant Deferral | No |
| Modular Equipment | Does not apply |
| Composite Device | No |
| Composite Part | No |
| Cognitive Radio | No |
| Authorization Waiver | No |
| Authorization Waiver Approved | No |
| Section 5301 Certification | Yes |
| Related OET Knowledge DataBase Inquiry | No |
| Grant Comments | Class II Permissive Change is to modify the minor circuitry for non-transmitter portions. The output power listed is conducted. This transmitter must be installed to provide a separation distance of at least 20 cm from all persons and must not be co-located or operating in conjunction with any other antenna or transmitter. End-users must be informed of the operating requirements for satisfying RF exposure compliance. |
Applications
| Application ID | Date | Purpose |
|---|---|---|
| SIaVlns++3QJatifQsTI9Q== | 2016-02-24 | Class II permissive change or modification of presently authorized equipment |
| JVoBvm2TBDzVg3jn1cxYbQ== | 2013-11-15 | Original Equipment |
Equipment Authorization
| Frequency | Output | Rules |
|---|---|---|
| 2402-2480 MHz | 0.0028900 | 15C |
Grants
TCB Grant - Application SIaVlns++3QJatifQsTI9Q==
| TCB | GRANT OF EQUIPMENT AUTHORIZATION |
TCB |
| Certification | ||
| Issued Under the Authority of the | ||
| Federal Communications Commission | ||
| By: |
|
ACB, Inc. 6731 Whittier Avenue Suite C110 McLean, VA 22101 |
Date of Grant: 02/24/2016 Application Dated: 02/23/2016 |
| Canton Elektronik GmbH & Co. KG |
| Neugasse 21-23 |
| Weilrod-Niederlauken, 61276 Germany |
| Attention: Markus Brueckner |
| NOT TRANSFERABLE |
| EQUIPMENT AUTHORIZATION is hereby issued to the named GRANTEE, and is VALID ONLY for the equipment identified hereon for use under the Commission's Rules and Regulations listed below. |
| FCC IDENTIFIER: | WHZ-DM50 |
| Name of Grantee: | Canton Elektronik GmbH & Co. KG |
| Equipment Class: | Part 15 Spread Spectrum Transmitter |
| Notes: | 911 SOUNDBAR (Soundbar Speaker) |
| Grant Notes | FCC Rule Parts | Frequency Range (MHZ) | Output Watts | Frequency Tolerance | Emission Designator |
| 15C | 2402.0 - 2480.0 | 0.00289 |
| Class II Permissive Change is to modify the minor circuitry for non-transmitter portions. The output power listed is conducted. This transmitter must be installed to provide a separation distance of at least 20 cm from all persons and must not be co-located or operating in conjunction with any other antenna or transmitter. End-users must be informed of the operating requirements for satisfying RF exposure compliance. |
EAS Grant - Application SIaVlns++3QJatifQsTI9Q==
| COPY |
FEDERAL COMMUNICATIONS COMMISSION WASHINGTON, D.C. 20554 GRANT OF EQUIPMENT AUTHORIZATION |
COPY |
| Certification |
|
Canton Elektronik GmbH & Co. KG Neugasse 21-23 P.O. Box , Weilrod-Niederlauken, 61276 Germany |
Date of Grant: 02/24/2016 Application Dated: 02/23/2016 |
| Attention: Markus Brueckner |
| NOT TRANSFERABLE |
| EQUIPMENT AUTHORIZATION is hereby issued to the named GRANTEE, and is VALID ONLY for the equipment identified hereon for use under the Commission's Rules and Regulations listed below. |
| FCC IDENTIFIER: | WHZ-DM50 |
| Name of Grantee: | Canton Elektronik GmbH & Co. KG |
| Equipment Class: | Part 15 Spread Spectrum Transmitter |
| Notes: | 911 SOUNDBAR (Soundbar Speaker) |
| Modular Type: | Does not apply |
| Grant Notes | FCC Rule Parts | Frequency Range (MHZ) | Output Watts | Frequency Tolerance | Emission Designator |
| 15C | 2402.0 - 2480.0 | 0.00289 |
| Class II Permissive Change is to modify the minor circuitry for non-transmitter portions. The output power listed is conducted. This transmitter must be installed to provide a separation distance of at least 20 cm from all persons and must not be co-located or operating in conjunction with any other antenna or transmitter. End-users must be informed of the operating requirements for satisfying RF exposure compliance. |
| Mail To: | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| TCB | GRANT OF EQUIPMENT AUTHORIZATION |
TCB |
| Certification | ||
| Issued Under the Authority of the | ||
| Federal Communications Commission | ||
| By: |
|
Intertek Testing Services NA, Inc. 70 Codman Hill Road Boxborough, MA 01719 |
Date of Grant: 11/15/2013 Application Dated: 11/15/2013 |
| Canton Elektronik GmbH & Co. KG |
| Neugasse 21-23 |
| Weilrod-Niederlauken, 61276 Germany |
| Attention: Markus Brueckner |
| NOT TRANSFERABLE |
| EQUIPMENT AUTHORIZATION is hereby issued to the named GRANTEE, and is VALID ONLY for the equipment identified hereon for use under the Commission's Rules and Regulations listed below. |
| FCC IDENTIFIER: | WHZ-DM50 |
| Name of Grantee: | Canton Elektronik GmbH & Co. KG |
| Equipment Class: | Part 15 Spread Spectrum Transmitter |
| Notes: | Soundbar |
| Grant Notes | FCC Rule Parts | Frequency Range (MHZ) | Output Watts | Frequency Tolerance | Emission Designator |
| 15C | 2402.0 - 2480.0 | 0.00289 |
| The output power listed is conducted. This transmitter must be installed to provide a separation distance of at least 20 cm from all persons and must not be co-located or operating in conjunction with any other antenna or transmitter. End-users must be informed of the operating requirements for satisfying RF exposure compliance. |
EAS Grant - Application JVoBvm2TBDzVg3jn1cxYbQ==
| COPY |
FEDERAL COMMUNICATIONS COMMISSION WASHINGTON, D.C. 20554 GRANT OF EQUIPMENT AUTHORIZATION |
COPY |
| Certification |
|
Canton Elektronik GmbH & Co. KG Neugasse 21-23 P.O. Box , Weilrod-Niederlauken, 61276 Germany |
Date of Grant: 11/15/2013 Application Dated: 11/15/2013 |
| Attention: Markus Brueckner |
| NOT TRANSFERABLE |
| EQUIPMENT AUTHORIZATION is hereby issued to the named GRANTEE, and is VALID ONLY for the equipment identified hereon for use under the Commission's Rules and Regulations listed below. |
| FCC IDENTIFIER: | WHZ-DM50 |
| Name of Grantee: | Canton Elektronik GmbH & Co. KG |
| Equipment Class: | Part 15 Spread Spectrum Transmitter |
| Notes: | Soundbar |
| Modular Type: | Does not apply |
| Grant Notes | FCC Rule Parts | Frequency Range (MHZ) | Output Watts | Frequency Tolerance | Emission Designator |
| 15C | 2402.0 - 2480.0 | 0.00289 |
| The output power listed is conducted. This transmitter must be installed to provide a separation distance of at least 20 cm from all persons and must not be co-located or operating in conjunction with any other antenna or transmitter. End-users must be informed of the operating requirements for satisfying RF exposure compliance. |
