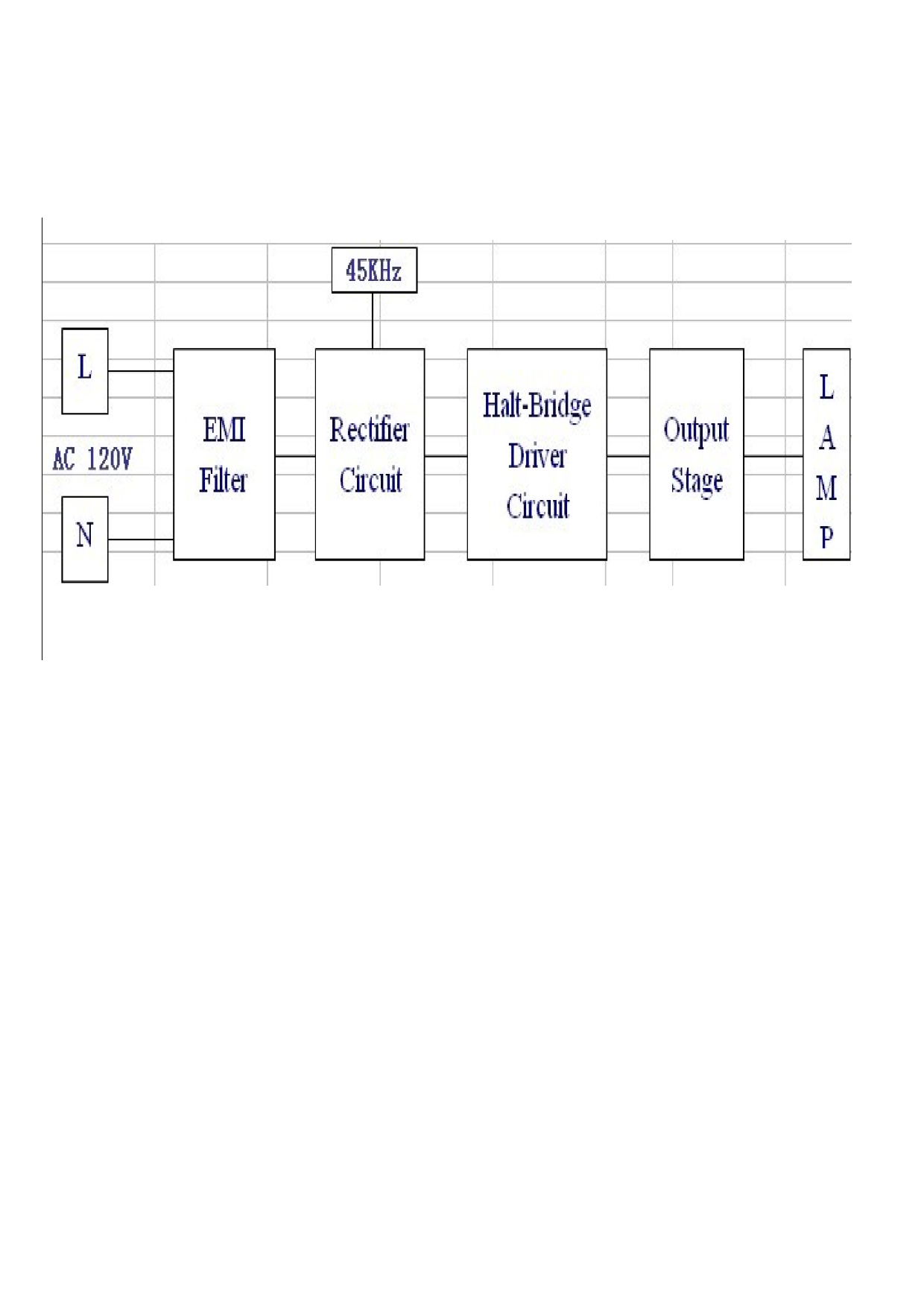

GL308D SELF BALLASTED LAMP Block Diagram - FCC ID WK8-GL308D

FCC ID WK8-GL308D

Block Diagram

SELF BALLASTED LAMP

by Top Brilliant Technology Ltd.

Document preview loads when visible.

Document Details

FCC IDWK8-GL308D
Document ID1373415
Document TypeBlock Diagram
DescriptionBlock Diagram
Document Title1
ApplicantTop Brilliant Technology Ltd.
Equipment ClassSELF BALLASTED LAMP
Product CodeGL308D
Application IDLk+qXS5oUWQfPCvvnlNWtA==
Application PurposeOriginal Equipment
Application Date2010-11-09
Frequency Range0.045 MHz
FRN0018012062
Test FirmWaltek Services(Shenzhen) Co., Ltd.
Certified ByPhilo Zhong General Manager
Short-Term ConfidentialityNo
Long-Term ConfidentialityNo
Grant DeferralNo
Modular EquipmentDoes not apply
Composite DeviceNo
Composite PartNo
Submitted2010-11-09
Available2010-11-09
Created2010-10-26
Modified2010-10-26
Pages1
File TypeAdobe Acrobat PDF
File Size249107
File SHA-256fded5ee15cb3c30479d908aab9055a2bb6d6e9dfc652eab9e205aa8a90973014
PDF Metadata Authorolic
PDF Metadata CreatorPScript5.dll Version 5.2
PDF Metadata ProducerAcrobat Distiller 7.0 (Windows)
FCC.gov SourcesFCC.gov 1373415
