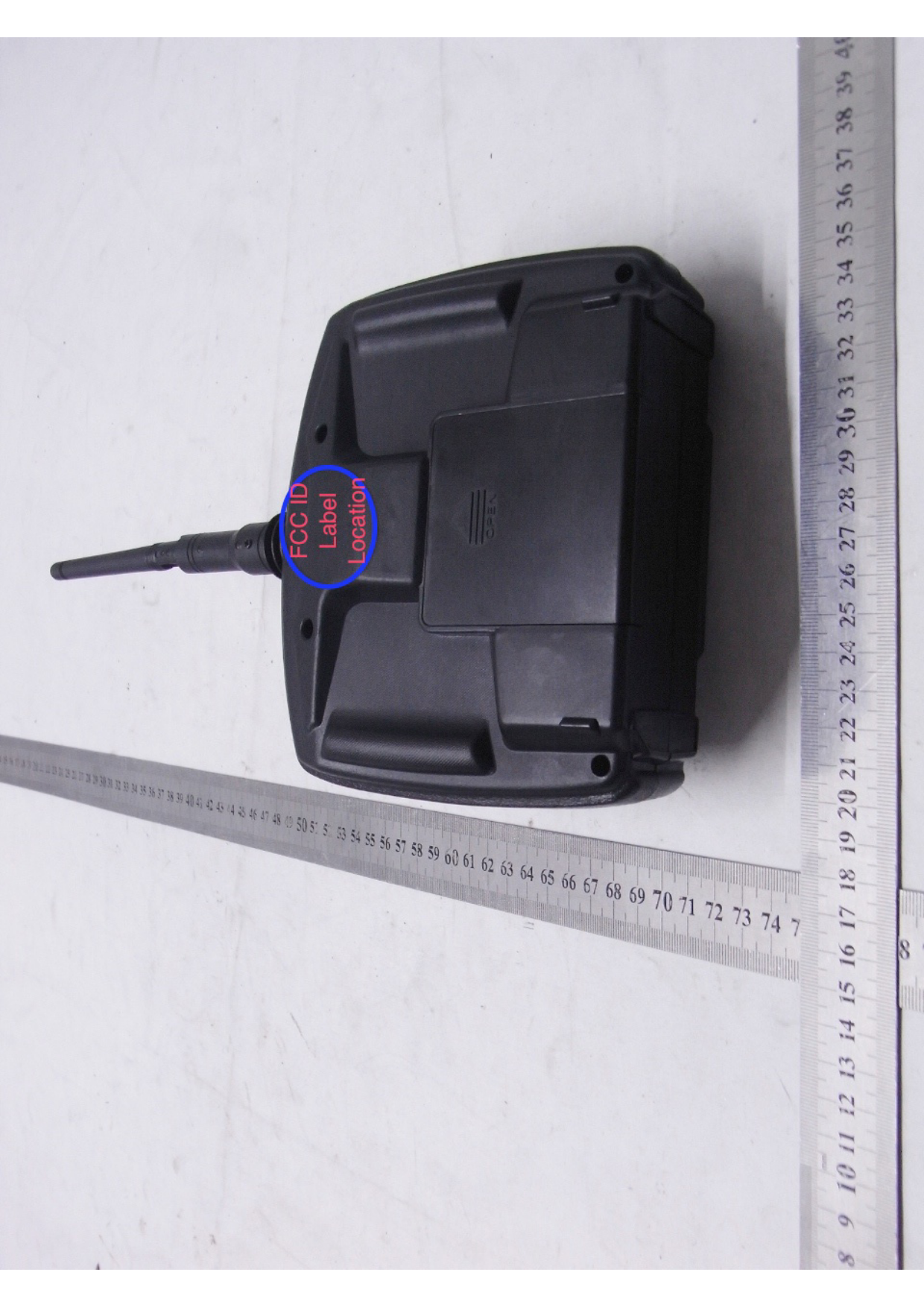

G01 2.4GHz 5CH LCD MINI TRANSMITTER Label Diagram - FCC ID WKN-G01

FCC ID WKN-G01

Label Location

2.4GHz 5CH LCD MINI TRANSMITTER

by RC Model Fun Ltd.

Document preview loads when visible.

Document Details

FCC IDWKN-G01
Document ID1470140
Document TypeID Label/Location Info
DescriptionLabel Location
Document TitleRIMG0006 (1280x960)
ApplicantRC Model Fun Ltd.
Equipment Class2.4GHz 5CH LCD MINI TRANSMITTER
Product CodeG01
Application ID1wLTRjwEIyuzOzWukmd1tQ==
Application PurposeOriginal Equipment
Application Date2011-05-23
Frequency Range2402-2480 MHz
FRN0017995473
Test FirmMost Technology Service Co., Ltd.
Certified ByXinrong Peng General Manager
Short-Term ConfidentialityNo
Long-Term ConfidentialityNo
Grant DeferralNo
Modular EquipmentDoes not apply
Composite DeviceNo
Composite PartNo
Submitted2011-05-23
Available2011-05-23
Created2011-05-20
Modified2011-05-20
Pages1
File TypeAdobe Acrobat PDF
File Size311549
File SHA-256fe51ecb400193b2a337a35b9d5b5eedfcc88d541b9d41e26e90b2dd17a00cd4f
PDF Metadata AuthorTerry Yang
PDF Metadata CreatorPreview
PDF Metadata ProducerAdobe Mac PDF Plug-in
FCC.gov SourcesFCC.gov 1470140
