BT01A Bluetooth Handsfree Rearview Mirror Car... - FCC ID WOEBT-01A

FCC ID WOEBT-01A

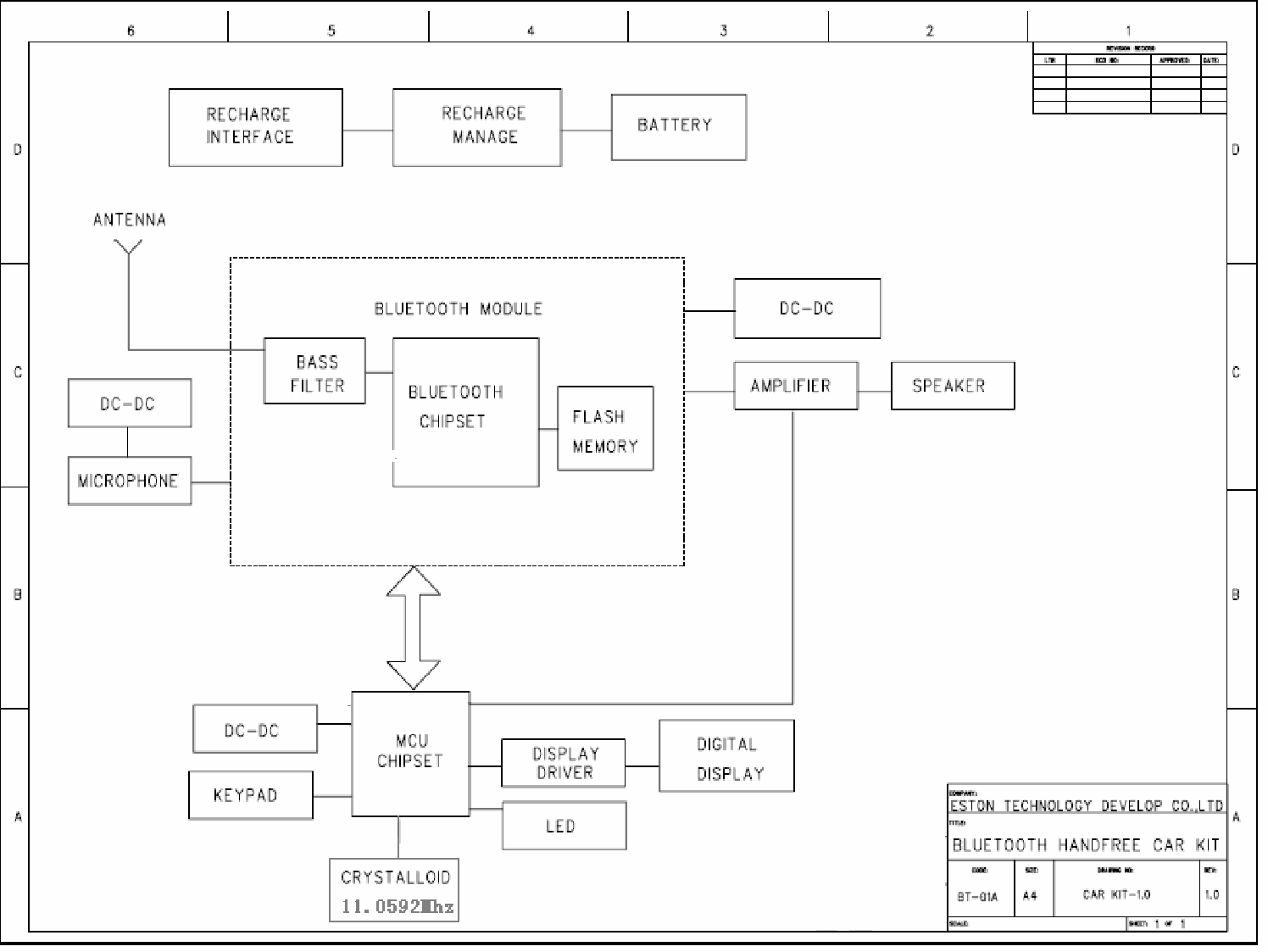

Block Diagram

Bluetooth Handsfree Rearview Mirror Car Kit

by ESTON TECHNOLOGY LIMITED

Document preview loads when visible.

Document Details

FCC IDWOEBT-01A
Document ID998417
Document TypeBlock Diagram
DescriptionBlock Diagram
Document Title1
ApplicantESTON TECHNOLOGY LIMITED
Equipment ClassBluetooth Handsfree Rearview Mirror Car Kit
Product CodeBT01A
Application IDgQjWTZ6jHnBomUIUbJPrmg==
Application PurposeOriginal Equipment
Application Date2008-09-10
Frequency Range2402-2480 MHz
FRN0018078147
Test FirmWaltek Services(Shenzhen) Co., Ltd.
Certified ByJudy Leung Manager
Short-Term ConfidentialityNo
Long-Term ConfidentialityNo
Grant DeferralNo
Modular EquipmentDoes not apply
Composite DeviceNo
Composite PartNo
Submitted2008-09-10
Available2008-09-10
Created2008-09-04
Modified2008-09-04
Pages1
File TypeAdobe Acrobat PDF
File Size24963
File SHA-256bf6ea46459a64b975dfc0f7d2d431795ccc792c86f6435681f054cd0c042280b
PDF Metadata Authoremc
PDF Metadata CreatorAcrobat PDFMaker 7.0 for PowerPoint
PDF Metadata ProducerAcrobat Distiller 7.0 (Windows)
FCC.gov SourcesFCC.gov 998417
