PTBSR75760B BSR75 Digital RF transceiver... - FCC ID WT7PTBSR75760B

FCC ID WT7PTBSR75760B

External Photographs

BSR75 Digital RF transceiver

by Teltronic S.A.U.

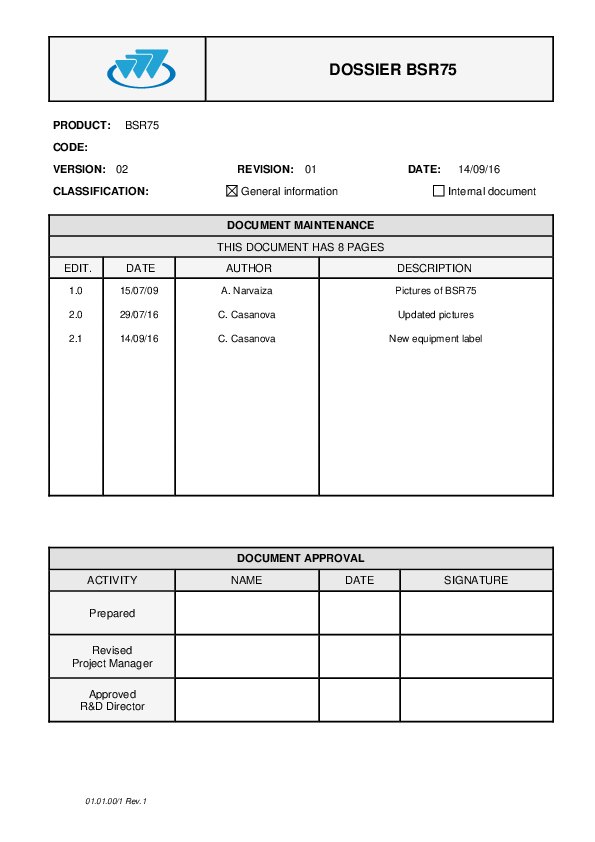

Document preview loads when visible.

Document Details

FCC IDWT7PTBSR75760B
Document ID3153178
Document TypeExternal Photos
DescriptionExternal Photographs
Document TitleExternal Photos BSR75
ApplicantTeltronic S.A.U.
Equipment ClassBSR75 Digital RF transceiver
Product CodePTBSR75760B
Application IDrrHR+RMPQKNrAa2AvEKJ4A==
Application PurposeOriginal Equipment
Application Date2016-09-30
Frequency Range769-775 MHz
FRN0017876152
Test FirmDEKRA Testing and Certification, S.A.U.
Certified ByJose Roman Engineering Services Group Manager
Short-Term ConfidentialityNo
Long-Term ConfidentialityNo
Short-Term Confidentiality Date03/29/2017
Grant DeferralNo
Modular EquipmentDoes not apply
Composite DeviceNo
Composite PartNo
Submitted2016-09-30
Available2017-03-29
Created2016-09-20
Modified2016-09-30
Pages8
File TypeAdobe Acrobat PDF
File Size382841
File SHA-256da5d6a9e48fc99a081845590d0de5ca6172decb4df095dfc2cc4f8b37c7f8ecc
PDF Metadata AuthorTeltronic R&D
PDF Metadata ProducerTeltronic R&D PDF-XChange Printer 2012 (5.0 build 271 271) [271Windows 7 Professional x64 (Build 7601: Service Pack 1)]
FCC.gov SourcesFCC.gov 3153178
