SEN100 Battery operated auditory assistance... - FCC ID X6U-SEN-100

FCC ID X6U-SEN-100

Schematics

Battery operated auditory assistance transmitter

by Emerson Climate Technologies - Control Products

Document preview loads when visible.

Document Details

FCC IDX6U-SEN-100
Document ID3306173
Document TypeSchematics
DescriptionSchematics

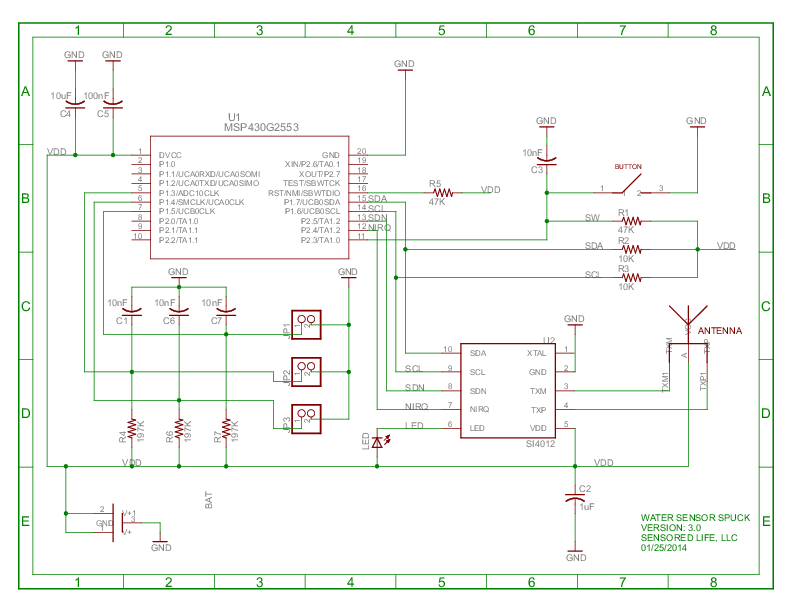

Document TitleWaterSensor_v3.sch
ApplicantEmerson Climate Technologies - Control Products
Equipment ClassBattery operated auditory assistance transmitter
Product CodeSEN100
Application IDsC0bUmZP1TASluNaRuxJ5w==
Application PurposeOriginal Equipment
Application Date2017-03-07
Frequency Range917.143 MHz
FRN0019583962
Test FirmInternational Certification Services, Inc.
Certified ByDuane R Bagdons President
Short-Term ConfidentialityNo
Long-Term ConfidentialityNo
Grant DeferralNo
Modular EquipmentDoes not apply
Composite DeviceNo
Composite PartNo
Submitted2017-03-07
Available2017-03-07
Created2014-10-09
Modified2015-10-22
Pages1
File TypeAdobe Acrobat PDF
File Size21448
File SHA-256fe90e9f62f8cfa76b88903046d6498d37bfb813a8f686030558b7643d6b48e8e
PDF Metadata ProducerEAGLE Version 6.4.0 Copyright (c) 1988-2013 CadSoft Qt 4.8.3 (C) 2011 Nokia Corporation and/or its subsidiary(-ies)
FCC.gov SourcesFCC.gov 3306173
