FCC ID X7IGV20
Vehicle gps tracker
by Shenzhen Concox Information Technology Co., Ltd
Grantee Code: X7I Product Code: GV20
Latest application date: 2017-03-20
Device Images
FCC ID Device Details
Operating Frequencies
| Frequency Range | Application Purpose | Final Action Date |
|---|---|---|
| 824.2-848.8 MHz | Original Equipment | 2017-03-20 |
Exhibits
| Document | Type | Available | File |
|---|---|---|---|
| Users Manual | Users Manual | 2017-03-20 | PDF 1.5 MB |
| Internal Photos | Internal Photos | 2017-03-20 | PDF 2.1 MB |
| External Photos | External Photos | 2017-03-20 | PDF 537.6 KB |
| Label Info and Location | ID Label/Location Info | 2017-03-20 | PDF 93 KB |

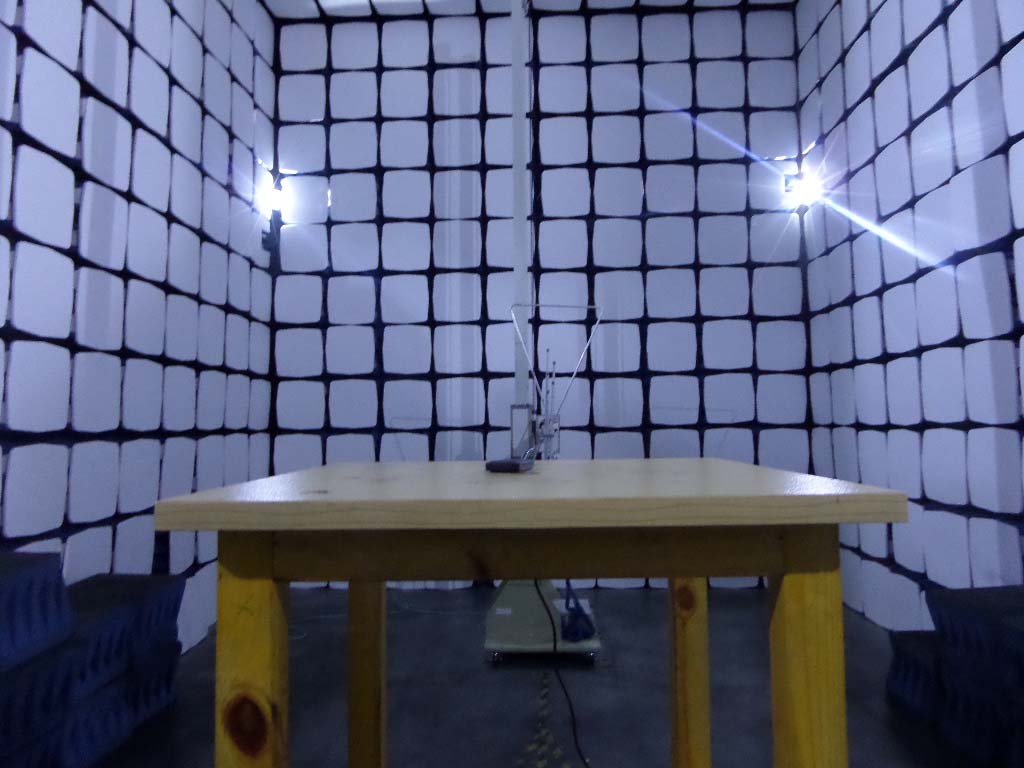

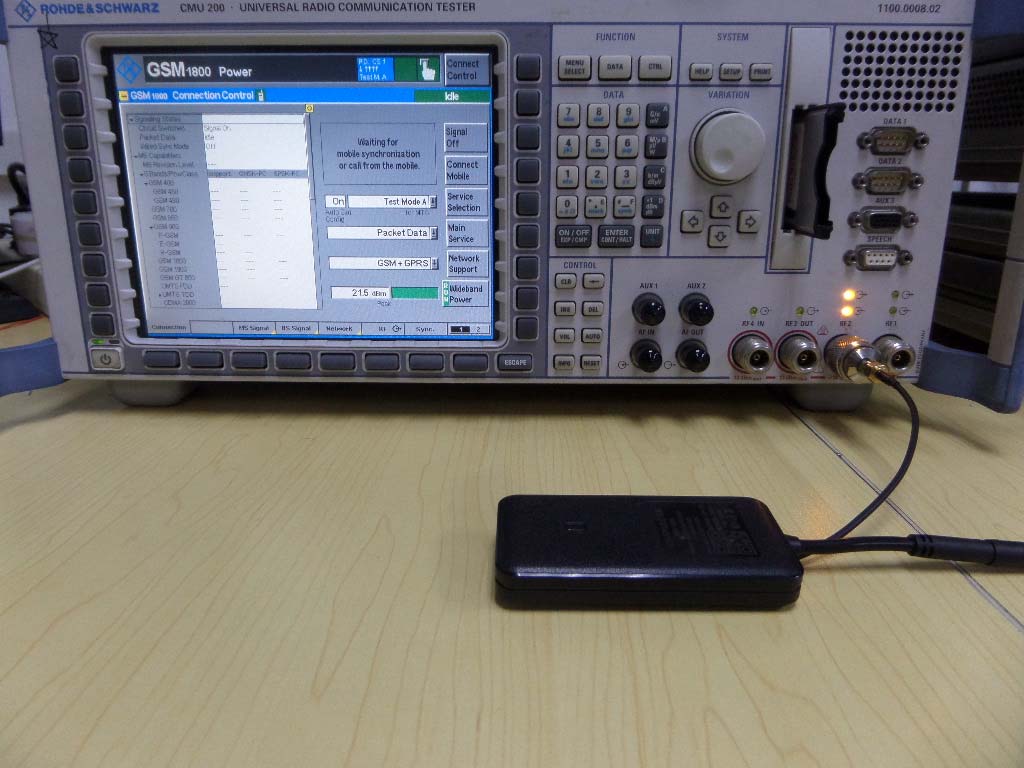

| Test Setup Photos | Test Setup Photos | 2017-03-20 | PDF 463.6 KB |
| Test Report | Test Report | 2017-03-20 | PDF 5.7 MB |
| Confidentiality Letter | Cover Letter(s) | 2017-03-20 | PDF 337.8 KB |
| Power of Attorney | Cover Letter(s) | 2017-03-20 | PDF 292.7 KB |
| RF Exposure | RF Exposure Info | 2017-03-20 | PDF 32.8 KB |
| Block Diagram Metadata only | Block Diagram | PDF 39.5 KB | |
| Schematics Metadata only | Schematics | PDF 258.9 KB | |
| Operational Description Metadata only | Operational Description | PDF 49.5 KB | |
| Parts List Metadata only | Parts List/Tune Up Info | PDF 49.6 KB | |
| Tune-Up Procedure Metadata only | Parts List/Tune Up Info | PDF 84.1 KB |
Application Information
| Application ID | or/g6Zqd9ETXuAIhsuPeyg== |
|---|---|
| Final Action Date | 2017-03-20 |
| Application Purpose | Original Equipment |
| Applicant FRN | 0019612480 |
| Model | GV20 |
| Frequency Range | 824.2-848.8 MHz |
| Equipment Class | PCB - PCS Licensed Transmitter |
| Device Description | Vehicle gps tracker |
| Responsible Party | Chosen Gao, General Manager, gaoxingxin@concox.cn  , 86-755-29121200 |
| Test Firm | Jandy So, Shenzhen SEM.Test Technology Co., Ltd., jandyso@semtest.com.cn  , 086-755-33663308 |
| TCB Email | TEI@TIMCOENGR.COM  |
| TCB Scope | B1: Commercial mobile radio services equipment in the following 47 CFR Parts 20, 22 (cellular), 24,25 (below 3 GHz) & 27 |
| Short-Term Confidentiality | No |
| Long-Term Confidentiality | Yes |
| Grant Deferral | No |
| Modular Equipment | Does not apply |
| Composite Device | No |
| Composite Part | No |
| Cognitive Radio | No |
| Authorization Waiver | No |
| Authorization Waiver Approved | No |
| Section 5301 Certification | Yes |
| Related OET Knowledge DataBase Inquiry | No |
| Grant Comments | Power listed is EIRP for Part 24 and ERP for Part 22. The antenna(s) used for this transmitter must be installed to provide a separation distance of at least 20 cm from all persons and must not be co-located or operated in conjunction with any other antenna or transmitter. The antenna installation and operating configurations of this transmitter, including any applicable source-based time-averaging duty factor, antenna gain and cable loss must satisfy MPE categorical Exclusion Requirements of part 2.1091. Users must be provided with instructions and transmitter operating conditions for satisfying RF exposure compliance. This device contains functions that are not operational in U.S. Territories. This filing is only applicable for U.S. operations. |
Applications
| Application ID | Date | Purpose |
|---|---|---|
| or/g6Zqd9ETXuAIhsuPeyg== | 2017-03-20 | Original Equipment |
Equipment Authorization
Grants
TCB Grant - Application or/g6Zqd9ETXuAIhsuPeyg==
| TCB | GRANT OF EQUIPMENT AUTHORIZATION |
TCB |
| Certification | ||
| Issued Under the Authority of the | ||
| Federal Communications Commission | ||
| By: |
|
Timco Engineering, Inc. 849 NW State Road 45 Newberry, FL 32669 |
Date of Grant: 03/20/2017 Application Dated: 03/20/2017 |
| Shenzhen Concox Information Technology Co., Ltd |
| Floor 4th, Building B, Gaoxinqi Industrial Park, |
| Liuxian 1st Road, District 67, Bao'an, |
| Shenzhen, 518102 China |
| Attention: Chosen Gao , General Manager |
| NOT TRANSFERABLE |
| EQUIPMENT AUTHORIZATION is hereby issued to the named GRANTEE, and is VALID ONLY for the equipment identified hereon for use under the Commission's Rules and Regulations listed below. |
| FCC IDENTIFIER: | X7IGV20 |
| Name of Grantee: | Shenzhen Concox Information Technology Co., Ltd |
| Equipment Class: | PCS Licensed Transmitter |
| Notes: | Vehicle gps tracker |
| Grant Notes | FCC Rule Parts | Frequency Range (MHZ) | Output Watts | Frequency Tolerance | Emission Designator |
| 22H | 824.2 - 848.8 | 1.2972 | 0.0634 PM | 250KGXW | |
| 24E | 1850.2 - 1909.8 | 0.9268 | 0.0346 PM | 250KGXW | |
| 22H | 824.2 - 848.8 | 0.5346 | 0.0669 PM | 243KG7W | |
| 24E | 1850.2 - 1909.8 | 0.2328 | 0.034 PM | 250KG7W | |
| 22H | 826.4 - 846.6 | 0.2153 | 0.0753 PM | 4M11F9W | |
| 24E | 1852.4 - 1907.6 | 0.1837 | 0.0399 PM | 4M11F9W |
| Power listed is EIRP for Part 24 and ERP for Part 22. The antenna(s) used for this transmitter must be installed to provide a separation distance of at least 20 cm from all persons and must not be co-located or operated in conjunction with any other antenna or transmitter. The antenna installation and operating configurations of this transmitter, including any applicable source-based time-averaging duty factor, antenna gain and cable loss must satisfy MPE categorical Exclusion Requirements of part 2.1091. Users must be provided with instructions and transmitter operating conditions for satisfying RF exposure compliance. This device contains functions that are not operational in U.S. Territories. This filing is only applicable for U.S. operations. |
EAS Grant - Application or/g6Zqd9ETXuAIhsuPeyg==
| COPY |
FEDERAL COMMUNICATIONS COMMISSION WASHINGTON, D.C. 20554 GRANT OF EQUIPMENT AUTHORIZATION |
COPY |
| Certification |
|
Shenzhen Concox Information Technology Co., Ltd Floor 4th, Building B, Gaoxinqi Industrial Park, Liuxian 1st Road, District 67, Bao'an, Shenzhen, 518102 China |
Date of Grant: 03/20/2017 Application Dated: 03/20/2017 |
| Attention: Chosen Gao , General Manager |
| NOT TRANSFERABLE |
| EQUIPMENT AUTHORIZATION is hereby issued to the named GRANTEE, and is VALID ONLY for the equipment identified hereon for use under the Commission's Rules and Regulations listed below. |
| FCC IDENTIFIER: | X7IGV20 |
| Name of Grantee: | Shenzhen Concox Information Technology Co., Ltd |
| Equipment Class: | PCS Licensed Transmitter |
| Notes: | Vehicle gps tracker |
| Modular Type: | Does not apply |
| Grant Notes | FCC Rule Parts | Frequency Range (MHZ) | Output Watts | Frequency Tolerance | Emission Designator |
| 22H | 824.2 - 848.8 | 1.2972 | 0.0634 PM | 250KGXW | |
| 24E | 1850.2 - 1909.8 | 0.9268 | 0.0346 PM | 250KGXW | |
| 22H | 824.2 - 848.8 | 0.5346 | 0.0669 PM | 243KG7W | |
| 24E | 1850.2 - 1909.8 | 0.2328 | 0.034 PM | 250KG7W | |
| 22H | 826.4 - 846.6 | 0.2153 | 0.0753 PM | 4M11F9W | |
| 24E | 1852.4 - 1907.6 | 0.1837 | 0.0399 PM | 4M11F9W |
| Power listed is EIRP for Part 24 and ERP for Part 22. The antenna(s) used for this transmitter must be installed to provide a separation distance of at least 20 cm from all persons and must not be co-located or operated in conjunction with any other antenna or transmitter. The antenna installation and operating configurations of this transmitter, including any applicable source-based time-averaging duty factor, antenna gain and cable loss must satisfy MPE categorical Exclusion Requirements of part 2.1091. Users must be provided with instructions and transmitter operating conditions for satisfying RF exposure compliance. This device contains functions that are not operational in U.S. Territories. This filing is only applicable for U.S. operations. |
