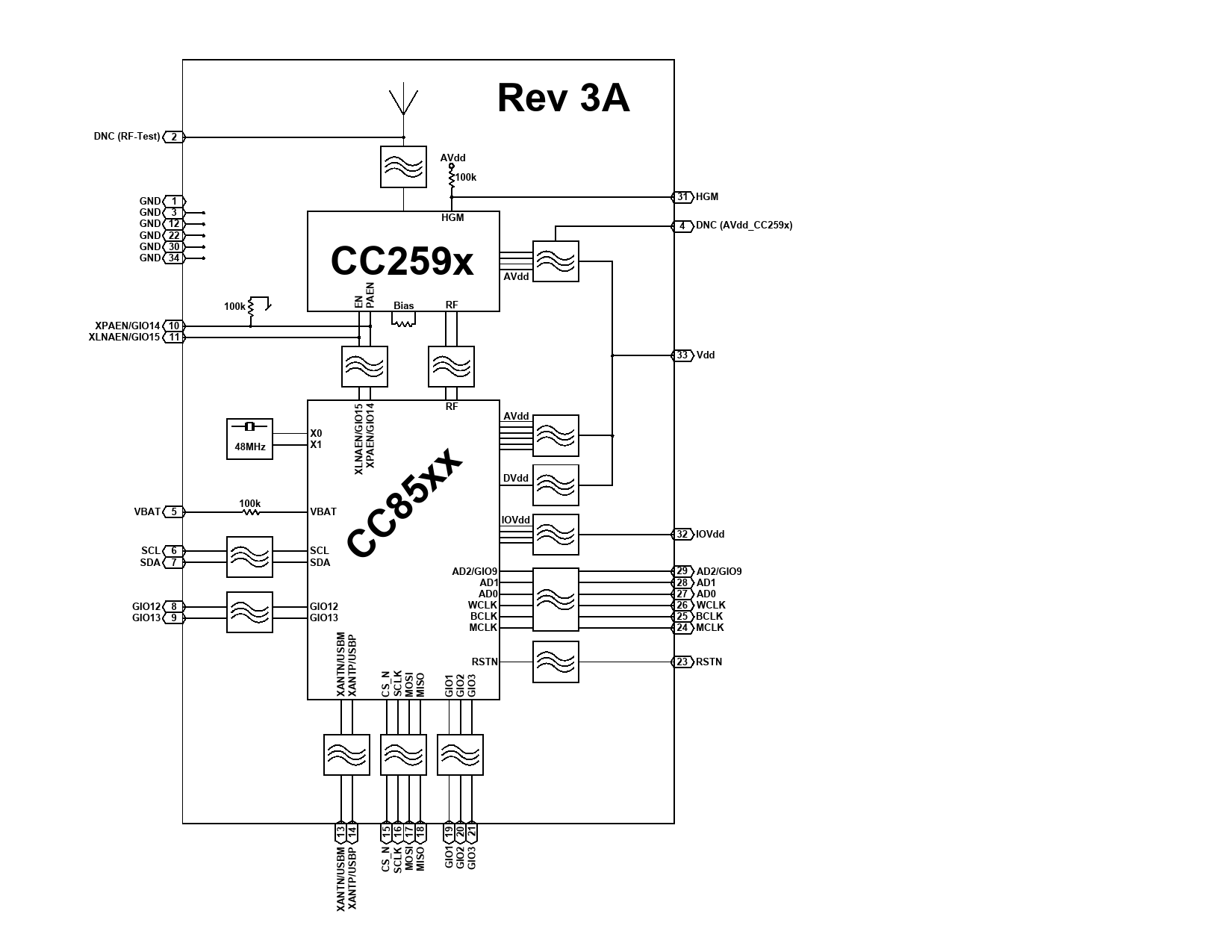

A10051701 2.4GHz Transceiver Block Diagram - FCC ID X7J-A10051701

FCC ID X7J-A10051701

Block Diagram

2.4GHz Transceiver

by Anaren, Inc.

Document preview loads when visible.

Document Details

FCC IDX7J-A10051701
Document ID1397277
Document TypeBlock Diagram
DescriptionBlock Diagram
Document TitleModel
ApplicantAnaren, Inc.
Equipment Class2.4GHz Transceiver
Product CodeA10051701
Application IDeppTH4evlpk6ypBd4ZRPFQ==
Application PurposeOriginal Equipment
Application Date2010-12-27
Frequency Range2406-2474 MHz
FRN0019615046
Test FirmCompliance Certification Services
Certified ByMark Burdick
Short-Term ConfidentialityNo
Long-Term ConfidentialityNo
Short-Term Confidentiality Date06/25/2011
Grant DeferralNo
Modular EquipmentSingle Modular Approval
Composite DeviceNo
Composite PartNo
Submitted2010-12-27
Available2011-06-25
Created2010-12-27
Modified2010-12-27
Pages1
File TypeAdobe Acrobat PDF
File Size77637
File SHA-2564eb04b201c3e454dc47a9ad4dc3e4546989f6c3b1429c1925a9561832271df9b
PDF Metadata AuthorNone
PDF Metadata CreatorAutoCAD 2010 2010 (18.0s (LMS Tech))
PDF Metadata Producerpdfplot10.hdi 10.0.309.0
FCC.gov SourcesFCC.gov 1397277
