68038 An Inductive Toy Doll (RFID reader)... - FCC ID X8V68038

FCC ID X8V68038

Block Diagram

An Inductive Toy Doll (RFID reader)

by HONG KONG CITY TOYS FTY. LTD.

Document preview loads when visible.

Document Details

FCC IDX8V68038
Document ID1258643
Document TypeBlock Diagram
DescriptionBlock Diagram

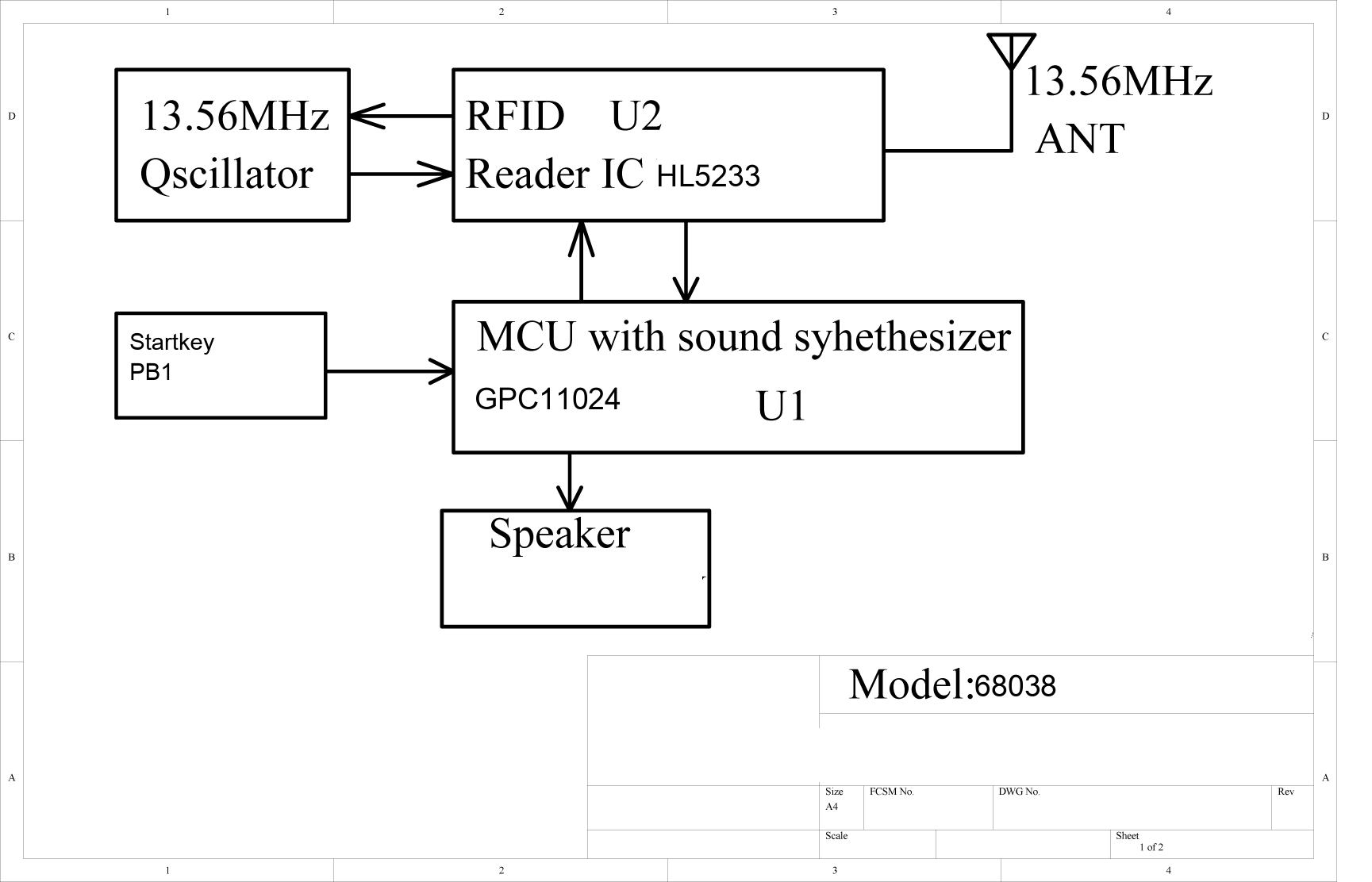

Document TitleProtel Schematic
ApplicantHONG KONG CITY TOYS FTY. LTD.
Equipment ClassAn Inductive Toy Doll (RFID reader)
Product Code68038
Application IDBhRhRD9w6MVl5rpQosLETg==
Application PurposeOriginal Equipment
Application Date2010-03-30
Frequency Range13.56 MHz
FRN0019678614
Test FirmIntertek Testing Services Hong Kong Ltd.
Certified ByBen Ho Senior Supervisor
Short-Term ConfidentialityNo
Long-Term ConfidentialityNo
Grant DeferralNo
Modular EquipmentDoes not apply
Composite DeviceNo
Composite PartNo
Submitted2010-03-30
Available2010-03-30
Created2009-10-17
Modified2010-03-25
Pages1
File TypeAdobe Acrobat PDF
File Size971583
File SHA-25679571b1d7e878d1eaaf72c8cb53ac9566bd602b3e19bf2bd93f9280aa4bb66ac
PDF Metadata Authordng01
PDF Metadata CreatorAdobe Photoshop CS2 Windows
PDF Metadata ProducerAdobe Photoshop for Windows -- Image Conversion Plug-in
FCC.gov SourcesFCC.gov 1258643
