HB2XRFXXXX Remote control for Actuator... - FCC ID XBE-HB2XRFXXXX

FCC ID XBE-HB2XRFXXXX

PCB - Silk Bottom

Remote control for Actuator system

by LINAK A/S

Document preview loads when visible.

Document Details

FCC IDXBE-HB2XRFXXXX
Document ID1450080
Document TypeSchematics

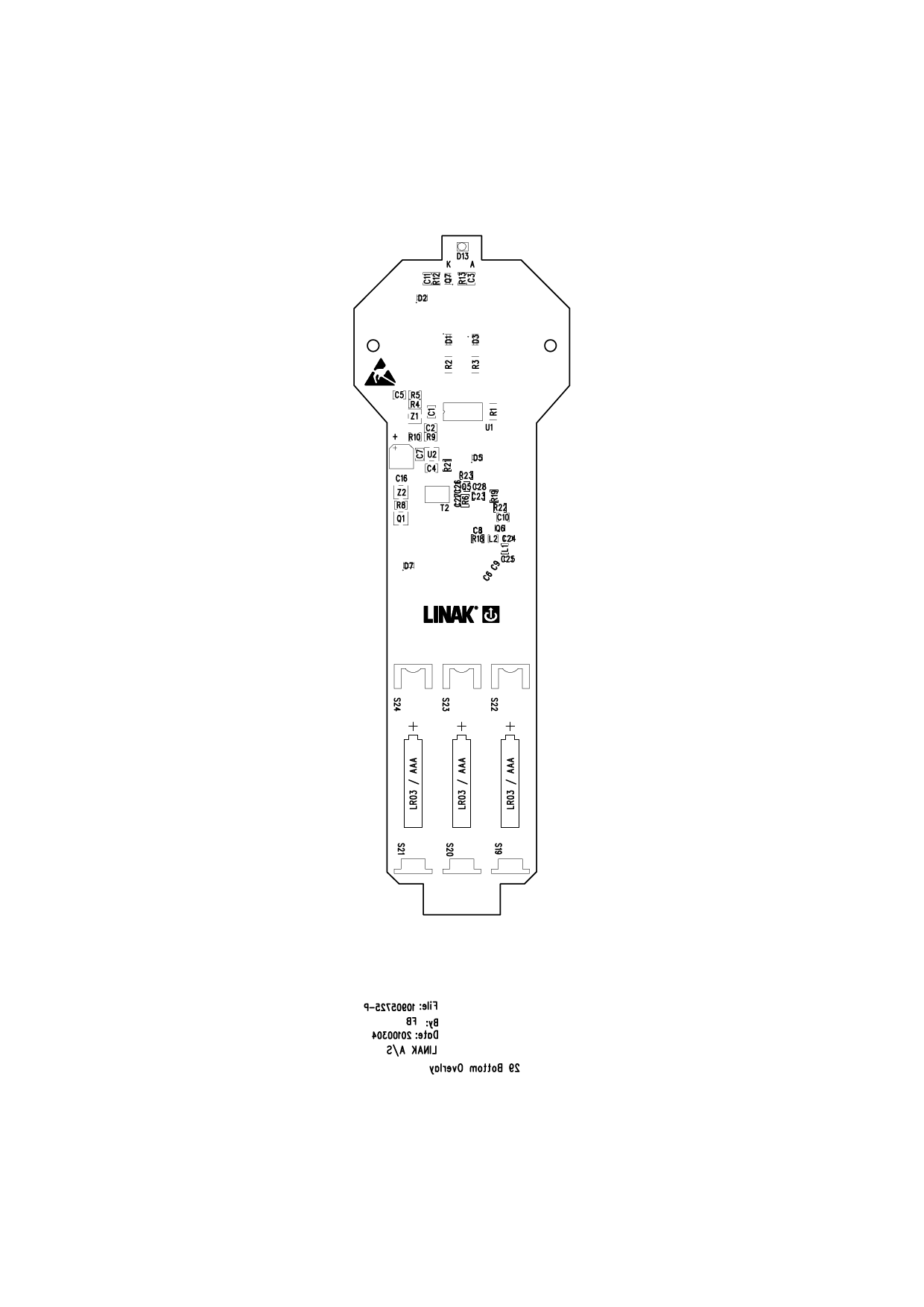

DescriptionPCB - Silk Bottom
Document TitleNone
ApplicantLINAK A/S
Equipment ClassRemote control for Actuator system
Product CodeHB2XRFXXXX
Application IDaIMAiuvR1l6P6YvHueIDAQ==
Application PurposeOriginal Equipment
Application Date2011-04-18
Frequency Range433.92 MHz
FRN0018697276
Test FirmMET Laboratories, Inc.
Certified ByKarsten Eichhorn Ottsen Project Manager
Short-Term ConfidentialityNo
Long-Term ConfidentialityNo
Grant DeferralNo
Modular EquipmentDoes not apply
Composite DeviceNo
Composite PartNo
Submitted2011-04-18
Available2011-04-18
Created2010-06-01
Modified2010-06-01
Pages1
File TypeAdobe Acrobat PDF
File Size21233
File SHA-25602a5ca65596d1c1a9523a8a48dc3730737c08dd71befdd69a4491bfea81f64fe
PDF Metadata AuthorNone
PDF Metadata CreatorNone
PDF Metadata ProducerAcrobat Distiller 5.0.5 (Windows)
FCC.gov SourcesFCC.gov 1450080

Related FCC Exhibits

DocumentTypeAvailableFile
User ManualUsers Manual2011-04-18PDF 905.8 KB
Internal PhotosInternal Photos2011-04-18PDF 716.6 KB
External PhotosExternal Photos2011-04-18PDF 186 KB
Label and LocationID Label/Location Info2011-04-18PDF 235.4 KB
Block DiagramBlock Diagram2011-04-18PDF 211.3 KB
PCB - Art BottomSchematics2011-04-18PDF 54.4 KB
PCB - Art TopSchematics2011-04-18PDF 53.5 KB
PCB - Silk BottomSchematics2011-04-18PDF 20.7 KB
PCB - Silk TopSchematics2011-04-18PDF 8.6 KB
SchematicsSchematics2011-04-18PDF 119.9 KB
Technical DescriptionOperational Description2011-04-18PDF 36.1 KB
Test Setup PhotosTest Setup Photos2011-04-18PDF 384.7 KB
Test ReportTest Report2011-04-18PDF 863.4 KB
BOMParts List/Tune Up Info2011-04-18PDF 133.9 KB
