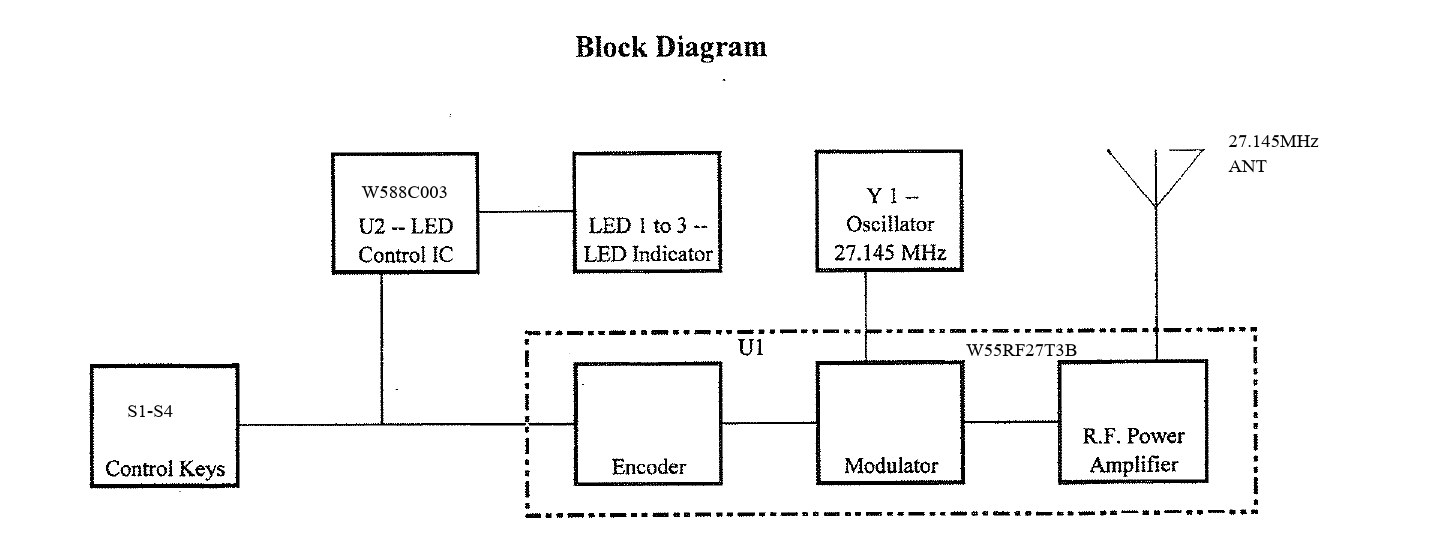

39175 RC Helmet Block Diagram - FCC ID XBU39175

FCC ID XBU39175

Block Diagram

RC Helmet

by Musical Industries Limited

Document preview loads when visible.

Document Details

FCC IDXBU39175
Document ID1127789
Document TypeBlock Diagram
DescriptionBlock Diagram
Document TitleNone
ApplicantMusical Industries Limited
Equipment ClassRC Helmet
Product Code39175
Application ID/tBYnmvkAwxsRL+wu/156w==
Application PurposeOriginal Equipment
Application Date2009-06-23
Frequency Range27.145 MHz
FRN0018858266
Test FirmIntertek Testing Services Hong Kong Ltd.
Certified ByBen Ho Senior Supervisor
Short-Term ConfidentialityNo
Long-Term ConfidentialityNo
Grant DeferralNo
Modular EquipmentDoes not apply
Composite DeviceNo
Composite PartNo
Submitted2009-06-23
Available2009-06-23
Created2009-06-09
Modified2009-06-12
Pages1
File TypeAdobe Acrobat PDF
File Size458052
File SHA-2566f2c9937fd1f1663cda2c026510f954f085510c1860f554f97815d8165f40a78
PDF Metadata AuthorNone
PDF Metadata CreatorNone
PDF Metadata ProducerNone
FCC.gov SourcesFCC.gov 1127789
