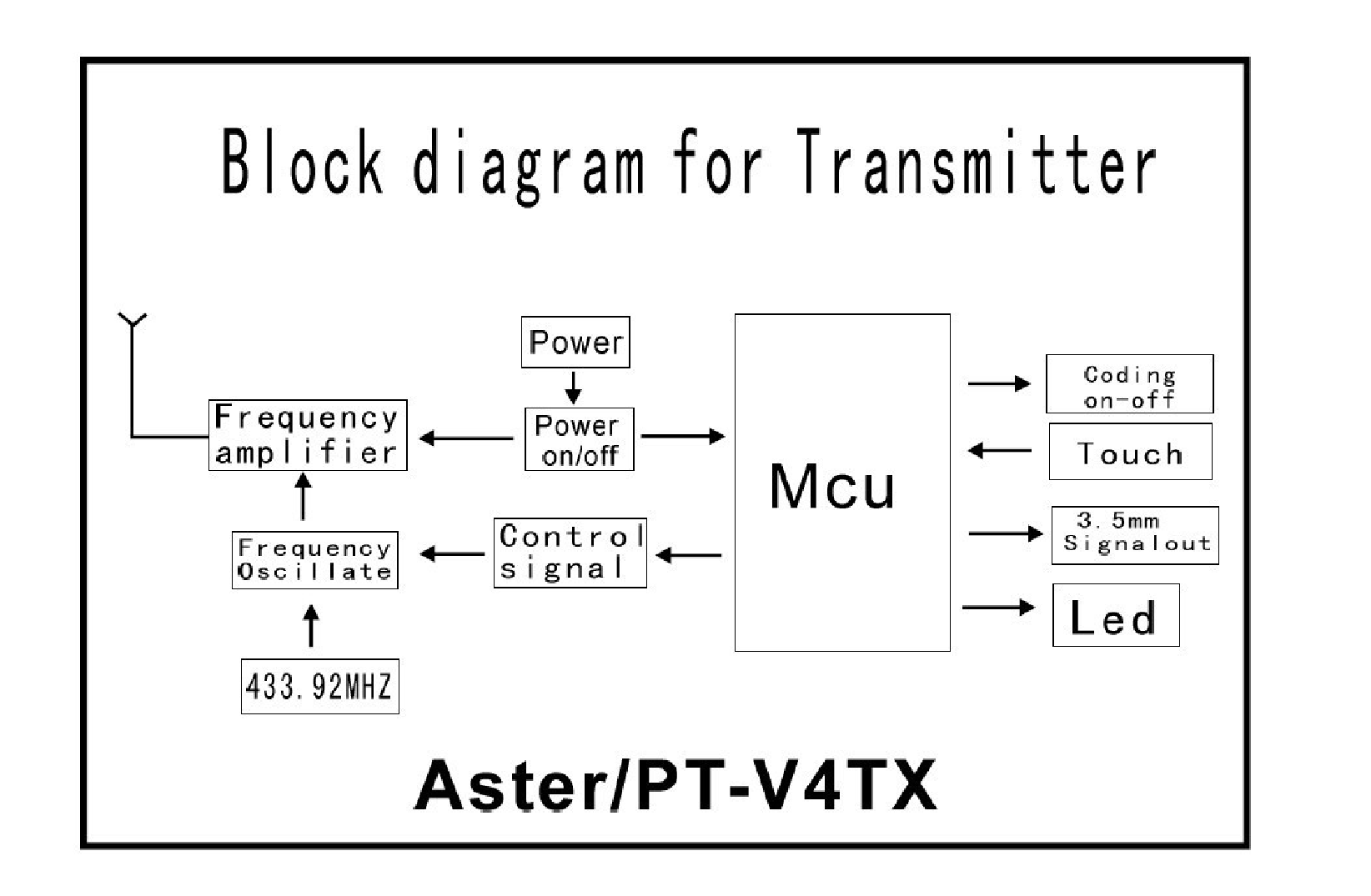

ASTERTX WIRELESS FLASH TRIGGER Block Diagram - FCC ID XBYASTERTX

FCC ID XBYASTERTX

Block Diagram

WIRELESS FLASH TRIGGER

by Shenzhen Fudasi Technology Co., Ltd.

Document preview loads when visible.

Document Details

FCC IDXBYASTERTX
Document ID1234073
Document TypeBlock Diagram
DescriptionBlock Diagram
Document TitleNone
ApplicantShenzhen Fudasi Technology Co., Ltd.
Equipment ClassWIRELESS FLASH TRIGGER
Product CodeASTERTX
Application ID3NxYrJeHCRmq5jh5WhQOgQ==
Application PurposeOriginal Equipment
Application Date2010-01-28
Frequency Range433.92 MHz
FRN0018721373
Test FirmSEM.Test Compliance Service Co., Ltd.
Certified ByJustin Zhang Manager
Short-Term ConfidentialityNo
Long-Term ConfidentialityNo
Grant DeferralNo
Modular EquipmentDoes not apply
Composite DeviceNo
Composite PartYes
Submitted2010-01-28
Available2010-01-28
Created2010-01-28
Modified2010-01-28
Pages1
File TypeAdobe Acrobat PDF
File Size131835
File SHA-2568ac4261c385d4affe943a273c2eb5d943e481dca141b09788b911e6d2a0c76c2
PDF Metadata AuthorNone
PDF Metadata CreatorAdobe Photoshop CS
PDF Metadata ProducerAdobe Photoshop for Windows -- Image Conversion Plug-in
FCC.gov SourcesFCC.gov 1234073
