FCC ID XCO-HSDWAM83
Wireless module
by Hansong(Nanjing) Technology Ltd.
Grantee Code: XCO Product Code: HSDWAM83
Latest application date: 2016-06-30
Device Images
FCC ID Device Details
| FCC ID | XCO-HSDWAM83 |
|---|---|
| Mirrors | fcc.id | gov | fccid.ai |
| Grantee Code | XCO |
| Product Code | HSDWAM83 |
| Applicant Business | Hansong(Nanjing) Technology Ltd. 🇨🇳 |
| Related Domains |  hansong-china.com |
| Equipment Class | Wireless module |
| Test Firm | Intertek Testing Services Limited Shanghai |
Operating Frequencies
| Frequency Range | Application Purpose | Final Action Date |
|---|---|---|
| 2412-2464 MHz | Class II permissive change or modification of presently authorized equipment | 2016-06-30 |
| 5180-5240 MHz | Class II permissive change or modification of presently authorized equipment | 2016-06-30 |
| 5180-5240 MHz | Original Equipment | 2014-01-10 |
| 2412-2464 MHz | Original Equipment | 2014-01-10 |
Exhibits
| Document | Type | Available | File |
|---|---|---|---|
| XCO-HSDWAM83_user manual | Users Manual | 2014-01-10 | PDF 319.9 KB |
| XCO-HSDWAM83_Internal photo | Internal Photos | 2014-01-10 | PDF 301.9 KB |
| XCO-HSDWAM83_External poto | External Photos | 2014-01-10 | PDF 269.7 KB |
| XCO-HSDWAM83_Label | ID Label/Location Info | 2014-01-10 | PDF 137.3 KB |

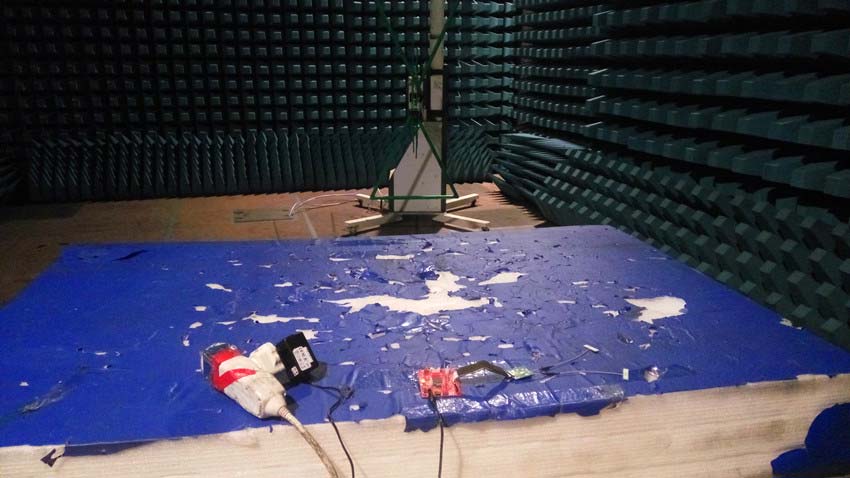

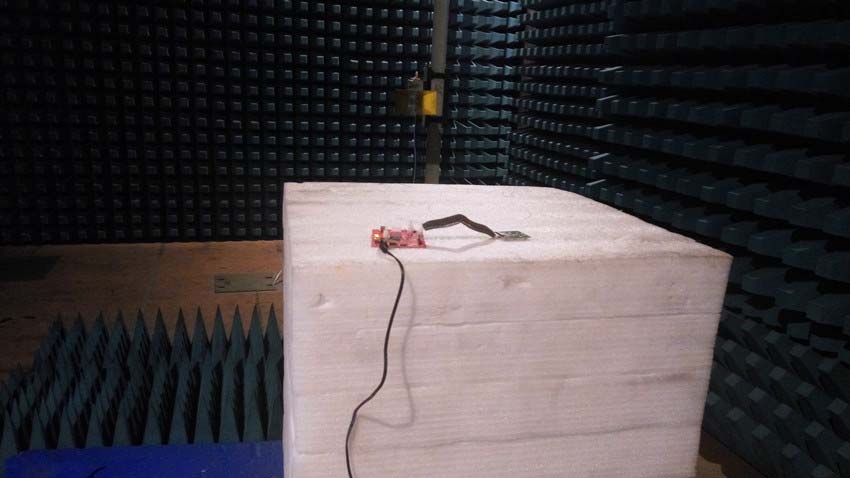

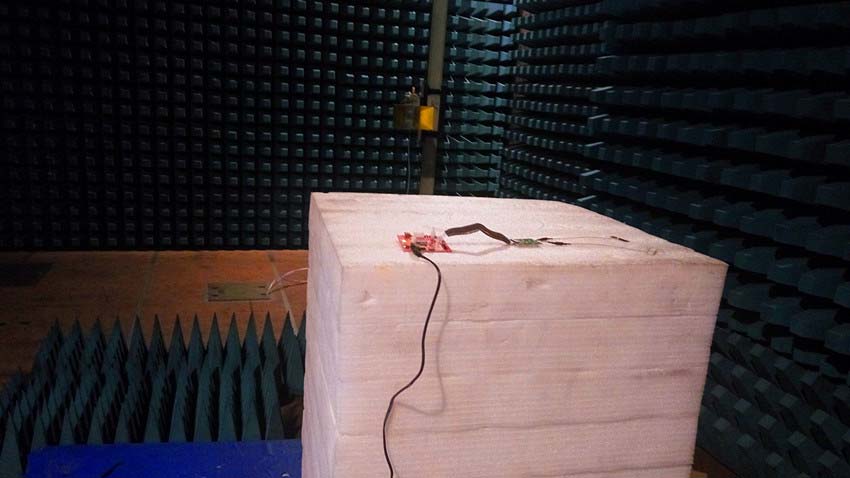

| Test Setup | Test Setup Photos | 2016-06-30 | PDF 358 KB |
| XCO-HSDWAM83_Test setup | Test Setup Photos | 2014-01-10 | PDF 541.1 KB |
| FCC MPE Report_1 | Test Report | 2016-06-30 | PDF 65.5 KB |
| Test report-DTS | Test Report | 2016-06-30 | PDF 2 MB |
| Test report-NII | Test Report | 2016-06-30 | PDF 1.3 MB |
| XCO-HSDWAM83_report_15.247 | Test Report | 2014-01-10 | PDF 3.4 MB |
| XCO-HSDWAM83_report_15.407_rev | Test Report | 2014-01-10 | PDF 1.1 MB |
| Cover Letter-PC II ver2 Metadata only | Cover Letter(s) | 2016-06-30 | PDF 122.7 KB |
| Cover Letter-PC II ver4 | Cover Letter(s) | 2016-06-30 | PDF 74 KB |
| FCC Agency | Cover Letter(s) | 2016-06-30 | PDF 50.1 KB |
| U-NII Device Security | Cover Letter(s) | 2016-06-30 | PDF 73.8 KB |
| XCO-HSDWAM83_FCC agent | Cover Letter(s) | 2014-01-10 | PDF 34.9 KB |
| XCO-HSDWAM83_Modular Approval | Cover Letter(s) | 2014-01-10 | PDF 123.2 KB |
| XCO-HSDWAM83_confidentiality | Cover Letter(s) | 2014-01-10 | PDF 74.7 KB |
| FCC MPE Report_1 | RF Exposure Info | 2016-06-30 | PDF 65.5 KB |
| XCO-HSDWAM83_MPE | RF Exposure Info | 2014-01-10 | PDF 21.9 KB |
Application Information
| Application ID | wajuDWJJjvD0zeED/mXX+g== |
|---|---|
| Final Action Date | 2016-06-30 |
| Application Purpose | Class II permissive change or modification of presently authorized equipment |
| Applicant FRN | 0018740043 |
| Model | HSDWAM83 |
| Frequency Range | 2412-2464 MHz |
| Equipment Class | DTS - Digital Transmission System |
| Device Description | Wireless module |
| Responsible Party | Wyn B Wang, General Manager, wyn.wang@hansong-china.com , 0086-25-66612888 |
| Agent | wakeyou wakeyou wakeyou, Intertek Testing Services Limited Shanghai, wakeyou.wang@intertek.com  , 86-21-61278448 |
| Technical Contact | Daniel Zhao, Intertek Testing Services Limited Shanghai, daniel.zhao@intertek.com , 86 21 61278269 |
| Test Firm | Jonny Jing, Intertek Testing Services Limited Shanghai, jonny.jing@intertek.com , 86-21-61278271 |
| TCB Email | hotline@acbcert.com  |
| TCB Scope | A4: UNII devices & low power transmitters using spread spectrum techniques |
| Short-Term Confidentiality | No |
| Long-Term Confidentiality | Yes |
| Grant Deferral | No |
| Modular Equipment | Single Modular Approval |
| Composite Device | Yes |
| Composite Part | No |
| Cognitive Radio | No |
| Authorization Waiver | No |
| Authorization Waiver Approved | No |
| Section 5301 Certification | Yes |
| Related OET Knowledge DataBase Inquiry | No |
| Grant Comments | Class II Permissive Change to update standard. Power Output listed is Conducted. Modular Approval. The antenna(s) used for this transmitter must not be co-located or operating in conjunction with any other antenna or transmitter. Only those antenna(s) tested with the device or similar antenna(s) with equal or lesser gain may be used with this transmitter. The antennas used for this transmitter must be installed to provide a separation distance of at least 20 cm from all persons and not be co-located with any other transmitters except in accordance with FCC multi-transmitter product procedures. End-users and installers must be provided with antenna installation instructions and transmitter operating conditions for satisfying RF exposure compliance. |
Applications
| Application ID | Date | Purpose |
|---|---|---|
| wajuDWJJjvD0zeED/mXX+g== | 2016-06-30 | Class II permissive change or modification of presently authorized equipment |
| C6lsLUmK0QkGppm3GNjunA== | 2016-06-30 | Class II permissive change or modification of presently authorized equipment |
| WsSQQHlVzB43ou8aYXUlHg== | 2014-01-10 | Original Equipment |
| JhkJvh0eiiNOPLvW/Oab2g== | 2014-01-10 | Original Equipment |
Equipment Authorization
Grants
TCB Grant - Application WsSQQHlVzB43ou8aYXUlHg==
| TCB | GRANT OF EQUIPMENT AUTHORIZATION |
TCB |
| Certification | ||
| Issued Under the Authority of the | ||
| Federal Communications Commission | ||
| By: |
|
ACB, Inc. 6731 Whittier Avenue Suite C110 McLean, VA 22101 |
Date of Grant: 01/10/2014 Application Dated: 01/10/2014 |
| Hansong(Nanjing) Technology Ltd. |
| 8th Kangping Road |
| Jiangning Economy and Technology Development Zone |
| Nanjing, 211100 China |
| Attention: Wyn B Wang , General Manager |
| NOT TRANSFERABLE |
| EQUIPMENT AUTHORIZATION is hereby issued to the named GRANTEE, and is VALID ONLY for the equipment identified hereon for use under the Commission's Rules and Regulations listed below. |
| FCC IDENTIFIER: | XCO-HSDWAM83 |
| Name of Grantee: | Hansong(Nanjing) Technology Ltd. |
| Equipment Class: | Unlicensed National Information Infrastructure TX |
| Notes: | Wireless module |
| Grant Notes | FCC Rule Parts | Frequency Range (MHZ) | Output Watts | Frequency Tolerance | Emission Designator |
| CC | 15E | 5180.0 - 5240.0 | 0.006 |
| Power Output listed is Conducted. Modular Approval. The antenna(s) used for this transmitter must not be co-located or operating in conjunction with any other antenna or transmitter. Only those antenna(s) tested with the device or similar antenna(s) with equal or lesser gain may be used with this transmitter. The antennas used for this transmitter must be installed to provide a separation distance of at least 20 cm from all persons and not be co-located with any other transmitters except in accordance with FCC multi-transmitter product procedures. End-users and installers must be provided with antenna installation instructions and transmitter operating conditions for satisfying RF exposure compliance. |
| CC: | This device is certified pursuant to two different Part 15 rules sections. |
EAS Grant - Application WsSQQHlVzB43ou8aYXUlHg==
| COPY |
FEDERAL COMMUNICATIONS COMMISSION WASHINGTON, D.C. 20554 GRANT OF EQUIPMENT AUTHORIZATION |
COPY |
| Certification |
|
Hansong(Nanjing) Technology Ltd. 8th Kangping Road Jiangning Economy and Technology Development Zone Nanjing, 211100 China |
Date of Grant: 01/10/2014 Application Dated: 01/10/2014 |
| Attention: Wyn B Wang , General Manager |
| NOT TRANSFERABLE |
| EQUIPMENT AUTHORIZATION is hereby issued to the named GRANTEE, and is VALID ONLY for the equipment identified hereon for use under the Commission's Rules and Regulations listed below. |
| FCC IDENTIFIER: | XCO-HSDWAM83 |
| Name of Grantee: | Hansong(Nanjing) Technology Ltd. |
| Equipment Class: | Unlicensed National Information Infrastructure TX |
| Notes: | Wireless module |
| Modular Type: | Does not apply |
| Grant Notes | FCC Rule Parts | Frequency Range (MHZ) | Output Watts | Frequency Tolerance | Emission Designator |
| CC | 15E | 5180.0 - 5240.0 | 0.006 |
| Power Output listed is Conducted. Modular Approval. The antenna(s) used for this transmitter must not be co-located or operating in conjunction with any other antenna or transmitter. Only those antenna(s) tested with the device or similar antenna(s) with equal or lesser gain may be used with this transmitter. The antennas used for this transmitter must be installed to provide a separation distance of at least 20 cm from all persons and not be co-located with any other transmitters except in accordance with FCC multi-transmitter product procedures. End-users and installers must be provided with antenna installation instructions and transmitter operating conditions for satisfying RF exposure compliance. |
| CC: | This device is certified pursuant to two different Part 15 rules sections. |
| Mail To: | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| TCB | GRANT OF EQUIPMENT AUTHORIZATION |
TCB |
| Certification | ||
| Issued Under the Authority of the | ||
| Federal Communications Commission | ||
| By: |
|
ACB, Inc. 6731 Whittier Avenue Suite C110 McLean, VA 22101 |
Date of Grant: 06/30/2016 Application Dated: 06/28/2016 |
| Hansong(Nanjing) Technology Ltd. |
| 8th Kangping Road |
| Jiangning Economy and Technology Development Zone |
| Nanjing, 211100 China |
| Attention: Wyn B Wang , General Manager |
| NOT TRANSFERABLE |
| EQUIPMENT AUTHORIZATION is hereby issued to the named GRANTEE, and is VALID ONLY for the equipment identified hereon for use under the Commission's Rules and Regulations listed below. |
| FCC IDENTIFIER: | XCO-HSDWAM83 |
| Name of Grantee: | Hansong(Nanjing) Technology Ltd. |
| Equipment Class: | Digital Transmission System |
| Notes: | Wireless module |
| Modular Type: | Single Modular |
| Grant Notes | FCC Rule Parts | Frequency Range (MHZ) | Output Watts | Frequency Tolerance | Emission Designator |
| CC | 15C | 2412.0 - 2464.0 | 0.089 |
| Class II Permissive Change to update standard. Power Output listed is Conducted. Modular Approval. The antenna(s) used for this transmitter must not be co-located or operating in conjunction with any other antenna or transmitter. Only those antenna(s) tested with the device or similar antenna(s) with equal or lesser gain may be used with this transmitter. The antennas used for this transmitter must be installed to provide a separation distance of at least 20 cm from all persons and not be co-located with any other transmitters except in accordance with FCC multi-transmitter product procedures. End-users and installers must be provided with antenna installation instructions and transmitter operating conditions for satisfying RF exposure compliance. |
| CC: | This device is certified pursuant to two different Part 15 rules sections. |
EAS Grant - Application wajuDWJJjvD0zeED/mXX+g==
| COPY |
FEDERAL COMMUNICATIONS COMMISSION WASHINGTON, D.C. 20554 GRANT OF EQUIPMENT AUTHORIZATION |
COPY |
| Certification |
|
Hansong(Nanjing) Technology Ltd. 8th Kangping Road Jiangning Economy and Technology Development Zone Nanjing, 211100 China |
Date of Grant: 06/30/2016 Application Dated: 06/28/2016 |
| Attention: Wyn B Wang , General Manager |
| NOT TRANSFERABLE |
| EQUIPMENT AUTHORIZATION is hereby issued to the named GRANTEE, and is VALID ONLY for the equipment identified hereon for use under the Commission's Rules and Regulations listed below. |
| FCC IDENTIFIER: | XCO-HSDWAM83 |
| Name of Grantee: | Hansong(Nanjing) Technology Ltd. |
| Equipment Class: | Digital Transmission System |
| Notes: | Wireless module |
| Modular Type: | Single Modular |
| Grant Notes | FCC Rule Parts | Frequency Range (MHZ) | Output Watts | Frequency Tolerance | Emission Designator |
| CC | 15C | 2412.0 - 2464.0 | 0.089 |
| Class II Permissive Change to update standard. Power Output listed is Conducted. Modular Approval. The antenna(s) used for this transmitter must not be co-located or operating in conjunction with any other antenna or transmitter. Only those antenna(s) tested with the device or similar antenna(s) with equal or lesser gain may be used with this transmitter. The antennas used for this transmitter must be installed to provide a separation distance of at least 20 cm from all persons and not be co-located with any other transmitters except in accordance with FCC multi-transmitter product procedures. End-users and installers must be provided with antenna installation instructions and transmitter operating conditions for satisfying RF exposure compliance. |
| CC: | This device is certified pursuant to two different Part 15 rules sections. |
| Mail To: | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| TCB | GRANT OF EQUIPMENT AUTHORIZATION |
TCB |
| Certification | ||
| Issued Under the Authority of the | ||
| Federal Communications Commission | ||
| By: |
|
ACB, Inc. 6731 Whittier Avenue Suite C110 McLean, VA 22101 |
Date of Grant: 01/10/2014 Application Dated: 01/10/2014 |
| Hansong(Nanjing) Technology Ltd. |
| 8th Kangping Road |
| Jiangning Economy and Technology Development Zone |
| Nanjing, 211100 China |
| Attention: Wyn B Wang , General Manager |
| NOT TRANSFERABLE |
| EQUIPMENT AUTHORIZATION is hereby issued to the named GRANTEE, and is VALID ONLY for the equipment identified hereon for use under the Commission's Rules and Regulations listed below. |
| FCC IDENTIFIER: | XCO-HSDWAM83 |
| Name of Grantee: | Hansong(Nanjing) Technology Ltd. |
| Equipment Class: | Digital Transmission System |
| Notes: | Wireless module |
| Modular Type: | Single Modular |
| Grant Notes | FCC Rule Parts | Frequency Range (MHZ) | Output Watts | Frequency Tolerance | Emission Designator |
| CC | 15C | 2412.0 - 2464.0 | 0.089 | ||
| CC | 15C | 5736.0 - 5814.0 | 0.05 |
| Power Output listed is Conducted. Modular Approval. The antenna(s) used for this transmitter must not be co-located or operating in conjunction with any other antenna or transmitter. Only those antenna(s) tested with the device or similar antenna(s) with equal or lesser gain may be used with this transmitter. The antennas used for this transmitter must be installed to provide a separation distance of at least 20 cm from all persons and not be co-located with any other transmitters except in accordance with FCC multi-transmitter product procedures. End-users and installers must be provided with antenna installation instructions and transmitter operating conditions for satisfying RF exposure compliance. |
| CC: | This device is certified pursuant to two different Part 15 rules sections. |
EAS Grant - Application JhkJvh0eiiNOPLvW/Oab2g==
| COPY |
FEDERAL COMMUNICATIONS COMMISSION WASHINGTON, D.C. 20554 GRANT OF EQUIPMENT AUTHORIZATION |
COPY |
| Certification |
|
Hansong(Nanjing) Technology Ltd. 8th Kangping Road Jiangning Economy and Technology Development Zone Nanjing, 211100 China |
Date of Grant: 01/10/2014 Application Dated: 01/10/2014 |
| Attention: Wyn B Wang , General Manager |
| NOT TRANSFERABLE |
| EQUIPMENT AUTHORIZATION is hereby issued to the named GRANTEE, and is VALID ONLY for the equipment identified hereon for use under the Commission's Rules and Regulations listed below. |
| FCC IDENTIFIER: | XCO-HSDWAM83 |
| Name of Grantee: | Hansong(Nanjing) Technology Ltd. |
| Equipment Class: | Digital Transmission System |
| Notes: | Wireless module |
| Modular Type: | Single Modular |
| Grant Notes | FCC Rule Parts | Frequency Range (MHZ) | Output Watts | Frequency Tolerance | Emission Designator |
| CC | 15C | 2412.0 - 2464.0 | 0.089 | ||
| CC | 15C | 5736.0 - 5814.0 | 0.05 |
| Power Output listed is Conducted. Modular Approval. The antenna(s) used for this transmitter must not be co-located or operating in conjunction with any other antenna or transmitter. Only those antenna(s) tested with the device or similar antenna(s) with equal or lesser gain may be used with this transmitter. The antennas used for this transmitter must be installed to provide a separation distance of at least 20 cm from all persons and not be co-located with any other transmitters except in accordance with FCC multi-transmitter product procedures. End-users and installers must be provided with antenna installation instructions and transmitter operating conditions for satisfying RF exposure compliance. |
| CC: | This device is certified pursuant to two different Part 15 rules sections. |
| Mail To: | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| TCB | GRANT OF EQUIPMENT AUTHORIZATION |
TCB |
| Certification | ||
| Issued Under the Authority of the | ||
| Federal Communications Commission | ||
| By: |
|
ACB, Inc. 6731 Whittier Avenue Suite C110 McLean, VA 22101 |
Date of Grant: 06/30/2016 Application Dated: 06/28/2016 |
| Hansong(Nanjing) Technology Ltd. |
| 8th Kangping Road |
| Jiangning Economy and Technology Development Zone |
| Nanjing, 211100 China |
| Attention: Wyn B Wang , General Manager |
| NOT TRANSFERABLE |
| EQUIPMENT AUTHORIZATION is hereby issued to the named GRANTEE, and is VALID ONLY for the equipment identified hereon for use under the Commission's Rules and Regulations listed below. |
| FCC IDENTIFIER: | XCO-HSDWAM83 |
| Name of Grantee: | Hansong(Nanjing) Technology Ltd. |
| Equipment Class: | Unlicensed National Information Infrastructure TX |
| Notes: | Wireless module |
| Modular Type: | Single Modular |
| Grant Notes | FCC Rule Parts | Frequency Range (MHZ) | Output Watts | Frequency Tolerance | Emission Designator |
| 38 CC | 15E | 5180.0 - 5240.0 | 0.006 | ||
| 38 CC | 15E | 5736.0 - 5814.0 | 0.05 |
| Class II Permissive Change to update standard. Power Output listed is Conducted. Modular Approval. The antenna(s) used for this transmitter must not be co-located or operating in conjunction with any other antenna or transmitter. Only those antenna(s) tested with the device or similar antenna(s) with equal or lesser gain may be used with this transmitter. The antennas used for this transmitter must be installed to provide a separation distance of at least 20 cm from all persons and not be co-located with any other transmitters except in accordance with FCC multi-transmitter product procedures. End-users and installers must be provided with antenna installation instructions and transmitter operating conditions for satisfying RF exposure compliance. |
| 38: | This device has shown compliance, in all grant-listed U-NII sub-bands, with the new rules for U-NII devices adopted under Docket No. 13-49 and may be marketed, manufactured or imported after the June 1, 2016 transition deadline. |
| CC: | This device is certified pursuant to two different Part 15 rules sections. |
EAS Grant - Application C6lsLUmK0QkGppm3GNjunA==
| COPY |
FEDERAL COMMUNICATIONS COMMISSION WASHINGTON, D.C. 20554 GRANT OF EQUIPMENT AUTHORIZATION |
COPY |
| Certification |
|
Hansong(Nanjing) Technology Ltd. 8th Kangping Road Jiangning Economy and Technology Development Zone Nanjing, 211100 China |
Date of Grant: 06/30/2016 Application Dated: 06/28/2016 |
| Attention: Wyn B Wang , General Manager |
| NOT TRANSFERABLE |
| EQUIPMENT AUTHORIZATION is hereby issued to the named GRANTEE, and is VALID ONLY for the equipment identified hereon for use under the Commission's Rules and Regulations listed below. |
| FCC IDENTIFIER: | XCO-HSDWAM83 |
| Name of Grantee: | Hansong(Nanjing) Technology Ltd. |
| Equipment Class: | Unlicensed National Information Infrastructure TX |
| Notes: | Wireless module |
| Modular Type: | Single Modular |
| Grant Notes | FCC Rule Parts | Frequency Range (MHZ) | Output Watts | Frequency Tolerance | Emission Designator |
| 38 CC | 15E | 5180.0 - 5240.0 | 0.006 | ||
| 38 CC | 15E | 5736.0 - 5814.0 | 0.05 |
| Class II Permissive Change to update standard. Power Output listed is Conducted. Modular Approval. The antenna(s) used for this transmitter must not be co-located or operating in conjunction with any other antenna or transmitter. Only those antenna(s) tested with the device or similar antenna(s) with equal or lesser gain may be used with this transmitter. The antennas used for this transmitter must be installed to provide a separation distance of at least 20 cm from all persons and not be co-located with any other transmitters except in accordance with FCC multi-transmitter product procedures. End-users and installers must be provided with antenna installation instructions and transmitter operating conditions for satisfying RF exposure compliance. |
| 38: | This device has shown compliance, in all grant-listed U-NII sub-bands, with the new rules for U-NII devices adopted under Docket No. 13-49 and may be marketed, manufactured or imported after the June 1, 2016 transition deadline. |
| CC: | This device is certified pursuant to two different Part 15 rules sections. |
| Mail To: |
