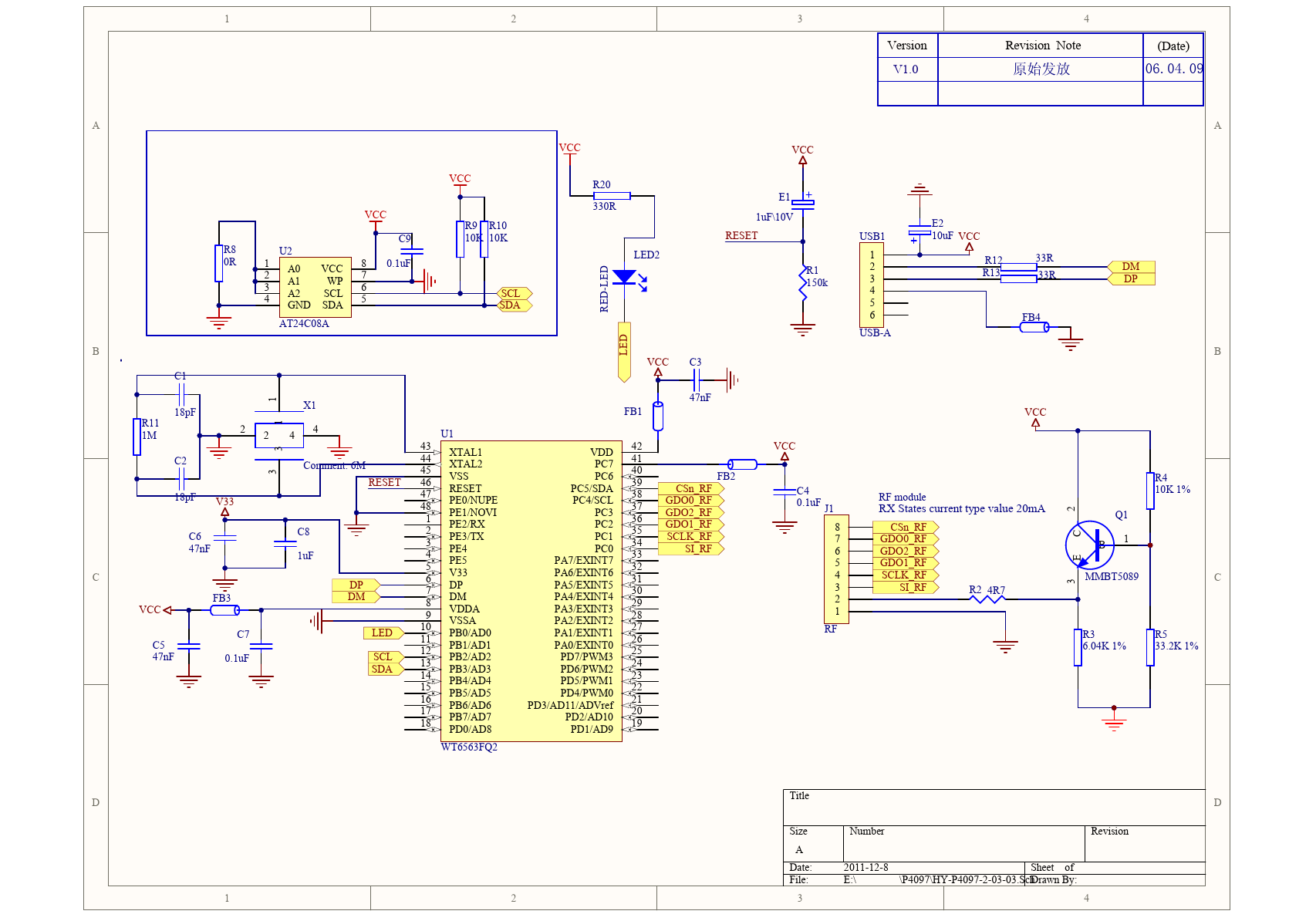

K82GDB 2.4G Wireless USB Dongle K82G Schematics - FCC ID XENK82GDB

FCC ID XENK82GDB

schematics

2.4G Wireless USB Dongle K82G

by Heng Yu Electronic Manufacturing Co. Ltd.

Document preview loads when visible.

Document Details

FCC IDXENK82GDB
Document ID1655193
Document TypeSchematics
Descriptionschematics
Document TitleNo Title
ApplicantHeng Yu Electronic Manufacturing Co. Ltd.
Equipment Class2.4G Wireless USB Dongle K82G
Product CodeK82GDB
Application ID58EFsMu92JlYRB5mfq4qFw==
Application PurposeOriginal Equipment
Application Date2012-03-14
Frequency Range2433 MHz
FRN0018800110
Test FirmHong Kong Standards and Testing Center
Certified ByKC Lee
Short-Term ConfidentialityNo
Long-Term ConfidentialityNo
Grant DeferralNo
Modular EquipmentDoes not apply
Composite DeviceNo
Composite PartYes
Submitted2012-03-14
Available2012-03-14
Created2011-12-08
Modified2012-03-14
Pages1
File TypeAdobe Acrobat PDF
File Size86426
File SHA-256c8d93b6986633dd072f98eb16e38fe0d292ddbb8d266c577281183d1f5c7a39e
PDF Metadata AuthorWindows 9x/NT/2000/XP User
PDF Metadata CreatorAltium Designer Winter 09
PDF Metadata ProducerllPDFLib 3.x
FCC.gov SourcesFCC.gov 1655193
