FCC ID XHG-R775

LTE/Wi-Fi Mobile Router

by Franklin Technology Inc.

Grantee Code: XHG   Product Code: R775
Latest application date: 2016-02-27

Device Images

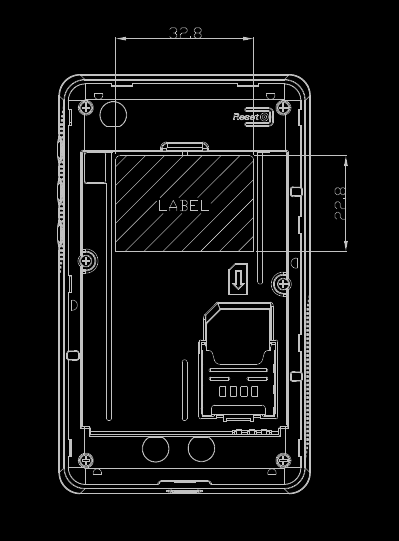

FCC ID XHG-R775 ID Label Location Info
ID Label Location Info
FCC ID XHG-R775 ID Label Location Info
ID Label Location Info

FCC ID Device Details

FCC IDXHG-R775
Mirrorsfcc.id | gov | fccid.ai
Grantee CodeXHG
Product CodeR775
Applicant BusinessFranklin Technology Inc. 🇰🇷
Related Domains franklintech.co.kr
Equipment ClassLTE/Wi-Fi Mobile Router
Test FirmHCT Co., LTD

Operating Frequencies

Frequency RangeApplication PurposeFinal Action Date
2412-2462 MHzOriginal Equipment2016-02-27
701.5-713.5 MHzOriginal Equipment2016-02-26

Exhibits

DocumentTypeAvailableFile
Users ManualUsers Manual2016-08-20PDF 1 MB
Internal PhotosInternal Photos2016-08-20PDF 1.2 MB
External PhotosExternal Photos2016-08-20PDF 454.1 KB
ID Label and Location InfoID Label/Location Info2016-02-27PDF 31.9 KB
Test Setup Photos - RFTest Setup Photos2016-08-20PDF 1 MB
Test Setup Photos - SARTest Setup Photos2016-08-20PDF 284.7 KB
RF Test ReportTest Report2016-02-27PDF 3.2 MB
SAR Test Report - 1 of 2RF Exposure Info2016-02-27PDF 2.4 MB
SAR Test Report - 2 of 2RF Exposure Info2016-02-27PDF 4.9 MB
RF Test Report - 1 of 5Test Report2016-02-26PDF 1.7 MB
RF Test Report - 2 of 5Test Report2016-02-26PDF 1.7 MB
RF Test Report - 3 of 5Test Report2016-02-26PDF 1 MB
RF Test Report - 4 of 5Test Report2016-02-26PDF 1 MB
RF Test Report - 5 of 5Test Report2016-02-26PDF 1.2 MB
SAR Test Report - 1 of 2RF Exposure Info2016-02-26PDF 4.9 MB
SAR Test Report - 2 of 2RF Exposure Info2016-02-26PDF 2.4 MB
FCC Attestation LetterAttestation Statements2016-02-27PDF 82.2 KB
FCC Attestation Letter_WLAN 12_13 channel BlockAttestation Statements2016-02-27PDF 171.1 KB
Confidential Request LetterCover Letter(s)2016-02-27PDF 34.1 KB
Block Diagram Metadata onlyBlock DiagramPDF 369.5 KB
Schematics Metadata onlySchematicsPDF 385.1 KB
OP Description - Difference R775 vs R774 Metadata onlyOperational DescriptionPDF 229.6 KB
Operational Description - 1 of 2 Metadata onlyOperational DescriptionPDF 480.8 KB
Operational Description - 2 of 2 Metadata onlyOperational DescriptionPDF 229.6 KB
Operational Description - LTE Metadata onlyOperational DescriptionPDF 1.5 MB
Part List Metadata onlyParts List/Tune Up InfoPDF 135 KB
Tune Up Info Metadata onlyParts List/Tune Up InfoPDF 863.3 KB

Application Information

Application IDvnmmuT0P46uk5sy9CQxV7g==
Final Action Date2016-02-27
Application PurposeOriginal Equipment
Applicant FRN0018861286
ModelR775
Frequency Range2412-2462 MHz
Equipment ClassDTS - Digital Transmission System
Device DescriptionLTE/Wi-Fi Mobile Router
Responsible PartyJames Lee, R&D; HW team Leader, win2337@franklintech.co.kr , 82-70-8228-6445
Test FirmSang Lee, HCT Co., LTD, sjlee@HCT.co.kr , 82-31-645-6420
TCB Emailtcb@hctamerica.com
TCB ScopeA4: UNII devices & low power transmitters using spread spectrum techniques
Short-Term ConfidentialityYes
Short-Term Confidentiality Date08/20/2016
Long-Term ConfidentialityYes
Grant DeferralNo
Modular EquipmentDoes not apply
Composite DeviceYes
Composite PartNo
Cognitive RadioNo
Authorization WaiverNo
Authorization Waiver ApprovedNo
Section 5301 CertificationYes
Related OET Knowledge DataBase InquiryNo
Grant CommentsPower output listed is peak conducted. SAR compliance for body-worn operating conditions is limited to the specific configuration tested for this filing. Body-worn operations are restricted to belt-clips, holsters or similar accessories that have no metallic component in the assembly and must provide at least 10 mm separation between the device and the user's body. End users must be informed of the body worn requirements for satisfying RF Exposure compliance. The highest reported SAR values for hot-spot and simultaneous transmission use conditions are 0.08 W/kg, and 1.45 W/kg, respectively.
