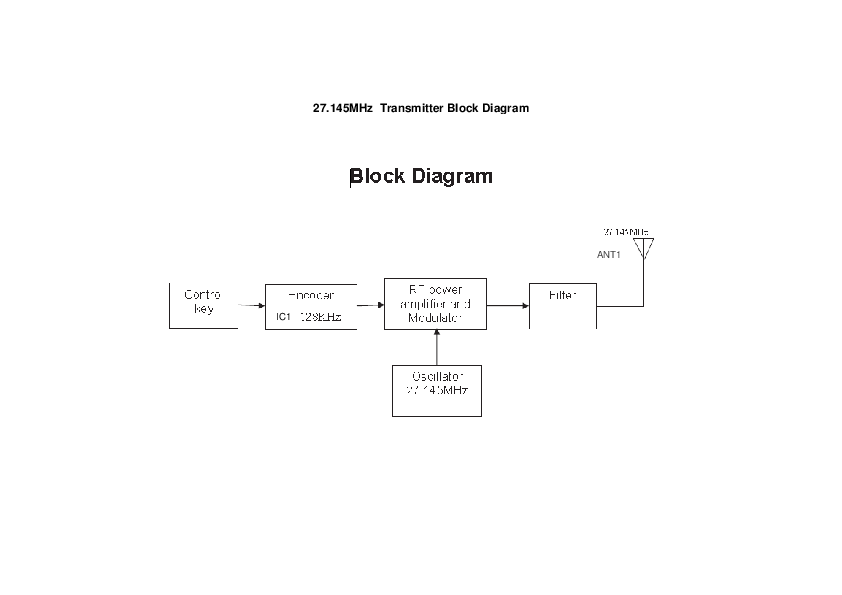

800627MHZ Spinning Car Block Diagram - FCC ID XHT8006-27MHZ

FCC ID XHT8006-27MHZ

Block Diagram

Spinning Car

by Guangdong Yinrun Industry Co., LTD.

Document preview loads when visible.

Document Details

FCC IDXHT8006-27MHZ
Document ID2277005
Document TypeBlock Diagram
DescriptionBlock Diagram
Document Titleblock
ApplicantGuangdong Yinrun Industry Co., LTD.
Equipment ClassSpinning Car
Product Code800627MHZ
Application IDNKA0M1MwJOeY2rg7x7LTWA==
Application PurposeOriginal Equipment
Application Date2014-05-26
Frequency Range27.145 MHz
FRN0018876391
Test FirmIntertek Testing Services Shenzhen Ltd.
Certified ByShawn Xing Manager
Short-Term ConfidentialityNo
Long-Term ConfidentialityNo
Grant DeferralNo
Modular EquipmentDoes not apply
Composite DeviceNo
Composite PartNo
Submitted2014-05-26
Available2014-05-26
Created2014-05-09
Modified2014-05-09
Pages1
File TypeAdobe Acrobat PDF
File Size10766
File SHA-2565d5e7ea51c95d116f8dddd7f7b5e5a5147ad28b6fbd34e80b708dcdd220a5b0e
PDF Metadata Authorjimmy.wen
PDF Metadata ProducerGPL Ghostscript 9.05 jimmy.wen
FCC.gov SourcesFCC.gov 2277005
