FCC ID XKB-LANE5000CL
Contactless RFID Payment Terminal
by INGENICO
Grantee Code: XKB Product Code: LANE5000CL
Latest application date: 2016-07-13
Device Images
FCC ID Device Details
Operating Frequencies
| Frequency Range | Application Purpose | Final Action Date |
|---|---|---|
| 13.56 MHz | Class II permissive change or modification of presently authorized equipment | 2016-07-13 |
| 13.56 MHz | Original Equipment | 2016-04-01 |
Exhibits
| Document | Type | Available | File |
|---|---|---|---|
| User manual | Users Manual | 2016-07-13 | PDF 5 MB |
| User manual.pdf | Users Manual | 2016-04-01 | PDF 2.8 MB |
| Internal photos.pdf | Internal Photos | 2016-04-01 | PDF 720.4 KB |
| External photos | External Photos | 2016-07-13 | PDF 79.5 KB |
| External photos.pdf | External Photos | 2016-04-01 | PDF 355.6 KB |
| Label - Label location.pdf | ID Label/Location Info | 2016-04-01 | PDF 175 KB |
| Label - Label material.pdf | ID Label/Location Info | 2016-04-01 | PDF 66.4 KB |
| Label.pdf | ID Label/Location Info | 2016-04-01 | PDF 241.4 KB |

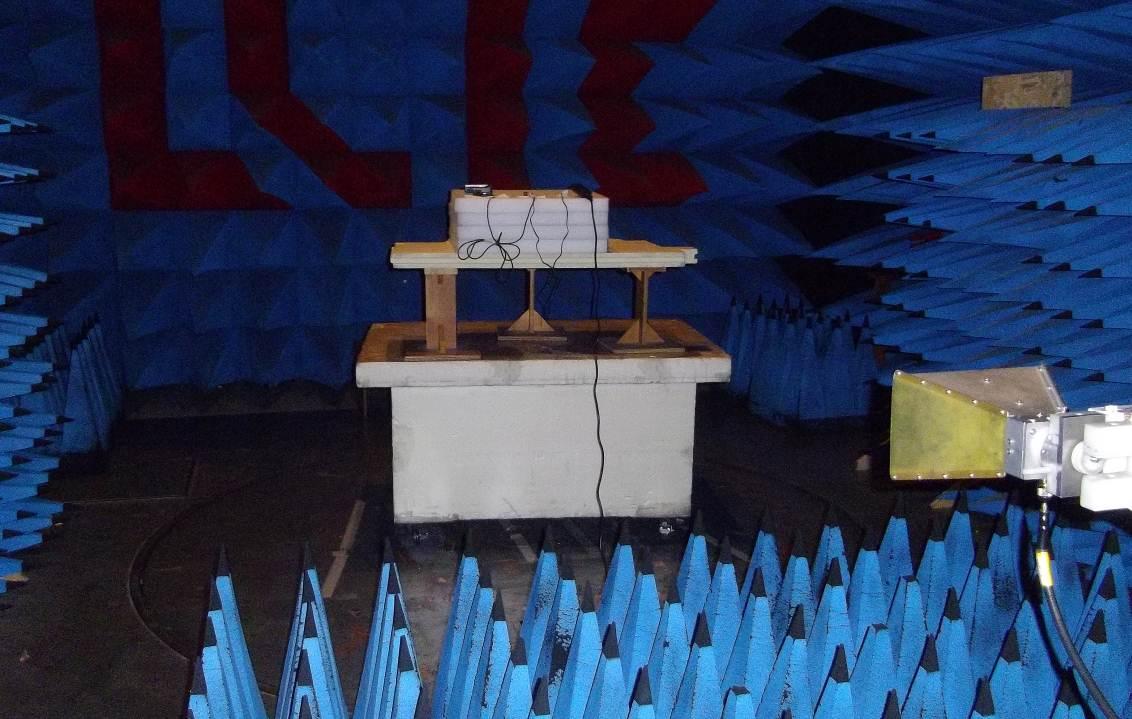

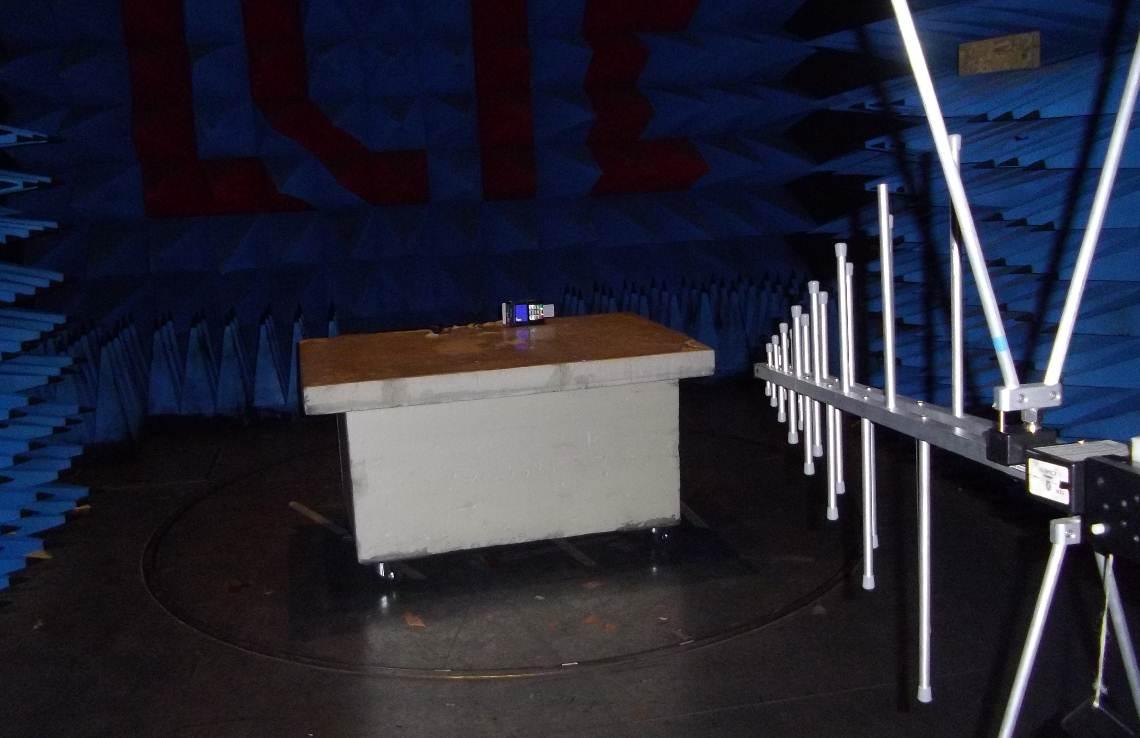

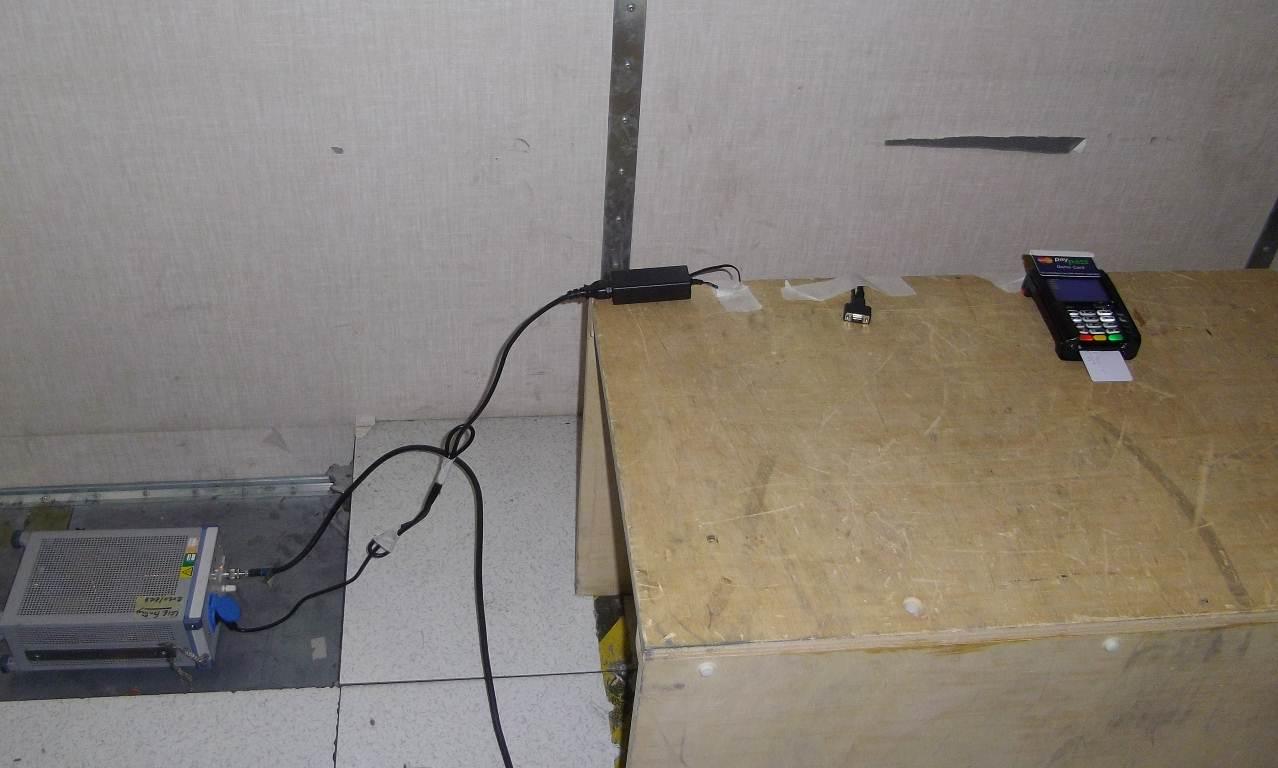

| Test setup photos | Test Setup Photos | 2016-07-13 | PDF 278.4 KB |
| Test Setup photos.pdf | Test Setup Photos | 2016-04-01 | PDF 493.6 KB |
| Test report | Test Report | 2016-07-13 | PDF 1.6 MB |
| Test Report 1 - PowSup1-capacitive screen_Rev.pdf | Test Report | 2016-04-01 | PDF 2.3 MB |
| Test Report 2 - PowSup2-capacitive screen_Rev.pdf | Test Report | 2016-04-01 | PDF 2.4 MB |
| Test Report 3 - PowSup1-resistive sceen.pdf | Test Report | 2016-04-01 | PDF 1.7 MB |
| Test Report 4 - PowSup2-resistive screen.pdf | Test Report | 2016-04-01 | PDF 1.5 MB |
| Confidentiality Request - Long Term | Cover Letter(s) | 2016-07-13 | PDF 50.4 KB |
| Cover letter - Agency Authorization Letter | Cover Letter(s) | 2016-07-13 | PDF 101.9 KB |
| Cover letter - CLass II Permissive Change request | Cover Letter(s) | 2016-07-13 | PDF 18.7 KB |
| Confidentiality Request - Long Term.pdf | Cover Letter(s) | 2016-04-01 | PDF 109.3 KB |
| Cover letter - Agency Authorization Letter.pdf | Cover Letter(s) | 2016-04-01 | PDF 109.3 KB |
| Block Diagram.pdf Metadata only | Block Diagram | PDF 20.6 KB | |
| Schematics.pdf Metadata only | Schematics | PDF 1.3 MB | |
| Operational description Metadata only | Operational Description | PDF 1.3 MB | |
| Operational description.pdf Metadata only | Operational Description | PDF 1.3 MB | |
| Parts list - BOM contactless antenna.pdf Metadata only | Parts List/Tune Up Info | PDF 94.8 KB | |
| Parts list - BOM mainboard.pdf Metadata only | Parts List/Tune Up Info | PDF 202.3 KB |
Application Information
| Application ID | 2BdEo2WoSD/Y3lEynZpNpA== |
|---|---|
| Final Action Date | 2016-07-13 |
| Application Purpose | Class II permissive change or modification of presently authorized equipment |
| Applicant FRN | 0018912279 |
| Model | LANE5000CL |
| Frequency Range | 13.56 MHz |
| Equipment Class | DXT - Part 15 Low Power Transceiver, Rx Verified |
| Device Description | Contactless RFID Payment Terminal |
| Responsible Party | Nicolas Jacquemont, Certification Manager, nicolas.jacquemont@ingenico.com  , +330475842123 |
| Test Firm | Patrick Pereira Teixeira, LCIE, patrick.pereira-teixeira@lcie.fr  , 00-33-1-40-95-60-51 |
| TCB Email | certification@curtis-straus.com  |
| TCB Scope | A1: Low Power Transmitters below 1 GHz (except Spread Spectrum), Unintentional Radiators, EAS (Part 11) & Consumer ISM devices |
| Short-Term Confidentiality | No |
| Long-Term Confidentiality | Yes |
| Grant Deferral | No |
| Modular Equipment | Does not apply |
| Composite Device | No |
| Composite Part | No |
| Cognitive Radio | No |
| Authorization Waiver | No |
| Authorization Waiver Approved | No |
| Section 5301 Certification | Yes |
| Related OET Knowledge DataBase Inquiry | No |
