FCC ID XMK-MMXTRNB004
700 MHz Upper A Block Transceiver
by MiMOMax Wireless Limited
Grantee Code: XMK Product Code: MMXTRNB004
Latest application date: 2016-06-01
Device Images
FCC ID Device Details
| FCC ID | XMK-MMXTRNB004 |
|---|---|
| Mirrors | fcc.id | gov | fccid.ai |
| Grantee Code | XMK |
| Product Code | MMXTRNB004 |
| Applicant Business | MiMOMax Wireless Limited 🇳🇿 |
| Related Domains |  mimomax.com |
| Equipment Class | 700 MHz Upper A Block Transceiver |
| Test Firm | EMC Technologies NZ Ltd. |
Operating Frequencies
| Frequency Range | Application Purpose | Final Action Date |
|---|---|---|
| 757-758 MHz | Original Equipment | 2016-06-01 |
Exhibits
| Document | Type | Available | File |
|---|---|---|---|
| Confidentiality Request Technical Manual | Cover Letter(s) | 2016-06-01 | PDF 5.4 MB |
| Internal Photos | Internal Photos | 2016-06-01 | PDF 1.2 MB |
| External Photos | External Photos | 2016-06-01 | PDF 160.9 KB |
| Label | ID Label/Location Info | 2016-06-01 | PDF 259.4 KB |

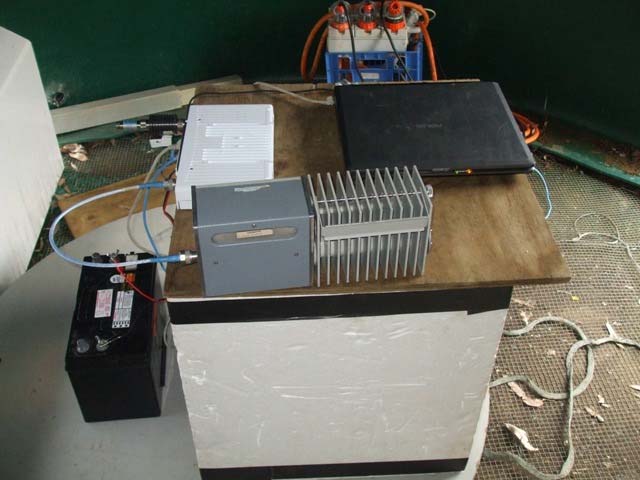

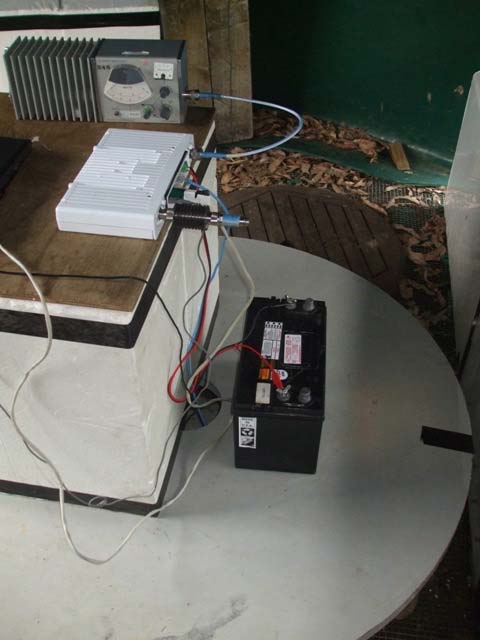

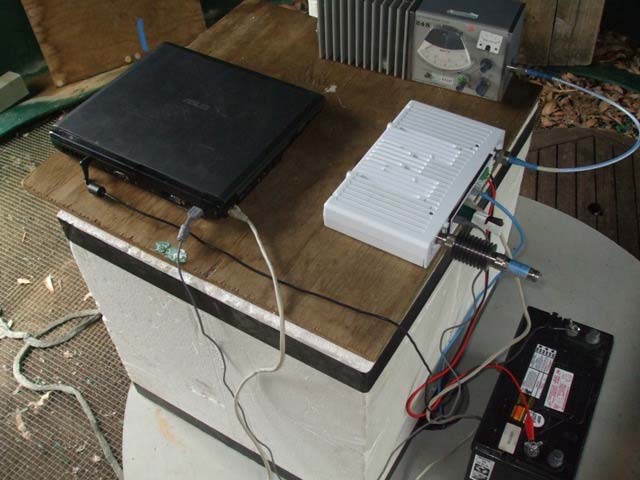

| Test Setup Photos Radiated Emissions | Test Setup Photos | 2016-06-01 | PDF 219.7 KB |
| Test Report | Test Report | 2016-06-01 | PDF 843.9 KB |
| Attestation | Cover Letter(s) | 2016-06-01 | PDF 24.2 KB |
| Authorization to Act Letter | Cover Letter(s) | 2016-06-01 | PDF 135.9 KB |
| Confidentiality Request Letter | Cover Letter(s) | 2016-06-01 | PDF 178.2 KB |
| Test Frequency Selection Letter | Cover Letter(s) | 2016-06-01 | PDF 365.7 KB |
| Radiation Hazard Assessment | RF Exposure Info | 2016-06-01 | PDF 86.1 KB |
| Tune Up Procedure | Parts List/Tune Up Info | 2016-06-01 | PDF 481 KB |
| Technical Manual Metadata only | Users Manual | PDF 5 MB | |
| Block Diagram Metadata only | Block Diagram | PDF 79.6 KB | |
| Schematics Metadata only | Schematics | PDF 1.7 MB | |
| Operational Description Metadata only | Operational Description | PDF 2.1 MB | |
| Parts List Metadata only | Parts List/Tune Up Info | PDF 211.5 KB |
Application Information
| Application ID | En6vmdh96hncDHPm+okuBw== |
|---|---|
| Final Action Date | 2016-06-01 |
| Application Purpose | Original Equipment |
| Applicant FRN | 0018984526 |
| Model | MMXTRNB004 |
| Frequency Range | 757-758 MHz |
| Equipment Class | TNB - Licensed Non-Broadcast Station Transmitter |
| Device Description | 700 MHz Upper A Block Transceiver |
| Responsible Party | Paul Reid, paul.reid@mimomax.com , +64-21-327-468 |
| Test Firm | Andrew Cutler, EMC Technologies NZ Ltd., auklab@ihug.co.nz  , 64-9-360-0862 |
| TCB Email | TEI@TIMCOENGR.COM  |
| TCB Scope | B1: Commercial mobile radio services equipment in the following 47 CFR Parts 20, 22 (cellular), 24,25 (below 3 GHz) & 27 |
| Short-Term Confidentiality | No |
| Long-Term Confidentiality | Yes |
| Grant Deferral | No |
| Modular Equipment | Does not apply |
| Composite Device | No |
| Composite Part | No |
| Cognitive Radio | No |
| Authorization Waiver | No |
| Authorization Waiver Approved | No |
| Section 5301 Certification | Yes |
| Related OET Knowledge DataBase Inquiry | No |
| Grant Comments | Power listed is conducted. The antenna(s) used for this transmitter must be installed to provide a separation distance of at least 25 cm from all persons and must not transmit simultaneously with any other antenna or transmitter, except in accordance with FCC multi-transmitter product procedures. The antenna installation and operating configurations of this transmitter, including antenna gain and cable loss must satisfy MPE categorical Exclusion Requirements of §2.1091. |
Applications
| Application ID | Date | Purpose |
|---|---|---|
| En6vmdh96hncDHPm+okuBw== | 2016-06-01 | Original Equipment |
Equipment Authorization
Grants
TCB Grant - Application En6vmdh96hncDHPm+okuBw==
| TCB | GRANT OF EQUIPMENT AUTHORIZATION |
TCB |
| Certification | ||
| Issued Under the Authority of the | ||
| Federal Communications Commission | ||
| By: |
|
Timco Engineering, Inc. 849 NW State Road 45 Newberry, FL 32669 |
Date of Grant: 06/01/2016 Application Dated: 06/01/2016 |
| MiMOMax Wireless Limited |
| 540 Wairakei Road |
| Christchurch, 8053 New Zealand |
| Attention: Paul Reid |
| NOT TRANSFERABLE |
| EQUIPMENT AUTHORIZATION is hereby issued to the named GRANTEE, and is VALID ONLY for the equipment identified hereon for use under the Commission's Rules and Regulations listed below. |
| FCC IDENTIFIER: | XMK-MMXTRNB004 |
| Name of Grantee: | MiMOMax Wireless Limited |
| Equipment Class: | Licensed Non-Broadcast Station Transmitter |
| Notes: | 700 MHz Upper A Block Transceiver |
| Grant Notes | FCC Rule Parts | Frequency Range (MHZ) | Output Watts | Frequency Tolerance | Emission Designator |
| 27 | 757.0 - 758.0 | 0.25 | 0.194 PM | 10K3W1W | |
| 27 | 757.0 - 758.0 | 0.25 | 0.194 PM | 21K1W1W | |
| 27 | 757.0 - 758.0 | 0.25 | 0.194 PM | 42K0W1W | |
| 27 | 787.0 - 788.0 | 0.25 | 0.194 PM | 10K3W1W | |
| 27 | 787.0 - 788.0 | 0.25 | 0.194 PM | 21K1W1W | |
| 27 | 787.0 - 788.0 | 0.25 | 0.194 PM | 42K0W1W |
| Power listed is conducted. The antenna(s) used for this transmitter must be installed to provide a separation distance of at least 25 cm from all persons and must not transmit simultaneously with any other antenna or transmitter, except in accordance with FCC multi-transmitter product procedures. The antenna installation and operating configurations of this transmitter, including antenna gain and cable loss must satisfy MPE categorical Exclusion Requirements of §2.1091. |
EAS Grant - Application En6vmdh96hncDHPm+okuBw==
| COPY |
FEDERAL COMMUNICATIONS COMMISSION WASHINGTON, D.C. 20554 GRANT OF EQUIPMENT AUTHORIZATION |
COPY |
| Certification |
|
MiMOMax Wireless Limited 540 Wairakei Road Christchurch, 8053 New Zealand |
Date of Grant: 06/01/2016 Application Dated: 06/01/2016 |
| Attention: Paul Reid |
| NOT TRANSFERABLE |
| EQUIPMENT AUTHORIZATION is hereby issued to the named GRANTEE, and is VALID ONLY for the equipment identified hereon for use under the Commission's Rules and Regulations listed below. |
| FCC IDENTIFIER: | XMK-MMXTRNB004 |
| Name of Grantee: | MiMOMax Wireless Limited |
| Equipment Class: | Licensed Non-Broadcast Station Transmitter |
| Notes: | 700 MHz Upper A Block Transceiver |
| Modular Type: | Does not apply |
| Grant Notes | FCC Rule Parts | Frequency Range (MHZ) | Output Watts | Frequency Tolerance | Emission Designator |
| 27 | 757.0 - 758.0 | 0.25 | 0.194 PM | 10K3W1W | |
| 27 | 757.0 - 758.0 | 0.25 | 0.194 PM | 21K1W1W | |
| 27 | 757.0 - 758.0 | 0.25 | 0.194 PM | 42K0W1W | |
| 27 | 787.0 - 788.0 | 0.25 | 0.194 PM | 10K3W1W | |
| 27 | 787.0 - 788.0 | 0.25 | 0.194 PM | 21K1W1W | |
| 27 | 787.0 - 788.0 | 0.25 | 0.194 PM | 42K0W1W |
| Power listed is conducted. The antenna(s) used for this transmitter must be installed to provide a separation distance of at least 25 cm from all persons and must not transmit simultaneously with any other antenna or transmitter, except in accordance with FCC multi-transmitter product procedures. The antenna installation and operating configurations of this transmitter, including antenna gain and cable loss must satisfy MPE categorical Exclusion Requirements of §2.1091. |
