201709SC20W Smart Module Test Setup Photos - FCC ID XMR201709SC20W

FCC ID XMR201709SC20W

Reference test setup

Smart Module

by Quectel Wireless Solutions Company Limited

Document preview loads when visible.

Document Details

FCC IDXMR201709SC20W
Document ID3543893
Document TypeTest Setup Photos

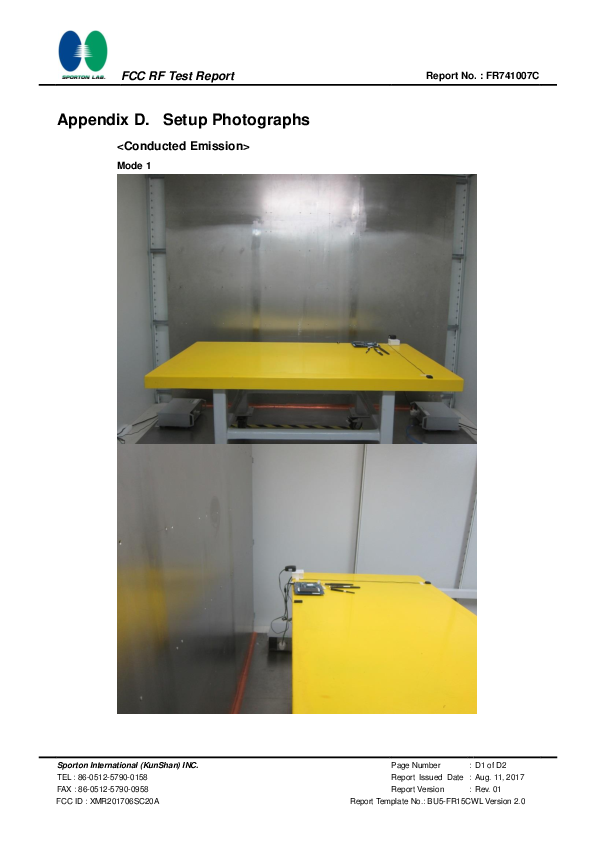

DescriptionReference test setup
Document TitleFCC RF Test Report
ApplicantQuectel Wireless Solutions Company Limited
Equipment ClassSmart Module
Product Code201709SC20W
Application IDZ5oQXw4mPeGfUAGc3fKP3w==
Application PurposeOriginal Equipment
Application Date2017-09-05
Frequency Range2402-2480 MHz
FRN0018988279
Test FirmSporton International (KunShan) Inc.
Certified ByMichael Lin Vice President
Short-Term ConfidentialityNo
Long-Term ConfidentialityNo
Short-Term Confidentiality Date03/03/2018
Grant DeferralNo
Modular EquipmentSingle Modular Approval
Composite DeviceYes
Composite PartNo
Submitted2017-09-05
Available2018-03-03
Created2017-08-11
Modified2017-08-11
Pages2
File TypeAdobe Acrobat PDF
File Size271907
File SHA-25696b91f1e57ac86cc0050a0b2f30f77ab6e4bbb8d3e2c26cd6bdb268f69a4eb2f
PDF Metadata AuthorWBU Documentation Depr.
PDF Metadata ProducerMicrosoft® Word 2010 Microsoft® Word 2010
FCC.gov SourcesFCC.gov 3543893, FCC.gov 3543892
