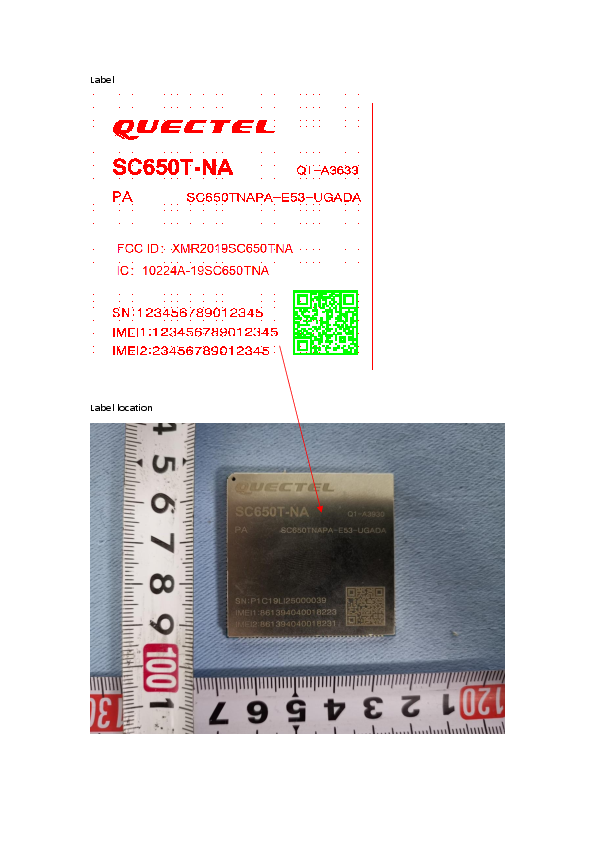

2019SC650TNA Smart Module Label Diagram - FCC ID XMR2019SC650TNA

FCC ID XMR2019SC650TNA

Label Info

Smart Module

by Quectel Wireless Solutions Company Limited

Barcode information

Validated product identifiers extracted from the generated document image; label documents may also include identifiers from available document text.

QR Code ]Q1

Barcode typeQR Code ]Q1
Decoded value123456789012345;12345678902345;123456789012

Document preview loads when visible.

Document Details

FCC IDXMR2019SC650TNA
Document ID4665625
Document TypeID Label/Location Info
DescriptionLabel Info
ApplicantQuectel Wireless Solutions Company Limited
Equipment ClassSmart Module
Product Code2019SC650TNA
Application IDzjvnlae3JOlTBS8TpzDXMA==
Application PurposeOriginal Equipment
Application Date2020-03-27
Frequency Range1710.7-1754.3 MHz
FRN0018988279
Test FirmBTL INC.
Certified ByRiley Wei Supervisor
Short-Term ConfidentialityNo
Long-Term ConfidentialityNo
Grant DeferralNo
Modular EquipmentSingle Modular Approval
Composite DeviceYes
Composite PartNo
Submitted2020-03-27
Available2020-03-27
Created2020-03-18
Modified2020-03-18
Pages1
File TypeAdobe Acrobat PDF
File Size284465
File SHA-256e4238d52352bdcd492fa471008f35aaabd31f0f59a33b5f2c4f7f4ce976d1ec2
PDF Metadata Authorabby
PDF Metadata ProducerMicrosoft® Word 2016 Microsoft® Word 2016
FCC.gov SourcesFCC.gov 4665625, FCC.gov 4665473, FCC.gov 4665413, FCC.gov 4665372
