FCC ID XO2SPB209A-L
WiFi/ Bluetooth/ NFC Module
by H&D; Wireless AB
Grantee Code: XO2 Product Code: SPB209AL
Latest application date: 2016-08-31
Device Images
FCC ID Device Details
| FCC ID | XO2SPB209A-L |
|---|---|
| Mirrors | fcc.id | gov | fccid.ai |
| Grantee Code | XO2 |
| Product Code | SPB209AL |
| Applicant Business | H&D; Wireless AB 🇸🇪 |
| Related Domains |  hd-wireless.se |
| Equipment Class | WiFi/ Bluetooth/ NFC Module |
| Test Firm | PCTEST Engineering Laboratory, Inc. |
Operating Frequencies
| Frequency Range | Application Purpose | Final Action Date |
|---|---|---|
| 5180-5240 MHz | Original Equipment | 2016-08-31 |
| 13.56 MHz | Original Equipment | 2016-08-31 |
| 2402-2480 MHz | Original Equipment | 2016-08-31 |
| 2402-2480 MHz | Original Equipment | 2016-08-31 |
Exhibits
| Document | Type | Available | File |
|---|---|---|---|
| Exhibit 8 Users Manual | Users Manual | 2016-08-31 | PDF 609.6 KB |

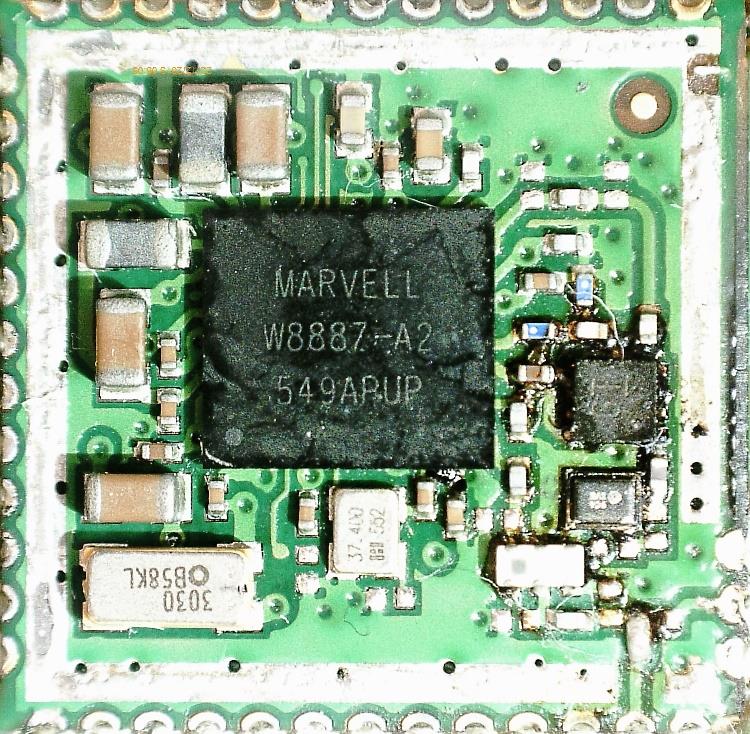

| Exhibit 9 Internal Photos | Internal Photos | 2016-08-31 | PDF 256.1 KB |
| Exhibit 3 External Photos | External Photos | 2016-08-31 | PDF 342.1 KB |
| Exhibit 1 FCC ID Label and Location | ID Label/Location Info | 2016-08-31 | PDF 628.9 KB |
| Exhibit 7 Test Setup Photos | Test Setup Photos | 2016-08-31 | PDF 272.1 KB |
| Exhibit 6 BT LE Test Report | Test Report | 2016-08-31 | PDF 1.5 MB |
| Exhibit 6 DFS Test Report | Test Report | 2016-08-31 | PDF 731.3 KB |
| Exhibit 6 Test Report | Test Report | 2016-08-31 | PDF 2.6 MB |
| Exhibit 6 Test Report | Test Report | 2016-08-31 | PDF 874.1 KB |
| Exhibit 6 UNII Test Report | Test Report | 2016-08-31 | PDF 5.1 MB |
| Exhibit 6 WLAN Test Report | Test Report | 2016-08-31 | PDF 3.5 MB |
| Exhibit 2 Modular Approval Request Letter | Attestation Statements | 2016-08-31 | PDF 527.6 KB |
| Exhibit 13 Confidentiality Request Letter | Cover Letter(s) | 2016-08-31 | PDF 405 KB |
| Exhibit 11 MPE Calculation | RF Exposure Info | 2016-08-31 | PDF 125.2 KB |
| Exhibit 4 Block Diagrams Metadata only | Block Diagram | PDF 481 KB | |
| Exhibit 5 Schematics Metadata only | Schematics | PDF 223.3 KB | |
| Exhibit 12 Antenna Document Metadata only | Operational Description | PDF 635.9 KB | |
| Exhibit 12 Operational Description Metadata only | Operational Description | PDF 1.9 MB | |
| Exhibit 10 Parts LIst Metadata only | Parts List/Tune Up Info | PDF 423.5 KB |
Application Information
| Application ID | Sy+cEPgWhvEavLaHyVjJnw== |
|---|---|
| Final Action Date | 2016-08-31 |
| Application Purpose | Original Equipment |
| Applicant FRN | 0019049824 |
| Model | SPB209A-L |
| Frequency Range | 5180-5240 MHz |
| Equipment Class | NII - Unlicensed National Information Infrastructure TX |
| Device Description | WiFi/ Bluetooth/ NFC Module |
| Responsible Party | Paer Bergsten, CEO, par.bergsten@hd-wireless.se , +46 708 274 557 |
| Technical Contact | Randy Ortanez, PCTEST Engineering Laboratory, Inc., tcb@pctestlab.com  , 410-290-6652 |
| Test Firm | Randy Ortanez, PCTEST Engineering Laboratory, Inc., lab@pctestlab.com , 410-290-6652 |
| TCB Email | tcb@pctestlab.com |
| TCB Scope | A4: UNII devices & low power transmitters using spread spectrum techniques |
| Short-Term Confidentiality | No |
| Long-Term Confidentiality | Yes |
| Grant Deferral | No |
| Modular Equipment | Single Modular Approval |
| Composite Device | Yes |
| Composite Part | No |
| Cognitive Radio | No |
| Authorization Waiver | No |
| Authorization Waiver Approved | No |
| Section 5301 Certification | Yes |
| Related OET Knowledge DataBase Inquiry | No |
| Grant Comments | Power output listed is conducted. This device is a mobile device with respect to RF exposure compliance, and is approved for installation as documented in the filing. The antenna(s) used for this transmitter must be installed to provide a separation distance of at least 20 cm from all persons, and must not be co-located or operate in conjunction with any other antenna or transmitter except as documented in filings under this FCC ID and/or in accordance with FCC multi-transmitter product guidelines. Antenna design must follow the design guidelines as specified in the integration instructions. Installers and end-users must be provided with specific information required to satisfy RF exposure compliance for installations and final host devices. Compliance of this device in all final host configurations is the responsibility of the Grantee. This device supports 20M, 40M, and 80MHz BW modes. |
Applications
| Application ID | Date | Purpose |
|---|---|---|
| Sy+cEPgWhvEavLaHyVjJnw== | 2016-08-31 | Original Equipment |
| JgFi3ZJifoTJfyO5t+X4VQ== | 2016-08-31 | Original Equipment |
| HxmQCctGmZbrhzuQwZAZDA== | 2016-08-31 | Original Equipment |
| 7EG8v51U69Y3B4wwHt4q0A== | 2016-08-31 | Original Equipment |
Equipment Authorization
Grants
TCB Grant - Application Sy+cEPgWhvEavLaHyVjJnw==
| TCB | GRANT OF EQUIPMENT AUTHORIZATION |
TCB |
| Certification | ||
| Issued Under the Authority of the | ||
| Federal Communications Commission | ||
| By: |
|
PCTEST Engineering Laboratory, LLC 7185 Oakland Mills Road Columbia, MD 21046 |
Date of Grant: 08/31/2016 Application Dated: 08/31/2016 |
| H&D Wireless AB |
| Faeroegatan 33 |
| Kista, 164 51 Sweden |
| Attention: Paer Bergsten , CEO |
| NOT TRANSFERABLE |
| EQUIPMENT AUTHORIZATION is hereby issued to the named GRANTEE, and is VALID ONLY for the equipment identified hereon for use under the Commission's Rules and Regulations listed below. |
| FCC IDENTIFIER: | XO2SPB209A-L |
| Name of Grantee: | H&D Wireless AB |
| Equipment Class: | Unlicensed National Information Infrastructure TX |
| Notes: | WiFi/ Bluetooth/ NFC Module |
| Modular Type: | Single Modular |
| Grant Notes | FCC Rule Parts | Frequency Range (MHZ) | Output Watts | Frequency Tolerance | Emission Designator |
| 38 CC | 15E | 5180.0 - 5240.0 | 0.029 | ||
| 38 CC | 15E | 5260.0 - 5320.0 | 0.028 | ||
| 38 CC | 15E | 5500.0 - 5720.0 | 0.027 | ||
| 38 CC | 15E | 5745.0 - 5825.0 | 0.025 |
| Power output listed is conducted. This device is a mobile device with respect to RF exposure compliance, and is approved for installation as documented in the filing. The antenna(s) used for this transmitter must be installed to provide a separation distance of at least 20 cm from all persons, and must not be co-located or operate in conjunction with any other antenna or transmitter except as documented in filings under this FCC ID and/or in accordance with FCC multi-transmitter product guidelines. Antenna design must follow the design guidelines as specified in the integration instructions. Installers and end-users must be provided with specific information required to satisfy RF exposure compliance for installations and final host devices. Compliance of this device in all final host configurations is the responsibility of the Grantee. This device supports 20M, 40M, and 80MHz BW modes. |
| 38: | This device has shown compliance, in all grant-listed U-NII sub-bands, with the new rules for U-NII devices adopted under Docket No. 13-49 and may be marketed, manufactured or imported after the June 1, 2016 transition deadline. |
| CC: | This device is certified pursuant to two different Part 15 rules sections. |
