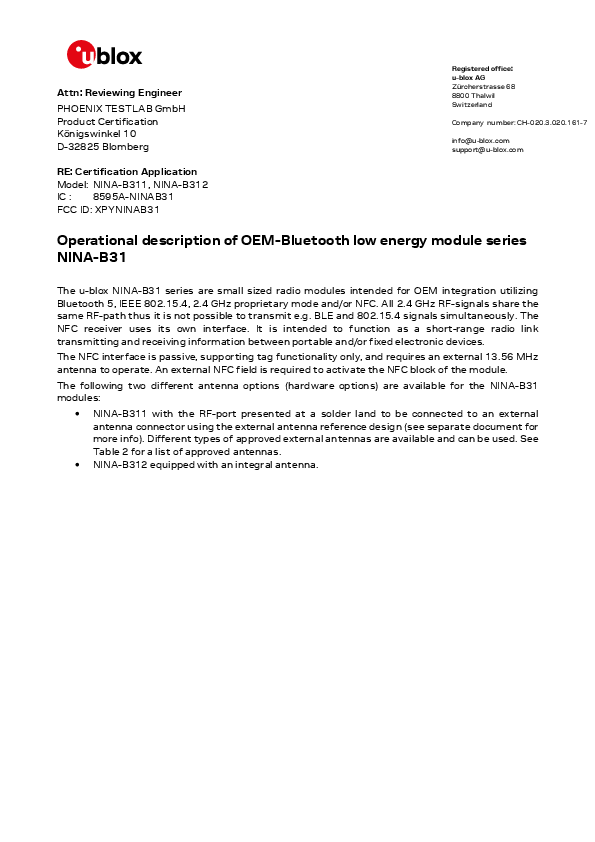

Attn: Reviewing Engineer
PHOENIX TESTLAB GmbH
Product Certification
Königswinkel 10
D-32825 Blomberg
Registered office:
u-blox AG
Zürcherstrasse 68
8800 Thalwil
Switzerland
Company number: CH-020.3.020.161-7
info@u-blox.com
support@u-blox.com
RE: Certification Application
Model: NINA-B311, NINA-B312
IC :
8595A-NINAB31
FCC ID: XPYNINAB31
Operational description of OEM-Bluetooth low energy module series
NINA-B31
The u-blox NINA-B31 series are small sized radio modules intended for OEM integration utilizing
Bluetooth 5, IEEE 802.15.4, 2.4 GHz proprietary mode and/or NFC. All 2.4 GHz RF-signals share the
same RF-path thus it is not possible to transmit e.g. BLE and 802.15.4 signals simultaneously. The
NFC receiver uses its own interface. It is intended to function as a short-range radio link
transmitting and receiving information between portable and/or fixed electronic devices.
The NFC interface is passive, supporting tag functionality only, and requires an external 13.56 MHz
antenna to operate. An external NFC field is required to activate the NFC block of the module.
The following two different antenna options (hardware options) are available for the NINA-B31
modules:
•
•
NINA-B311 with the RF-port presented at a solder land to be connected to an external
antenna connector using the external antenna reference design (see separate document for
more info). Different types of approved external antennas are available and can be used. See
Table 2 for a list of approved antennas.
NINA-B312 equipped with an integral antenna.
2.4 GHz radio
Bluetooth low energy
IEEE 802.15.4
2.4 GHz proprietary modes
Nordic Semiconductor nRF52840
RF output power
Typical 8 dBm at antenna port
Data rate
1 Mbps, 2 Mbps, 500 kbps, 125 kbps
Frequencies
2402 – 2480 MHz
Channels
40 channels, numbered 0 – 39
2 MHz separation
RF output power
Typical 8 dBm at antenna port
Data rate
250 kbps
Frequencies
2405 – 2475 MHz
Channels
24 channels, numbered 11-25
5 MHz separation
RF output power
Typical 8 dBm at antenna port
Data rate
1 Mbps, 2 Mbps
Frequencies
2402 – 2480 MHz
Channels*
79 channels,
1 MHz separation
NFC receiver
NFC
Nordic Semiconductor nRF52840
RF output power
Receive only, load modulation is used to
‘transmit’ data.
Data rate
106 kbps
Frequencies
13.65 MHz
Channels
1 channel
*Depends on selected protocol
Table 1: Radio data
Configuration and software security
The NINA-B31 series modules fulfil the requirements of 594280 D01 Software Configuration
Control v02r01. The module has it’s RF-parameters, channel list, power settings etc. stored in nonvolatile memory inside the radio chip, and is controlled by the application software which is preflashed by u-blox. A host system or end-user cannot configure the NINA-B31 module to be noncompliant to regulatory restrictions.
The NINA-B31 modules provide secure boot, which ensures the module only boots up with original
u-blox software.
Block diagram
Nordic Semiconductor
nRF52840
1.3 V
PIFA antenna
(NINA-B312)
System
power
VCC (1.7 - 3.6 V)
DC/DC and LDO regulators
VCC_IO (1.7 – 3.6 V)
UART
RF
GPIO
BLE baseband
256 kB
RAM
SPI
IO Buffers
NINA-B311
Reset
Arm Cortex-M4
Antenna pin
Cryptographic
hardware
accelerators
QSPI
I2C
I2S
PWM
1 MB Flash
PDM
QDEC
USB device
CryptoCell
and Counters
PLL
PLL
32 MHz
USB 2.0
RTC, Timers
ADC and
comparator
Passive NFC tag
Analog
NFC
32.768 kHz
Figure 1: NINA-B31 series block diagram
List of antennas
Antenna name
Manufacturer
Comment
u-blox LILY Antenna
ProAnt
SMD PIFA antenna on NINA-B312
+3
InSide-2400
ProAnt
Patch,
10cm cable/U.FL
+3
Ex-IT 2400
-RP-SMA 28-001
-MHF 28-001
ProAnt
Monopole,
RP-SMA
10 cm cable/U.FL
+3
Ex-IT 2400
-RP-SMA 70-002
ProAnt
Monopole,
RP-SMA
+3
FlatWhip-2400
ProAnt
Monopole,
+3
RP-SMA
Table 2: Antennas to be used with the NINA-B31 series
Gain [dBi]
