FCC ID XS5-M7P17EHP
ION-M Remote Unit for cellular systems
by Andrew Wireless System
Grantee Code: XS5 Product Code: M7P17EHP
Latest application date: 2016-03-11
Device Images
FCC ID Device Details
| FCC ID | XS5-M7P17EHP |
|---|---|
| Mirrors | fcc.id | gov | fccid.ai |
| Grantee Code | XS5 |
| Product Code | M7P17EHP |
| Applicant Business | Andrew Wireless System 🇩🇪 |
| Related Domains |  commscope.com |
| Equipment Class | ION-M Remote Unit for cellular systems |
| Test Firm | Bureau Veritas Consumer Products Services Germany |
Operating Frequencies
| Frequency Range | Application Purpose | Final Action Date |
|---|---|---|
| 728-757 MHz | Original Equipment | 2016-03-11 |
Exhibits
| Document | Type | Available | File |
|---|---|---|---|
| Installation Instruction | Users Manual | 2016-07-25 | PDF 103.3 KB |
| user manual | Users Manual | 2016-07-25 | PDF 1.6 MB |
| int. photos | Internal Photos | 2016-07-25 | PDF 2.1 MB |
| ext photos | External Photos | 2016-03-11 | PDF 606.7 KB |
| label | ID Label/Location Info | 2016-03-11 | PDF 69.1 KB |
| label and location | ID Label/Location Info | 2016-03-11 | PDF 320.6 KB |

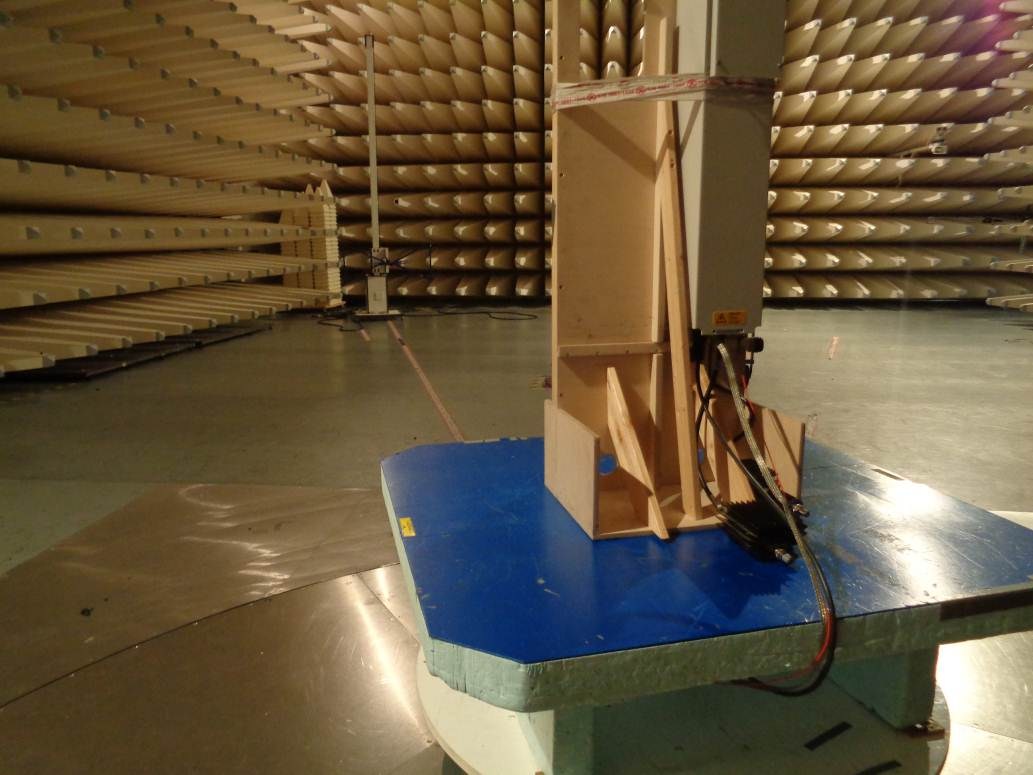

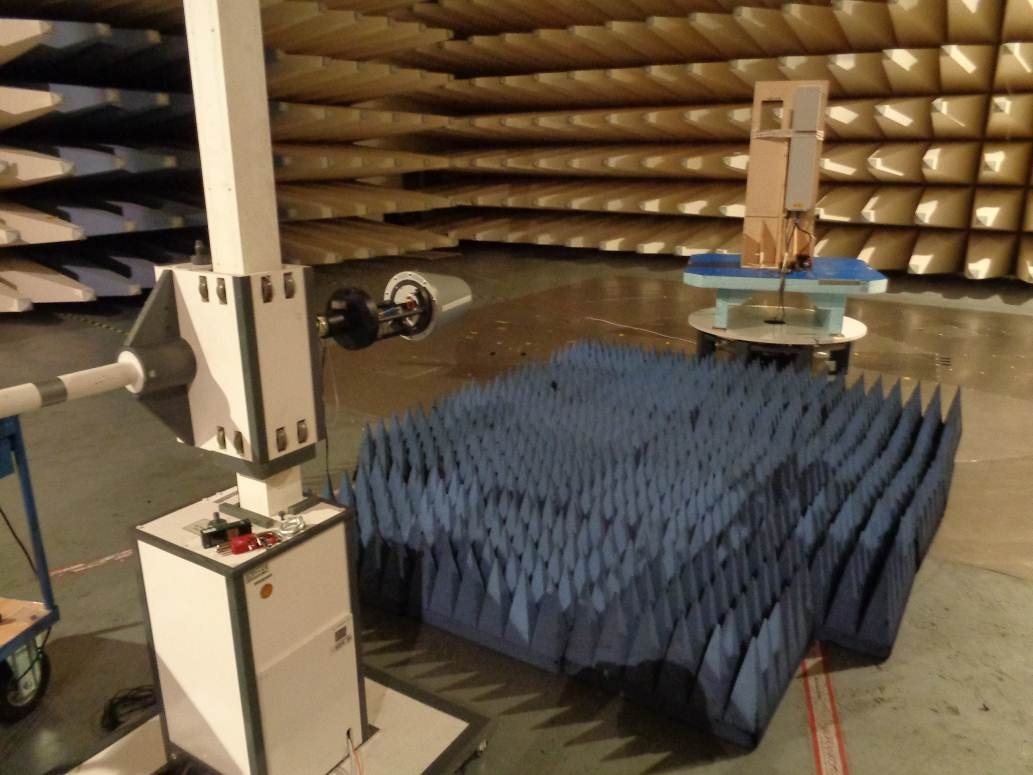

| test setup photos | Test Setup Photos | 2016-03-11 | PDF 1.2 MB |
| Test report 1700MHz | Test Report | 2016-03-11 | PDF 3.5 MB |
| test report 700MHz | Test Report | 2016-03-11 | PDF 3.5 MB |
| Attestation letter | Attestation Statements | 2016-03-11 | PDF 219.2 KB |
| LTC Request | Cover Letter(s) | 2016-03-11 | PDF 335.8 KB |
| PoA | Cover Letter(s) | 2016-03-11 | PDF 301.4 KB |
| RF exposure | RF Exposure Info | 2016-03-11 | PDF 340.8 KB |
| block diagram Metadata only | Block Diagram | PDF 30.5 KB | |
| schematics Metadata only | Schematics | PDF 4.4 MB | |
| operational description Metadata only | Operational Description | PDF 139.2 KB | |
| parts list Metadata only | Parts List/Tune Up Info | PDF 61.1 KB | |
| tune up Metadata only | Parts List/Tune Up Info | PDF 95.1 KB |
Application Information
| Application ID | +3+8U9gvbPbGvIpild6KCg== |
|---|---|
| Final Action Date | 2016-03-11 |
| Application Purpose | Original Equipment |
| Applicant FRN | 0019152750 |
| Model | M7P17EHP |
| Frequency Range | 728-757 MHz |
| Equipment Class | B2I - Part 20 Industrial Booster (CMRS) |
| Device Description | ION-M Remote Unit for cellular systems |
| Responsible Party | Wolfgang Oelrich, Manager Quality, wolfgang.oelrich@commscope.com , +49-9099-69 |
| Test Firm | Mario Lehmann, Bureau Veritas Consumer Products Services Germany, mario.lehmann@de.bureauveritas.com  , 49-40-74041-2702 |
| TCB Email | Khalek.Yassine@phoenix-testlab.de  |
| TCB Scope | B1: Commercial mobile radio services equipment in the following 47 CFR Parts 20, 22 (cellular), 24,25 (below 3 GHz) & 27 |
| Short-Term Confidentiality | Yes |
| Short-Term Confidentiality Date | 07/25/2016 |
| Long-Term Confidentiality | Yes |
| Grant Deferral | No |
| Modular Equipment | Does not apply |
| Composite Device | No |
| Composite Part | No |
| Cognitive Radio | No |
| Authorization Waiver | No |
| Authorization Waiver Approved | No |
| Section 5301 Certification | Yes |
| Related OET Knowledge DataBase Inquiry | No |
| Grant Comments | Output power listed is the maximum conducted composite power based on one carrier. This device is used with a Master Unit in the ION optical distribution System. The antenna(s) used for this transmitter (repeater) must be fixed-mounted on permanent structures. RF exposure compliance is addressed at the time of licensing, as required by the responsible FCC Bureau(s), including antenna co-location requirements of §1.1307(b)(3). |
