FCC ID XU8TVIP322WI
IR Network Camera
by TRENDNET, Inc.
Grantee Code: XU8 Product Code: TVIP322WI
Latest application date: 2015-10-22
Device Images
FCC ID Device Details
| FCC ID | XU8TVIP322WI |
|---|---|
| Mirrors | fcc.id | gov | fccid.ai |
| Grantee Code | XU8 |
| Product Code | TVIP322WI |
| Applicant Business | TRENDNET, Inc. 🇺🇸 |
| Related Domains |  trendnet.com |
| Equipment Class | IR Network Camera |
| Test Firm | SGS-CSTC Standards Technical Services Co.,Ltd. |
Operating Frequencies
| Frequency Range | Application Purpose | Final Action Date |
|---|---|---|
| 2412-2462 MHz | Original Equipment | 2015-10-22 |
Exhibits
| Document | Type | Available | File |
|---|---|---|---|
| User Manual | Users Manual | 2015-10-22 | PDF 1.3 MB |
| Internal Photos | Internal Photos | 2015-10-22 | PDF 3.6 MB |
| External Photos | External Photos | 2015-10-22 | PDF 1.3 MB |
| Label Location | ID Label/Location Info | 2015-10-22 | PDF 124.3 KB |

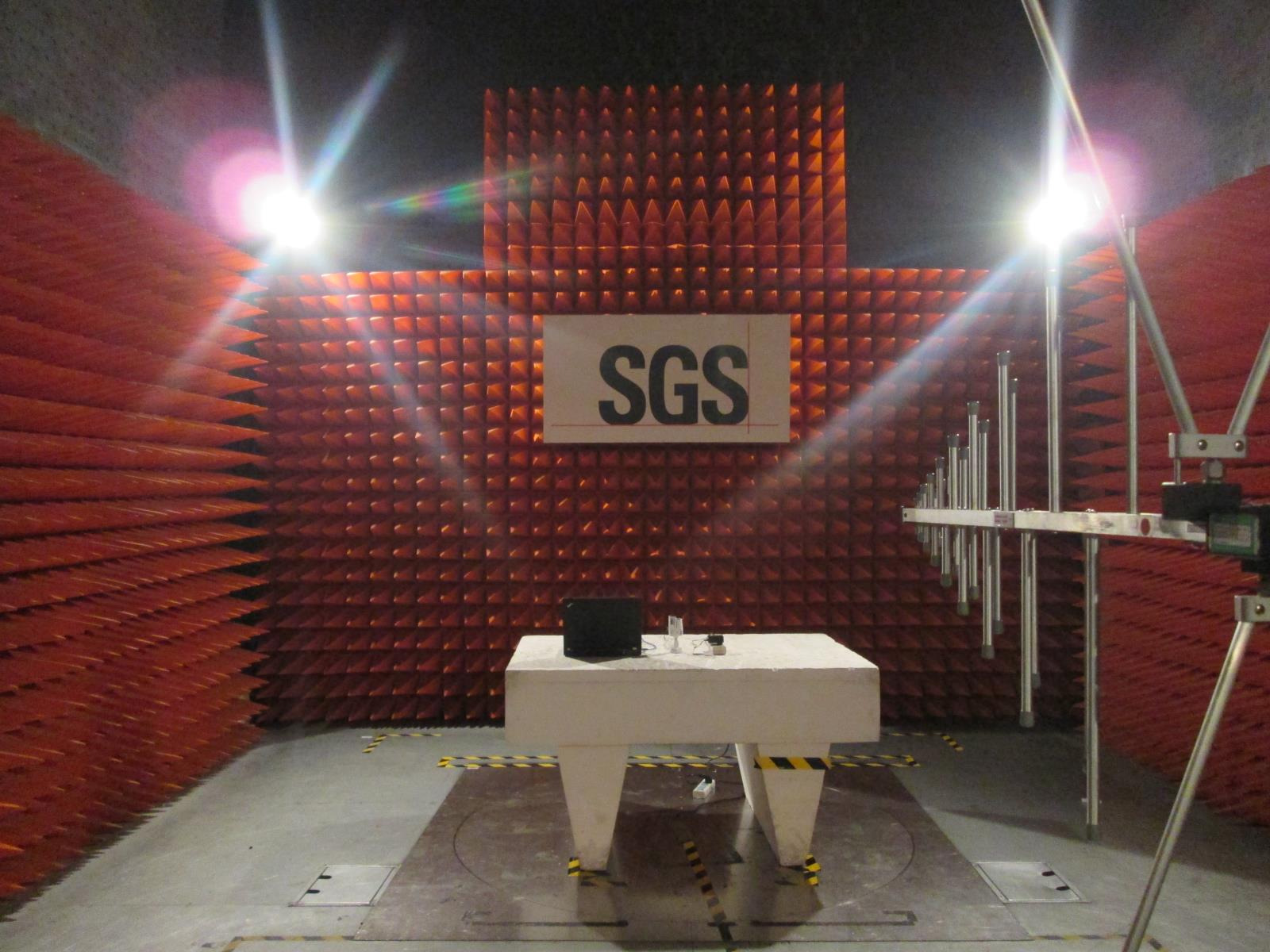

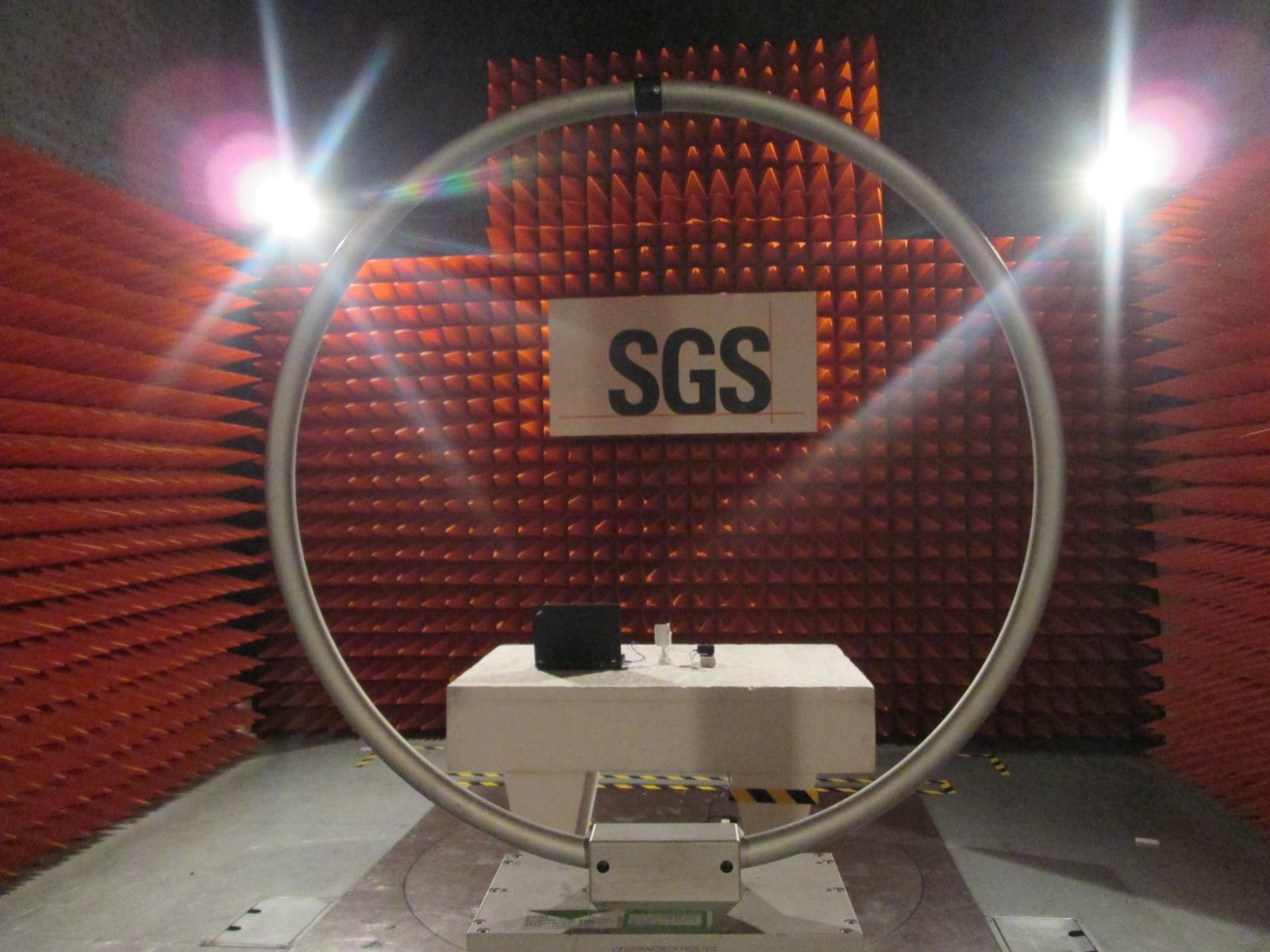

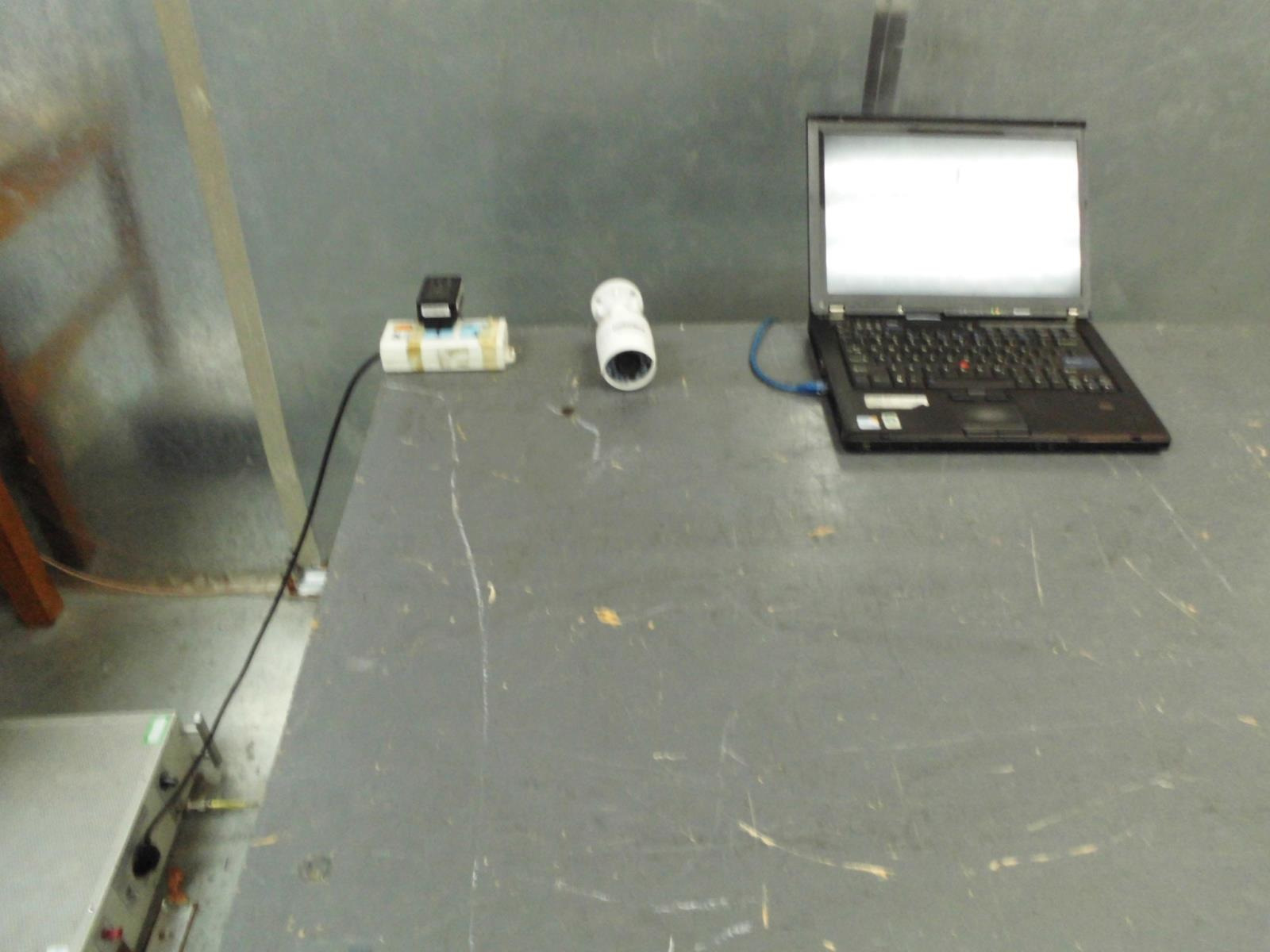

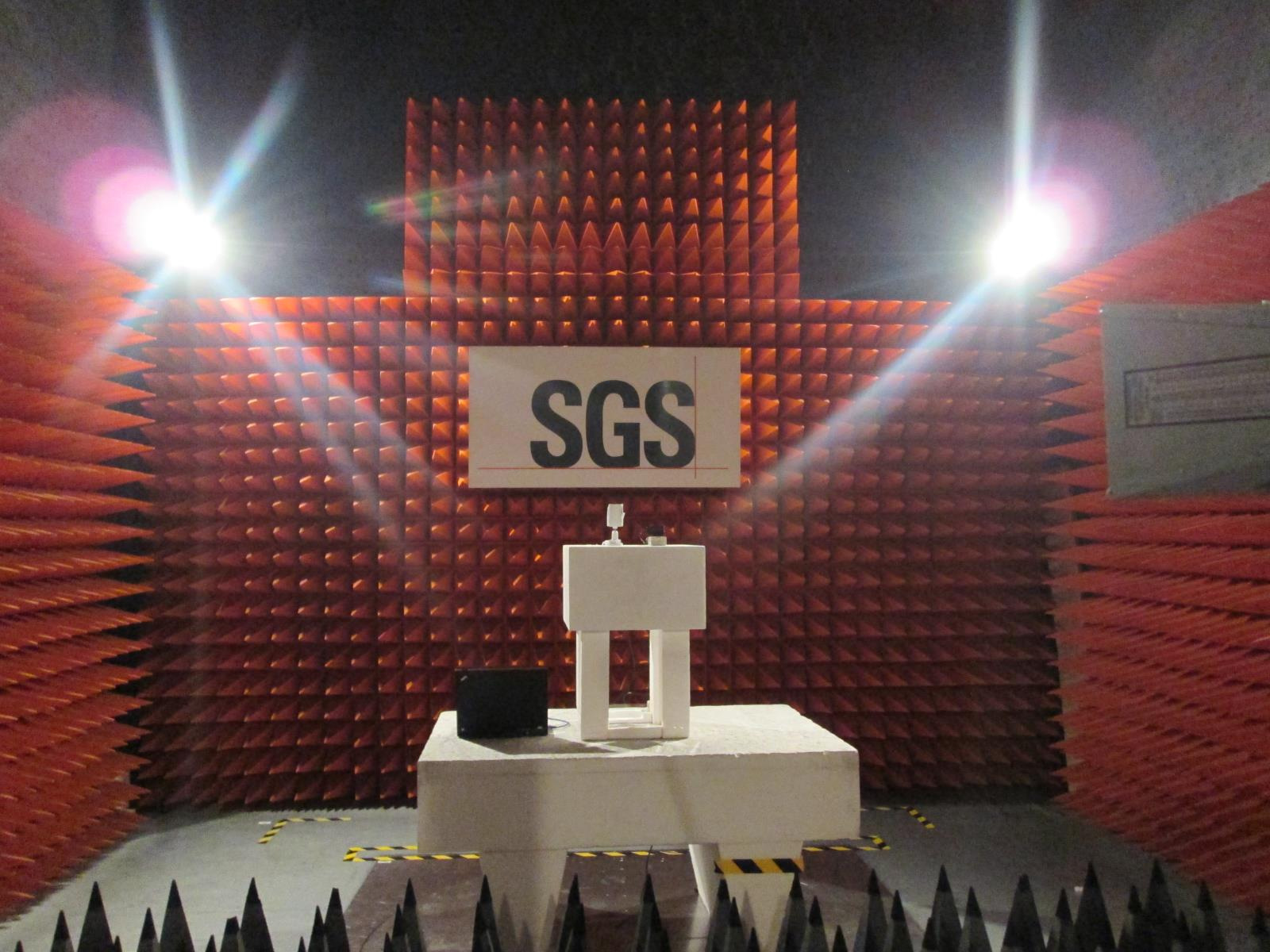

| Test Setup Photos | Test Setup Photos | 2015-10-22 | PDF 1.4 MB |
| Test Report | Test Report | 2015-10-22 | PDF 2.2 MB |
| Confidentiality Request Letter | Cover Letter(s) | 2015-10-22 | PDF 32.1 KB |
| POA | Cover Letter(s) | 2015-10-22 | PDF 40.3 KB |
| RF Exposure | RF Exposure Info | 2015-10-22 | PDF 142.9 KB |
| Block Diagram for Module Metadata only | Block Diagram | PDF 91 KB | |
| Block Diagram for Unit Metadata only | Block Diagram | PDF 18.6 KB | |
| Schematics for Module Metadata only | Schematics | PDF 36.7 KB | |
| Schematics for Unit Metadata only | Schematics | PDF 161.6 KB | |
| Operational Description Metadata only | Operational Description | PDF 8.1 KB |
Application Information
| Application ID | x2Peyje/xifGJ12Zh56s6Q== |
|---|---|
| Final Action Date | 2015-10-22 |
| Application Purpose | Original Equipment |
| Applicant FRN | 0019225663 |
| Model | TVIP322WI |
| Frequency Range | 2412-2462 MHz |
| Equipment Class | DTS - Digital Transmission System |
| Device Description | IR Network Camera |
| Responsible Party | Wen Tsai, Sr. Product Manager, w.tsai@trendnet.com , 310-961-5500 |
| Test Firm | Zenger Zhang, SGS-CSTC Standards Technical Services Co.,Ltd., zenger.zhang@sgs.com  , 86(0)2161915654 |
| TCB Email | TEI@TIMCOENGR.COM  |
| TCB Scope | A4: UNII devices & low power transmitters using spread spectrum techniques |
| Short-Term Confidentiality | No |
| Long-Term Confidentiality | Yes |
| Grant Deferral | No |
| Modular Equipment | Does not apply |
| Composite Device | No |
| Composite Part | No |
| Cognitive Radio | No |
| Authorization Waiver | No |
| Authorization Waiver Approved | No |
| Section 5301 Certification | Yes |
| Related OET Knowledge DataBase Inquiry | No |
| Grant Comments | Power listed is conducted. The antenna(s) used for this transmitter must be installed to provide a separation distance of at least 20 cm from all persons and must not transmit simultaneously with any other antenna or transmitter. Users and installers must be provided with antenna installation instructions and transmitter operating conditions for satisfying RF exposure compliance.This device has a 20 MHz and 40 MHz bandwidth mode. |
Applications
| Application ID | Date | Purpose |
|---|---|---|
| x2Peyje/xifGJ12Zh56s6Q== | 2015-10-22 | Original Equipment |
Equipment Authorization
| Frequency | Output | Rules |
|---|---|---|
| 2412-2462 MHz | 0.0753000 | 15C |
Grants
TCB Grant - Application x2Peyje/xifGJ12Zh56s6Q==
| TCB | GRANT OF EQUIPMENT AUTHORIZATION |
TCB |
| Certification | ||
| Issued Under the Authority of the | ||
| Federal Communications Commission | ||
| By: |
|
Timco Engineering, Inc. 849 NW State Road 45 Newberry, FL 32669 |
Date of Grant: 10/22/2015 Application Dated: 10/22/2015 |
| TRENDNET, Inc. |
| 20675 Manhattan Place |
| Torrance, CA 90501 |
| Attention: Wen Tsai , Sr. Product Manager |
| NOT TRANSFERABLE |
| EQUIPMENT AUTHORIZATION is hereby issued to the named GRANTEE, and is VALID ONLY for the equipment identified hereon for use under the Commission's Rules and Regulations listed below. |
| FCC IDENTIFIER: | XU8TVIP322WI |
| Name of Grantee: | TRENDNET, Inc. |
| Equipment Class: | Digital Transmission System |
| Notes: | IR Network Camera |
| Grant Notes | FCC Rule Parts | Frequency Range (MHZ) | Output Watts | Frequency Tolerance | Emission Designator |
| 15C | 2412.0 - 2462.0 | 0.0753 |
| Power listed is conducted. The antenna(s) used for this transmitter must be installed to provide a separation distance of at least 20 cm from all persons and must not transmit simultaneously with any other antenna or transmitter. Users and installers must be provided with antenna installation instructions and transmitter operating conditions for satisfying RF exposure compliance.This device has a 20 MHz and 40 MHz bandwidth mode. |
EAS Grant - Application x2Peyje/xifGJ12Zh56s6Q==
| COPY |
FEDERAL COMMUNICATIONS COMMISSION WASHINGTON, D.C. 20554 GRANT OF EQUIPMENT AUTHORIZATION |
COPY |
| Certification |
|
TRENDNET, Inc. 20675 Manhattan Place P.O. Box , Torrance, CA 90501 United States |
Date of Grant: 10/22/2015 Application Dated: 10/22/2015 |
| Attention: Wen Tsai , Sr. Product Manager |
| NOT TRANSFERABLE |
| EQUIPMENT AUTHORIZATION is hereby issued to the named GRANTEE, and is VALID ONLY for the equipment identified hereon for use under the Commission's Rules and Regulations listed below. |
| FCC IDENTIFIER: | XU8TVIP322WI |
| Name of Grantee: | TRENDNET, Inc. |
| Equipment Class: | Digital Transmission System |
| Notes: | IR Network Camera |
| Modular Type: | Does not apply |
| Grant Notes | FCC Rule Parts | Frequency Range (MHZ) | Output Watts | Frequency Tolerance | Emission Designator |
| 15C | 2412.0 - 2462.0 | 0.0753 |
| Power listed is conducted. The antenna(s) used for this transmitter must be installed to provide a separation distance of at least 20 cm from all persons and must not transmit simultaneously with any other antenna or transmitter. Users and installers must be provided with antenna installation instructions and transmitter operating conditions for satisfying RF exposure compliance.This device has a 20 MHz and 40 MHz bandwidth mode. |
