X431TOOLC AUTOMOTIVE DIAGNOSIS COMPUTER... - FCC ID XUJX431TOOLC

FCC ID XUJX431TOOLC

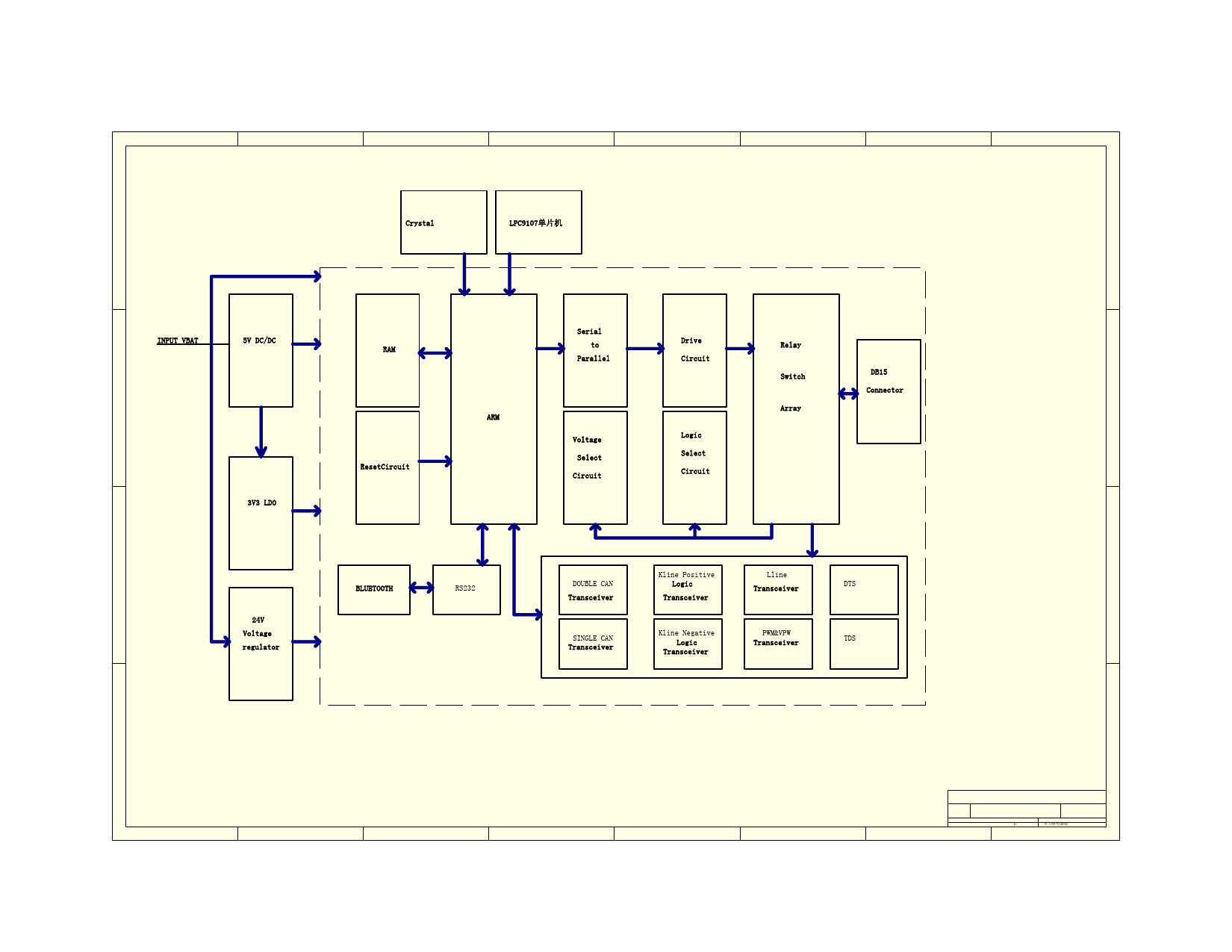

Block Diagram

AUTOMOTIVE DIAGNOSIS COMPUTER

by Launch Tech Co., Ltd.

Document preview loads when visible.

Document Details

FCC IDXUJX431TOOLC
Document ID1534114
Document TypeBlock Diagram
DescriptionBlock Diagram
Document TitleProtel Schematic
ApplicantLaunch Tech Co., Ltd.
Equipment ClassAUTOMOTIVE DIAGNOSIS COMPUTER
Product CodeX431TOOLC
Application IDyBTrNHo1dEufYGkIH7NOOQ==
Application PurposeOriginal Equipment
Application Date2011-08-31
Frequency Range2402-2480 MHz
FRN0019193101
Test FirmBontek Compliance Testing Laboratory Ltd
Certified ByTony Wu
Short-Term ConfidentialityNo
Long-Term ConfidentialityNo
Grant DeferralNo
Modular EquipmentDoes not apply
Composite DeviceNo
Composite PartNo
Submitted2011-08-31
Available2011-08-31
Created2011-07-22
Modified2011-08-18
Pages1
File TypeAdobe Acrobat PDF
File Size189996
File SHA-256024565cca58d4def06b3a2ca0da86361c7a8eef5a535f8dac6a900d128babd1f
PDF Metadata Authornanrongxiu
PDF Metadata CreatorPScript5.dll Version 5.2
PDF Metadata ProducerAcrobat Distiller 7.0 (Windows)
FCC.gov SourcesFCC.gov 1534114
