FCC ID XVGW420
802.11ac Wi-Fi USB STB Adapter
by Amino Communications Ltd
Grantee Code: XVG Product Code: W420
Latest application date: 2015-09-17
Device Images
FCC ID Device Details
Operating Frequencies
| Frequency Range | Application Purpose | Final Action Date |
|---|---|---|
| 5180-5240 MHz | Original Equipment | 2015-09-17 |
| 2412-2462 MHz | Original Equipment | 2015-09-17 |
Exhibits
| Document | Type | Available | File |
|---|---|---|---|
| Users Manual | Users Manual | 2015-09-17 | PDF 260.3 KB |
| Internal Photos | Internal Photos | 2015-09-17 | PDF 537.5 KB |
| External Photos | External Photos | 2015-09-17 | PDF 239.7 KB |
| Label and Label Location | ID Label/Location Info | 2015-09-17 | PDF 122.5 KB |

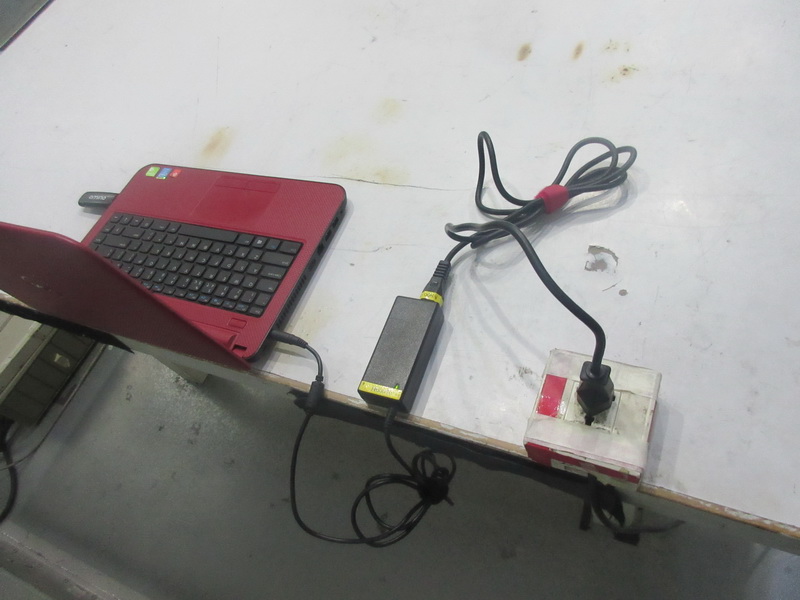

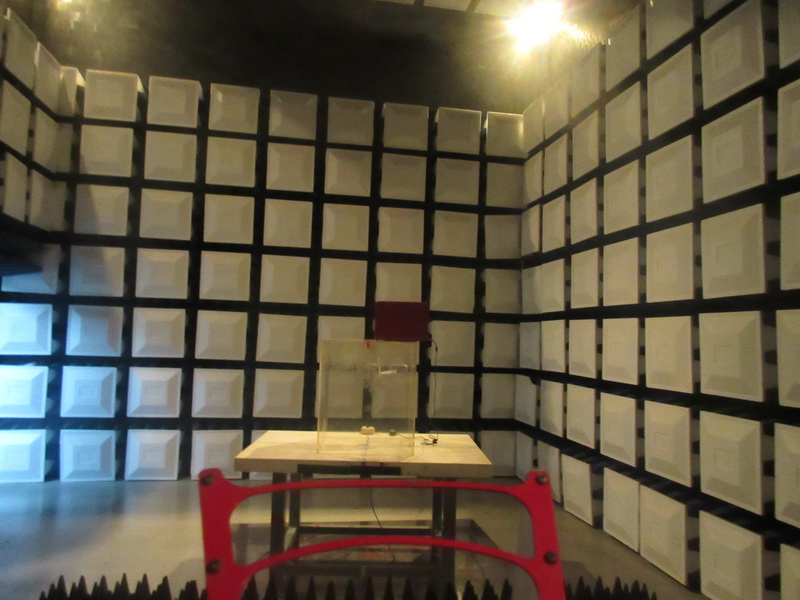

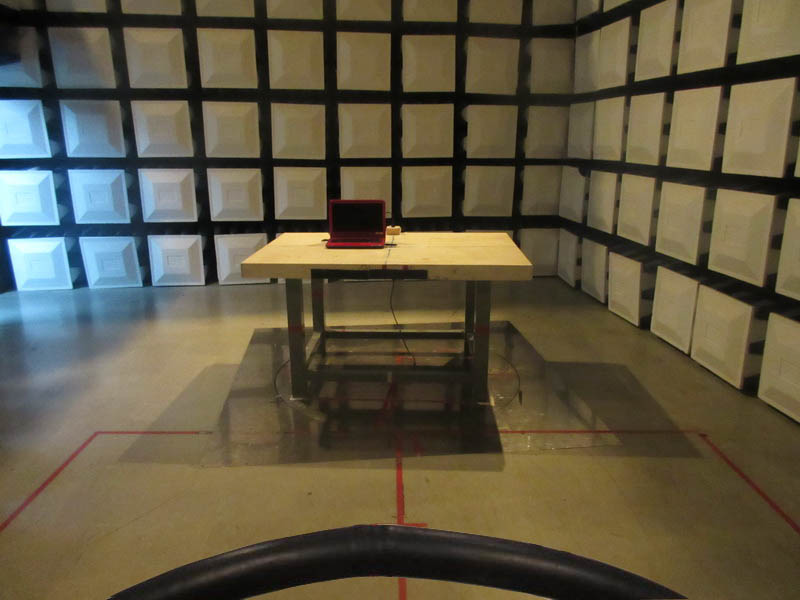

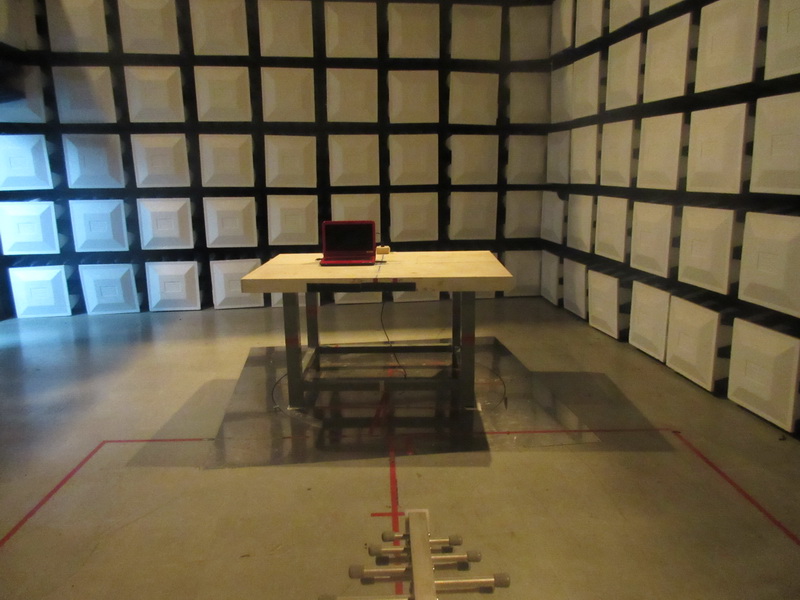

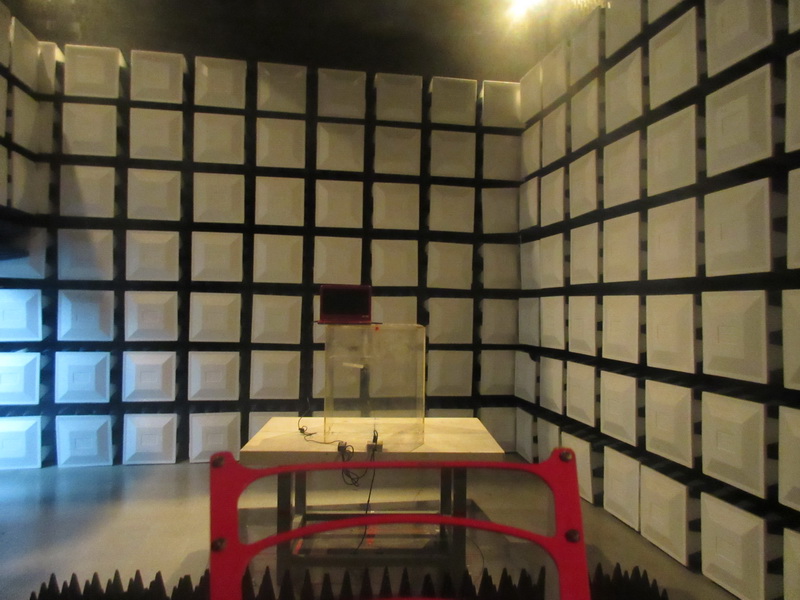

| Test Setup Photos | Test Setup Photos | 2015-09-17 | PDF 1 MB |
| Test Report | Test Report | 2015-09-17 | PDF 5.3 MB |
| Test Report | Test Report | 2015-09-17 | PDF 2.4 MB |
| Cover Letters | Cover Letter(s) | 2015-09-17 | PDF 1.4 MB |
| RF Exposure info | RF Exposure Info | 2015-09-17 | PDF 53.1 KB |
| Tune up info | Parts List/Tune Up Info | 2015-09-17 | PDF 11.5 KB |
| Block Diagram Metadata only | Block Diagram | PDF 62.9 KB | |
| Schematics Metadata only | Schematics | PDF 266.9 KB | |
| Operational Description Metadata only | Operational Description | PDF 3.1 MB |
Application Information
| Application ID | l/zi0SvG3RydqPCKuF3gRA== |
|---|---|
| Final Action Date | 2015-09-17 |
| Application Purpose | Original Equipment |
| Applicant FRN | 0019231885 |
| Model | W420 |
| Frequency Range | 5180-5240 MHz |
| Equipment Class | NII - Unlicensed National Information Infrastructure TX |
| Device Description | 802.11ac Wi-Fi USB STB Adapter |
| Responsible Party | Teddy Lam, teddy.lam@aminocom.com  , +44-1223-598197 |
| Test Firm | Daisy Dai, BTL Inc., daisy.dai@btl.org.cn  , 008676983183000 |
| TCB Email | Stuart.Beck@nemko.com  |
| TCB Scope | A4: UNII devices & low power transmitters using spread spectrum techniques |
| Short-Term Confidentiality | No |
| Long-Term Confidentiality | Yes |
| Grant Deferral | No |
| Modular Equipment | Does not apply |
| Composite Device | Yes |
| Composite Part | No |
| Cognitive Radio | No |
| Authorization Waiver | No |
| Authorization Waiver Approved | No |
| Section 5301 Certification | Yes |
| Related OET Knowledge DataBase Inquiry | No |
| Grant Comments | Power listed is aggregated conducted output power. This device has a 20 MHz, 40 MHz and 80MHz bandwidth mode. End-users and installers must be provided with antenna installation and transmitter operating conditions for satisfying RF exposure compliance. |
Applications
| Application ID | Date | Purpose |
|---|---|---|
| l/zi0SvG3RydqPCKuF3gRA== | 2015-09-17 | Original Equipment |
| Tbmu6xbs1fvHNJ87D8BXvA== | 2015-09-17 | Original Equipment |
Equipment Authorization
Grants
TCB Grant - Application Tbmu6xbs1fvHNJ87D8BXvA==
| TCB | GRANT OF EQUIPMENT AUTHORIZATION |
TCB |
| Certification | ||
| Issued Under the Authority of the | ||
| Federal Communications Commission | ||
| By: |
|
Nemko North America, INC. 303 River Road Ottawa, Ontario, K1V 1H2 Canada |
Date of Grant: 09/17/2015 Application Dated: 09/17/2015 |
| Amino Communications Ltd |
| 1010 Cambourne Business Park |
| CambourneP.O. Box CB23 6DP, |
| Cambridge, United Kingdom |
| Attention: Teddy Lam |
| NOT TRANSFERABLE |
| EQUIPMENT AUTHORIZATION is hereby issued to the named GRANTEE, and is VALID ONLY for the equipment identified hereon for use under the Commission's Rules and Regulations listed below. |
| FCC IDENTIFIER: | XVGW420 |
| Name of Grantee: | Amino Communications Ltd |
| Equipment Class: | Digital Transmission System |
| Notes: | 802.11ac Wi-Fi USB STB Adapter |
| Grant Notes | FCC Rule Parts | Frequency Range (MHZ) | Output Watts | Frequency Tolerance | Emission Designator |
| MO | 15C | 2412.0 - 2462.0 | 0.0092 | ||
| 15C | 2412.0 - 2462.0 | 0.0095 |
| Power listed is conducted for 802.11b/g and aggregated conducted output power for 802.11n mode . This device has a 20 MHz and 40 MHz bandwidth mode. End-users and installers must be provided with antenna installation and transmitter operating conditions for satisfying RF exposure compliance. |
| MO: | This Multiple Input Multiple Output (MIMO) device was evaluated for multiple transmitted signals as indicated in the filing. |
EAS Grant - Application Tbmu6xbs1fvHNJ87D8BXvA==
| COPY |
FEDERAL COMMUNICATIONS COMMISSION WASHINGTON, D.C. 20554 GRANT OF EQUIPMENT AUTHORIZATION |
COPY |
| Certification |
|
Amino Communications Ltd 1010 Cambourne Business Park CambourneP.O. Box CB23 6DP, Cambridge, United Kingdom |
Date of Grant: 09/17/2015 Application Dated: 09/17/2015 |
| Attention: Teddy Lam |
| NOT TRANSFERABLE |
| EQUIPMENT AUTHORIZATION is hereby issued to the named GRANTEE, and is VALID ONLY for the equipment identified hereon for use under the Commission's Rules and Regulations listed below. |
| FCC IDENTIFIER: | XVGW420 |
| Name of Grantee: | Amino Communications Ltd |
| Equipment Class: | Digital Transmission System |
| Notes: | 802.11ac Wi-Fi USB STB Adapter |
| Modular Type: | Does not apply |
| Grant Notes | FCC Rule Parts | Frequency Range (MHZ) | Output Watts | Frequency Tolerance | Emission Designator |
| MO | 15C | 2412.0 - 2462.0 | 0.0092 | ||
| 15C | 2412.0 - 2462.0 | 0.0095 |
| Power listed is conducted for 802.11b/g and aggregated conducted output power for 802.11n mode . This device has a 20 MHz and 40 MHz bandwidth mode. End-users and installers must be provided with antenna installation and transmitter operating conditions for satisfying RF exposure compliance. |
| MO: | This Multiple Input Multiple Output (MIMO) device was evaluated for multiple transmitted signals as indicated in the filing. |
| Mail To: | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| TCB | GRANT OF EQUIPMENT AUTHORIZATION |
TCB |
| Certification | ||
| Issued Under the Authority of the | ||
| Federal Communications Commission | ||
| By: |
|
Nemko North America, INC. 303 River Road Ottawa, Ontario, K1V 1H2 Canada |
Date of Grant: 09/17/2015 Application Dated: 09/17/2015 |
| Amino Communications Ltd |
| 1010 Cambourne Business Park |
| CambourneP.O. Box CB23 6DP, |
| Cambridge, United Kingdom |
| Attention: Teddy Lam |
| NOT TRANSFERABLE |
| EQUIPMENT AUTHORIZATION is hereby issued to the named GRANTEE, and is VALID ONLY for the equipment identified hereon for use under the Commission's Rules and Regulations listed below. |
| FCC IDENTIFIER: | XVGW420 |
| Name of Grantee: | Amino Communications Ltd |
| Equipment Class: | Unlicensed National Information Infrastructure TX |
| Notes: | 802.11ac Wi-Fi USB STB Adapter |
| Grant Notes | FCC Rule Parts | Frequency Range (MHZ) | Output Watts | Frequency Tolerance | Emission Designator |
| 38 MO | 15E | 5745.0 - 5825.0 | 0.006 | ||
| 38 MO | 15E | 5180.0 - 5240.0 | 0.006 |
| Power listed is aggregated conducted output power. This device has a 20 MHz, 40 MHz and 80MHz bandwidth mode. End-users and installers must be provided with antenna installation and transmitter operating conditions for satisfying RF exposure compliance. |
| 38: | This device has shown compliance, in all grant-listed U-NII sub-bands, with the new rules for U-NII devices adopted under Docket No. 13-49 and may be marketed, manufactured or imported after the June 1, 2016 transition deadline. |
| MO: | This Multiple Input Multiple Output (MIMO) device was evaluated for multiple transmitted signals as indicated in the filing. |
EAS Grant - Application l/zi0SvG3RydqPCKuF3gRA==
| COPY |
FEDERAL COMMUNICATIONS COMMISSION WASHINGTON, D.C. 20554 GRANT OF EQUIPMENT AUTHORIZATION |
COPY |
| Certification |
|
Amino Communications Ltd 1010 Cambourne Business Park CambourneP.O. Box CB23 6DP, Cambridge, United Kingdom |
Date of Grant: 09/17/2015 Application Dated: 09/17/2015 |
| Attention: Teddy Lam |
| NOT TRANSFERABLE |
| EQUIPMENT AUTHORIZATION is hereby issued to the named GRANTEE, and is VALID ONLY for the equipment identified hereon for use under the Commission's Rules and Regulations listed below. |
| FCC IDENTIFIER: | XVGW420 |
| Name of Grantee: | Amino Communications Ltd |
| Equipment Class: | Unlicensed National Information Infrastructure TX |
| Notes: | 802.11ac Wi-Fi USB STB Adapter |
| Modular Type: | Does not apply |
| Grant Notes | FCC Rule Parts | Frequency Range (MHZ) | Output Watts | Frequency Tolerance | Emission Designator |
| 38 MO | 15E | 5745.0 - 5825.0 | 0.006 | ||
| 38 MO | 15E | 5180.0 - 5240.0 | 0.006 |
| Power listed is aggregated conducted output power. This device has a 20 MHz, 40 MHz and 80MHz bandwidth mode. End-users and installers must be provided with antenna installation and transmitter operating conditions for satisfying RF exposure compliance. |
| 38: | This device has shown compliance, in all grant-listed U-NII sub-bands, with the new rules for U-NII devices adopted under Docket No. 13-49 and may be marketed, manufactured or imported after the June 1, 2016 transition deadline. |
| MO: | This Multiple Input Multiple Output (MIMO) device was evaluated for multiple transmitted signals as indicated in the filing. |
| Mail To: |
